Midea 48K-Btu 15.2 SEER2 Central Coil Mini Split Heat Pump (-13Β°F) E-Star: 10 EER/9 HSPF (R454B)

Free Shipping
In Stock D5CURAH48AAK/Coil

New Midea 48000 Btu Central Coil Heat Pump AC System Included in Package: (1) One Indoor Coil with Thermostat and PCB (1) One Heat Pump Outdoor Unit ( -13F / -13F ) Brochure See Related Items Below For More Accessories INDOOR KEY FEATURES Installation Flexibility A built-in secondary drain allows the unit to be mounted vertically (up flow or down flow) or horizontally (left or right), enabling multi-position installation. All three sizes are capable of operating as traditional central ducted...

Your price

Buy more, pay less

from each
1 × =
Description

Midea Central Coil Heat Pump AC

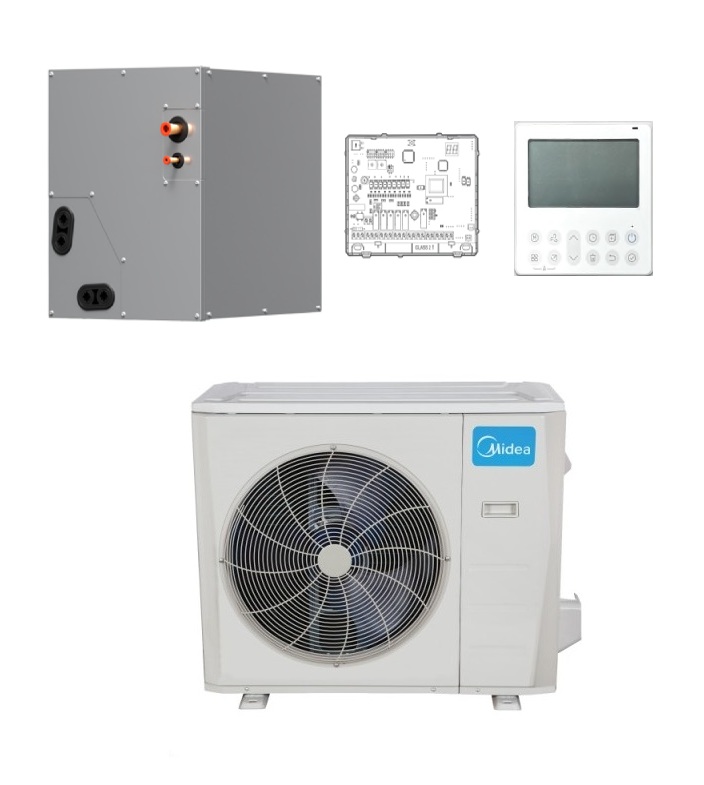

*Included in Package:
*(1) One Coil with Wired Thermostat & PCB
*(1) One Heat Pump Outdoor Unit (-13F/-13F)

  • INDOOR STANDARD FEATURES
    • Coil packging includes Interface & Wired Controlled
    • Factory installed leak detection system
    • Wired Controlled has built-in Wifi, with Dual Fuel Mode
    • Conventional Lineset
    • Coil Interface powered via Furnace
    • Constant Air Motor/Blower
    • Anti-corrosive fin coating
    • Multi-poise : Horizontal Right/Left, Veritical Up/Down.
  • OUTDOOR STANDARD FEATURES
    • Variable Speed (Inverter)
    • Factory installed Base Pan Heater
    • Factory installed Crankcase Heater
    • Built-In 24V Interface
    • Conventional Lineset
    • Low Voltage Controls
    • Reverse Fan Operation
    • Condenser High Temp Protection
    • Quiet operation
    • Anti-corrosive fin coating

MX COIL AHRI (E-Star Cold) MX COIL NEEP
DX COIL AHRI (NO E-Star) DX COIL NEEP
  • Installation Flexibility
    A secondary drain allows the unit to be mounted vertically (up flow or down flow) or horizontally (left or right), enabling multi-position installation.
  • Key Features:
    • Will work with virtually any furnace (some restrictions may apply)
    • Wired controller & coil interface PCB come standard with the equipment.
    • Multi poise installation – Vertical – up flow & downflow, Horizontal – right & left.
    • Coil only works with R-454B refrigerant and has factory installed leak mitigation system.
    • The Wired Controller is programable and has built-in Wi-Fi.
    • New and improved coil interface, smaller in size, powered from 24V AC from the furnace, enables
    communication with outdoor unit (S1, S2) , wired controller ( Ha/ Hb), sensors on evaporator coil, and
    furnace.
  • Efficient Comfort
    As an alternate to gas furnaces, reduce the use of fossil fuels and experience cleaner energy and efficiency levels that meet many local and federal requirements.
  • CONTROLS: Factory installed 24V interface for third-party thermostat compatibility
  • Extra Low Temperature Heating
    For when its cold outside, down to -13° F, making this a primary heat source and eliminating the need for a backup heat source.
  • Maximum Heating Capacity (Btu/h) @5℉: 40,000
     Rated Heating Capacity (Btu/h) @47℉⁺: 47,000
     Rated Cooling Capacity (Btu/h) @95℉⁺: 45,000
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.

(1) Factory Warranty

Register Online: CLICK HERE
(*Terms apply)


Installation Instructions
⇓ SEE RELATED ITEMS BELOW FOR MORE ACCESSORIES ⇓




Specification
Title Midea 48K-Btu 15.2 SEER2 Central Coil Mini Split Heat Pump (-13Β°F) E-Star: 10 EER/9 HSPF (R454B)
Brand Carrier Midea North America
Category 48000 Btu | 4 Ton | 1800-2000 Sq Ft
SKU D5CURAH48AAK/Coil
Condition new
UPC 810150840612
MPN D5CURAH48AAK
