Introducing the Midea 36,000 BTU Mini Split, your go-to solution for efficient heating and cooling! This Ducted Heat Pump System is designed to tackle even the coldest temperatures, with a remarkable performance down to -13 F. With an impressive 18.8 SEER2 rating, this Energy Efficient Mini Split not only keeps your space comfortable but also helps you save on energy bills. The Inverter Mini Split System features a high-static design, perfect for those tricky installations in attics, crawl spaces, or closets where traditional units just won't fit. Plus, it uses eco-friendly R454B refrigerant, making it a smart choice for the environment. Enjoy the convenience of a remote control and a wired thermostat with built-in WiFi, ensuring you have complete control over your comfort. Upgrade to the Midea 36K BTU Split System today and experience the perfect blend of performance and sustainability!

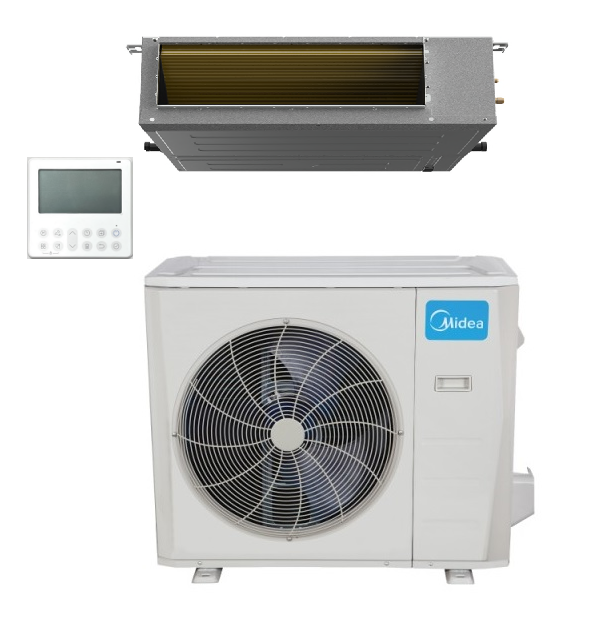

The Midea D5CLRAH36AAK/D5FLDAH36XHK is a 36,000 BTU high-static slim ducted system built for attic, crawl space, or closet installations where a full-size air handler won't fit. The "HS" (High-Static) indoor unit allows longer duct runs and greater static pressure than standard slim duct units — making this suitable for light commercial buildings, larger conditioned spaces, or homes with complex duct layouts.
Included in the package: one hi-static slim duct indoor unit with condensate pump and wired thermostat with WiFi built in — plus one outdoor heat pump unit rated for heating down to -13°F. R454B refrigerant pre-charged. Along with freon sensor and gold coils.
| Specification | Value |
|---|---|
| BTU Capacity | 36,000 BTU (3 Ton) |
| System Type | Hi-Static Slim Duct + Outdoor Heat Pump |
| Model Numbers | D5FLDAH36XHK (Indoor) / D5CLRAH36AAK (Outdoor) |
| SEER2 Rating | 18.8 |
| EER2 Rating | 10.2 |
| HSPF2 Rating | 10.2 |
| Refrigerant | R454B |
| Voltage | 230V / Single Phase |
| Min. Heating Temp | -13°F (-25°C) |
| Indoor Unit Type | Hi-Static Slim Ducted (Attic / Crawl / Closet) |
| Condensate Pump | Included |
| WiFi Control | Yes — Wired Thermostat with WiFi Included |
| Refrigerant Leak Detection | Yes (Freon Sensor) |
| Gold Coil Coating | Yes |
| Vertical Installation | Available on 36K, 48K, 60K models; check model specs |
| Warranty | 7-Year Compressor / 5-Year Parts |
| AHRI Certified | Yes |
Higher static pressure capability allows this unit to push conditioned air through longer, more complex duct systems than standard slim duct units — ideal for commercial or large residential layouts.
Built-in condensate pump eliminates the need to gravity-drain condensate — critical for attic and closet installations where gravity drainage isn't practical.
Control options included: a programmable wired thermostat with built-in WiFi for remote monitoring and scheduling.
Hydrophilic gold-coated condenser fins resist corrosion in coastal, high-humidity, and salt-air environments — extending outdoor unit service life.
Detects refrigerant leaks and alerts with an error code before the system loses significant charge — reduces service call costs and prevents compressor damage from low refrigerant.
Lower GWP than R410a, compliant with current EPA and DOE standards. Pre-charged from the factory — no field modification required for installation.
No weight limits. No dimensional charges. Free freight delivery on every order.
Every unit ships with the full manufacturer warranty — no third-party coverage needed.
We cut out the middleman. Compare us against any competitor — we back our pricing.
Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.
Call or email our team. We answer specs, sizing, and installation questions — not scripts.
Pay by check or bank transfer and get 3% back — one of the easiest savings available.
All Midea systems ship with the full factory warranty. Register your system at https://www.mideaductlesswarranty.com to activate coverage.
Standard slim duct units are designed for shorter duct runs with lower static pressure requirements — typically under 0.4 in. W.G. Hi-Static (HS) units support higher external static pressure, allowing longer duct runs, more supply registers, and more complex duct layouts. For attic or crawl space installations serving multiple rooms via a single unit, the HS model is the correct choice.
Yes — the included condensate pump can lift condensate water vertically and horizontally, eliminating the need for gravity drainage. This makes the unit practical for attic, crawl space, or interior closet installations where a drain line to a floor drain or exterior isn't feasible.
Yes — this is a light commercial/multi-room ducted unit. Supply ducts from the indoor unit can be distributed to multiple supply registers. Duct sizing should follow ACCA Manual D guidelines for the system's 36K BTU output. A licensed HVAC contractor can design the duct distribution for your specific layout.
Yes — the D5FLDAH36XHK is rated for light commercial use. At 3 tons with high static pressure capability, it can serve office spaces, retail units, or commercial buildings up to approximately 1,500–1,800 sq ft depending on construction and climate zone.
Midea provides a 7-year compressor and 5-year parts factory warranty on the complete system. Registration at https://www.mideaductlesswarranty.com is required to activate full coverage. The wired thermostat is covered under separate terms per the thermostat manual.

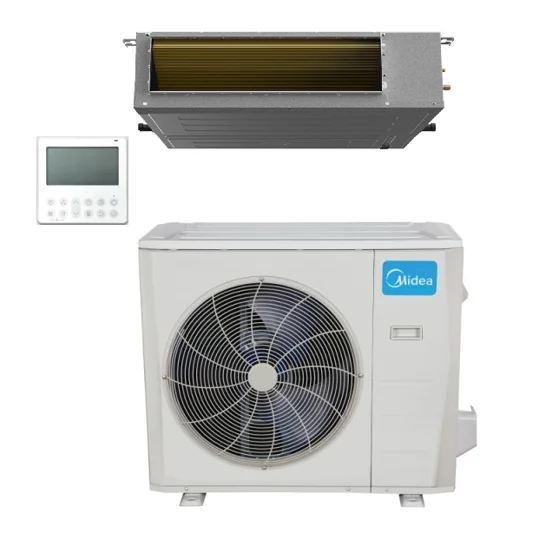

| Title | Midea 36K-Btu 18.8 SEER2 Slim-Ducted (HI) Mini Split Heat Pump (-13Β°F) 10.2 EER/10.2 HSPF (R454B) |
|---|---|
| Brand | Carrier Midea North America |
| Category | 36000 Btu | 3 Ton | 1500-1800 Sq Ft |
| SKU | D5CLRAH36AAK/D5FLDAH36XHK |
| Condition | new |
| UPC | 810150842364 |
| MPN | D5CLRAH36AAK |
