C&H 36K-Btu 15.8 SEER2 Central-AHU Mini Split Heat Pump (-13Β°F) 9 EER/9.3 HSPF (R454B)

Free Shipping
In Stock CH-RS36LCAHU/CH-R36LCU-230VO

New R454B C&H 36000 Btu Central Ducted 2 Ton Hyper Heat Pump AC System Included in Package: (1) One Indoor Air Handler (Thermostat Included) (1) One Hyper Heat Pump Outdoor Unit ( -13F /-13 F ) Factory Warranty : 7 Yr Compressor /5 Yr Parts Copper & Indoor to Outdoor Wire can be added via the dropdown boxes above Wire option above is communication from indoor to outdoor, you will need field supplied wires also. See Related Items Below For More Accessories INDOOR KEY FEATURES Installation Flexibility A built-in sec...

Your price

Buy more, pay less

from each
1 × =
Description

C&H 36K Central Air Handler Heat Pump (-13°F) R454B

Cooper & Hunter — Central AHU Heat Pump | 36,000 BTU

15.8 SEER2 9.3 HSPF2 -13°F Min Heat R454B 9 EER2 Multi-Position Thermostat Included

C&H 36K-Btu 15.8 SEER2 Central-AHU Mini Split Heat Pump (-13°F) | R454B

SKU: CH-RS36LCAHU / CH-R36LCU-230VO  |  Voltage: 208/230V Single Phase

This Cooper & Hunter 36,000 BTU Central Air Handler system bridges the gap between traditional ducted HVAC and ductless mini splits. It connects to your existing duct network while delivering inverter-driven efficiency that fixed-speed central systems can't match. Operating down to -13°F using R454B refrigerant, it replaces or supplements gas furnaces in homes and light commercial applications where existing ductwork is already in place.

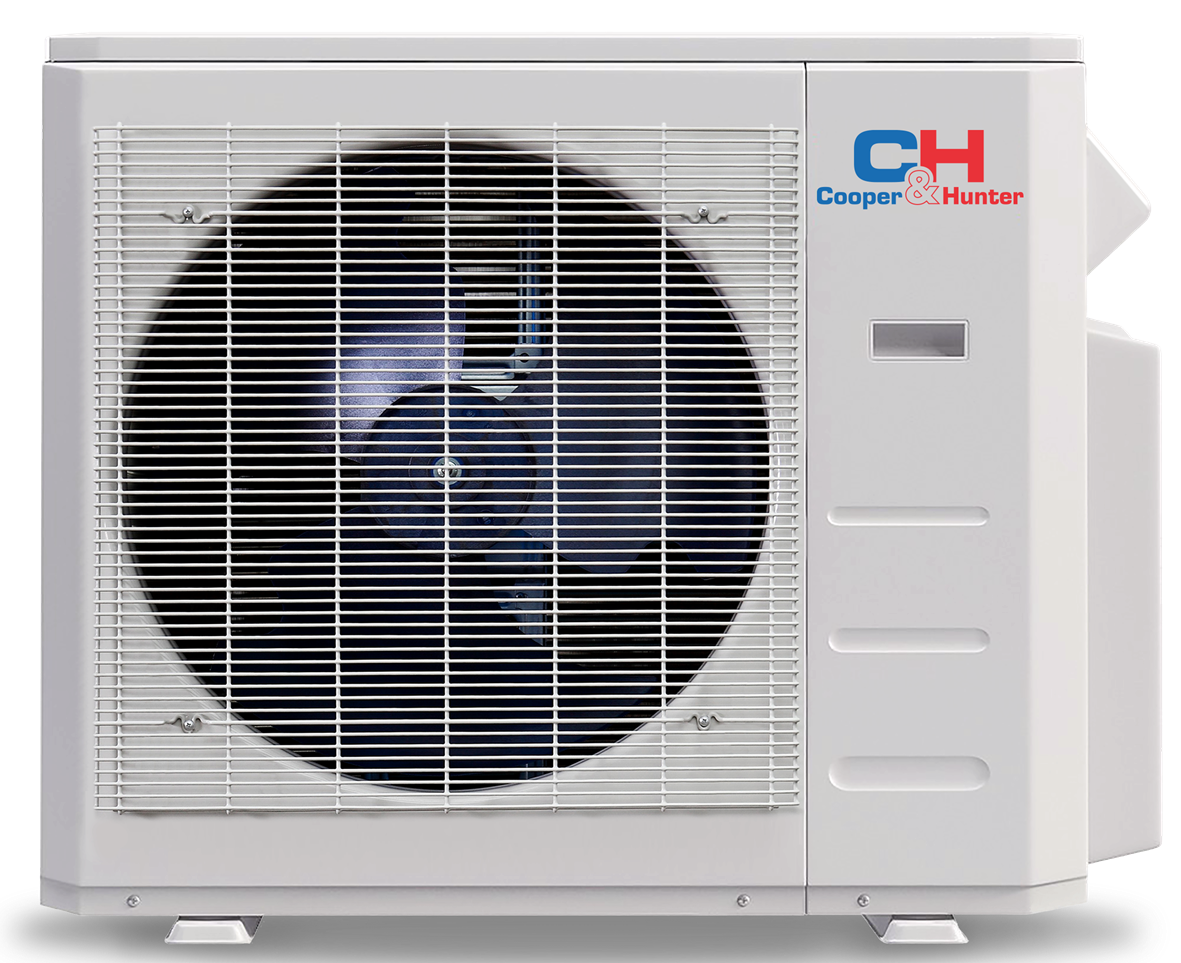

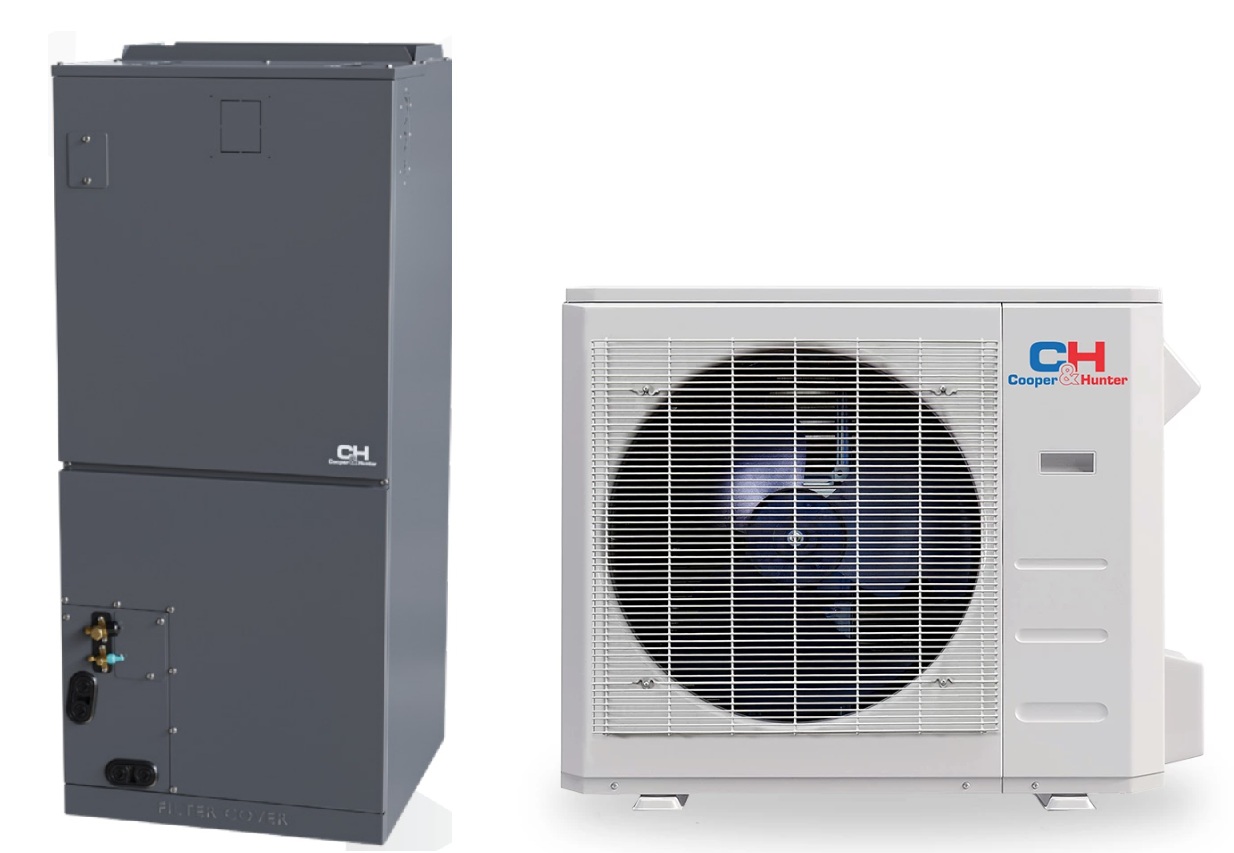

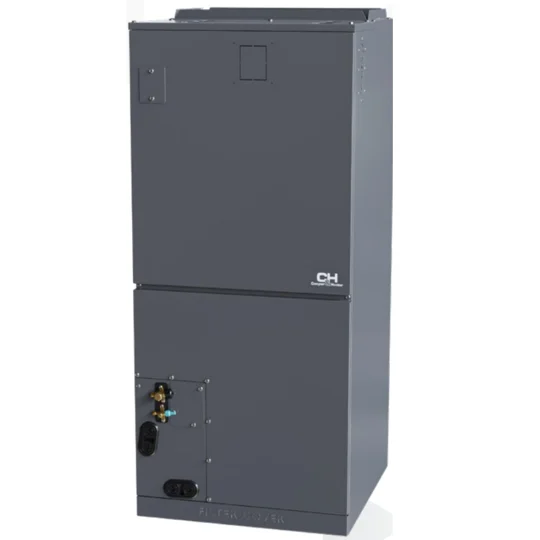

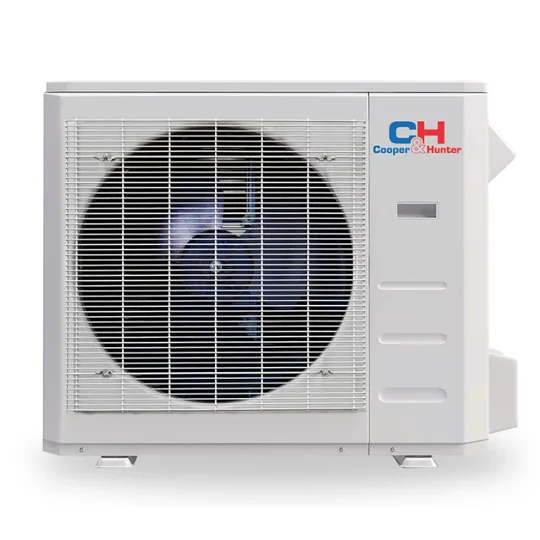

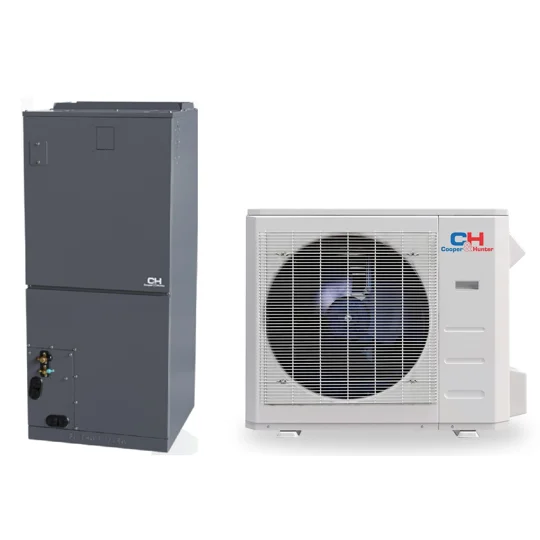

The package includes (1) True Multi-Position Air Handler (horizontal or vertical upward/downward installation) with factory-installed wired thermostat with WiFi, plus (1) outdoor heat pump unit rated to -13°F. The indoor AHU integrates with most 24V thermostat systems. Optional electric heat strip (5kW–20kW) available separately for backup or supplemental heat. 7-Year Compressor / 5-Year Parts factory warranty included.

Efficiency & Performance Stats

15.8SEER2
9EER2
9.3HSPF2
R454BRefrigerant
-13°FMin Heat Temp
7 YrCompressor Warranty
Product Specifications
BTU Capacity 36,000 BTU Cooling & Heating
SEER2 15.8
EER2 9
HSPF2 9.3
Refrigerant R454B
Voltage 208/230V, 1-Phase, 60Hz
Min Operating Temp (Heating) -13°F
Cooling Range -13°F ~ 122°F
Heating Range -13°F ~ 75°F
Indoor Unit Type Central Air Handler (AHU) — Multi-Position
Installation Positions Horizontal / Vertical Up / Vertical Down
Air Leakage <2%

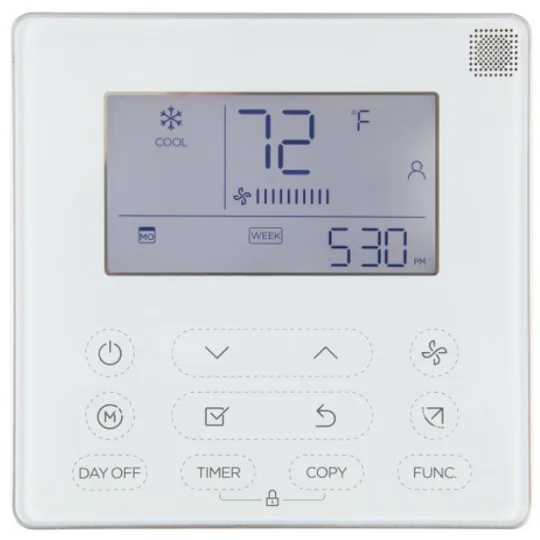

Thermostat Wired Thermostat with WiFi (included)
24V Interface Compatible with most 24V thermostats
Warranty 7 Yr Compressor / 5 Yr Parts (registration required)

⚑ Product Features

True Multi-Position Installation

Install the AHU horizontally or vertically (upward or downward) — built-in secondary drain accommodates all orientations without modification.

-13°F Heat Pump Operation

Delivers reliable heat down to -13°F. Replaces gas furnace as a primary heat source and meets local and federal efficiency requirements for clean energy.

Anti-Cold Air Function

The fan waits until the coil reaches operating temperature before blowing — no uncomfortable cold drafts when the system starts up in heating mode.

Intelligent Air Flow Control

Three-speed fan motor with auto or manual static pressure adjustment — tunable for your specific duct layout without additional balancing hardware.

Fast Cool/Heat Function

When the room is more than 10°F off setpoint, the unit runs at 100% capacity to hit the target quickly, then drops back to efficient modulation.

Fossil Fuel Alternative

As a heat pump, this system reduces dependence on gas or oil heating. High-efficiency operation meets many local energy codes requiring non-fossil heat sources.

β˜… Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Trust badges

βœ… Factory Warranty Coverage

7 YrCompressor
5 YrParts

Registration required at cooperandhunter.us/warranty to activate full warranty coverage.

❓ Frequently Asked Questions

Q: Does this unit work with my existing ductwork?
A: Yes. The air handler connects to any standard duct system. An HVAC technician will confirm static pressure requirements and duct sizing to ensure proper airflow.
Q: Is the wired thermostat included compatible with smart home systems?
A: The included 120N wired thermostat has WiFi built in and works with the C&H app. For third-party integration, the 24V interface is compatible with most standard thermostat wiring.
Q: Can I add electric heat strip backup heat?
A: Yes — optional electric heat strips (5kW, 10kW, 15kW, 20kW) are available separately and install directly into the air handler for supplemental or backup heating.
Q: Does this replace my gas furnace entirely?
A: In most U.S. climates, yes. The -13°F heating capability handles demand without backup except in extreme conditions. Your HVAC contractor can size the unit for your specific heat load.
Q: What positions can the air handler be installed in?
A: The unit supports horizontal and vertical (upward or downward) installation. The built-in secondary drain accommodates all positions — confirm clearances with your installer before ordering.

Specification
Title C&H 36K-Btu 15.8 SEER2 Central-AHU Mini Split Heat Pump (-13Β°F) 9 EER/9.3 HSPF (R454B)
Brand Cooper and Hunter
Category 36000 Btu | 3 Ton | 1500-1800 Sq Ft
SKU CH-RS36LCAHU/CH-R36LCU-230VO
Condition new
MPN CH-RS36LCAHU
Reviews 1
5.0 1 review

The Upgrade My Home Needed!

Randy Dickens · October 2025

My home is roughly 1,600 square feet, and the 36K BTU capacity was the perfect fit based on the sizing chart. I was specifically looking for a central ducted solution to utilize my existing ductwork while gaining the incredible efficiency of a hyper-heat mini-split. The fact that this unit is rated to provide powerful heating down to -13Β°F meant I could finally rely on a heat pump as my primary heat source, even during the coldest winter months, instead of burning expensive fossil fuels. My installer noted how flexible the air handler was, accommodating my specific up-flow configuration thanks to the True Multi-Position design. I was thrilled to find that a dedicated wired thermostat with Wi-Fi is included, making it super easy to control the temperature and set schedules from my phoneβ€”a feature I use daily.
