C&H 48K-Btu 17.1 SEER2 (Cassette) Mini Split Heat Pump (-13°F) 10 EER/9.8 HSPF (R454B)

Free Shipping
In Stock CH-R48LCU-230VO

This Cooper Hunter 48000 btu Ceiling Cassette SEER2 Mini Split Package Includes: (1) Light Commercial Grade Indoor Unit Light Commercial Indoor Features : ' Wired Control & IR Sensor Wired Control has 7 Day Programable Settings. IR sensor for Wifi Controllers. Higher Pipe Limits Pipes can now go from 33'-98' high (depending on the model) Gold Coated Coils Reduces Mold, Viruses and Bacteria. NO Condensate Pump Included One (1) Wired Programmable Thermostat & Remote (1) Light Commercial Outdoor Unit: Features Inc...

Your price

Buy more, pay less

from each
1 × =
Description

C&H 48K Ceiling Cassette Heat Pump (-13°F) R454B

Cooper & Hunter — Light Commercial Ceiling Cassette | 48,000 BTU

17.1 SEER2 9.8 HSPF2 -13°F Min Heat R454B 10 EER2 4-Way Airflow WiFi Included

C&H 48K-Btu 17.1 SEER2 (Cassette) Mini Split Heat Pump (-13°F) | R454B

SKU: CH-R48LCU-230VO / CH-RSH48LCCT  |  Voltage: 208/230V Single Phase

The Cooper & Hunter 48,000 BTU ceiling cassette is the high-capacity choice for large commercial spaces, open-plan offices, retail floors, and big-box rooms that need powerful, uniform comfort. Rated at 17.1 SEER2 and operating in heating mode down to -13°F using R454B refrigerant, this unit handles serious BTU loads with inverter efficiency.

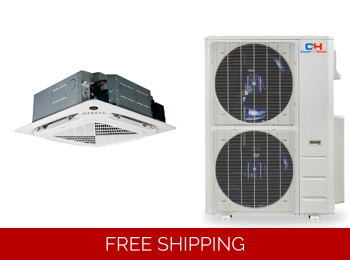

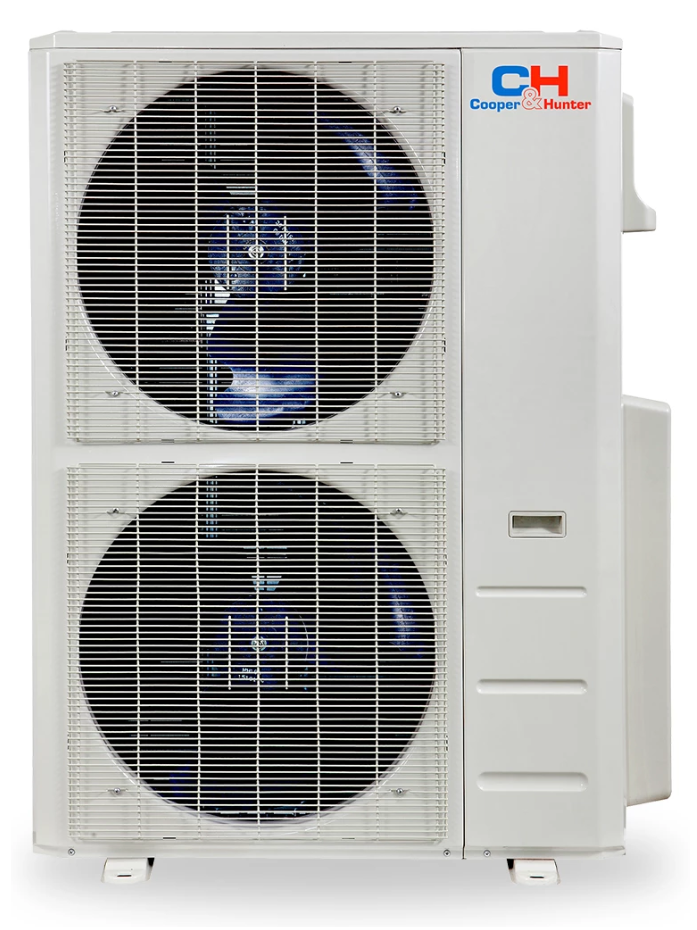

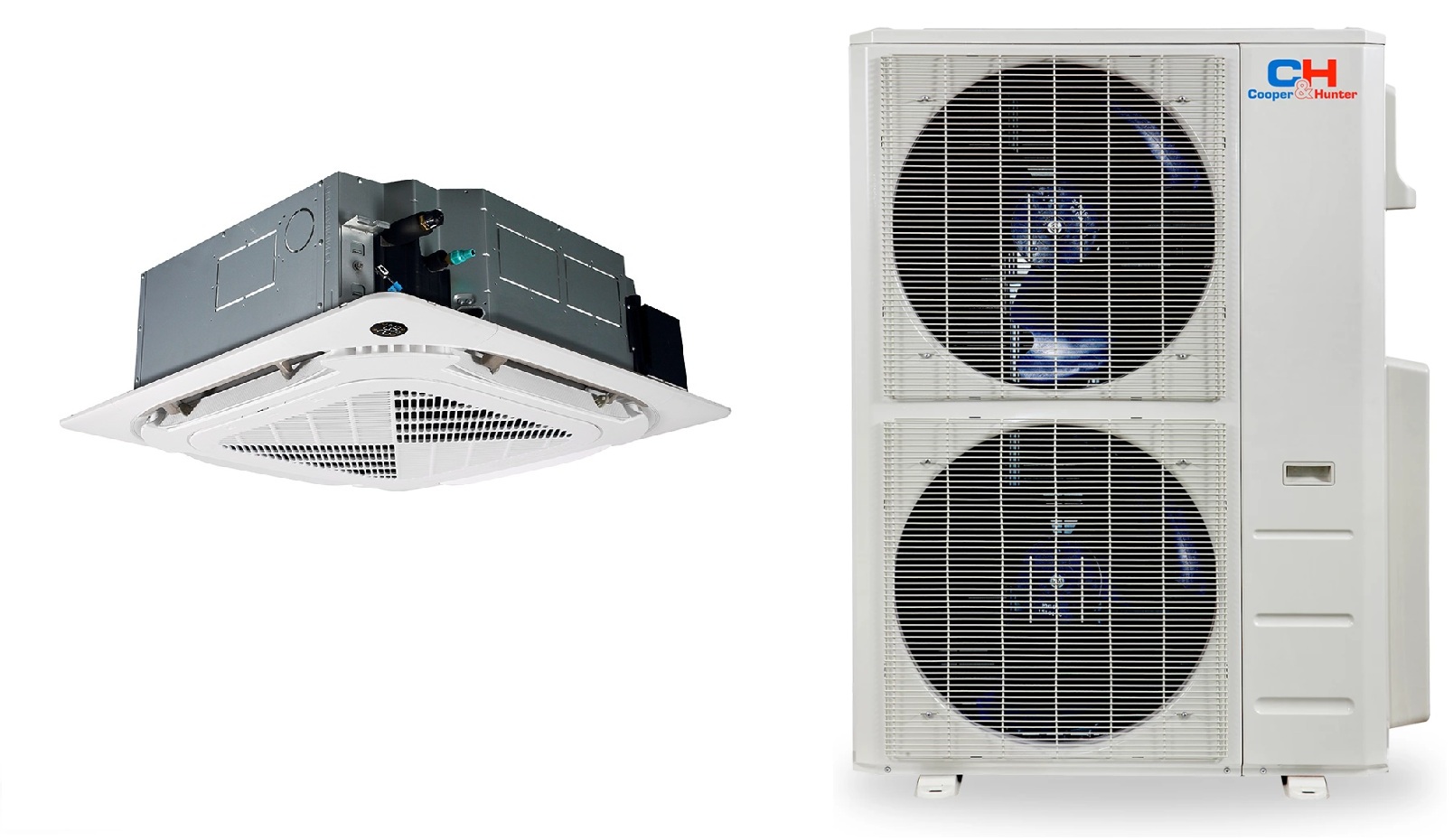

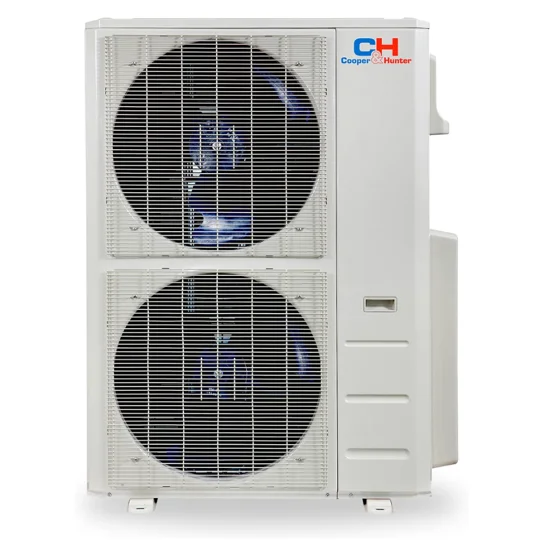

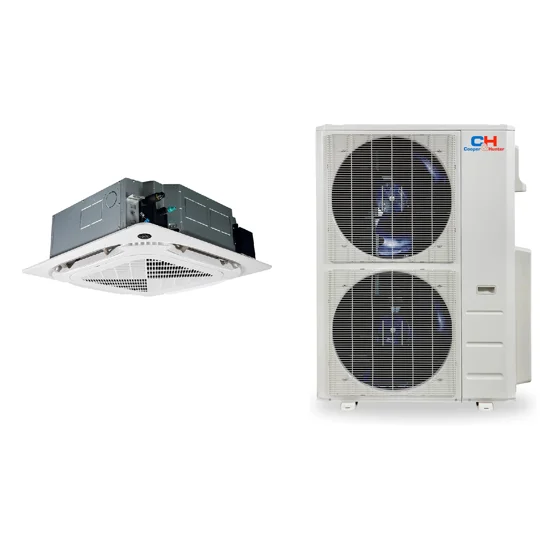

The package includes (1) 4-Way Ceiling Cassette indoor unit with grill, condensate pump, WiFi app, remote, and wired thermostat, plus (1) outdoor heat pump unit rated to -13°F. The cassette fits a standard commercial ceiling grid (33.07" × 33.07"), providing omni-directional airflow that eliminates dead zones across the entire conditioned area. 7-Year Compressor / 5-Year Parts factory warranty included.

Efficiency & Performance Stats

17.1SEER2
10EER2
9.8HSPF2
R454BRefrigerant
-13°FMin Heat Temp
7 YrCompressor Warranty
Product Specifications
BTU Capacity 48,000 BTU Cooling & Heating
SEER2 17.1
EER2 10
HSPF2 9.8
Refrigerant R454B
Voltage 208/230V, 1-Phase, 60Hz
Min Operating Temp (Heating) -13°F
Cooling Range -13°F ~ 122°F
Heating Range -13°F ~ 75°F
WiFi Built-in Smart Kit (C&H App)
Control Options Remote, Wired Thermostat, App
Condensate Pump Included
Warranty 7 Yr Compressor / 5 Yr Parts (registration required)

⚡ Product Features

4-Ton High-Capacity Coverage

48,000 BTU handles spaces up to approximately 2,200 sq ft, making it ideal for large open offices, showrooms, and commercial venues.

4-Way 360° Air Distribution

Omni-directional cassette airflow eliminates temperature stratification — every corner of the room stays at setpoint.

-13°F Cold Climate Heating

Reliable heat production at -13°F. No auxiliary backup required in most U.S. climates, drastically cutting winter operating costs.

R454B Low-GWP Refrigerant

Compliant with the latest EPA phasedown schedules. Lower environmental impact with no compromise on performance or efficiency.

WiFi + Wired Thermostat Included

Full control via C&H app, included wired thermostat (7-day programmable), and IR remote. Integrates with 24V building automation systems.

Gold Fin Anti-Corrosion Coils

Corrosion-resistant condenser fins extend the outdoor unit lifespan in coastal areas and environments with airborne particulates.

★ Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Trust badges

✅ Factory Warranty Coverage

7 YrCompressor
5 YrParts

Registration required at cooperandhunter.us/warranty to activate full warranty coverage.

❓ Frequently Asked Questions

Q: What ceiling grid size does the 48K cassette require?
A: The 48K model requires a 33.07" × 33.07" ceiling opening to fit a standard 2'×2' grid. Verify overhead clearance with your installer before ordering.
Q: Does this unit cool at the same capacity it heats?
A: Yes. The 48K rating applies to both cooling and heating output. At -13°F the output decreases somewhat, but sufficient capacity is maintained for primary heating.
Q: Is this unit Energy Star certified?
A: This model is not Energy Star certified, but still qualifies for many utility rebate programs based on SEER2 and HSPF2 ratings. Contact your utility for details.
Q: What is included in the package?
A: The package includes the 48K ceiling cassette indoor unit with grill, built-in condensate pump, WiFi smart kit, remote control, and wired thermostat — plus the outdoor heat pump unit. Lineset and electrical materials are sold separately.
Q: Can the system be controlled by a third-party thermostat?
A: Yes. The wired controller is compatible with most 24V thermostat interfaces, allowing integration with commercial building automation systems.

Specification
Title C&H 48K-Btu 17.1 SEER2 (Cassette) Mini Split Heat Pump (-13°F) 10 EER/9.8 HSPF (R454B)
Brand Cooper and Hunter
Category 48000 Btu | 4 Ton | 1800-2000 Sq Ft
SKU CH-R48LCU-230VO
Condition new
MPN CH-RH48LCCT
Reviews 2
5.0 2 reviews

It provides the heavy-duty cooling power

Gene Kelley · April 2026

Upgrading our pharmacy with the 48,000 BTU Ceiling Cassette has been a total game-changer for maintaining a stable, professional environment. Because the unit installs flush into our drop ceiling, we didn't have to sacrifice any valuable wall space needed for medication shelving or patient displays. Its 4-way airflow ensures consistent temperatures across the entire floor—crucial for both staff comfort and meeting strict storage requirements for room-temperature pharmaceuticals—while the whisper-quiet operation allows us to consult with patients without any intrusive background noise. Overall, it provides the heavy-duty cooling capacity required for a commercial space without the industrial eyesore of traditional ductwork.

Auditorium

Brian P. Grove · September 2025

We had the 48,000 BTU ceiling cassette installed in our university auditorium, and it turned out to be the perfect choice. The 4-way airflow covers the entire hall evenly—no more hot spots in the back or chilly zones near the stage. It runs quietly, which is a huge plus during lectures and performances, and the sleek cassette design blends right into the ceiling. Controlling it from the wall thermostat or phone app makes scheduling easy, so the room is always ready before events start. Installation took some planning with the ceiling grid, but once in place, the system has been rock-solid—efficient, powerful, and almost invisible. For a large space like this, it feels like the right mix of performance and discretion.

Customer Reviews

5.0 / 5 · 2 reviews
It provides the heavy-duty cooling power

Upgrading our pharmacy with the 48,000 BTU Ceiling Cassette has been a total game-changer for maintaining a stable, professional environment. Because the unit installs flush into our drop ceiling, we didn't have to sacrifice any valuable wall space needed for medication shelving or patient displays. Its 4-way airflow ensures consistent temperatures across the entire floor—crucial for both staff comfort and meeting strict storage requirements for room-temperature pharmaceuticals—while the whisper-quiet operation allows us to consult with patients without any intrusive background noise. Overall, it provides the heavy-duty cooling capacity required for a commercial space without the industrial eyesore of traditional ductwork.

Gene Kelley · 2026-04-02
Auditorium

We had the 48,000 BTU ceiling cassette installed in our university auditorium, and it turned out to be the perfect choice. The 4-way airflow covers the entire hall evenly—no more hot spots in the back or chilly zones near the stage. It runs quietly, which is a huge plus during lectures and performances, and the sleek cassette design blends right into the ceiling. Controlling it from the wall thermostat or phone app makes scheduling easy, so the room is always ready before events start. Installation took some planning with the ceiling grid, but once in place, the system has been rock-solid—efficient, powerful, and almost invisible. For a large space like this, it feels like the right mix of performance and discretion.

Brian P. Grove · 2025-09-09
