C&H 48K-Btu 17 SEER2 Central Mini Split H-Heat Pump (-22Β°F) 10 EER/10.2 HSPF (R454B)

Free Shipping
In Stock CH-RS48LCAHU/CH-RHP48LCU-230VO

New R454B C&H 48000 Btu Central Ducted Hyper Heat Pump AC System Included in Package: (1) One Indoor Air Handler (Thermostat Included) (1) One Hyper Heat Pump Outdoor Unit ( -22F /-22 F ) Factory Warranty : 7 Yr Compressor /5 Yr Parts Copper & Indoor to Outdoor Wire can be added via the dropdown boxes above Wire option above is communication from indoor to outdoor, you will need field supplied wires also. See Related Items Below For More Accessories INDOOR KEY FEATURES Installation Flexibility A built-in sec...

Your price

Buy more, pay less

from each
1 × =
Description

C&H 48K BTU 17 SEER2 Central AHU Hyper Heat Pump (-22°F)
Cooper & Hunter | R454B | Hyper Heat

C&H 48K BTU 17 SEER2 Central AHU Hyper Heat Pump (-22°F)

48,000 BTU17 SEER210.2 HSPF2-22°F Min HeatR454B

Central Ducted Hyper Heat Pump — Full-Building Coverage Down to -22°F

R454B Refrigerant Hyper Heat -22°F 17 SEER2 230V

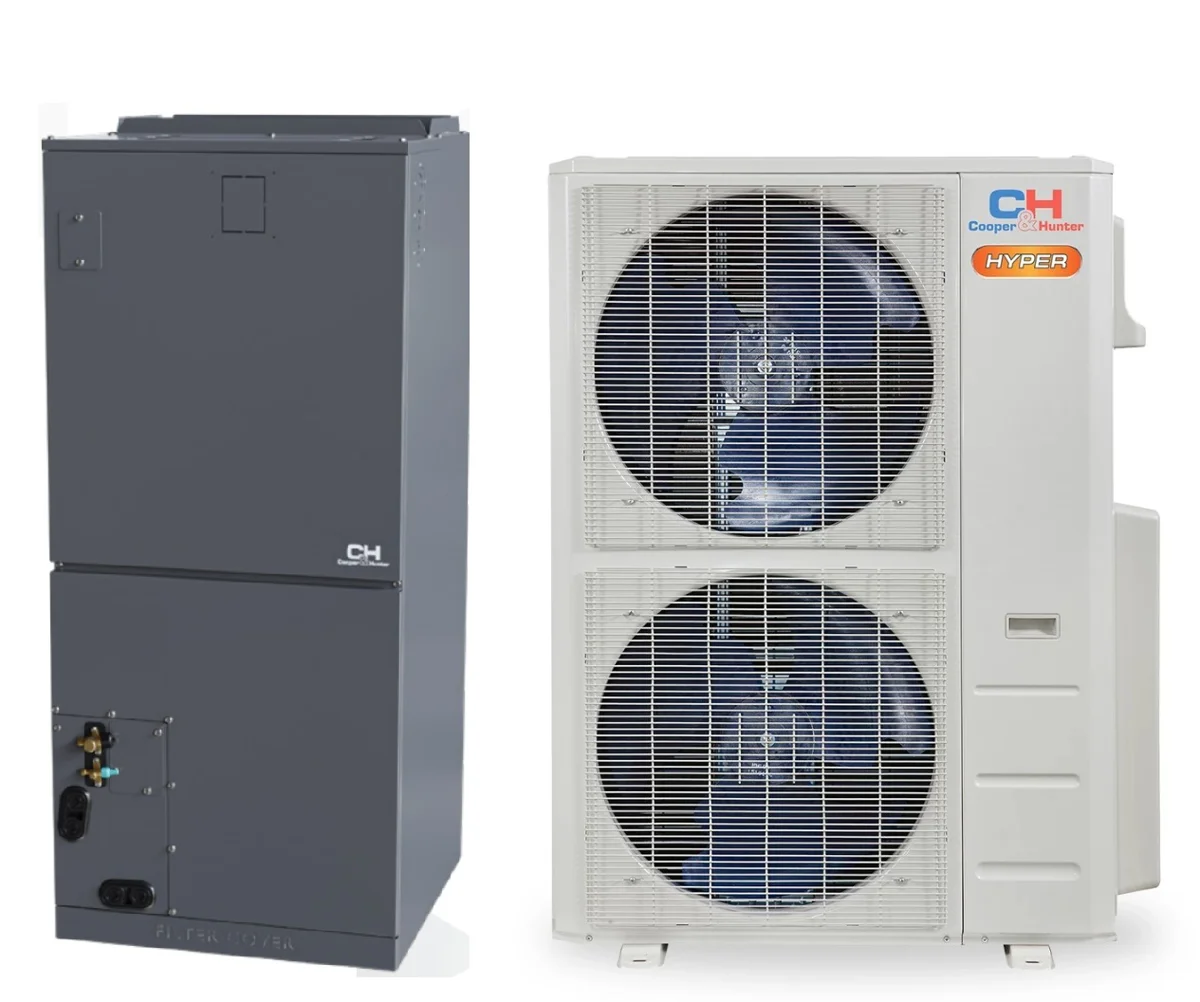

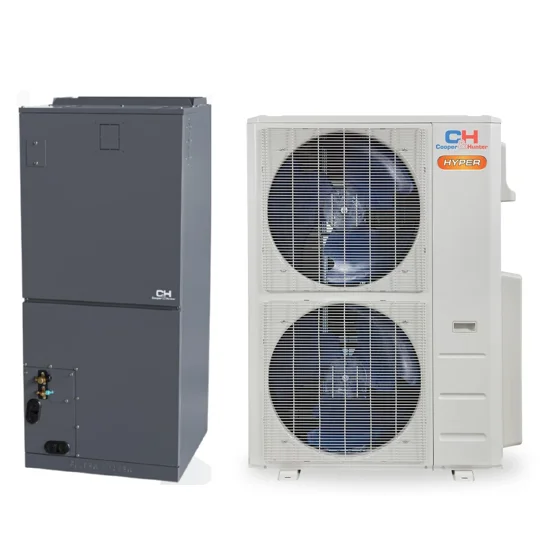

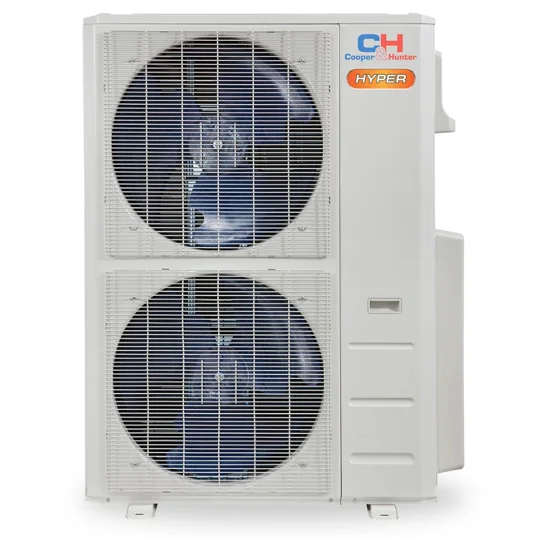

The C&H mini split is a 48,000 BTU central air handler system built for whole-home comfort. The R454B hyper heat pump outdoor unit delivers reliable heating down to -22°F — no backup heat source required in most climates. Paired with the RS-AHU indoor air handler, it replaces traditional central forced-air systems with inverter-driven efficiency at a fraction of the operating cost.

Included in the package: one indoor air handler with wired thermostat and WiFi control, and one outdoor hyper heat pump unit. Optional electric heater kits (5–20kW) are available as add-ons for supplemental heat in extreme conditions. Built-in refrigerant leak detection, fast cool/heat function, and TU1 oxygen-free copper tubes make this a high-reliability system for contractors and homeowners alike.

⚑ Efficiency & Performance

17
SEER2
10
EER2
10.2
HSPF2
-22°F
Min Heat Temp
R454B
Refrigerant
7 Yr
Compressor Warranty
Specification Value
BTU Capacity 48,000 BTU (4 Ton)
System Type Central Air Handler (AHU) + Outdoor Hyper Heat
Model Numbers CH-RS48LCAHU (Indoor) / CH-RHP48LCU-230VO (Outdoor)
SEER2 Rating 17
EER2 Rating 10
HSPF2 Rating 10.2
Refrigerant R454B
Voltage 230V / Single Phase
Min. Heating Temp -22°F (-30°C)
Heating Range -22°F to 75°F ambient
Cooling Range -22°F to 122°F ambient
WiFi Control Yes — Wired Thermostat with WiFi Included
Refrigerant Leak Detection Yes (Error Code "EC")
Warranty 7-Year Compressor / 5-Year Parts
AHRI Certified View Certificate

β˜… Key Features

Hyper Heat Down to -22°F

Operates efficiently for heating in extreme cold — no backup heat source needed in most climates across the continental US.

Intelligent Air Flow

Three-speed fan motor adjusts static air pressure automatically or manually to match your duct layout and coverage needs.

Anti-Cold Air Function

Fan waits until the coil is warm before blowing — no cold drafts on startup, just consistent comfort from the first second.

Fast Cool/Heat Mode

When the setpoint differs from room temp by 10°F or more, the system runs at 100% capacity to reach target temperature faster.

TU1 Copper Tubes & Aluminum Coils

Oxygen-free copper at 99.97% purity paired with aluminum coils for superior conductivity, corrosion resistance, and long service life.

Optional Electric Heater Kit

Add a 5, 10, 15, or 20kW electric heater strip as an auxiliary heat source — available as an add-on in the dropdown above.

Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Mini Split Warehouse trust badges

πŸ”’ Factory Warranty Coverage

All Cooper & Hunter systems ship with the full factory warranty. Register your system at cooperandhunter.us/warranty to activate coverage.

7 Yr
Compressor
5 Yr
Parts

❓ Frequently Asked Questions

Does this system replace a traditional gas furnace?

Yes — the AHU uses ductwork just like a gas furnace, so it connects to your existing duct system. The hyper heat pump outdoor unit provides heating down to -22°F, eliminating the need for a gas furnace in most climates. For extreme cold or backup redundancy, you can add an optional electric heater kit (5–20kW) as a supplemental heat source.

What does the wired thermostat with WiFi do?

The included wired thermostat gives you programmable scheduling and remote access via smartphone. It also supports third-party thermostat compatibility through the factory-installed interface on the air handler, so you can integrate with Nest, Ecobee, or similar devices if preferred.

Is professional installation required?

Refrigerant line connections must be made by an EPA 608-certified technician. The electrical and ductwork connections are similar to a standard air handler install. Most licensed HVAC contractors can complete this job in a half-day.

What size space does 48,000 BTU cover?

A 48K BTU system is rated for approximately 1,800–2,000 square feet, depending on climate zone, insulation quality, ceiling height, and window area. In very cold northern climates or poorly insulated homes, oversizing slightly is common for heating-dominant applications.

How does R454B compare to R410a?

R454B is a lower-GWP refrigerant transitioning the industry away from R410a. It has similar performance characteristics, is non-ozone-depleting, and meets current EPA and DOE efficiency standards. New systems ship with R454B pre-charged — no field modification needed.

Specification
Title C&H 48K-Btu 17 SEER2 Central Mini Split H-Heat Pump (-22Β°F) 10 EER/10.2 HSPF (R454B)
Brand Cooper and Hunter
Category 48000 Btu | 4 Ton | 1800-2000 Sq Ft
SKU CH-RS48LCAHU/CH-RHP48LCU-230VO
Condition new
MPN CH-RS48LCAHU
Reviews 3
5.0 3 reviews

Perfect

Arthur Seward · November 2025

My home is now perfectly, quietly comfortable, year-round. This system is invisible comfort with blockbuster performance. Five stars for the best upgrade I’ve made all year.

First Week with the C&H 48,000 BTU

Sandra R. Morefield · August 2025

I purchased this system about a week ago, and so far, I’m really impressed with how quickly it made a difference in my home. The unit arrived in solid condition, and the installation went smoother than I expected for a system of this size. I liked that the air handler could be set up in multiple positionsβ€”it gave us some flexibility in the tight space where our old furnace used to be. From the first day, I could tell this wasn’t just another HVAC system. One thing that stood out this week is the peace of mind features. We had a short power outage, and the auto-restart worked exactly as promised, bringing everything back online without me needing to touch the controls.

Great Choice for a Large Space

Clarence Howell · September 2026

This unit surprised me in a good way. It has the kind of cooling power you notice immediately, but once it reaches the temperature, it becomes surprisingly unobtrusive. Everything feels more comfortable without the system constantly demanding attention. For the size and price, I think it was a very smart purchase.

Customer Reviews

5.0 / 5 · 3 reviews
Perfect

My home is now perfectly, quietly comfortable, year-round. This system is invisible comfort with blockbuster performance. Five stars for the best upgrade I’ve made all year.

Arthur Seward · 2025-11-07
First Week with the C&H 48,000 BTU

I purchased this system about a week ago, and so far, I’m really impressed with how quickly it made a difference in my home. The unit arrived in solid condition, and the installation went smoother than I expected for a system of this size. I liked that the air handler could be set up in multiple positionsβ€”it gave us some flexibility in the tight space where our old furnace used to be. From the first day, I could tell this wasn’t just another HVAC system. One thing that stood out this week is the peace of mind features. We had a short power outage, and the auto-restart worked exactly as promised, bringing everything back online without me needing to touch the controls.

Sandra R. Morefield · 2025-08-19
Great Choice for a Large Space

This unit surprised me in a good way. It has the kind of cooling power you notice immediately, but once it reaches the temperature, it becomes surprisingly unobtrusive. Everything feels more comfortable without the system constantly demanding attention. For the size and price, I think it was a very smart purchase.

Clarence Howell · 2026-09-03
