C&H 48K-Btu 17.1 SEER2 (HS-Slim Ducted) Mini Split Heat Pump (-13°F) 10 EER/9.8 HSPF (R454B)

Free Shipping
In Stock CH-R48LCU-230VO/CH-RS48LCDT-HS

This Cooper Hunter 48000 btu Slim Ducted SEER2 Mini Split Package Includes: (1) Light Commercial Grade Indoor Unit Light Commercial Indoor Features : ' Wired Control & IR Sensor Wired Control has 7 Day Programable Settings. IR sensor for Wifi Controllers. Higher Pipe Limits Pipes can now go from 33'-98' high (depending on the model) Gold Coated Coils Reduces Mold, Viruses and Bacteria. NO Condensate Pump Included One (1) Wired Programmable Thermostat & Remote (1) Light Commercial Outdoor Unit: Features Inc...

Your price

Buy more, pay less

from each
1 × =
Description

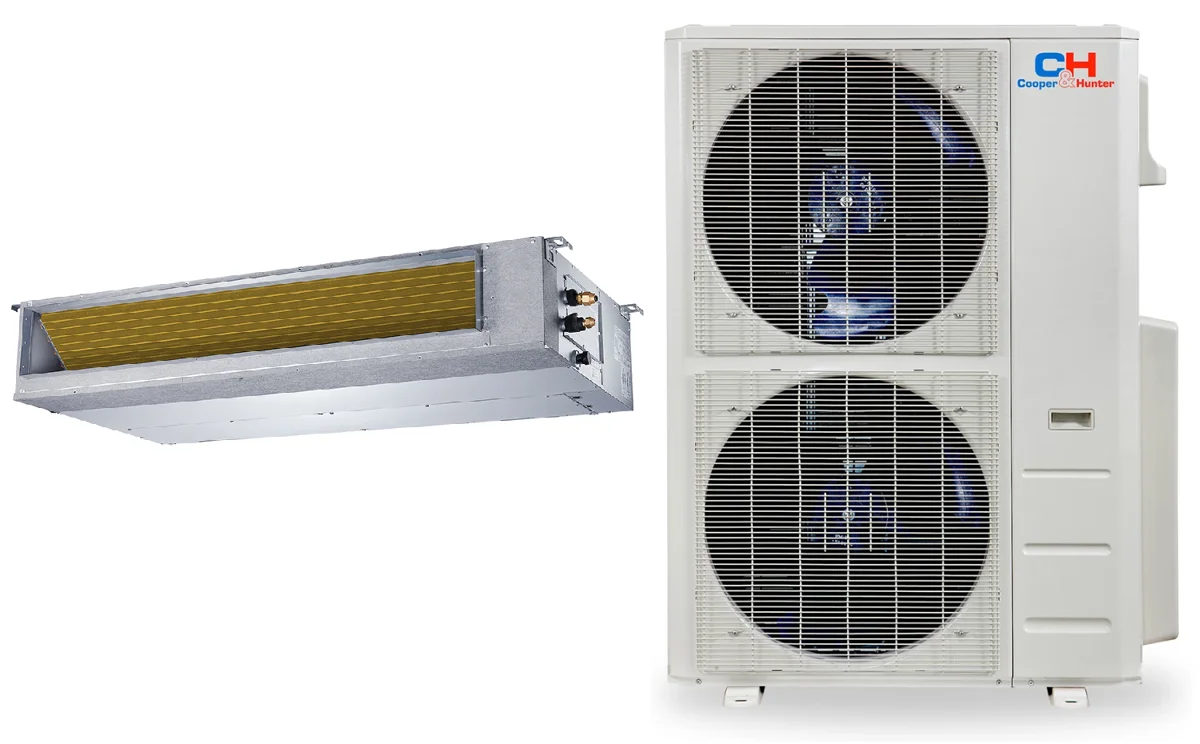

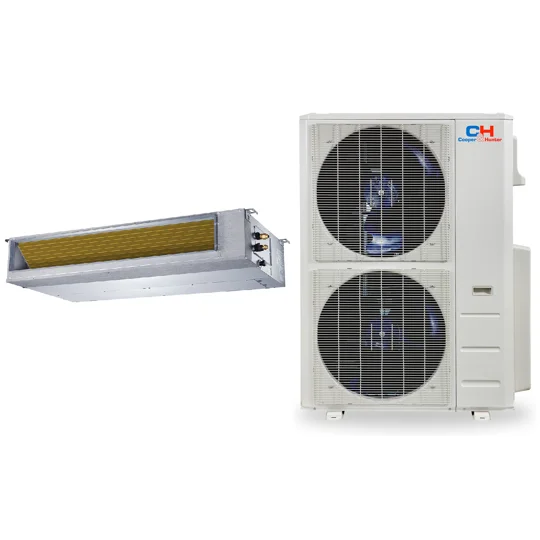

C&H 48,000 BTU 17.1 SEER2 HS-Slim Ducted Mini Split Heat Pump (-13°F) | R454B
Cooper & Hunter
HS-Slim Ducted R454B — 48,000 BTU Hi-Static Slim Duct
17.1 SEER2 9.8 HSPF2 -13°F Min Heat R454B 230V Single-Zone
C&H 48,000 BTU 17.1 SEER2 HS-Slim Ducted Mini Split Heat Pump (-13°F) | R454B
Cooper & Hunter48,000 BTU4 TonLight CommercialR454B

The Cooper & Hunter 48,000 BTU HS-Slim Ducted mini split is a 4-ton R454B heat pump system for large spaces requiring ducted air distribution without a full HVAC installation. The ducted hi-static indoor unit conceals inside an attic, closet, or utility space and connects to short duct runs. Paired with the outdoor heat pump (rated to -13°F), this package handles areas up to 2,000 sq ft in a single zone. Wired WiFi thermostat, remote, condensate pump, and freon sensor all included.

At 17.1 SEER2, this 48K system delivers solid efficiency for its capacity class. DC inverter compressor technology keeps the system running at variable speed to match actual load — no on/off cycling that wastes energy. Gold-coated coils resist corrosion and extend the life of the heat exchanger. A 7-year compressor warranty and access to C&H's tech support network back every purchase from Mini Split Warehouse.

Efficiency & Performance
17.1
SEER2
10
EER2
9.8
HSPF2
R454B
Refrigerant
-13°F
Min Heat Temp
7yr
Compressor Warranty
Key Specifications
Cooling Capacity 48,000 BTU/h
Heating Capacity 48,000 BTU/h
SEER2 17.1
EER2 10
HSPF2 9.8
Refrigerant R454B
Min. Heating Operation -13°F
Voltage 230V / Single Phase
Compressor Type DC Inverter

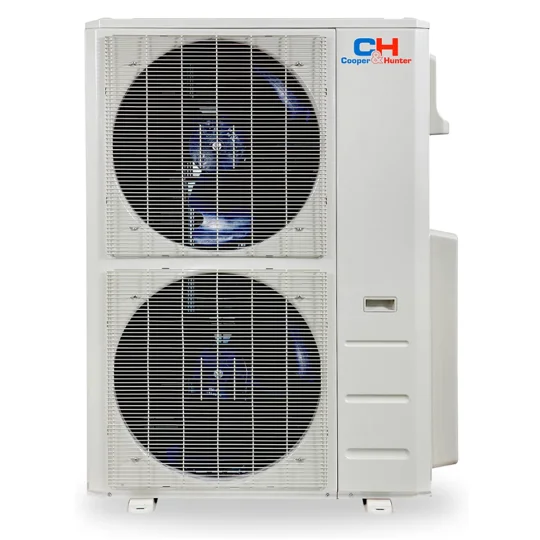

Outdoor Unit Model CH-R48LCU-230VO
Indoor Unit Model CH-RS48LCDT-HS
Coverage Area ~1,800–2,000 sq ft
Pipe Length Range 33–98 ft (model dependent)
WiFi/App Control Yes — Wired Thermostat with WiFi (C&H App)
Condensate Pump Included
Compressor Warranty 7 Years
Parts Warranty 5 Years
AHRI Certificate View Certificate
Documents & Resources
Product Features
🏠
Hi-Static Slim Duct
Pushes conditioned air through duct runs from an attic, closet, or mechanical space. Hidden install with distributed output.
❄️
4-Ton Cooling Capacity
Covers large open zones up to 2,000 sq ft in a single system. Handles high-load commercial or whole-floor residential applications.
🌡️
Heat Pump to -13°F
Efficient heat pump operation down to -13°F. Suitable for most continental U.S. climates with no backup heat required.
📱
WiFi Wired Thermostat
Wall-mounted wired controller with built-in WiFi for remote app access and programmable scheduling.
💧
Condensate Pump Included
Factory-included pump handles drainage in hidden installs where gravity drain isn't available.
🛡️
Gold-Coated Coils
Anti-corrosion gold coating on coils reduces maintenance needs and extends system lifespan in humid climates.
Why Buy From Mini Split Warehouse
Free Nationwide Shipping
No weight limits. No dimensional charges. Free freight delivery on every order.
Factory Warranty Included
Every unit ships with the full manufacturer warranty — no third-party coverage needed.
Lowest Prices Online
We cut out the middleman. Compare us against any competitor — we back our pricing.
20+ Brands Side By Side
Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.
Real Technical Support
Call or email our team. We answer specs, sizing, and installation questions — not scripts.
3% Cash Back Offer
Pay by check or bank transfer and get 3% back — one of the easiest savings available.
Mini Split Warehouse Trust Badges
✅ Factory Warranty Coverage
7
Year Compressor
Full compressor replacement coverage
5
Year Parts
All covered parts, factory-backed
R454B
Refrigerant
Low-GWP next-gen refrigerant
Frequently Asked Questions
Is this unit suitable for an attic installation?
Yes. The slim duct form factor is designed specifically for concealed installs in attics, crawl spaces, and closets. The built-in condensate pump handles drainage and the unit connects to short duct runs for air distribution.
Does the outdoor unit need a concrete pad?
Industry standard is to mount the outdoor unit on a concrete pad, rubber anti-vibration mounts, or a wall bracket. A pad is not included but is widely available at home improvement stores. Keeping the unit elevated prevents flooding and reduces vibration transmission.
Can I control this system remotely when away from home?
Yes. The included wired thermostat has built-in WiFi and connects to the C&H Remote app. Once configured on your home network, you can adjust settings, view temperature, and schedule the system from anywhere.

Specification
Title C&H 48K-Btu 17.1 SEER2 (HS-Slim Ducted) Mini Split Heat Pump (-13°F) 10 EER/9.8 HSPF (R454B)
Brand Cooper and Hunter
Category 48000 Btu | 4 Ton | 1800-2000 Sq Ft
SKU CH-R48LCU-230VO/CH-RS48LCDT-HS
Condition new
MPN CH-RS48LCDT-HS
