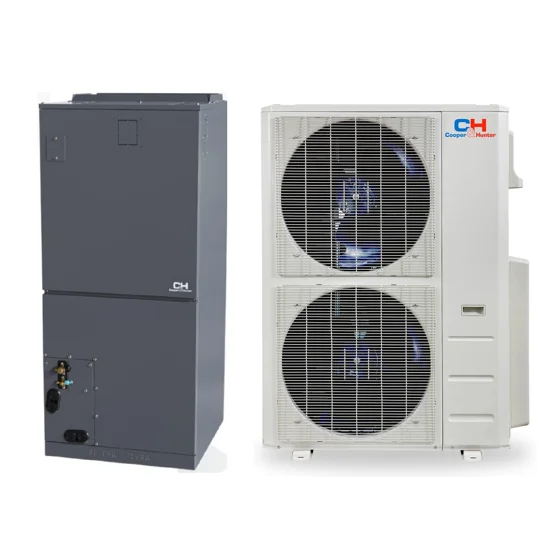

C&H 60K-Btu 16 SEER2 Central-AHU Mini Split Heat Pump (-13°F) 9.5 EER/9.1 HSPF (R454B)

Free Shipping
In Stock CH-RS60LCAHU/CH-R60LCU-230VO

New R454B C&H 60000 Btu Central Ducted 2 Ton Hyper Heat Pump AC System Included in Package: (1) One Indoor Air Handler (Thermostat Included) (1) One Hyper Heat Pump Outdoor Unit ( -13F /-13 F ) Factory Warranty : 7 Yr Compressor /5 Yr Parts Copper & Indoor to Outdoor Wire can be added via the dropdown boxes above Wire option above is communication from indoor to outdoor, you will need field supplied wires also. See Related Items Below For More Accessories INDOOR KEY FEATURES Installation Flexibility A built-in sec...

Your price

Buy more, pay less

from each
1 × =
Description

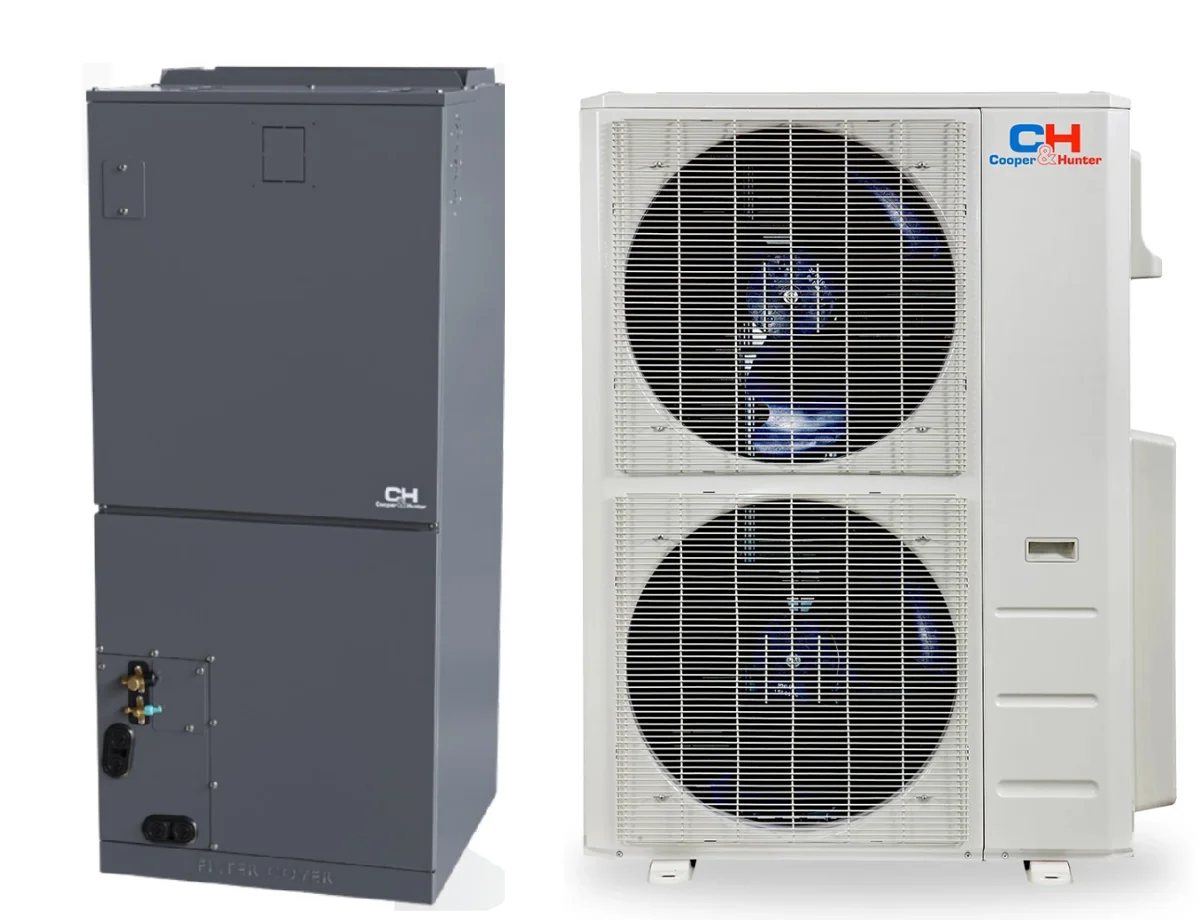

C&H 60K BTU 16 SEER2 Central AHU Mini Split Heat Pump (-13°F)
Cooper & Hunter | R454B | Central Ducted

C&H 60K BTU 16 SEER2 Central AHU Mini Split Heat Pump (-13°F)

60,000 BTU16 SEER29.1 HSPF29.5 EER2-13°F Min HeatR454B

60K BTU Central Air Handler System — Whole-Home Ducted Comfort on R454B

R454B Refrigerant 16 SEER2 230V 5 Ton

The Cooper & Hunter CH-RS60LCAHU/CH-R60LCU-230VO is a 60,000 BTU central air handler system designed for larger homes and light commercial spaces requiring 5-ton whole-building coverage. The R454B outdoor unit delivers reliable heating down to -13°F with inverter efficiency — a direct replacement for traditional 5-ton central systems at significantly lower operating cost.

The package includes one RS-AHU indoor air handler with a wired thermostat and WiFi control, plus one heat pump outdoor unit. Optional electric heater kits (5–20kW) are available as add-ons for supplemental heat. Built-in refrigerant leak detection, auto restart, and fast cool/heat function are standard. The factory-installed interface supports third-party thermostat compatibility for integration with existing building controls.

⚡ Efficiency & Performance

16
SEER2
9.5
EER2
9.1
HSPF2
-13°F
Min Heat Temp
R454B
Refrigerant
7 Yr
Compressor Warranty
Specification Value
BTU Capacity 60,000 BTU (5 Ton)
System Type Central Air Handler (AHU) + Outdoor Heat Pump
Model Numbers CH-RS60LCAHU (Indoor) / CH-R60LCU-230VO (Outdoor)
SEER2 Rating 16
EER2 Rating 9.5
HSPF2 Rating 9.1
Refrigerant R454B
Voltage 230V / Single Phase
Min. Heating Temp -13°F (-25°C)
Heating Range -13°F to 75°F ambient
Cooling Range -13°F to 122°F ambient
WiFi Control Yes — Wired Thermostat with WiFi Included
Refrigerant Leak Detection Yes (Error Code "EC")
Warranty 7-Year Compressor / 5-Year Parts
AHRI Certified View Certificate

★ Key Features

5-Ton Central Capacity

60,000 BTU covers approximately 2,000–2,500 sq ft in a ducted application — suited for full-home replacement of older central AC systems in larger homes.

Intelligent Air Flow Control

Three-speed fan motor with adjustable static pressure — configure it for your existing duct system without costly duct modification in most installations.

Third-Party Thermostat Compatible

Factory-installed interface supports Nest, Ecobee, and other smart thermostats via the dry contact interface on the air handler control board.

Anti-Cold Air Function

The fan delays blowing until the coil reaches temperature — no cold drafts from the supply registers during the heating startup phase.

Optional Electric Heater Kits

5kW, 10kW, 15kW, and 20kW heater strip add-ons install directly in the air handler — available in the dropdown above for supplemental or emergency heat.

TU1 Copper Tubes & R454B

Oxygen-free copper at 99.97% purity for maximum conductivity and corrosion resistance. R454B refrigerant meets current EPA and DOE standards for new installations.

Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Mini Split Warehouse trust badges

🔒 Factory Warranty Coverage

All Cooper & Hunter systems ship with the full factory warranty. Register your system at cooperandhunter.us/warranty to activate coverage.

7 Yr
Compressor
5 Yr
Parts

❓ Frequently Asked Questions

How does this compare to a traditional 5-ton central AC system?

A traditional central AC system uses a separate furnace for heating. This AHU system combines both heating and cooling in one inverter-driven unit. Efficiency is significantly higher — 16 SEER2 vs. typical 14–15 SEER for standard split systems — and operating costs are lower. Duct connections are identical to standard air handlers, so replacement installation is straightforward.

Does this system work with my existing ductwork?

In most cases, yes. The RS-AHU air handler connects to standard supply and return ducts. Static pressure can be adjusted via the three-speed fan motor. If your existing ductwork was sized for a 5-ton conventional system, this unit will be compatible. Consult your installer for a duct system evaluation if the home is older or has undersized ducts.

Can I control this with a Nest or Ecobee thermostat?

Yes — the factory-installed dry contact interface on the air handler supports third-party smart thermostat integration. The included wired thermostat with WiFi is also fully functional. Most installers can configure either option during initial setup.

What is the minimum ambient temperature for heating?

The outdoor unit heats reliably down to -13°F (-25°C). For climates that regularly see temperatures below -13°F, consider the hyper heat AHU variant (CH-RHP48LCU-230VO based) or add an electric heater kit as a backup. Most of the continental US has outdoor temperatures well above -13°F even in the coldest months.

Is professional installation required?

Yes — refrigerant line connections require an EPA 608-certified technician. The electrical and ductwork portions are within scope for licensed HVAC contractors. This is not a DIY system — it connects to central ductwork and requires proper static pressure balance and refrigerant commissioning.

Specification
Title C&H 60K-Btu 16 SEER2 Central-AHU Mini Split Heat Pump (-13°F) 9.5 EER/9.1 HSPF (R454B)
Brand Cooper and Hunter
Category 60000 Btu | 5 Ton | 2000-2500 Sq Ft
SKU CH-RS60LCAHU/CH-R60LCU-230VO
Condition new
MPN CH-RS60LCAHU
