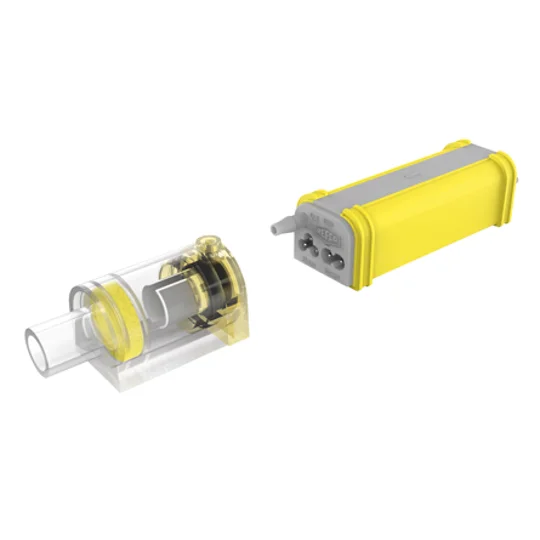

Combi Condensate Pump for Ductless Air Conditioner Systems

Product Code: 3004146 Combi
Brand: refco
Product Condition: New

The Combi condensate pump is an entirely new design specifically manufactured for use in duct-free air conditioning split systems. The Combi is full of custom features that are unique to the world market. The flow range, optional configuration and universal voltage allow both installing contractors and wholesalers to stock and use a single product that fulfills all your requirements.

*See related items below for other options.

WARRANTY 2 Years
Technical Data:
Maximum flow rate:
11 GPH (42 l/h)
Maximum suction:
9.80 ft. (3 m) self priming
Maximum head:
65.60 ft. (20 m)
Sound:
20dBA at 3 ft. (1m) / 19 dBA at 1 m EN ISO 3744:2010
Wireless access:
Remote wireless access with smartphone (optional feature)
Voltage:
100 ~ 240 VAC 50/60 Hz auto sensing universal power input
Power:
8 watts during maximum operation at 110V
Alarm relay:
10 Amps NO/NC contacts with integratedd replaceable HRC 10A glass fuse 5 × 20 mm
Weight:
0.63 Lbs. (285g)
Discharge star tube:
1/4“ I.D. (6.25 mm) × 3.3 ft. (1 m)
Protection:
 Class II double insulation, Fully potted, IP-44
Operation temp:
Ambient 37.5°F to 104°F (3°C to 40°C) / Water 41°F to 77°F (5°C to 25°C)
Compliance:
Conforms to UL: 778 and certified to CSA C22.2 #68

The COMBI Condensate Pump, REFCO Part Number 3004146 is now plenum rated to UL 2043.
This pump now meets building codes that requires all cables installed in an air filled space, or plenum, to have fire and smoke inhibiting qualities. Plenum rated pumps are required in buildings such as hospitals, offices and schools that use the ceiling cavity to supply, return and exhaust air from the occupied area.
























Installation Manual
