Daikin Custom 4-Room Mini Split Heat Pump (5°F) 20 SEER2, 10 EER, 9.5 HSPF (R32)

Product Code: Daikin 4 Zone
Rating: Be the first to write a review
Brand: Daikin
Product Condition: New
Units in Stock: 10
NEW 4 Zone Daikin Mini Split Heat Pump

*This Daikin Quad Zone Package Includes:

*(1) (5°F) Heat Pump Multi-Zone Outdoor Unit
*ADD (4) Indoor Units  via the drop-down boxes
and UPGRADE the outdoor unit to larger sizes.

*Upgrade the outdoor and the indoor units via the dropdown boxes
∼Heats & Cools∼
 (5F/14F)

● 208/230/1 Power Supply ● Self Diagnosis  ● Auto Restart after Power Failure ● Anti-Corrosion Treatment on Heat Exchanger ● Auto Changeover● R32 Refrigerant

Engineering Data
Brochure  Install Manual
  • Anti-Corrosion Treatment on Heat Exchanger
  • World-renowned Daikin Inverter Variable Speed compressor technology
  • Priority room setting – Precision temperature control for individual rooms
  • Automatic Defrosting – Sensor performs automatic defrosting of the outdoor heat exchanger if necessary, ensuring optimum heating performance.
  • Outdoor Unit Quiet Operation – Outdoor unit sound levels can be reduced by 3dB for times when quieter operation is needed.
Daikin’s MXM Multi-Zone Systems redefine home comfort options with their space-efficient, multi-room climate control flexibility, and ability to connect to up to four indoor units to a single outdoor unit. The inclusion of built-in Wi-Fi control of the MXM series offers a user-friendly experience, granting control over indoor comfort beyond just a remote control.


OPTIONAL UPGRADE: Daikin MXT Multi-Zone systems offer enhanced capacity in cold ambient conditions. Up to 114% rated heating capacity at 5°F / -15°C and operate efficiently as low as -13°F ambient temperature. Suitable for both new build and renovation projects, Daikin Multi-Zone Systems are the smart, reliable solution for your home.


12yr Warranty
*(Registration Required)

*Upgrade the 5F MXM outdoor unit to larger sizes
or the -13F MXT Hyper model via the dropdown boxes

2MXM18AVJU9 3MXM24AVJU9
2MXT18AVJU9 2MXTH18AVJU9*
4MXM36AVJU9*

*ADD the indoor units below via the dropdown boxes above

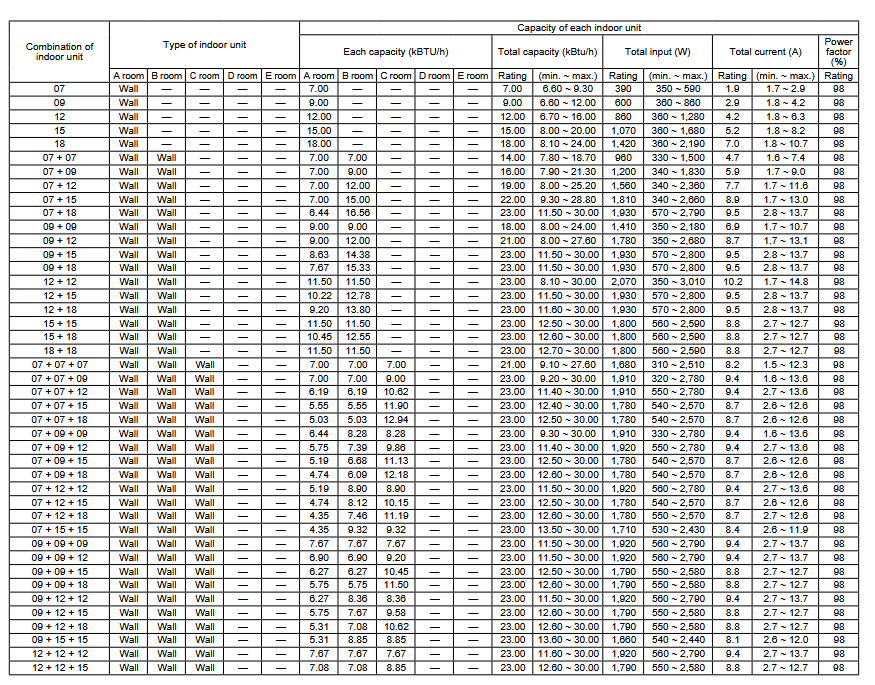

***Indoor Combinations***

18AVJU9 Combinations 24AVJU9 Combinations
36AVJU9* Combinations


FTXV Wall Mount is a feature-packed, intelligent wall mounted system that includes intelligent eye for energy savings and horizontal auto swing outlet fins for 3-D airflow comfort.
  • Indoor sound pressure as low as 22 dB(A), Intelligent Eye, Power airflow dual flaps and 3D airflow, Titanium Photocatalytic air purifying filter, Weekly Timer, Program Dry Function, Econo Mode, Powerful Operation Mode, Auto-Chargeover, Auto-Fan Speed Control.
Indoor Specifications FTXV09AVJU9
FTXV15AVJU9 FTXV18AVJU9
FTXV12AVJU9 FTXV24AVJU9
9k-12k install manual 15k-24k install manual

MORE INDOOR OPTIONS COMING SOON

↓

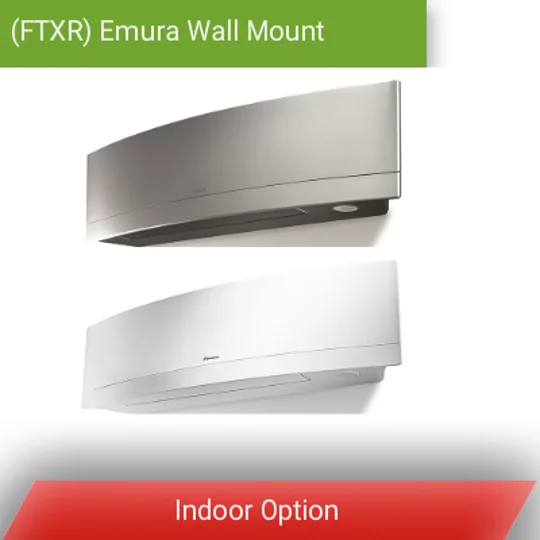

Daikin Emura Wall Mount was designed to perfectly balance technological leadership and the beauty of aerodynamics. The next generation of home air conditioning is here, offering smart technology within a sleek, curved silhouette.

  • IR controller included, 3-D airflow - Auto-swing (up, down and right, left), Intelligent eye occupancy sensor, Titanium apatite photo catalytic air purifying filter technology, Hot start technology, Auto-restart (after power failure), Weekly Timer (Up to 4 events per day), Comfort Airflow
COMING SOON



FVXS Floor mounted units are simple to install and can be setup in various configurations, on the floor or hanging low on a wall. Its low height enables the unit to fit beneath a window. The airflow distribution pattern of Daikin’s floor mounted unit is ideal for heating a space, and is a perfect replacement to traditional radiant systems.

  • Indoor Sound Pressure as low as 19 dB(A), Washable Air Filter, Program Dry Function, Econo Mode, Powerful Operation Mode, Backlit Wireless Remote Controller, Outdoor Unit Quiet Operation, Auto-Changeover, Auto-Fan Speed Control, Self-Diagnostics with Digital Display
COMING SOON



FDMQ ducted concealed indoor unit provides external static pressure capabilities of up to .6, allowing for longer duct runs and easy implementation of high MERV filters. This ducted unit on a multi-zone system delivers heating and cooling comfort for the entire home, without distracting from décor.

  • Energy efficient, Available in .75 to 2 Tons, Capable of providing external static pressures, Up to .6 in. Wg on all models, Integral condensate pump mechanism with 29-9/16” of lift, Drain pan inspection port makes it easy to observe drain pan conditions, No optional adapter needed for DIII-connection, Link your unit into the wider building management system, Compatible with the Daikin Zoning Kit (DZKS)
  • Wired Thermostat INCLUDED! BRC1E73
COMING SOON











VISTA Ceiling Cassette is a remarkable blend of iconic design and engineering excellence with an elegant white or a silver and white finish. Fitting within the ceiling grid and discreetly mounted to the ceiling itself, VISTA is stylish, low profile, and compact. High efficiency and comfort is delivered through the combined use of floor and presence sensors (optional). It is also possible to close individual louvers via the wired remote control for personalized comfort.

  • Iconic award-winning design and engineering excellence, Elegant finish in white or silver / white combination, DC fan motor and two optional intelligence sensors for energy efficiency, Vertical auto swing (up and down), Automatic operation, Program dry function, Auto fan speed (with wired remote controller), Hot start, Auto restart after power failure, Self diagnosis with digital display, Anti-corrosion treatment for outdoor heat exchanger fin
  • Wireless Remote & Grill INCLUDED!

COMING SOON


 See Related Items Below For More Accessories ⇓
