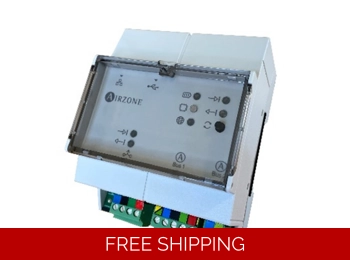

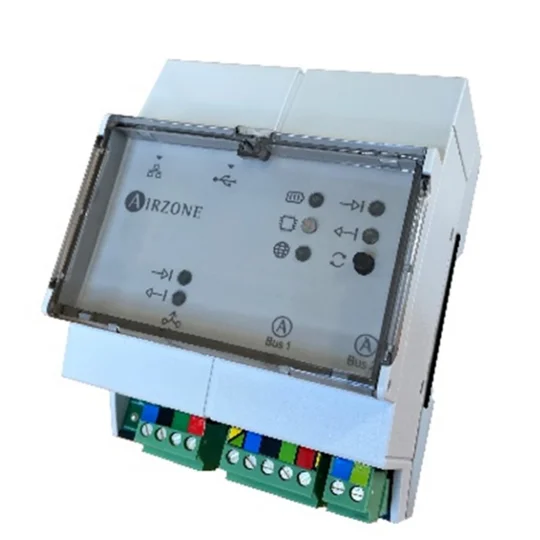

DZK HUB/BACnet Interface

DZK-BACNET-HUB4 DESCRIPTION

The Webserver HUB / BACnet gateway greatly enhances the control flexibility of the Daikin DZK by enabling centralized control and monitoring of individual dampers.

FEATURES
• Works as Airzone Cloud Webserver and BACnet gateway (*).
• Allows configuration and control of zone parameters and system parameters via Airzone Cloud
APP.
• Built-in Bluetooth for router association.
• Open protocol control integration for Daikin DZK BACnet/IP (ISO16484-5)
• Centralized monitoring and control of individual zones
• Remote updates of the Webserver firmware and the systems connected to it.
• Control and monitoring points include:
- Zone cooling set point temperature control
- Zone heating set point temperature control
- Zone temperature status
- On/Off status and control
- User Mode status and control
- DZK system alarm input status
- Zone cooling demand status (%)
- Zone heating demand status (%)
- Zone damper opening step
- Associated indoor unit fan speed
- Associated indoor unit error code

Cut Sheet

---
