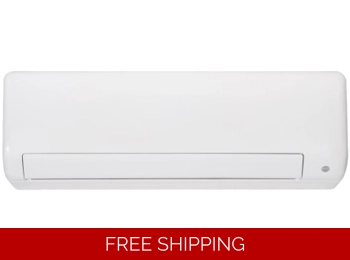

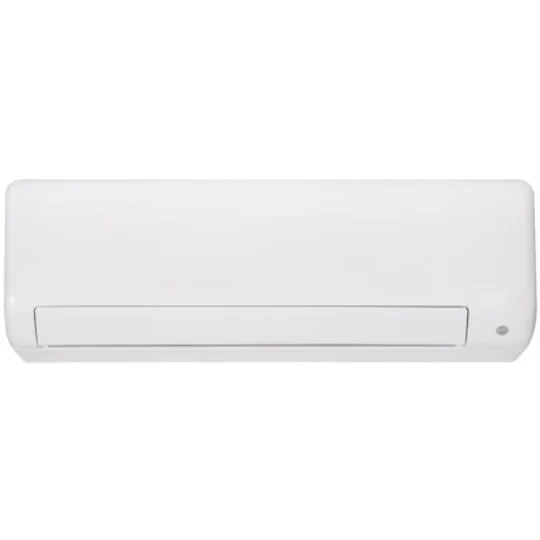

24000 btu DLFSH High Wall Indoor Unit
Product Code: DLFSHBH24XAK
Brand: Carrier Midea North America
Product Condition: New
FEATURES
- Available in 208/230V
- Up to 21.5 SEER, 12.5 EER and 11.5 HSPF when paired with the DLCSRB outdoor unit
- Modes: Cool, Heat, Dry, Fan, Auto
- Turbo Mode
- Four fan speeds
- Sleep Mode
- ECO Mode
- Up-down louver control (fixed or swing)
- Follow Me (senses temperature at handheld remote)
- Relative Humidity Sensor
- Intelligent Eye (Occupancy Sensor)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 25 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
Compatible With:
- DLCSR(A/B) Outdoor Unit Single Zone
- DLCMRA Outdoor Unit Multi-Zone
Color: White
DLFSHB High Wall | ||
Heat Pump | ||
System | ||
Size | 24 | |
Indoor Model | DLFSHBH24XAK | |
Electrical | ||
Voltage-Phase-Cycle | V-PhHz | 208/230-1-60 |
Power Supply | Indoor unit powered from outdoor unit | |
MCA | 0.5 | |
Operating Range | ||
Cooling Indoor DB Min - Max | ° F (° C) | 62~90 (17~32) |
Heating Indoor DB Min - Max | ° F (° C) | 32~86 (0~30) |
Piping | ||
Pipe Connection Size - Liquid | in (mm) | 3/8 (9.52) |
Pipe Connection Size - Suction | in (mm) | 5/8 (16) |
Indoor | ||
Unit Width | in (mm) | 42.60 (1082) |
Unit Height | in (mm) | 13.27 (337) |
Unit Depth | in (mm) | 9.21 (234) |
Net Weight | lbs (kg) | 29.98 (13.6) |
Number of Fan Speeds | 3 | |
Airflow (lowest to highest) | CFM | 382/459/601/761 |
Sound Pressure (lowest to highest) | dB(A) | 41/45.1/49.8 |
Air Throw Data | ft (m) | 34.4 (10.5) |
Moisture Removal | Pint/h (L/h) | 5.333 (2.54) |
Field Drain Pipe Size O.D. | in (mm) | 0.625 (16) |
