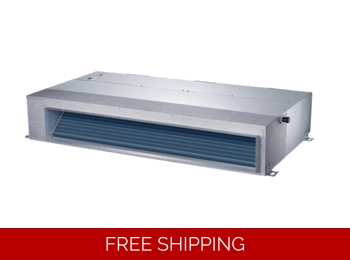

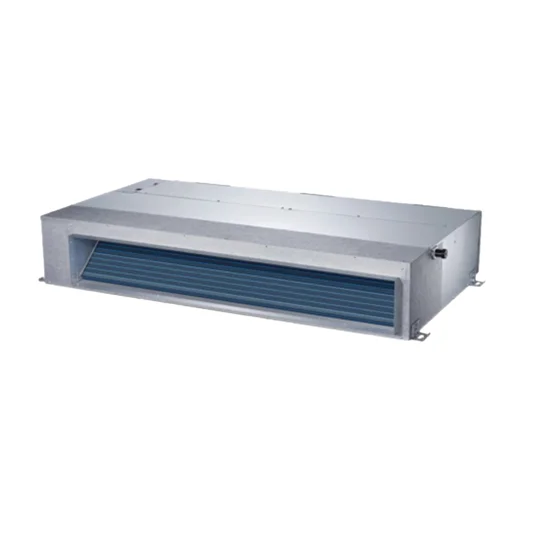

24000 btu DLFSD Ducted Indoor Unit
Product Code: DLFSDAH24XAK
Brand: Carrier Midea North America
Product Condition: New
KEY FEATURES
- Vertical or Horizontal Installation
Designed for maximum installation flexibility with the built-in secondary drain pan which allows the unit to be mounted vertically for either a floor or ceiling-concealed installation depending on existing conditions. - Built-In Codensate Lift Pump
Supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.
FEATURES
- Available in 208/230V
- Up to 22.5 SEER and up to 12.0 HSPF when paired with DLCSR outdoor unit.
- Modes: Cool, Heat, Dry, Fan, Auto
- Vertical or horizontal installation
- Up to 0.64 in WG
- Rear or bottom return
- Constant CFM operation
- Built-in condensate lift pump
- Follow Me (senses temperature at optional handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 30 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
Compatible With:
- DLCSR Outdoor Unit Single Zone
- DLCMRA Outdoor Unit Multi-Zone
Color: None
| DLFSDA Ducted | ||
| Heat Pump | ||
| System | ||
| Size | 24 | |
| Indoor Model | DLFSDAH24XAK | |
| Electrical | ||
| Voltage-Phase-Cycle | V-Ph-Hz | 208/230-1-60 |
| Power Supply | Indoor unit powered from outdoor unit | |
| MCA | A. | 1.2 |
| Operating Range | ||
| Cooling Indoor DB Min - Max | ° F (° C) | 62~90 (17~32) |
| Heating Indoor DB Min - Max | ° F (° C) | 32~86 (0~30) |
| Piping | ||
| Pipe Connection Size - Liquid | in (mm) | 3/8 (9.52) |
| Pipe Connection Size - Suction | in (mm) | 5/8 (16) |
| Indoor | ||
| Unit Width | in (mm) | 43.31 (1100) |
| Unit Height | in (mm) | 9.8 (249) |
| Unit Depth | in (mm) | 30.47 (774) |
| Net Weight | lbs (kg) | 86.86 (39.4) |
| Number of Fan Speeds | 3 | |
| Airflow (lowest to highest) | CFM | 440/700/780 |
| Sound Pressure (lowest to highest) | dB(A) | 35.5/40/44 |
| Max. Static Pressure | in (WG) | 0.64 |
| Field Drain Pipe Size O.D. | in (mm) | 1 (25.4) |
