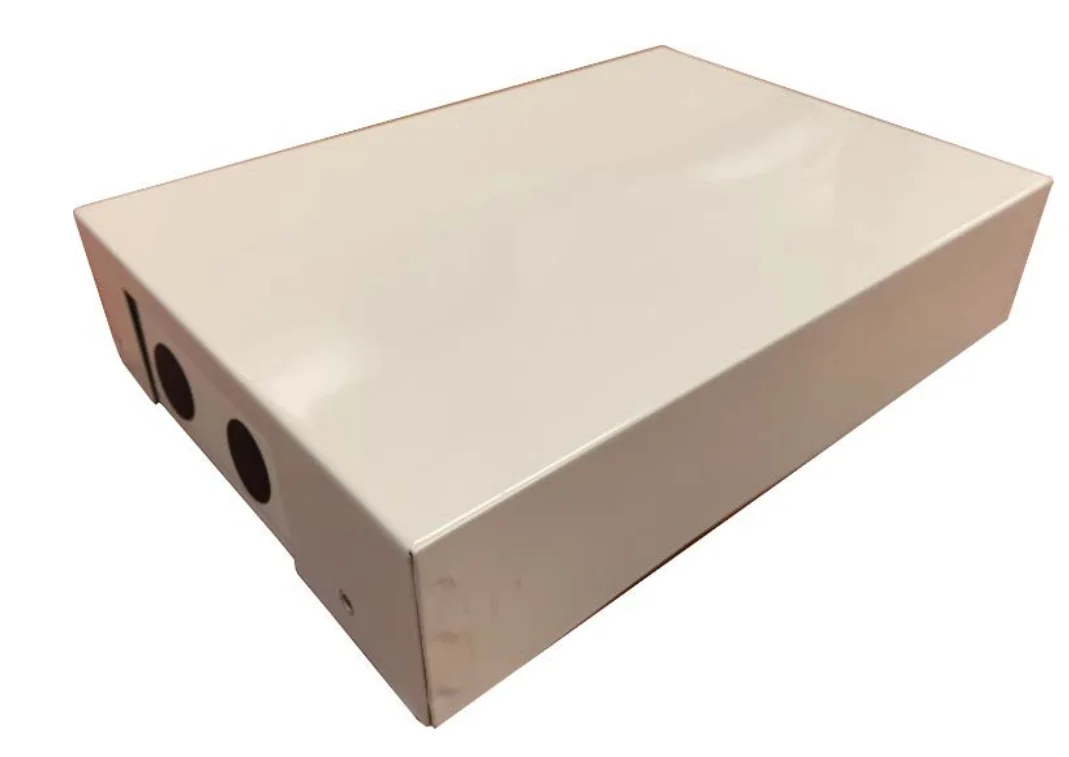

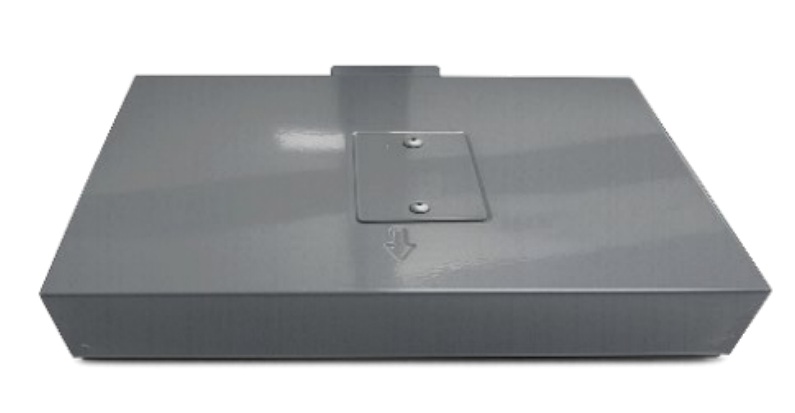

Midea 24V Interface Kit for Traditional Wall Thermostats
Product Code: KSAIC0401230
Brand: Carrier Midea North America
Product Condition: New
Midea Ductless is announcing the introduction of the 2nd Generation 24V Interface Kit, model number KSAIC0401230.
*See related items below for other options and Midea wired thermostats that do not need this 24v interface.
The 2nd Generation 24V Interface Kit allows a Single Zone or a Multi-zone Ductless System to be controlled by any 3rd party single-stage conventional thermostat.
This 2nd Generation 24V Interface Kit keeps the variable speed feature of the Inverter compressor on the Ductless System achieved by the proprietary and patent applied logic of the 24V Interface Kit.
The 2nd Generation 24V Interface Kit is used to connect:
• A SINGLE ZONE Ductless System to a 3rd party single-stage conventional thermostat (sold separately).

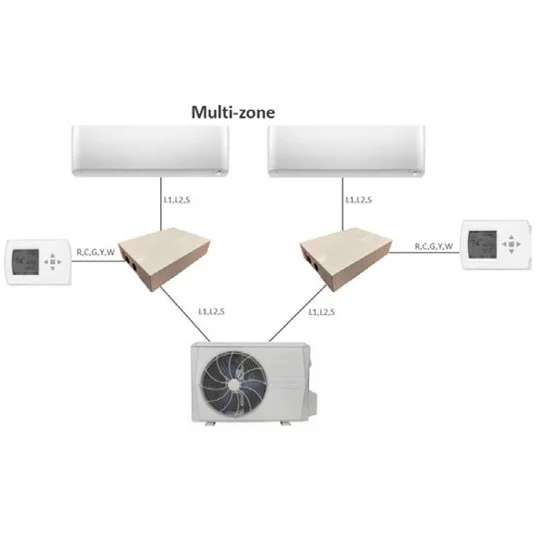

• A MULTI-ZONE Ductless System to a 3rd party single-stage conventional thermostat (sold separately).
Standard Features:
• AUTO Fan speed on Single Zone and Multi-zone on Ductless applications
• One 24V Interface kit per indoor head
• Keeps the Inverter Compressor operating as a Variable Speed System
• Rated for outdoor and indoor mounting
• Dry mode contact for active dehumidification control
• Remote ON/OFF contact
• Auxiliary Heat control through the thermostat
• Diagnostic code display LEDs
• 208/230V Transformer Built-in
*Accessories:
• 115V transformer RCD# 11203103000393, used only on ductless systems with 115V power.
Click The Chart Below to Confirm Compatibility with your model.
*See related items below for other options and Midea wired thermostats that do not need this 24v interface.
The 2nd Generation 24V Interface Kit allows a Single Zone or a Multi-zone Ductless System to be controlled by any 3rd party single-stage conventional thermostat.
This 2nd Generation 24V Interface Kit keeps the variable speed feature of the Inverter compressor on the Ductless System achieved by the proprietary and patent applied logic of the 24V Interface Kit.
The 2nd Generation 24V Interface Kit is used to connect:
• A SINGLE ZONE Ductless System to a 3rd party single-stage conventional thermostat (sold separately).
Standard Features:
• AUTO Fan speed on Single Zone and Multi-zone on Ductless applications
• One 24V Interface kit per indoor head
• Keeps the Inverter Compressor operating as a Variable Speed System
• Rated for outdoor and indoor mounting
• Dry mode contact for active dehumidification control
• Remote ON/OFF contact
• Auxiliary Heat control through the thermostat
• Diagnostic code display LEDs
• 208/230V Transformer Built-in
- 1 Year Warranty (From Date of Installation)
*Accessories:
• 115V transformer RCD# 11203103000393, used only on ductless systems with 115V power.
Click The Chart Below to Confirm Compatibility with your model.
Make Sure to Choose the Correct Voltage Via The Drop Down Box Above.
*Please provide your indoor & outdoor model number in the notes at checkout. If you do not provide this information, your order will be delayed until we confirm your models.
