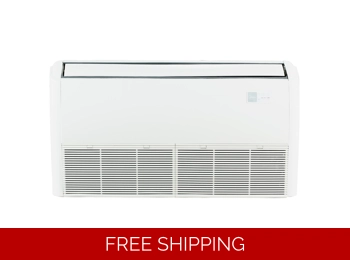

58000 btu DLFLF Floor Ceiling Mount Indoor Unit
Product Code: DLFLFAH58XAK
Brand: Carrier Midea North America
Product Condition: New
KEY FEATURES
- Outside Air Intake
Outside air can be brought into the room through the connection available on the indoor unit which helps meet the ventilation air requirements. - Flexible installation
Ability to be installed on the floor or ceiling depending on the application.
FEATURES
- Available in 208/230V
- Up to 18.0 SEER and 11.0 HSPF when paired with DLCLR outdoor unit
- Modes: Cool, Heat, Dry, Fan, Auto
- Auto-restart function
- Capable to be mounted on floor or ceiling
- Louver control (fixed or swing)
- Three fan speeds
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 46 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
Compatible With:
- DLCLR Outdoor Unit Single Zone
Color: White
DLFLF Console | ||
Heat Pump | ||
System | ||
Size | 58 | |
Indoor Model | DLFLFAH58XAK | |
Electrical | ||
Voltage-Phase-Cycle | V-PhHz | 208/230-1-60 |
Power Supply | Indoor unit powered from outdoor unit | |
MCA | 1.48 | |
Operating Range | ||
Cooling Indoor DB Min - Max | ° F (° C) | 63~90 (17~32) |
Heating Indoor DB Min - Max | ° F (° C) | 32~86 (0~30) |
Piping | ||
Pipe Connection Size - Liquid | in (mm) | 3/8 |
Pipe Connection Size - Suction | in (mm) | 3/4 |
Indoor | ||
Unit Width | in (mm) | 64.96 (1650) |
Unit Height | in (mm) | 9.25 (235) |
Unit Depth | in (mm) | 26.57 (675) |
Net Weight | lbs (kg) | 110 (50) |
Number of Fan Speeds | 3 | |
Airflow (lowest to highest) | CFM | 796/1029/1385 |
Sound Pressure (lowest to highest) | dB(A) | 46/49/55 |
Air Throw Data | ft (m) | 39(12) |
Field Drain Pipe Size O.D. | in (mm) | 1 (25.4) |
