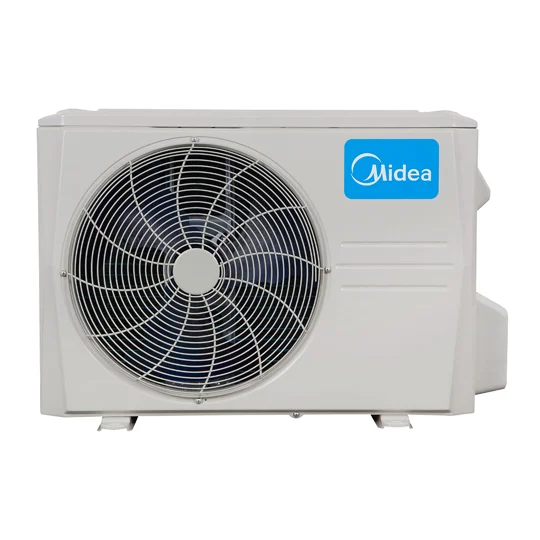

9000 btu 40 SEER DLCPR Single Zone Outdoor Unit
Product Code: DLCPRAH09AAK
Brand: Carrier Midea North America
Product Condition: New
KEY FEATURES
- Extra Low Temperature Heating
For when its cold outside, the heat output for the system is up to 75% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source. - Stepless Frequency Adjustment
Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.
FEATURES
- 100% Heating capacity at 0° F (-17° C)
- 100% Cooling capacity at -22° F (-30° C) without additional kit
- Up to 75% of Heating capacity at -22° F (-30° C)
- Available in 208/230V
- Built-in basepan heater
- Auto-restart function
- Refrigerant leakage detection
- Quiet outdoor operation, as low as 55 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
- Piping length 98 ft. (30 m.)
- Cooling operating range
- -22° ~ 122° F (-30° ~ 50° C)
- Heating operating range
- -22° ~ 86° F (-25° ~ 30° C)
Compatible With:
- DLFPH High Wall
| DLCPR Outdoor Unit | ||
| Heat Pump | ||
| Size | 9 | |
| Outdoor Model | DLCPRAH09AAK | |
| Electrical | ||
| Voltage-Phase-Cycle | V-Ph-Hz | 208/230-1-60 |
| Power Supply | Indoor unit powered from outdoor unit | |
| MCA | A | 13 |
| MOCP - Fuse Rating | A. | 15 |
| Operating Range | ||
| Cooling Outdoor DB Min - Max | ° F (° C) | -22°~122° (-30°~50°) |
| Heating Outdoor DB Min - Max | ° F (° C) | -22°~86° (-30°~30°) |
| Piping | ||
| Total Piping Length | ft (m) | 98 (30) |
| Lift (OD below ID) | ft (m) | 49 (15) |
| Pipe Connection Size - Liquid | in (mm) | 1/4 (6.35) |
| Pipe Connection Size - Suction | in (mm) | 3/8 (9.52) |
| Refrigerant | ||
| Type | R410A | |
| Charge | lbs (kg) | 3.5 (1.58) |
| Outdoor | ||
| Unit Width | in (mm) | 33.27 (845) |
| Unit Height | in (mm) | 27.64 (702) |
| Unit Depth | in (mm) | 14.29 (363) |
| Net Weight | lbs (kg) | 107.59 (48.8) |
| Airflow | CFM | 1,380 |
| Sound Pressure | dB(A) | 55.5 |
| DLFPHAH09XAK |  | |
| ENERGY STAR® | YES | |
| Cooling System Tons | 0.75 | |
| Cooling Rated Capacity | Btu/h | 9,000 |
| Cooling Cap. Range Min - Max | Btu/h | 5,000~17,000 |
| SEER | 40.0 | |
| EER | 15.0 | |
| Heating Rated Capacity (47° F) | Btu/h | 10,000 |
| Heating Rated Capacity (17° F) | Btu/h | 7,200 |
| Heating Maximum Capacity (17° F) | Btu/h | 15,690 |
| Heating Maximum Capacity (5° F) | Btu/h | 13,000 |
| Heating Cap. Range Min - Max | Btu/h | 6,800~19,000 |
| HSPF | 14.5 | |
| COP (47° F) | W/W | 4.00 |
| COP (17° F) | W/W | 2.78 |
| COP (5° F) | W/W | 2.0 |
