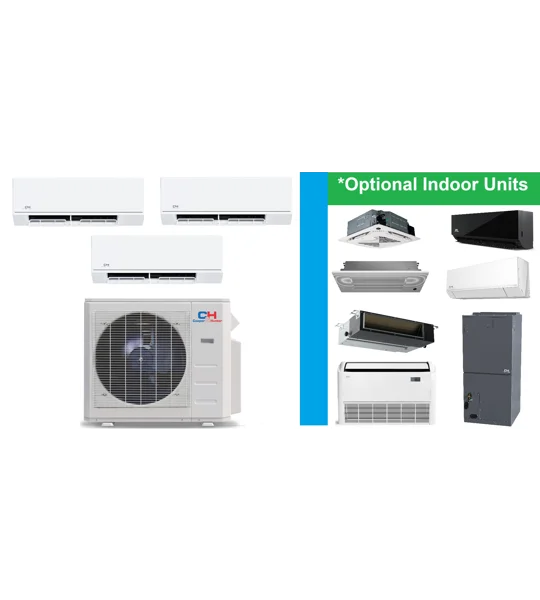

C&H 3 Zone Custom Mini Split (-13°F) Heat Pumps (R454B) - (Buy 22 or More)

*This C&H Package Includes:
*(1) C&H Multi Zone Outdoor Unit (-13°F)

Outdoor Features : • Heats & Cools (-13F/-13F) •  Basepan Heater (Built in) •  Gold Coated Coils •  Refrigerant Leak Detection •  Auto Restart
BROCHURE

• Extra Low Temperature Heating: For when its cold outside, the heat output for this system is rated down to -13° F, making this a primary heat source and eliminating the need for a backup heat source. Stepless Frequency Adjustment: Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.

FEATURES

• Available in 208/230V • Built-in basepan & crankcase heater • Auto-restart function • Condenser high-temperature protection • Refrigerant leakage detection • Quiet outdoor operation • Aluminum Golden Hydrophilic pre-coated fins • Cooling operating range • -13~122 • Heating operating range • -13° ~ 75° F

*Upgrade the Outdoor unit to larger sizes
(Click) model numbers for cut sheets

*ADD the indoor units below via the dropdown boxes above
Do not exceed the outdoor capacity.
Indoor Combined BTU ≤ OUTDOOR MAX BTU
Allowed Combinations

Olivia Wall Mount • Wi-Fi • Auto-Swing for horizontal louvers • Genius Core ultra-low compressor speed of 12Hz • New User-Friendly Remote Controller design  • 46° Freeze Protection  • Turbo Mode  • Self-Clean Function (single zone only) • Eco Mode (single zone only)  • Follow Me Mode  • Timer On/Off  • Sleep Mode                        SPECIFICATIONS

Olivia Midnight Black Wall Mount • Wi-Fi • Auto-Swing for horizontal louvers • Genius Core ultra-low compressor speed of 12Hz • New User-Friendly Remote Controller design  • 46° Freeze Protection   • Turbo Mode  • Self-Clean Function (single zone only) • Eco Mode (single zone only)  • Follow Me Mode  • Timer On/Off  • Sleep Mode   SPECIFICATIONS | Brochure

Distributor Exclusive Wall Mount • Wi-Fi • Humidity Sensor • E-Box and PCB located in the front of the unit with a cover kickstand providing easy access • Convenient disassembly & maintenance with an easy-to-remove fan blower • Larger air inlet / outlet for improved air flow • Auto-Swing for vertical and horizontal louvers • New User-Friendly Remote Controller design • Self-Clean Function (single zone only) • Follow Me Mode • Timer On/Off • Eco Mode (single zone only) • 46° Freeze Protection • Turbo Mode • Sleep Mode

SPECIFICATIONS | Brochure

PRO SPECIFICATIONS | Brochure

Floor Console: Mini Floor Consoles are most popular in colder climates as, during winter seasons, dual air discharge locations provide heated air at ground level, which naturally rises to fill the room.

Floor or Ceiling Mount (Universal) : Universal Floor/Ceiling units offer flexibility in regard to location, as they can be installed horizontally on a ceiling or vertically on a wall. These units can be conveniently controlled by remote control, wall thermostat, or C&H Remote app. Universal Floor/Ceiling units are available in 18K and 24K models. Condensate Pump NOT Included

Slim Ducted (Hidden/Concealed): Slim Ducts provide an inconspicuous solution, hidden in attics and ceiling crawl spaces. Slim ducted can take care of hallways, closets, laundry rooms, and bathrooms of a home while the bedrooms themselves are controlled independently. Condensate pump built-in.

4-Way Ceiling Cassette: Ceiling Cassettes offer a convenient solution for offices and businesses, as they can easily fit into a standard ceiling grid, but they can be used for almost any application, as long as enough space between ceiling frame. Ceiling Cassettes provide omni-directional air flow and user-friendly Remote Control operation along with a built in condensate pump.

NEW 1-Way SLIM Ceiling Cassette: SLIM Ceiling Cassettes offer a convenient solution for homes, offices and businesses, as they can easily fit into a ceiling joist, unlike traditional cassettes, but they can be used for almost any application, as long as enough space exists. Slim Ceiling Cassettes provide ONE WAY air flow and user-friendly Remote Control operation along with a built in condensate pump.

CENTRAL AHU: • INTELLIGENT AIR FLOW • ANTI-COLD AIR FUNCTION • TU1 COPPER TUBES • FAST COOL/HEAT FUNCTION  • ALUMINUM COIL • AUTO RESTART FUNCTION • REFRIGERANT LEAK DETECT • WIRED CONTROLLER • 24V Interface. • TRUE MULTI POSITION AIR HANDLER: Horizontal, vertical, or downward installation. CH-RS18MAHU  CH-RS24MAHU  CH-RS30MAHU  SPECIFICATIONS  Brochure *Limitations: If using two AHU on one multi zone outdoor, NO OTHER INDOORS CAN BE USED, NO MATTER THE AVAILABLE BTU CAPACITY REMAINING ON THE OUTDOOR UNIT
