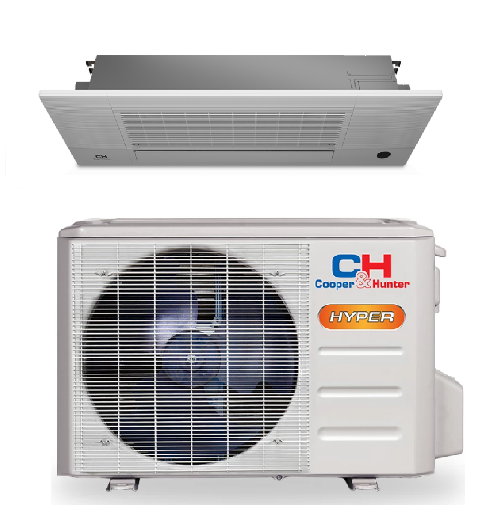

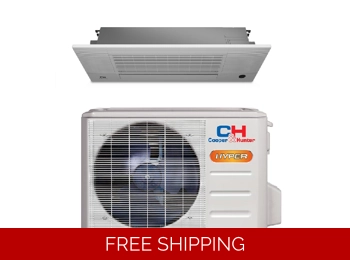

C&H 18K-Btu Slim Cassette 20.6 SEER2 Mini Split H-Heat Pump (-22Β°F) 12.5 EER/12.2 HSPF (R454B)

Free Shipping
In Stock CH-RHP18-230VO/CH-RSH18MCT1W

Introducing the C&H 18K-Btu Slim One Way Cassette Mini Split System, your go-to solution for year-round comfort! With an impressive 22.2 SEER2 rating, this energy-efficient Hyper Heat Pump is designed to heat and cool your space effortlessly, even in temperatures as low as -13 F. The 18000 BTU One-Way Cassette features a sleek and compact design, making it perfect for any room. Equipped with a humidity sensor, refrigerant leak sensor, and a built-in water pump, this air conditioner ensures optimal performance and peace of mind. Enjoy features like a self-cleaning function, eco mode, and intelligent preheating, all controlled via remote or wall thermostat with Wi-Fi capabilities. Plus, with a 7-year compressor and 5-year parts warranty, you can trust in its durability.

Your price

Buy more, pay less

from each
1 × =
Description

C&H 18K Slim One-Way Cassette Hyper Heat Pump
Cooper & Hunter — Slim One-Way Cassette Hyper Series
18,000 BTU Slim Cassette Heat Pump
20.6 SEER2 12.5 EER2 12.2 HSPF2 Heats to −22°F R-454B Refrigerant E-Star Certified

C&H 18K Slim One-Way Cassette — Hyper Series

The C&H 18,000 BTU Slim One-Way Cassette Hyper Heat Pump is engineered for spaces where a standard cassette won't fit. At 50.31" x 13.19" x 8.98", it mounts directly in a ceiling joist cavity without requiring a full ceiling grid — expanding the range of residential and commercial applications that can benefit from concealed cassette delivery. Operating on R-454B refrigerant with 20.6 SEER2 and an HSPF2 of 12.2, it's one of the most efficient cassette options in the C&H lineup.

The Hyper outdoor unit provides heating down to −22°F, supported by a factory-installed drain pan heater, Gold Fin anti-corrosion coating, High-Frequency Racer startup technology, and an Intelligent Dusting Switch that periodically reverses the fan to clean debris from the condenser coil. Indoor unit features include built-in Smart Kit (WiFi), refrigerant leak sensor, humidity sensor, Self-Cleaning function, and a built-in water condensate pump.

Efficiency & Performance Ratings
20.6
SEER2
Cooling Efficiency
12.5
EER2
Peak Efficiency
12.2
HSPF2
Heating Efficiency
−22°F
Min Heating
Operating Temp
7 yr
Compressor
Warranty

Key Specifications

Model (Outdoor) CH-RHP18-230VO
Model (Indoor) CH-RSH18MCT1W
Cooling Capacity 18,000 BTU/h (16,700 rated)
Max Heating Capacity (@ 5°F) 17,500 BTU/h
Rated Heating Capacity (@ 47°F) 20,000 BTU/h
SEER2 20.6
EER2 12.5
HSPF2 12.2
Refrigerant R-454B
Voltage 208/230V, 60Hz, Single Phase
Min Heating Operating Temp −22°F
Indoor Unit Type Slim One-Way Ceiling Cassette
Indoor Unit Dimensions 50.31" W x 13.19" D x 8.98" H
Condensate Pump Built-in
WiFi Built-in Smart Kit + C&H App
Refrigerant Leak Sensor Included
Humidity Sensor Included
Compressor Warranty 7 Years
Parts Warranty 5 Years
Shipping Free Nationwide

Product Features

Fits in Ceiling Joists — No Grid Required

At 50.31" x 13.19" x 8.98", this slim cassette fits directly between ceiling joists — no dropped ceiling grid needed, unlike standard cassette units.

One-Way Directional Airflow

Single-direction airflow delivers focused, efficient temperature control. Ideal for rooms where you want consistent delivery to a defined area.

Built-In Condensate Pump

Integrated water pump removes condensate automatically — no separate pump purchase or gravity drain required.

Refrigerant & Humidity Sensors

Both a refrigerant leak sensor and humidity sensor are factory-installed in the indoor unit, providing real-time monitoring without extra accessories.

Intelligent Dusting Switch

The outdoor unit periodically reverses fan direction to clear dust and debris from the condenser coil — keeping the system efficient without manual cleaning.

Gold Fin + Carbon Filter

Gold fin anti-corrosion coating on the outdoor coil handles salt air and rain, while the carbon filter reduces odors and supports air quality.

Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Trust Badges

Factory Warranty Coverage

7
Year Compressor Warranty
5
Year Parts Warranty

Online registration required at cooperandhunter.us/warranty

Frequently Asked Questions

What makes a "slim" cassette different from a standard cassette?
Standard 4-way ceiling cassettes require a finished ceiling grid with a standard tile opening (typically 22.5" x 22.5" or larger). The slim one-way cassette fits into a ceiling joist cavity at 50.31" wide and 13.19" deep — no tile grid needed. It's the better option for residential ceilings without a drop-ceiling system.
Does the cassette come with a condensate pump, or do I need to buy one separately?
The built-in condensate pump is included with the CH-RSH18MCT1W indoor unit. You don't need to purchase or install a separate pump — it handles drainage automatically.
Is R-454B refrigerant more expensive or harder to service than R-410A?
R-454B is the newer low-GWP refrigerant now required under 2025 EPA regulations. It's available through licensed HVAC suppliers. Service procedures are similar to R-410A, but technicians need R-454B rated tools and handling certification. All current C&H Hyper units use R-454B going forward.
Can this cassette handle both heating and cooling in the same space?
Yes. The CH-RHP18-230VO outdoor unit is a full heat pump rated for heating down to −22°F and cooling up to 122°F ambient. This is a true year-round system — not just a cooling unit with a heat strip backup.
What size space is 18,000 BTU appropriate for?
18,000 BTU typically covers 600–800 sq ft with standard 8–9 ft ceilings in a well-insulated space. For rooms with higher ceilings, significant glass exposure, or poor insulation, the next size up may be more appropriate. Our team is happy to help with sizing — just call or email.

Specification
Title C&H 18K-Btu Slim Cassette 20.6 SEER2 Mini Split H-Heat Pump (-22Β°F) 12.5 EER/12.2 HSPF (R454B)
Brand Cooper & Hunter
Category 18000 Btu | 1.5 Ton | 600-800 Sq Ft
SKU CH-RHP18-230VO/CH-RSH18MCT1W
Condition new
UPC 819249022601
MPN CH-RSH18MCT1W
Reviews 1
5.0 1 review

The Ceiling Secret

C. Coggins · October 2025

When I had the 18,000 BTU One-Way Ceiling Cassette installed in my master bedroom, I didn’t expect it to feel this seamless. The unit hides in the ceiling, just outside my open closet, and the airflow glides quietly across the room like a soft breeze. Even the closet β€” usually a warm, stuffy corner β€” now stays as cool and dry as the rest of the space. I love that I can still hear the ceiling fan blades hum but not the unit itself. The remote and Wi-Fi control make small adjustments easy, though I rarely need to touch it β€” it just knows how to keep the room balanced. Sleek, quiet, and unexpectedly powerful, this mini split feels more like part of the architecture than an appliance.

Customer Reviews

5.0 / 5 · 1 reviews
The Ceiling Secret

When I had the 18,000 BTU One-Way Ceiling Cassette installed in my master bedroom, I didn’t expect it to feel this seamless. The unit hides in the ceiling, just outside my open closet, and the airflow glides quietly across the room like a soft breeze. Even the closet β€” usually a warm, stuffy corner β€” now stays as cool and dry as the rest of the space. I love that I can still hear the ceiling fan blades hum but not the unit itself. The remote and Wi-Fi control make small adjustments easy, though I rarely need to touch it β€” it just knows how to keep the room balanced. Sleek, quiet, and unexpectedly powerful, this mini split feels more like part of the architecture than an appliance.

C. Coggins · 2025-10-21
