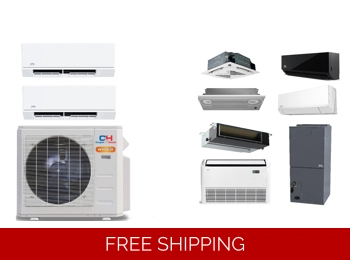

C&H 2-Zone Custom Mini Split AC H-Heat Pump (-22°F) E-Star: 25 SEER2/15 EER/10.4 HSPF (R454B)

Name: C&H 2-Zone Custom Mini Split AC H-Heat Pump (-22°F) E-Star: 25 SEER2/15 EER/10.4 HSPF (R454B)
Brand: Cooper and Hunter
SKU: C&H 2-Zone (-22F)
Price: 1779.00 USD
Availability: InStock
Rating: 5.0 (3 reviews)

(3 reviews)

Free Shipping

In Stock C&H 2-Zone (-22F)

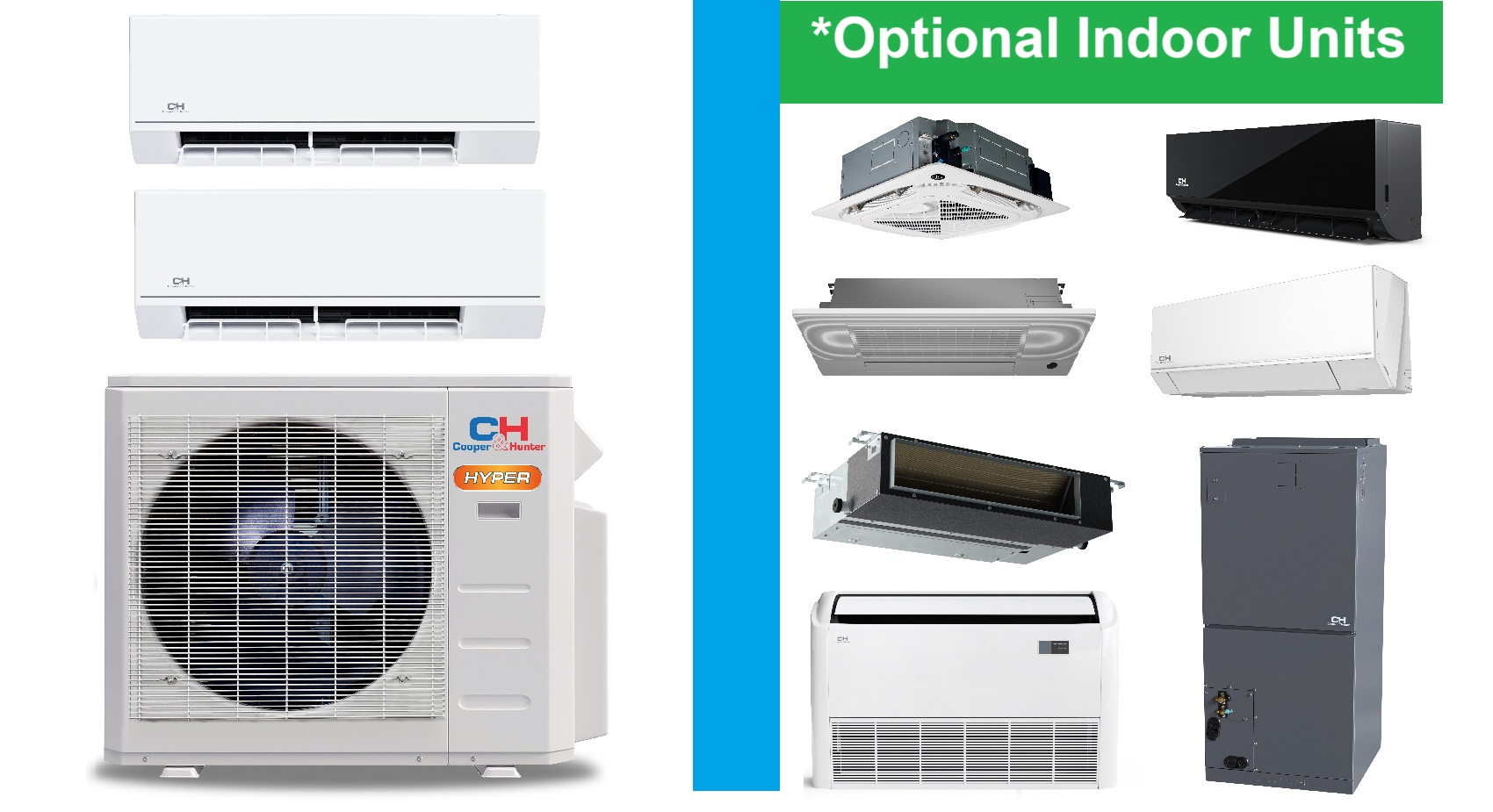

New C&H R454B Two Zone Mini Split Hyper-Heat Pump AC. This Customizable Cooper and Hunter Dual Zone Package Includes: (1) Multi Zone Outdoor Unit : Upgrade the outdoor and indoor units via the dropdown boxes above. Features : Heats & Cools ( -22F / -22F ) Base-pan Heater (Built in) Gold Coated Coils Refrigerant Leak Detection Auto Restart Brochure HIGH-FREQUENCY RACER TECHNOLOGY : Enables the compressor to reach maximum speed within 6 seconds on start up HIGH-EFFICIENCY PIPES...

Your price

Description

Cooper & Hunter 2-Zone Hyper Heat Pump R454B

*This Cooper & Hunter Package Includes:
*(1) Multi Zone Hyper (-22°F) Outdoor Unit

*Upgrade the outdoor and add the indoor units

via the dropdown boxes

Outdoor Features :

*Registration Required

• Basepan Heater (Built in) • Gold Coated Coils • Refrigerant Leak Detection • Auto Restart

PRODUCT SHEET

BROCHURE

Extra Low Temperature Heating
For when its cold outside, the heat output for this system is rated down to -22° F, making this a primary heat source and eliminating the need for a backup heat source.
Stepless Frequency Adjustment
Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.
FEATURES

Built-in basepan & crankcase heater
Auto-restart function
Condenser high-temperature protection
Refrigerant leakage detection
Quiet outdoor operation

Aluminum Golden Hydrophilic pre-coated fins
Cooling operating range
- -22~122
Heating operating range
- -22° ~ 75° F
- Heats & Cools (-22F/-22F)

*Upgrade the Outdoor unit to larger sizes
(Click) model numbers for cut sheets

CH-RHP19M-230VO

CH-RHP28M-230VO

CH-RHP36M-230VO

*48/55K (Tall Double Fan Units)

*CH-RVHP48M-230VO

AHRI

Allowed Combinations

*CH-RVHP55M-230VO

AHRI

Allowed Combinations

*48/55K (Tall Double Fan Units)

V = Shut-OFF Valve

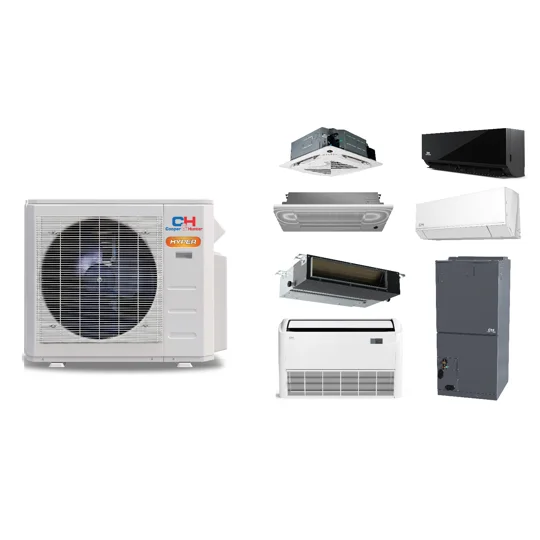

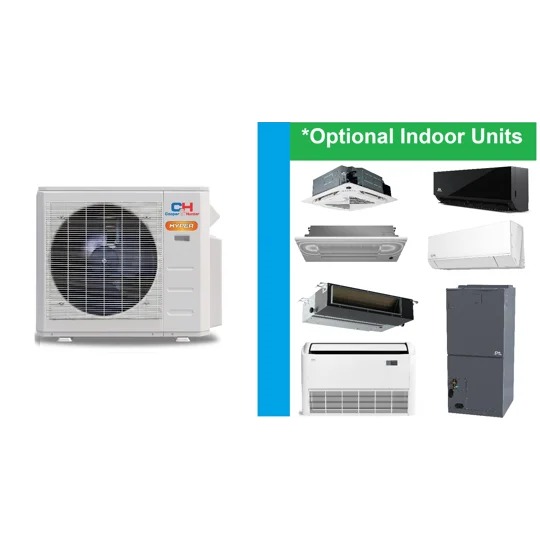

*ADD the indoor units below via the dropdown boxes above
Do not exceed the outdoor capacity.
Indoor Combined BTU ≤ OUTDOOR MAX BTU
Allowed Combinations

Olivia Wall Mount • Wi-Fi • Auto-Swing for horizontal louvers • Genius Core ultra-low compressor speed of 12Hz • New User-Friendly Remote Controller design • 46° Freeze Protection • Turbo Mode • Self-Clean Function (single zone only) • Eco Mode (single zone only) • Follow Me Mode • Timer On/Off • Sleep Mode SPECIFICATIONS

CH-R06MOLVWM-230VI	CH-R09MOLVWM-230VI
CH-R12MOLVWM-230VI	CH-R18MOLVWM-230VI
*CH-R15MOLVWM-230VI	CH-R24MOLVWM-230VI
CH-R30MELVWM-230VI	CH-R36MELVWM-230VI

Olivia Midnight Black Wall Mount • Wi-Fi • Auto-Swing for horizontal louvers • Genius Core ultra-low compressor speed of 12Hz • New User-Friendly Remote Controller design • 46° Freeze Protection • Turbo Mode • Self-Clean Function (single zone only) • Eco Mode (single zone only) • Follow Me Mode • Timer On/Off • Sleep Mode SPECIFICATIONS | Brochure

CH-RB09MOLVWM-230VI	CH-RB12MOLVWM-230VI
CH-RB18MOLVWM-230VI	CH-RB24MOLVWM-230VI

Distributor Exclusive Wall Mount • Wi-Fi • Humidity Sensor • E-Box and PCB located in the front of the unit with a cover kickstand providing easy access • Convenient disassembly & maintenance with an easy-to-remove fan blower • Larger air inlet / outlet for improved air flow • Auto-Swing for vertical and horizontal louvers • New User-Friendly Remote Controller design • Self-Clean Function (single zone only) • Follow Me Mode • Timer On/Off • Eco Mode (single zone only) • 46° Freeze Protection • Turbo Mode • Sleep Mode

SPECIFICATIONS | Brochure

CH-RH06MXSTWM-230VI	CH-RH09MXSTWM-230VI
CH-RH12MXSTWM-230VI	CH-RH18MXSTWM-230VI
*CH-RH15MXSTWM-230VI	CH-RH24MXSTWM-230VI
CH-RH30MXSTWM-230VI	CH-RH36MXSTWM-230VI

PRO SPECIFICATIONS | Brochure

CH-PRO06MXSTWM-230VI	CH-PRO09MXSTWM-230VI
CH-PRO12MXSTWM-230VI	CH-PRO18MXSTWM-230VI
*CH-PRO15MXSTWM-230VI	CH-PRO24MXSTWM-230VI
CH-PRO30MXSTWM-230VI	CH-PRO36MXSTWM-230VI

Floor Console: Mini Floor Consoles are most popular in colder climates as, during winter seasons, dual air discharge locations provide heated air at ground level, which naturally rises to fill the room.

CH-RSH09MMC	CH-RSH12MMC
*CH-RSH16MMC	*16K = 18K
SPECIFICATIONS	Brochure

Floor or Ceiling Mount (Universal) : Universal Floor/Ceiling units offer flexibility in regard to location, as they can be installed horizontally on a ceiling or vertically on a wall. These units can be conveniently controlled by remote control, wall thermostat, or C&H Remote app. Universal Floor/Ceiling units are available in 18K and 24K models. Condensate Pump NOT Included

CH-RSH18MFC	CH-RSH24MFC
SPECIFICATIONS	Brochure

Slim Ducted (Hidden/Concealed): Slim Ducts provide an inconspicuous solution, hidden in attics and ceiling crawl spaces. Slim ducted can take care of hallways, closets, laundry rooms, and bathrooms of a home while the bedrooms themselves are controlled independently. Condensate pump built-in.

CH-RS06-12MDT- MS	CH-RS24MDT-HS
CH-RS18MDT-MS
MS = Mid Static	HS = Hi Static
SPECIFICATIONS	Brochure

4-Way Ceiling Cassette: Ceiling Cassettes offer a convenient solution for offices and businesses, as they can easily fit into a standard ceiling grid, but they can be used for almost any application, as long as enough space between ceiling frame. Ceiling Cassettes provide omni-directional air flow and user-friendly Remote Control operation along with a built in condensate pump.

*CH-RSH09-12MCT	*CH-RSH18MCT
CH-RH09MCT	CH-RH12MCT
CH-RH24MCT	CH-RH18MCT
Brochure	*CH-RSH24MCT
SPECIFICATIONS	*RS = Refrigerant Sensor

NEW 1-Way SLIM Ceiling Cassette: SLIM Ceiling Cassettes offer a convenient solution for homes, offices and businesses, as they can easily fit into a ceiling joist, unlike traditional cassettes, but they can be used for almost any application, as long as enough space exists. Slim Ceiling Cassettes provide ONE WAY air flow and user-friendly Remote Control operation along with a built in condensate pump.

CH-RSH06-12MCT1W	CH-RSH18MCT1W
SPECIFICATIONS	Brochure

CENTRAL AHU: • INTELLIGENT AIR FLOW • ANTI-COLD AIR FUNCTION • TU1 COPPER TUBES • FAST COOL/HEAT FUNCTION • ALUMINUM COIL • AUTO RESTART FUNCTION • REFRIGERANT LEAK DETECT • WIRED CONTROLLER • 24V Interface. • TRUE MULTI POSITION AIR HANDLER: Horizontal, vertical, or downward installation.

CH-RS18MAHU	CH-RS24MAHU
CH-RS30MAHU
SPECIFICATIONS	Brochure

*Limitations: If using two AHU on one multi zone outdoor, NO OTHER INDOORS CAN BE USED, NO MATTER THE AVAILABLE BTU CAPACITY REMAINING ON THE OUTDOOR UNIT

See Related Items Below For More Accessories ⇓

Specification

Title	C&H 2-Zone Custom Mini Split AC H-Heat Pump (-22°F) E-Star: 25 SEER2/15 EER/10.4 HSPF (R454B)
Brand	Cooper and Hunter
Category	Dual \| 2 Zone \| Select Two Heads
SKU	C&H 2-Zone (-22F)
Condition	new
UPC	893088008101
MPN	CH-RVHP19M-230VO

Reviews 3

5.0 3 reviews

The New Domestic Harmony

Lucio Ashby · November 2025

I live in a place that aggressively tests the limits of HVAC engineering—think brutal, soul-crushing winters followed by summers that feel like walking into a steamy bowl of soup. Our old system was a noisy, expensive tyrant. Our old house had two primary conflicts: The Thermostat War (my spouse runs hot, I run cold) and The Utility Bill Horror Show. The genius of this 2-Zone system is that it allows for dual temperature personalities. I installed the first indoor unit (a sleek 9k BTU wall mount, chosen for its near-invisible profile) in my home office/art studio, where I like it a brisk 68°F. The second unit (a 12k BTU, which we sprung for in the optional Midnight-Black finish, just to be fancy) went into the main living space where my spouse can crank it to a tropical 74°F without me having to put on a parka. The freedom of setting two independent climates from a single outdoor condenser unit is truly revolutionary. No more sneaking to adjust the temp at 2 AM.

The Best Upgrade for My Apartment

Dennis K. Dawson · March 2026

I installed this C&H system in my rental after getting my landlord’s okay, and it’s been the best upgrade I’ve made. Since it’s a 2-zone system, I finally have perfect climate control in both my bedroom and living area without those noisy, drafty window units. It’s incredibly quiet—perfect for apartment living— and the 25 SEER2 efficiency has already noticeably dropped my monthly electric bill.

My 2-Zone Setup

Marvin Shoults · July 2025

I installed the CH 2-Zone 25 SEER2 Mini Split Hyper Heat Pump in my home office and guest room, and I have to say—it’s been a game-changer. The two indoor units are sleek and easy to control independently, which is great since my guest room doesn’t need cooling all the time. Even on those muggy afternoons, the system cools fast and evenly. If you're looking for a dual-zone system that’s both powerful and efficient, this unit really delivers.

Customer Reviews

5.0 / 5 · 3 reviews

The New Domestic Harmony

Lucio Ashby · 2025-11-27

The Best Upgrade for My Apartment

Dennis K. Dawson · 2026-03-05

My 2-Zone Setup

Marvin Shoults · 2025-07-09

Experience superior comfort and energy savings with ductless mini splits, featuring industry-leading technology. These AHRI-certified mini splits use inverter technology and variable-speed DC inverter operation for optimal efficiency and quiet operation, with exceptional SEER2 performance that exceeds standard SEER ratings. Whether you prefer a wall mount, ducted, floor or ceiling-cassette design, these split air conditioner units give you zone control for precise heating and cooling in your home.

Key features:

Single or multi-zone capability for customized comfort
High-efficiency ductless design minimizes energy loss
Quiet operation for a peaceful living environment
Improved air quality with advanced filtration options
Flexible installation for any home layout
Manufacturer warranty included

Works With Alexa

Control your mini split with Alexa or Google Assistant, or remotely with an Android or iOS phone via Wi-Fi. Set schedules and control multiple rooms from anywhere — change your temperature settings from the office or while traveling, as long as you have an internet connection.

Energy-Star Certified

Our efficient mini splits are Energy-Star certified. With ultra-efficient ductless air conditioners you can expect to save upwards of 50–60% on your energy bills yearly — a great system for heating and cooling a home or business while minimizing long-term energy costs.

Heating and Cooling (to -13F/-22F)

Our Ultra-DC-Inverter technology lets these systems provide cooling and heating at up to −13°F/−22°F with up to 100% efficiency, so hyper-rated models can serve as your primary heat source all year round — even in the coldest climates. The hyper feature is available on most of our mini splits.

Auto Leak Detection and Diagnosis

Our ductless mini splits include self-cleaning, leak detection and self-diagnostics — all there to keep the system running properly for years. Enjoy peace of mind knowing your mini split will warn you of any equipment problems.

DC ULTRA Inverter Technology

The DC Ultra inverter compressor delivers a superb reduction in energy consumption, making these some of the most efficient systems with DC-inverter technology — it's what pushes mini splits to high SEER2 certifications while minimizing your energy costs.

Air Conditioner Size Chart

What BTU/ton for your area?

Square footage	BTU (ton)
100–200 sq ft	6,000 BTU \| ½ ton
150–400 sq ft	9,000 BTU \| ¾ ton
400–600 sq ft	12,000 BTU \| 1 ton
600–800 sq ft	18,000 BTU \| 1.5 ton
800–1,200 sq ft	24,000 BTU \| 2 ton
1,200–1,500 sq ft	30,000 BTU \| 2.5 ton
1,500–1,800 sq ft	36,000 BTU \| 3 ton
1,800–2,000 sq ft	48,000 BTU \| 4 ton
2,000–2,500 sq ft	60,000 BTU \| 5 ton

Use this BTU/ton size chart to size your mini split indoor or outdoor unit.

What Nobody Tells You Before You Buy

If you are looking for mini splits, most sellers cover the basics: an outdoor compressor connected to indoor units via small refrigerant lines, high energy efficiency without duct loss, and separate room temperatures — plus the simple setup needing just a small 3-inch wall opening. All true, but there are critical technical details and long-term ownership realities almost nobody tells you before you buy.

Beyond washing your mesh air filters every few weeks, mini splits need a deep chemical cleaning of the internal blower wheel and evaporator coil every 1–2 years. Because the heads recirculate the air in your living space, neglected moisture can breed toxic black mold inside the barrel fan. And while most guides cover summer condensation draining from the indoor head, heat pumps reverse in winter: during freezing weather the outdoor unit sheds gallons of water in defrost cycles — without a base pan heater or proper drainage that runoff freezes solid, destroying fan blades and icing the compressor base.

Finally, budget for electrical and warranty requirements upfront. A multi-zone system frequently requires upgrading your home's main electrical panel — often from 100-amp to 200-amp service — plus dedicated 208/230V double-pole breakers. Most importantly, beware of online DIY claims: almost every major manufacturer explicitly voids your multi-year parts and compressor warranty unless a licensed HVAC technician performs the final nitrogen pressure test, line evacuation, and refrigerant commissioning.
