Cooper Hunter 24K-Btu 18 SEER2 Central Mini Split Heat Pump (-13Β°F) E-Star 11.7 EER/8.1 HSPF (R410a)

Free Shipping
In Stock A91: CH-M24AHU/CH-ES24-230VO

New C&H Central Ducted Hyper Heat Pump AC System Included in Package: (1) One Indoor Air Handler (Thermostat Included) (1) One Hyper Heat Pump Outdoor Unit ( -13F /-13 F ) Factory Warranty : 7 Yr Compressor /5 Yr Parts Copper & Indoor to Outdoor Wire can be added via the dropdown boxes above Wire option above is communication from indoor to outdoor, you will need field supplied wires also. See Related Items Below For More Accessories INDOOR KEY FEATURES Installation Flexibility A built-in sec...

Your price
Description

Cooper Hunter 24K Central AHU 18 SEER2 Mini Split Heat Pump R410a
Cooper & Hunter
24,000 BTU Central AHU 18 SEER2 Mini Split Heat Pump (-13°F) R410a
18 SEER2 11.7 EER2 8.1 HSPF2 -13°F Min Heating R410a E-Star

Cooper Hunter 24K BTU Central AHU 18 SEER2 Heat Pump (-13°F) — R410a

Energy Star 18 SEER2 R410a Multi-Position Install Wired Thermostat Included 7-Year Compressor Warranty

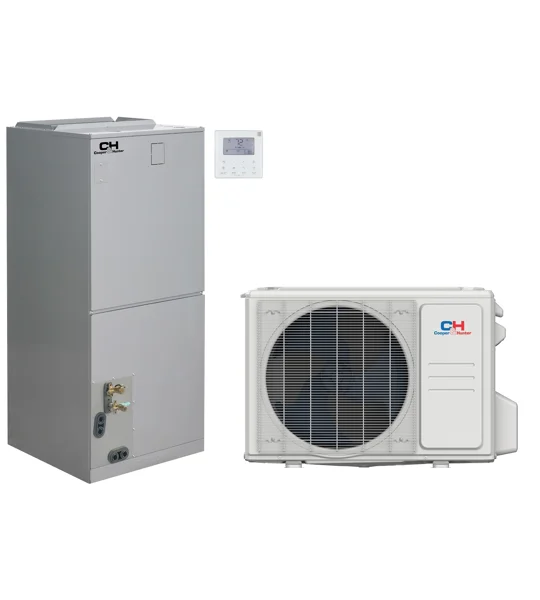

The Cooper Hunter 24K Central AHU system pairs a ducted air handler with a single-zone hyper heat pump outdoor unit, delivering central HVAC-style comfort without a gas furnace or full ductwork overhaul. The indoor air handler (CH-M24AHU) supports multi-position installation — upflow, downflow, horizontal left, or horizontal right — making it compatible with virtually any mechanical closet, attic, or utility space. A wired thermostat is factory-included and provides single-stage thermostat compatibility for standard HVAC control systems.

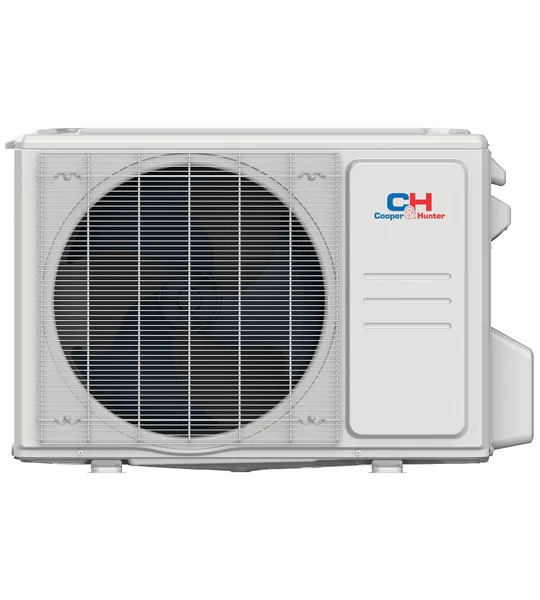

The outdoor unit (CH-ES24-230VO) is an R410a heat pump rated to -13°F, delivering up to 69% of rated heating capacity at that temperature — sufficient for primary heating use in most regions. Copper connections on the indoor unit do not require brazing, and all standard HVAC flared fittings are used at both indoor and outdoor connections, making this a practical installation for HVAC technicians familiar with central ducted systems.

Efficiency & Performance

18
SEER2
11.7
EER2
8.1
HSPF2
-13°F
Min Heat Temp
R410a
Refrigerant
7yr
Compressor Warranty
Technical Specifications
System Type Single-Zone Central Ducted AHU Heat Pump
BTU Capacity 24,000 BTU (2 Ton)
Indoor Unit CH-M24AHU
Outdoor Unit CH-ES24-230VO
SEER2 18
EER2 11.7
HSPF2 8.1
Refrigerant R410a
Min Heating Temperature -13°F
Voltage 230V / Single Phase
Install Positions Upflow, Downflow, Horizontal Left, Horizontal Right
Thermostat Wired thermostat included (Single Stage compatible)
Energy Star Yes
Air Leakage Less than 2%
Compressor Warranty 7 Years
Parts Warranty 5 Years

True Multi-Position AHU

Installs in four orientations — upflow, downflow, horizontal left, or horizontal right — fitting virtually any mechanical closet, attic, or utility room without modification.

No-Braze Indoor Connections

Copper indoor connections use standard HVAC flared fittings and do not require brazing — saving time on installation and reducing the skill threshold for experienced HVAC techs.

Under 2% Air Leakage

The air handler is rated at less than 2% air leakage — a critical metric for central ducted efficiency that most ductless units don't have to meet.

Third-Party Thermostat Ready

Factory-installed interface for single-stage third-party thermostat compatibility — use your existing smart thermostat or a standard programmable wall controller without adapters.

-13°F Hyper Heating

The CH-ES24-230VO outdoor unit delivers up to 69% of rated heating capacity at -13°F — removing the need for a gas furnace backup in most northern climate zones.

Anti-Corrosive Fin Coating

Both indoor and outdoor heat exchangers include anti-corrosive fin coating — protecting against the rust and mineral buildup that reduce efficiency over time in humid climates.

Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Trust Badges

βœ… Factory Warranty Coverage

7
Year Compressor
5
Year Parts

Frequently Asked Questions

How does a central AHU mini split differ from a standard ductless mini split?

A standard ductless mini split uses a wall-mounted or cassette-style indoor unit that delivers air directly into the room. A central AHU (air handler) connects to a duct system, allowing conditioned air to be distributed through multiple registers and supply vents — the same way a traditional gas furnace or central AC would work. This makes the CH-M24AHU a direct replacement or upgrade path for existing central systems without needing a separate outdoor unit and furnace.

Does this system include a wired thermostat?

Yes. A wired thermostat is factory-included with this package. It provides single-stage thermostat compatibility, so you can also pair it with a third-party smart thermostat if preferred. The remote control is also included for supplementary use when you're near the air handler.

Can this replace a gas furnace as the primary heat source?

In most climates, yes. The CH-ES24-230VO outdoor unit is rated to heat down to -13°F at up to 69% of rated capacity — significantly warmer than most heating-degree-day averages in the contiguous US. For very cold northern locations with extended periods below -13°F, a supplemental heat source (electric heat strip) may be appropriate.

What does "less than 2% air leakage" mean for a central AHU?

Air leakage refers to conditioned air escaping through the air handler cabinet rather than reaching the supply ductwork. Less than 2% is a tight specification — many residential air handlers exceed 5–10% leakage — which means nearly all of the conditioned air this unit produces reaches your living spaces, reducing energy waste.

Specification
Title Cooper Hunter 24K-Btu 18 SEER2 Central Mini Split Heat Pump (-13Β°F) E-Star 11.7 EER/8.1 HSPF (R410a)
Brand Cooper and Hunter
Category 24000 Btu | 2 Ton | 800-1200 Sq Ft
SKU A91: CH-M24AHU/CH-ES24-230VO
Condition new
UPC 810035931107
MPN CH-M24AHU
Reviews 2
5.0 2 reviews

A great purchase

Peter Lucey · March 2023

This is the second AC system I have installed. I don't like oversized units so I bought the smallest unit, 24K BTU I thought would work for my 1300 sq ft house. The flared connections were nice to work with, no brazing. I cut the 25' lineset to fit so I did need to re-do the flares on the cut end. I torqued all four fittings and ran a pressure test to 300 psi. No leaks the first time. So far, it is only March, we have only experienced the heat side but it works well. The indoor AHU is much quieter than the gas furnace it replaced. We hitched it up to a Nest controller which means we threw away the remote control and 24V thermostat that came with the unit. Too bad about that. The outside unit see to have a mind of it's own, but very intelligent. Fan ramps up and down as necessary, pump too I suppose. In heat mode the outdoor unit comes on early to warm up the inside coil before the air comes on. I am looking forward to at least a decade of comfort in the Southern California climate.

This CH-24000 BTU system isn't just an appliance

Geoffrey M · May 2025

The shift happened subtly, almost imperceptibly at first. It wasn't a dramatic flick of a switch, but a gradual easing of the persistent, clinging humidity that used to be the default setting in my home. This quiet revolution? It's all thanks to the arrival of the CH-24000 BTU central ducted mini-split. The journey to this point was a bit of an adventure. Unlike plugging in a fan, this involved a deeper integration with the bones of my home – the ductwork. Watching the technicians meticulously weave in the new connections, I felt a sense of permanence, a commitment to long-term comfort. Their positive comments on the unit itself were reassuring, like getting a thumbs-up from a seasoned traveler on a significant voyage. But the real story isn't in the installation; it's in the living. It's in the way I no longer instinctively seek out the coolest corner of the house on a sweltering afternoon. It's in the evenness of the temperature, a gentle caress of cool air that permeates every room. And the silence – oh, the glorious silence! It's as if a constant background hum has finally been switched off, allowing for deeper conversations, more focused work, and truly restful sleep.

Customer Reviews

5.0 / 5 · 2 reviews
A great purchase

This is the second AC system I have installed. I don't like oversized units so I bought the smallest unit, 24K BTU I thought would work for my 1300 sq ft house. The flared connections were nice to work with, no brazing. I cut the 25' lineset to fit so I did need to re-do the flares on the cut end. I torqued all four fittings and ran a pressure test to 300 psi. No leaks the first time. So far, it is only March, we have only experienced the heat side but it works well. The indoor AHU is much quieter than the gas furnace it replaced. We hitched it up to a Nest controller which means we threw away the remote control and 24V thermostat that came with the unit. Too bad about that. The outside unit see to have a mind of it's own, but very intelligent. Fan ramps up and down as necessary, pump too I suppose. In heat mode the outdoor unit comes on early to warm up the inside coil before the air comes on. I am looking forward to at least a decade of comfort in the Southern California climate.

Peter Lucey · 2023-03-13
This CH-24000 BTU system isn't just an appliance

The shift happened subtly, almost imperceptibly at first. It wasn't a dramatic flick of a switch, but a gradual easing of the persistent, clinging humidity that used to be the default setting in my home. This quiet revolution? It's all thanks to the arrival of the CH-24000 BTU central ducted mini-split. The journey to this point was a bit of an adventure. Unlike plugging in a fan, this involved a deeper integration with the bones of my home – the ductwork. Watching the technicians meticulously weave in the new connections, I felt a sense of permanence, a commitment to long-term comfort. Their positive comments on the unit itself were reassuring, like getting a thumbs-up from a seasoned traveler on a significant voyage. But the real story isn't in the installation; it's in the living. It's in the way I no longer instinctively seek out the coolest corner of the house on a sweltering afternoon. It's in the evenness of the temperature, a gentle caress of cool air that permeates every room. And the silence – oh, the glorious silence! It's as if a constant background hum has finally been switched off, allowing for deeper conversations, more focused work, and truly restful sleep.

Geoffrey M · 2025-05-06
