C&H 4-Zone 23.9 SEER2 Mini Split Heat Pump (-13Β°F) E-Star: 11.7 EER/9.5 HSPF (R410a)

Free Shipping
In Stock A7: 4 Zone Special (CH)

Introducing the C&H 4 Zone 23 SEER Mini Split Hyper Heat Pump AC, your ultimate solution for year-round comfort! This powerful system includes a Hyper Multi Zone Outdoor Unit and four sleek wall mount indoor units, each equipped with convenient remotes. Designed to heat and cool efficiently even in extreme temperatures as low as -13 F, this unit features a built-in basepan heater and gold-coated coils for enhanced durability. With advanced technology like high-frequency racer technology for quick startup and intelligent dusting switches to keep your coils clean, you can enjoy optimal performance and air quality. Plus, with the ability to connect up to five indoor units to a single outdoor unit, you can customize your comfort in every room. Upgrade your home with the C&H 4 Zone Split Hyper Heat Pump AC and experience the perfect blend of efficiency and convenience!

Your price

Buy more, pay less

from each
1 × =
Description

C&H 4-Zone 23.9 SEER2 Hyper Heat Pump (-13°F) R410a E-Star

Cooper & Hunter — 4-Zone Multi-Split Hyper | 4 Zones — Up to 48K BTU

23.9 SEER2 9.5 HSPF2 -13°F Min Heat R410a ⭐ Energy Star 11.7 EER2 Up to 5 Zones WiFi Ready

C&H 4-Zone 23.9 SEER2 Mini Split Heat Pump (-13°F) E-Star | 11.7 EER / 9.5 HSPF | R410a

SKU: A7: 4 Zone Special (CH)  |  Voltage: 208/230V  |  β˜… Energy Star Certified

This Cooper & Hunter 4-Zone multi-split system delivers inverter-driven comfort across four independently controlled zones from a single outdoor unit. Rated at 23.9 SEER2 with Energy Star certification, it's one of the most efficient multi-zone platforms in the C&H lineup. The Hyper Heat series operates in heating mode down to -13°F, making it a dependable primary heat source even in cold-climate regions without the need for auxiliary backup.

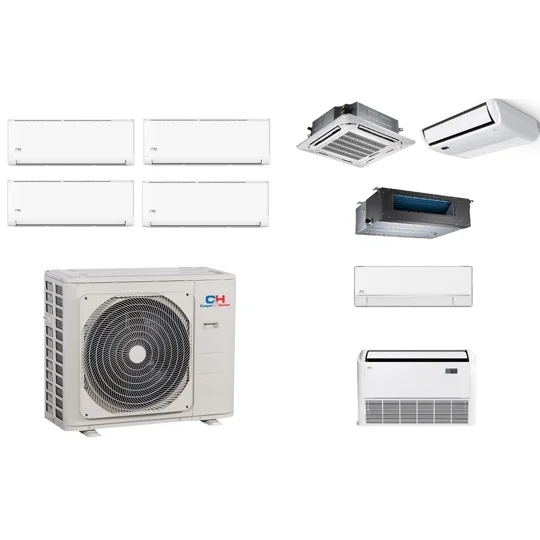

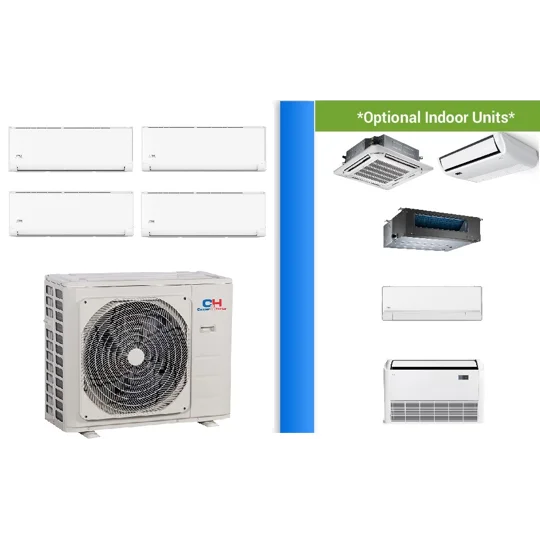

The base package includes (1) Multi-Zone Hyper Outdoor Unit and (4) wall mount indoor units with remotes. Indoor unit types and sizes are configurable via the product's dropdown — choose from 8 indoor types including wall mount (Olivia/Astoria series), floor console, universal floor/ceiling, slim duct, ceiling cassette, slim cassette, and air handler. The outdoor unit is also upgradeable to larger BTU capacities. Combined indoor BTU must not exceed outdoor unit capacity. 7-Year Compressor / 5-Year Parts warranty.

Efficiency & Performance Stats

23.9SEER2
11.7EER2
9.5HSPF2
R410aRefrigerant
-13°FMin Heat Temp
7 YrCompressor Warranty
Product Specifications
Zones 4 Independent Zones
SEER2 23.9
EER2 11.7
HSPF2 9.5
Refrigerant R410a
Voltage 208/230V, 1-Phase, 60Hz
Min Operating Temp (Heating) -13°F
Cooling Range -13°F ~ 122°F
Heating Range -13°F ~ 75°F
Outdoor Unit Upgradeable via dropdown — see outdoor unit options below
Indoor Unit Types 8 styles available — see indoor unit options below
WiFi WiFi Ready (C&H WiFi Kit optional)
Warranty 7 Yr Compressor / 5 Yr Parts
Energy Star Yes

πŸ’Ώ Indoor Unit Options (Select via Dropdown)

Olivia Wall Mount — Standard White
  • Auto-Swing for horizontal louvers
  • Genius Core ultra-low compressor speed (12Hz)
  • New User-Friendly Remote Controller
  • 46° Freeze Protection
  • WiFi Ready (kit optional)
  • Turbo Mode
  • Self-Clean Function (single zone only)
  • Eco Mode (single zone only)
  • Follow Me Mode
  • Timer On/Off
  • Sleep Mode
Astoria Wall Mount — Premium Series
  • E-Box and PCB located in front with cover kickstand — easy access for service
  • Revolutionary design: easy-to-remove fan blower for maintenance
  • Larger air inlet/outlet for improved airflow
  • Auto-Swing for vertical and horizontal louvers
  • New User-Friendly Remote Controller
  • Self-Clean Function (single zone only)
  • Follow Me Mode
  • Timer On/Off
  • Eco Mode (single zone only)
  • 46° Freeze Protection
  • Turbo Mode
  • Sleep Mode
Floor Console — 12K / 16K BTU
  • Most popular in colder climates — heated air discharges at ground level, naturally rises to fill the room
  • Dual air discharge locations for even distribution
  • Available in 12K and 16K BTU
  • Great option for attics with limited wall/ceiling space
Floor / Ceiling Universal Mount — 18K / 24K BTU
  • Universal install — mount horizontally on ceiling or vertically on wall
  • Controlled by remote control, wall thermostat, or C&H Remote app
  • Available in 18K and 24K BTU

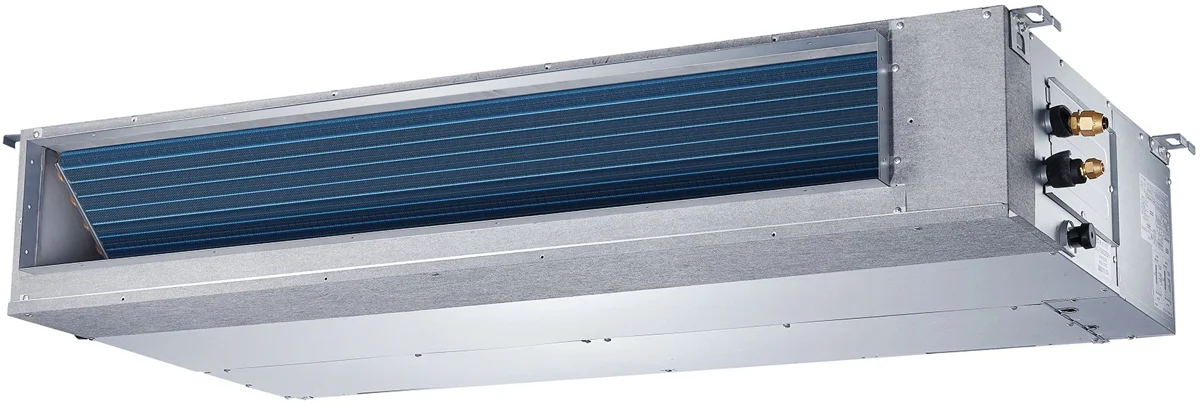

Slim Duct (Hidden / Concealed) — 9K–24K BTU
  • Concealed installation in attic or ceiling crawl space — no visible indoor unit
  • No energy loss associated with traditional central duct systems
  • One unit can duct separately to closets, hallways, laundry rooms, and bathrooms independently
  • Available in 9K, 12K, 18K, and 24K BTU
  • Built-in condensate pump
Ceiling Cassette (4-Way) — 9K–24K BTU
  • Fits standard drop ceiling grid (9–18K: 22.5"×22.5" / 24K+: 33.07"×33.07")
  • 360° omni-directional airflow
  • Remote control operation
  • Built-in condensate pump
  • Available in 9K, 12K, 18K, and 24K BTU
NEW SLIM 1-Way Ceiling Cassette
  • NEW SLIM design fits into a ceiling joist (50.31" × 13.19" × 8.98") — no ceiling grid required
  • ONE WAY directional airflow
  • User-friendly Remote Control operation
  • Built-in condensate pump
Central Air Handler (AHU) — Multi-Position
  • INTELLIGENT AIR FLOW: Automatically calculates required static pressure
  • ANTI-COLD AIR FUNCTION: Fan waits for coil to warm before blowing
  • FAST COOL/HEAT: Runs at 100% when >10°F from setpoint
  • ALUMINUM COIL: Fewer corrosion points than copper
  • AUXILIARY HEATER: Optional 5kW–20kW backup heat strip available separately
  • AUTO RESTART: Automatically restarts after power outage
  • REFRIGERANT LEAK DETECT: Error code EC alerts user to leak
  • WIRED CONTROLLER: Compatible with most 24V thermostats
  • WIFI READY: C&H WiFi Kit enables C&H App control (optional)
  • TRUE MULTI POSITION: Horizontal, vertical upward, or vertical downward

β—„ Outdoor Unit Options (Upgradeable via Dropdown)

CH-36MES-230VO — 36K Standard

36K Standard Regular Series — Multi-zone outdoor unit for standard climate applications.

CH-48MES-230VO — 48K Standard

36K Standard Regular Series — Multi-zone outdoor unit for standard climate applications.

CH-55MES-230VO — 55K Standard

55K Standard Regular Series — Multi-zone outdoor unit for standard climate applications.

⚑ Product Features

4 Independent Zones

Each indoor unit operates independently — set different temperatures in the bedroom, living room, office, and garage simultaneously from one outdoor unit.

23.9 SEER2 Energy Efficiency

Among the highest efficiency ratings in the multi-zone category. Energy Star certified, qualifying for federal tax credits and utility rebates in most states.

-13°F Hyper Heat Capability

The Hyper Heat outdoor unit produces reliable heat at temperatures down to -13°F — no backup electric heat or gas furnace required in most U.S. regions.

8 Indoor Unit Types Available

Wall mount, floor console, floor/ceiling, slim duct, 4-way cassette, slim cassette, and air handler — configure each zone for the space it serves.

Gold Coated Coils

Gold hydrophilic pre-coated aluminum fins resist corrosion, bacteria, mold, and coastal salt air, extending the outdoor unit's service life.

Auto Restart & Refrigerant Leak Detect

Auto restarts after power outages and alerts via error code EC if refrigerant leak is detected — protecting both the compressor and the building.

β˜… Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Trust badges

βœ… Factory Warranty Coverage

7 YrCompressor
5 YrParts

Registration required at cooperandhunter.us/warranty to activate full warranty coverage.

❓ Frequently Asked Questions

Q: Can I mix different indoor unit types across the 4 zones?
A: Yes — each zone can use a different indoor unit type and BTU size. Consult the Allowed Indoor Combinations chart (link above) to confirm valid configurations before ordering.
Q: Can I connect more than 4 indoor units?
A: Some outdoor units support up to 5 indoor connections. Check the outdoor unit's spec sheet for maximum zone count and capacity limits.
Q: Do all 4 indoor units have to run at the same time?
A: No. Each zone operates independently. You can run 1, 2, 3, or all 4 zones simultaneously at different temperatures and modes.
Q: Is this system Energy Star certified?
A: Yes. This system is Energy Star certified and qualifies for applicable federal tax credits and utility rebate programs. Check with your utility or the DSIRE database for incentives in your state.
Q: What if I want to upgrade to an outdoor unit rated for -22°F?
A: Hyper outdoor unit upgrades to -22°F models are available via the product dropdown. The indoor units remain compatible — only the outdoor unit changes.

Specification
Title C&H 4-Zone 23.9 SEER2 Mini Split Heat Pump (-13Β°F) E-Star: 11.7 EER/9.5 HSPF (R410a)
Brand Cooper and Hunter
Category Quad. | 4 Zone | Select Four Heads
SKU A7: 4 Zone Special (CH)
Condition new
UPC 893088001157
MPN CH-36MES-230VO
