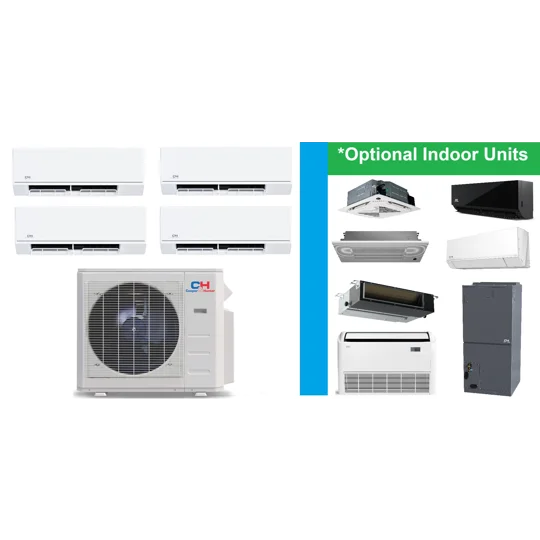

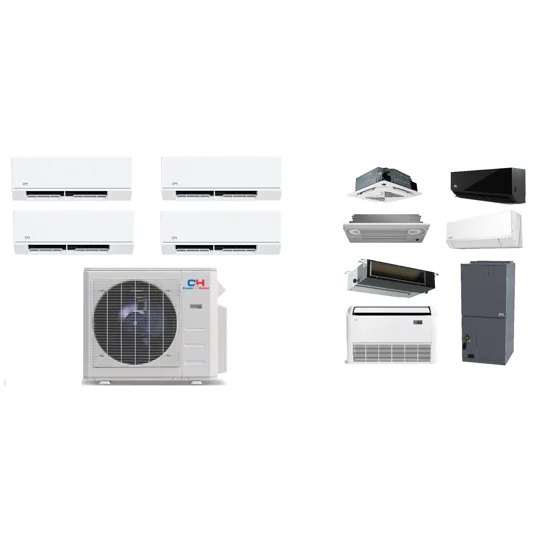

C&H 4-Zone 25 SEER2 Mini Split Heat Pump AC (-13Β°F) E-Star: 13 EER/9.5 HSPF (R454B)

Free Shipping
In Stock C&H 4-Zone Special (-13F)

Experience ultimate comfort with the C&H split system featuring cutting-edge R454B refrigerant heat pump technology. This customizable 4 zone HVAC solution delivers exceptional 25 SEER2 efficiency and reliable heating down to -13 F. The 4 zone split heat pump includes four ductless wall mount air conditioner units with WiFi control and remotes. Advanced features include high-frequency racer technology for 6-second startup, gold-coated coils, leak detection, and intelligent dusting switch. Perfect for year-round comfort with stepless frequency adjustment and basepan heater. Energy Star rated with 13 EER/9.5 HSPF performance makes this an ideal primary heating solution.

Your price
Description

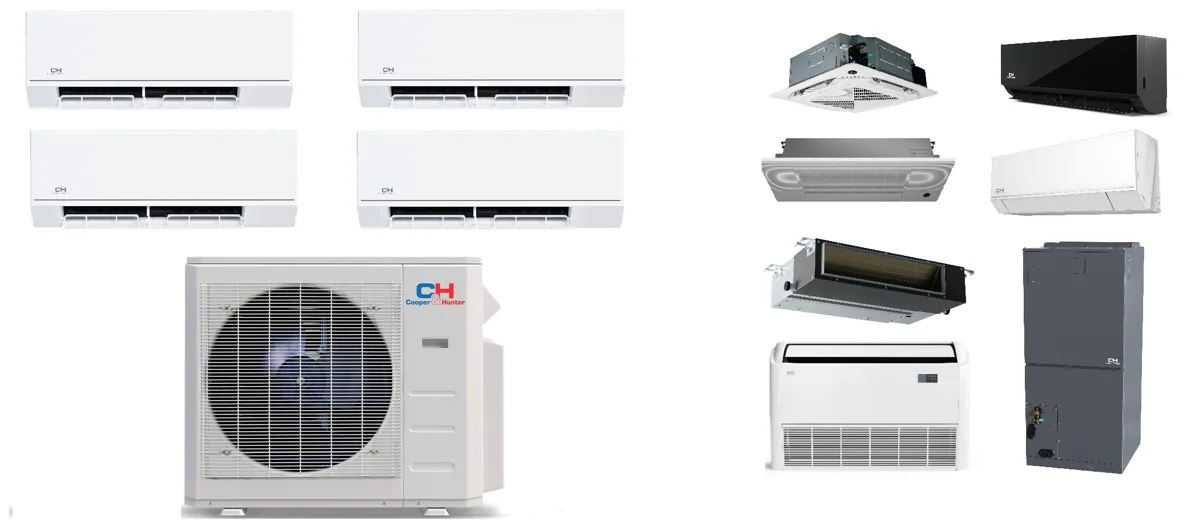

C&H 4-Zone 25 SEER2 Mini Split R454B -13F E-Star
Cooper & Hunter
4-Zone Custom Mini Split AC Heat Pump — R454B, -13°F, E-Star
25 SEER213 EER29.5 HSPF2Min Heat: -13°FR454B
4-Zone 25 SEER2 R454B -13°F Energy Star 7yr / 5yr Warranty

C&H 4-Zone Custom Mini Split — R454B, 25 SEER2, -13°F, Energy Star

A fully configurable 4-zone multi-split system on R454B next-generation refrigerant. The package includes one multi-zone outdoor unit — choose from 28K, 36K, 48K, or 60K via the dropdown — and four indoor units of your choice. Mix and match any supported indoor unit type: wall mounts (Olivia, Astoria, Astoria Pro), floor consoles, floor/ceiling universal units, slim ducted, 4-way cassettes, 1-way slim cassettes, or central AHU units.

25 SEER2 is the top efficiency tier in the C&H multi-zone lineup. Energy Star certified. Heats to -13°F. Combined indoor BTU must not exceed the outdoor unit's rated capacity — consult the Allowed Combinations document. Free nationwide shipping included on the full system.

⚑ Efficiency & Performance
25
SEER2
13
EER2
9.5
HSPF2
-13°F
Min Heat Temp
R454B
Refrigerant
7 yr
Compressor Warranty
Key Specifications
System Type 4-Zone Multi-Split
SEER2 Rating 25
EER2 Rating 13
HSPF2 Rating 9.5
Min Heating Temperature -13°F
Refrigerant R454B (Low-GWP, Next-Gen)
Voltage 208/230V, Single Phase
Certification Energy Star Certified
Outdoor Unit Options 18K, 28K, 36K, 48K, or 60K — select via dropdown
Indoor Unit Options 10 types — Wall Mount, Floor Console, Floor/Ceiling, Slim Duct, Cassette, AHU
Outdoor Features Basepan heater, Gold coated coils, Refrigerant leak detect, Auto restart
Warranty 7yr Compressor / 5yr Parts
πŸ”§ Outdoor Unit Options
CH-R18MES-230VO — 18,000 BTU Outdoor Unit
  • 18K multi-zone outdoor unit
  • Heats and cools to -13°F
  • Gold coated coils
  • Refrigerant leak detection
  • Auto restart
  • Available in 208/230V
CH-R28MES-230VO — 28,000 BTU Outdoor Unit
  • 28K multi-zone outdoor unit
  • Heats and cools to -13°F
  • Basepan heater built-in
  • Gold coated coils
  • Refrigerant leak detection
  • Auto restart
  • Available in 208/230V
CH-R36MES-230VO — 36,000 BTU Outdoor Unit
  • 36K multi-zone outdoor unit
  • Heats and cools to -13°F
  • Basepan heater built-in
  • Gold coated coils
  • Refrigerant leak detection
  • Auto restart
  • Available in 208/230V
CH-R48MES-230VO — 48,000 BTU Outdoor Unit (Double Fan)
  • 48K multi-zone outdoor unit
  • Heats and cools to -13°F
  • Basepan heater built-in
  • Gold coated coils
  • Refrigerant leak detection
  • Auto restart
  • Available in 208/230V
CH-R60MES-230VO — 60,000 BTU Outdoor Unit (Double Fan)
  • 60K multi-zone outdoor unit — Tall Double Fan design
  • Heats and cools to -13°F
  • Basepan heater built-in
  • Gold coated coils
  • Refrigerant leak detection
  • Auto restart
  • Available in 208/230V
🏠 Indoor Unit Options
Olivia Wall Mount
Olivia Wall Mount
  • Wi-Fi built-in
  • Auto-Swing for horizontal louvers
  • Genius Core ultra-low compressor speed of 12Hz
  • New User-Friendly Remote Controller design
  • 46° Freeze Protection
  • Turbo Mode
  • Self-Clean Function (single zone only)
  • Eco Mode (single zone only)
  • Follow Me Mode
  • Timer On/Off
  • Sleep Mode
Olivia Midnight Black Wall Mount
Olivia Midnight Black Wall Mount
  • Midnight Black finish
  • Wi-Fi built-in
  • Auto-Swing for horizontal louvers
  • Genius Core ultra-low compressor speed of 12Hz
  • New User-Friendly Remote Controller design
  • 46° Freeze Protection
  • Turbo Mode
  • Self-Clean Function (single zone only)
  • Eco Mode (single zone only)
  • Follow Me Mode
  • Timer On/Off
  • Sleep Mode
Astoria — Distributor Exclusive Wall Mount
Astoria — Distributor Exclusive Wall Mount Astoria — Distributor Exclusive Wall Mount
  • Distributor Exclusive — not available at big-box stores
  • Wi-Fi built-in
  • Humidity Sensor
  • E-Box and PCB located in front of unit with cover kickstand for easy access
  • Convenient disassembly and maintenance with easy-to-remove fan blower
  • Larger air inlet/outlet for improved air flow
  • Auto-Swing for vertical and horizontal louvers
  • New User-Friendly Remote Controller design
  • Self-Clean Function (single zone only)
  • Follow Me Mode
  • Timer On/Off
  • Eco Mode (single zone only)
  • 46° Freeze Protection
  • Turbo Mode
  • Sleep Mode
Astoria Pro Wall Mount
  • Pro series upgrade from standard Astoria
  • Wi-Fi built-in
  • Humidity Sensor
  • E-Box and PCB in front of unit for easy servicing
  • Larger air inlet/outlet for improved airflow
  • Auto-Swing for vertical and horizontal louvers
  • Follow Me Mode
  • Self-Clean Function (single zone only)
  • 46° Freeze Protection
  • Turbo Mode
  • Sleep Mode
Floor Console (Mini Floor Console)
Floor Console (Mini Floor Console)
  • Most popular in cold climates — dual air discharge provides heated air at ground level
  • Heated air at floor level naturally rises to fill the room
  • Remote control operation
  • C&H app compatible
Floor or Ceiling Mount (Universal)
Floor or Ceiling Mount (Universal) Floor or Ceiling Mount (Universal)
  • Universal installation — mounts horizontally on ceiling or vertically on wall
  • Available in 18K and 24K models
  • Remote control, wall thermostat, or C&H app compatible
  • Note: Condensate Pump NOT Included
Slim Ducted (Concealed/Hidden)
Slim Ducted (Concealed/Hidden)
  • Hidden in attic and ceiling crawl spaces — inconspicuous installation
  • Slim ducts can serve hallways, closets, laundry rooms, and bathrooms independently
  • Condensate pump built-in
  • MS = Mid Static | HS = Hi Static
4-Way Ceiling Cassette
4-Way Ceiling Cassette
  • Fits into a standard ceiling grid — ideal for offices and commercial spaces
  • Omni-directional 4-way airflow
  • Built-in condensate pump
  • User-friendly Remote Control operation
  • *RS = Refrigerant Sensor variant
NEW 1-Way SLIM Ceiling Cassette
NEW 1-Way SLIM Ceiling Cassette NEW 1-Way SLIM Ceiling Cassette
  • SLIM profile — fits into a ceiling joist unlike traditional cassettes
  • Works in homes, offices, and businesses where standard ceiling grid is not available
  • One-way directional airflow
  • Built-in condensate pump
  • User-friendly Remote Control operation
Central AHU (Air Handler Unit)
Central AHU (Air Handler Unit)
  • Intelligent air flow
  • Anti-cold air function
  • TU1 Copper Tubes
  • Fast Cool/Heat Function
  • Aluminum Coil
  • Auto Restart Function
  • Refrigerant Leak Detection
  • Wired Controller with 24V Interface
  • True Multi-Position: Horizontal, Vertical, or Downward installation
  • Important: If using two AHU on one outdoor unit, no other indoor units can be added
β˜… System Features

True 4-Zone Independence

Each zone runs on its own schedule at its own temperature. Bedroom, living room, office, and basement independently controlled from one outdoor unit.

5 Outdoor Unit Sizes

Choose from 18K, 28K, 36K, 48K, or 60K outdoor units — right-size the system for your building's total BTU load without overbuilding.

25 SEER2 Efficiency

Top-tier efficiency in C&H's multi-zone lineup. Qualifies for Energy Star rebates and federal tax credits available for high-efficiency HVAC systems.

10 Indoor Unit Types

Wall mounts, cassettes, slim ducts, floor consoles, floor/ceiling units, and central AHUs — mix any combination across your 4 zones.

-13°F Heating

Reliable heating output at outdoor temperatures as low as -13°F. No need for gas backup in most continental U.S. locations.

R454B Future-Ready

Lower-GWP refrigerant aligned with EPA AIM Act phase-down requirements. This system is compliant now and ready for future regulatory changes.

Why Buy From Mini Split Warehouse

🚚

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

βœ…

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

πŸ’°

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

🏭

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

πŸ“ž

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

πŸ’΅

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Trust Badges
βœ… Factory Warranty Coverage
7
Year Compressor
5
Year Parts

*Warranty registration required at cooperandhunter.us/warranty

❓ Frequently Asked Questions
Can I mix different indoor unit types across the 4 zones?
Yes — mix any combination of wall mounts, cassettes, slim ducts, floor consoles, floor/ceiling units, or AHUs. The only rule: combined indoor BTU must not exceed the outdoor unit's rated capacity. Use the Allowed Combinations document for each outdoor unit model.
How do I choose the right outdoor unit size?
Add up the BTU capacity of all 4 indoor units you plan to install. Select the outdoor unit size that meets or exceeds that total without going significantly over. For example, four 9K indoor units = 36K total, so the 36K outdoor unit is the right match.
Is 25 SEER2 significantly better than 18 or 20 SEER2?
Yes — 25 SEER2 is meaningfully more efficient. In a climate where you run cooling for 5–6 months, the difference between 18 and 25 SEER2 can translate to 25–30% lower annual energy costs for cooling. The payback period depends on your local electricity rates.
Can I use a central AHU as one of the 4 zones?
Yes, with a limitation: if you use two AHU units on one outdoor, no other indoor unit types can be added to that outdoor unit, regardless of remaining BTU capacity. One AHU zone plus three other zone types is supported.

Specification
Title C&H 4-Zone 25 SEER2 Mini Split Heat Pump AC (-13Β°F) E-Star: 13 EER/9.5 HSPF (R454B)
Brand Cooper and Hunter
Category Quad. | 4 Zone | Select Four Heads
SKU C&H 4-Zone Special (-13F)
Condition new
UPC 893088001157
MPN CH-R28MES-230VO
Reviews 1
5.0 1 review

Goodbye, thermostat wars!

David M. Alexander · May 2026

With four zones, everyone gets their perfect temperature. My bedroom is an icebox, the living room is cozy, and I can completely turn off the AC in the guest spaces when no one is using them. Do not try to install this yourself. It’s a serious piece of machinery. Hire a pro to pull the vacuum on the lines and set it up right so you don't mess up the warranty.
