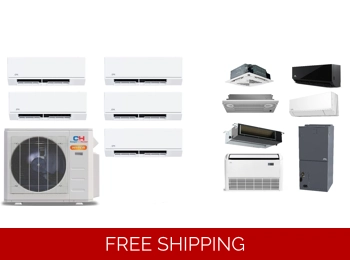

C&H 5-Zone 23 SEER2 Mini Split H-Heat Pump AC (-22°F) E-Star: 13 EER/10.7 HSPF (R454B)

Product Code: C&H 5-Zone (-22F)
Rating: Be the first to write a review
Brand: Cooper and Hunter
Product Condition: New
Units in Stock: 24

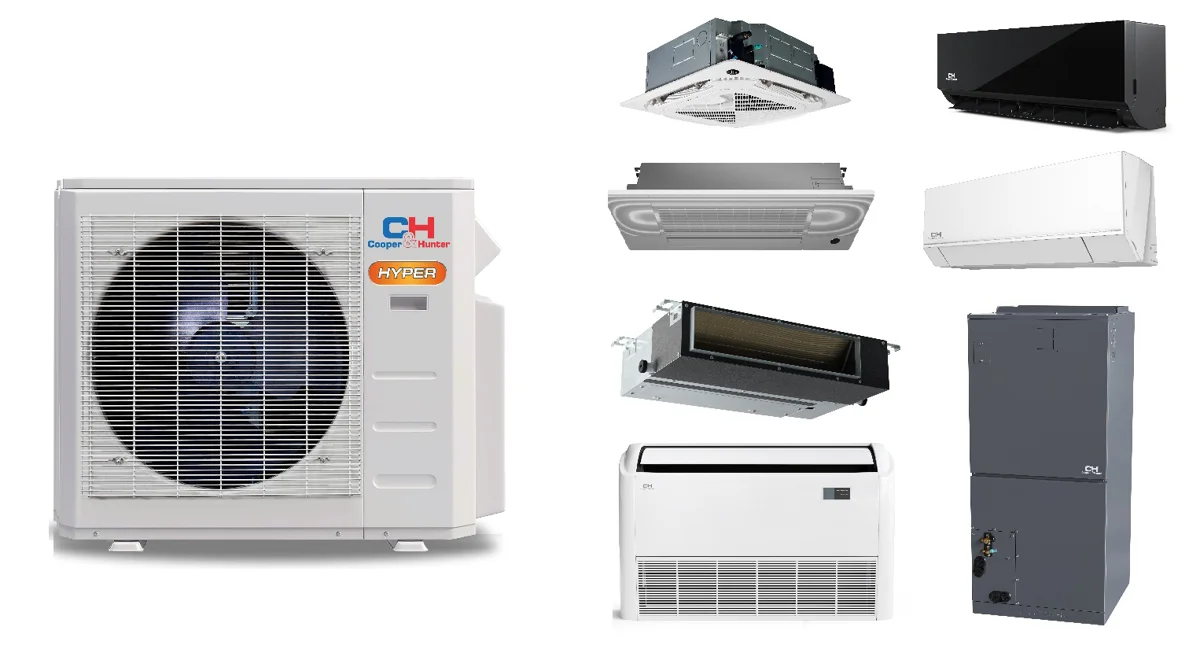

New R454B C&H FIVE ZONE Mini Split Hyper-Heat Pump AC

*This Customizable C&H Quint Zone Package Includes:
*One (1) Hyper (-22°F) Multi Zone *Outdoor Unit

*Five (5) Ductless Wall Mount *Indoor Units (w/ Remotes & WIFI)

*Outdoor and indoors can be upgraded via the dropdown boxes above.

Outdoor Features :


• Heats & Cools (-22F/-22F) •  Basepan Heater (Built in) •
•  Gold Coated Coils •  Refrigerant Leak Detection •
•  Auto Restart

Brochure

HIGH-FREQUENCY RACER TECHNOLOGY:
Enables the compressor  to reach maximum speed within 6 seconds on start up
HIGH-EFFICIENCY PIPES:
54 teeth to increase heat exchange
INTELLIGENT DUSTING SWITCH:
Reverses the fan to clean dust and other debris from the coil
  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is rated down to -22° F, making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • Available in 208/230V
  • Built-in basepan & crankcase heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation
  • Aluminum Golden Hydrophilic pre-coated fins
  • Cooling operating range
    • -22~122
  • Heating operating range
    • -22° ~ 75° F

*Registration Required

*Upgrade the Outdoor unit to larger sizes
(Click) model numbers for cut sheets

CH-RVHP36M-230VO AHRI Allowed Combinations
*CH-RVHP48M-230VO AHRI Allowed Combinations
*CH-RVHP55M-230VO AHRI Allowed Combinations

*48/55K (Tall Double Fan Units)

*ADD the indoor units below via the dropdown boxes above
When adding your indoor units, please do not exceed the outdoor BTU capacity.
Indoor Combined BTU ≤ OUTDOOR MAX BTU
(Click Here for Allowed Indoor Combinations)




• Wi-Fi • Auto-Swing for horizontal louvers • Genius Core ultra-low compressor speed of 12Hz • New User-Friendly Remote Controller design  • 46° Freeze Protection  • WiFi Ready  • Turbo Mode  • Self-Clean Function (single zone only) • Eco Mode (single zone only)  • Follow Me Mode  • Timer On/Off  • Sleep Mode

SPECIFICATIONS (CLICK)

CH-R06MOLVWM-230VI CH-R09MOLVWM-230VI CH-R12MOLVWM-230VI
*CH-R15MOLVWM-230VI CH-R18MOLVWM-230VI CH-R24MOLVWM-230VI
CH-R30MELVWM-230VI CH-R36MELVWM-230VI *15K = 18K




• Wi-Fi • Auto-Swing for horizontal louvers • Genius Core ultra-low compressor speed of 12Hz • New User-Friendly Remote Controller design  • 46° Freeze Protection  • WiFi Ready  • Turbo Mode  • Self-Clean Function (single zone only) • Eco Mode (single zone only)  • Follow Me Mode  • Timer On/Off  • Sleep Mode

SPECIFICATIONS (CLICK)

CH-RB09MOLVWM-230VI CH-RB12MOLVWM-230VI
CH-RB18MOLVWM-230VI CH-RB24MOLVWM-230VI

Brochure




• Wi-Fi • Humidity Sensor • E-Box and PCB located in the front of the unit with a cover kickstand providing easy access • Convenient disassembly & maintenance with an easy-to-remove fan blower • Larger air inlet / outlet for improved air flow • Auto-Swing for vertical and horizontal louvers • New User-Friendly Remote Controller design • Self-Clean Function (single zone only) • Follow Me Mode • Timer On/Off • Eco Mode (single zone only) • 46° Freeze Protection • Turbo Mode • Sleep Mode

SPECIFICATIONS (CLICK)

CH-RH06MASTWM-230VI CH-RH09MASTWM-230VI CH-RH12MASTWM-230VI
*CH-RH15MASTWM-230VI CH-RH18MASTWM-230VI CH-RH24MASTWM-230VI
CH-RH30MASTWM-230VI CH-RH36MASTWM-230VI *15K = 18K

Brochure

PRO SPECIFICATIONS (CLICK)

CH-PRO06MASTWM-230VI CH-PRO09MASTWM-230VI CH-PRO12MASTWM-230VI
*CH-PRO15MASTWM-230VI CH-PRO18MASTWM-230VI CH-PRO24MASTWM-230VI
CH-PRO30MASTWM-230VI CH-PRO36MASTWM-230VI *15K = 18K

Brochure


Floor Console: Mini Floor Consoles are most popular in colder climates as, during winter seasons, dual air discharge locations provide heated air at ground level, which naturally rises to fill the room. They are also a great option for attics, which often do not have the wall or ceiling space for other indoor types. Mini Floor Consoles are available in 9/12/16K Btu/h only.

SPECIFICATIONS (CLICK)

CH-RSH09MMC CH-RSH12MMC *CH-RSH16MMC
*16K = 18K

Brochure



Floor or Ceiling Mount (Universal) : Universal Floor/Ceiling units offer flexibility in regard to location, as they can be installed horizontally on a ceiling or vertically on a wall. These units can be conveniently controlled by remote control, wall thermostat, or C&H Remote app. Universal Floor/Ceiling units are available in 18K and 24K models. Condensate Pump NOT Included

SPECIFICATIONS (CLICK)

CH-RSH18MFC CH-RSH24MFC

Brochure



Slim Ducted (Hidden/Concealed): Slim Ducts provide an inconspicuous solution, hidden in attics and ceiling crawl spaces, without the energy loss associated with central ducted systems. Slim Ducts offer flexibility of installation, For example, one slim duct can be directed to cool and heat hallways, closets, laundry rooms, and bathrooms of a home while the bedrooms themselves are controlled independently. Slim Ducts are available in 9K, 12K, 18K and 24K Btu/h models. Condensate pump built in.

SPECIFICATIONS (CLICK)

CH-RS06-12MDT- MS CH-RS18MDT-MS CH-RS24MDT-HS

Brochure



4-Way Ceiling Cassette: Ceiling Cassettes offer a convenient solution for offices and businesses, as they can easily fit into a standard ceiling grid, but they can be used for almost any application, as long as enough space exists above the ceiling itself. Ceiling Cassettes provide omni-directional air flow and user-friendly Remote Control operation along with a built in condensate pump.

SPECIFICATIONS (CLICK)

*CH-RSH09-12MCT *CH-RSH18MCT *CH-RSH24MCT
CH-RH09MCT CH-RH12MCT CH-RH18MCT
CH-RH24MCT *RS = Refrigerant Sensor

Brochure



NEW 1-Way SLIM Ceiling Cassette: SLIM Ceiling Cassettes offer a convenient solution for homes, offices and businesses, as they can easily fit into a ceiling joist, unlike traditional cassettes, but they can be used for almost any application, as long as enough space exists. Slim Ceiling Cassettes provide ONE WAY air flow and user-friendly Remote Control operation along with a built in condensate pump.

SPECIFICATIONS (CLICK)

CH-RSH06-12MCT1W CH-RSH18MCT1W

Brochure


CENTRAL AHU:

• INTELLIGENT AIR FLOW • ANTI-COLD AIR FUNCTION • TU1 COPPER TUBES • FAST COOL/HEAT FUNCTION  • ALUMINUM COIL: Fewer corrosion points than copper coils. • AUTO RESTART FUNCTION • REFRIGERANT LEAK DETECT • WIRED CONTROLLER: Compatible with most 24V thermostats. • TRUE MULTI POSITION AIR HANDLER: Horizontal, vertical, or downward installation.

SPECIFICATIONS (CLICK)

CH-RS18MAHU  CH-RS24MAHU  CH-RS30MAHU

Brochure

*Limitations: If using two AHU on one multi zone outdoor, NO OTHER INDOORS CAN BE USED, NO MATTER THE AVAILABLE BTU CAPACITY REMAINING ON THE OUTDOOR UNIT

 See Related Items Below For More Accessories ⇓

    BROCHURE
    PRODUCT SHEET

    Bulk Buying Options
    • 2 up to 4 - $6,179.00 ex. tax - per item
    • 5 up to 10 - $6,079.00 ex. tax - per item
    $6,279.00 inc. tax
    $6,279.00 ex. tax
    ? Tax based on United States.
    Customer Reviews
    (write review)
    Great 4 product stars
    "Each room finally feels just right no hot spots, no noise, no wasted energy. The system runs smooth and efficient, and the difference shows on my electric bill. Worth every bit of effort to set up." Blanca R. Luz - Friday, November 7, 2025
    Excellent Energy Efficiency 5 product stars
    "With a 23 SEER2 rating, this system is impressively efficient. The system includes one outdoor Hyper unit and five ductless wall-mount indoor heads, each with its own remote and Wi-Fi control. I ve been able to customize the temperature in different rooms. Make sure it s installed by a skilled HVAC professional and keep an eye on maintenance just in case some users have mentioned concerns about early refrigerant issues. Overall, I'm very pleased with how it s performing!" E. Odom - Thursday, August 21, 2025
    Finally Achieved 5 product stars
    "I installed the CH 5-Zone 23 SEER2 Mini Split Hyper Heat Pump AC about two months ago, and honestly, it s been a total game-changer for my home. We ve got a mix of rooms some that bake in the sun all day, others that stay cooler and this system gave us the flexibility to dial in the perfect temperature in each space. It s quiet, sleek, and surprisingly powerful. I used to dread the hot afternoons in my upstairs office, but now it stays cool even when the sun is blasting through the windows. Installation was straightforward for a multi-zone system, and I was impressed with how responsive the customer support was when I had a question. Each indoor unit works like a charm, and the remote controls make adjustments simple. I wish I had made the switch years ago this setup made my entire house livable in every season." Thomas Smith - Wednesday, July 2, 2025
