C&H 5-Zone 23 SEER2 Mini Split H-Heat Pump AC (-22Β°F) E-Star: 13 EER/10.7 HSPF (R454B)

Free Shipping
In Stock C&H 5-Zone Special (-22F)

New C&H R454B Five Zone Mini Split Hyper-Heat Pump AC. This Customizable Cooper and Hunter Quint Zone Package Includes: (1) Multi Zone Outdoor Unit : 5 Indoor Units- Upgrade the outdoor and indoor units via the dropdown boxes above. Features : Heats & Cools ( -22F / -22F ) Base-pan Heater (Built in) Gold Coated Coils Refrigerant Leak Detection Auto Restart Brochure HIGH-FREQUENCY RACER TECHNOLOGY : Enables the compressor to reach maximum speed within 6 seconds on start up HIGH-EFFICIENCY PIPES...

Your price
Description

woC&H 5-Zone 23 SEER2 Hyper Heat Pump (-22°F) — R454B
Cooper & Hunter | R454B | 5-Zone | Energy Star

C&H 5-Zone 23 SEER2 Hyper Heat Pump (-22°F) — R454B

5-Zone23 SEER210.7 HSPF213 EER2-22°F Min HeatR454B

5-Zone Hyper Heat Pump — Energy Star Certified, -22°F Capable

R454B Refrigerant Energy Star Certified Hyper Heat -22°F 23 SEER2 5 Zones

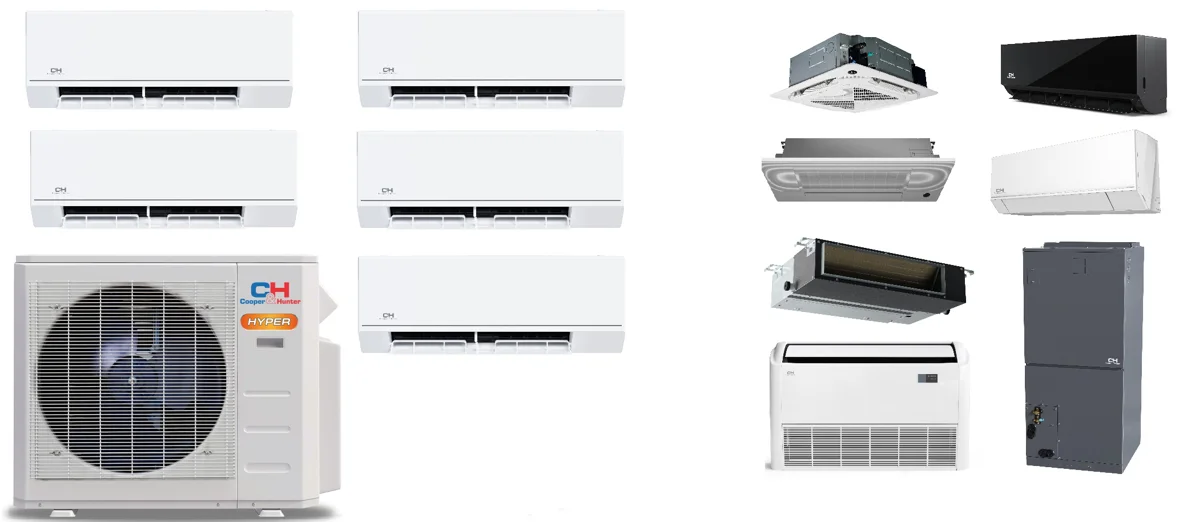

This Cooper & Hunter 5-zone package connects one hyper heat pump outdoor unit to up to five indoor units of your choosing — wall mounts, consoles, cassettes, slim ducts, floor-ceiling units, or air handlers. The base package ships with five Olivia wall-mount indoor units and a CH-RHP36M-230VO 36K BTU outdoor unit. Upgrade the outdoor unit and all five indoor units independently via the dropdown menus above.

The R454B outdoor unit carries an Energy Star certification at 23 SEER2, 13 EER2, and 10.7 HSPF2 — and maintains full heating capability down to -22°F ambient. Built-in basepan heater, gold-coated coils, and refrigerant leak detection make this a commercial-grade system with residential pricing. Outdoor unit upgrades to 48K and 55K BTU are available if you need additional total capacity for larger homes or combined BTU loads across five zones.

⚑ Efficiency & Performance

23
SEER2
13
EER2
10.7
HSPF2
-22°F
Min Heat Temp
R454B
Refrigerant
7 Yr
Compressor Warranty
Specification Value
System Type 5-Zone Ductless Mini Split Heat Pump
Default Outdoor Unit CH-RHP36M-230VO (36,000 BTU)
Default Indoor Units (x5) CH-R06MOLVWM-230VI — Olivia Wall Mount
SEER2 Rating 23 (Energy Star)
EER2 Rating 13
HSPF2 Rating 10.7
Refrigerant R454B
Voltage 230V / Single Phase
Min. Heating Temp -22°F (-30°C)
Heating Range -22°F to 75°F ambient
Cooling Range -22°F to 122°F ambient
Basepan Heater Built-In
Coil Coating Gold Hydrophilic Pre-Coated Fins
Refrigerant Leak Detection Yes
WiFi Control Yes — Included with Indoor Units
Energy Star Certified
Warranty 7-Year Compressor / 5-Year Parts

🏠 Indoor Unit Options (Select per Zone via Dropdown)

Olivia White Wall Mount
Olivia White Wall Mount
  • Wi-Fi
  • Auto-Swing for horizontal louvers
  • Genius Core ultra-low compressor speed of 12Hz
  • New User-Friendly Remote Controller design
  • 46° Freeze Protection
  • Turbo Mode
  • Self-Clean Function (single zone only)
  • Eco Mode (single zone only)
  • Follow Me Mode
  • Timer On/Off
  • Sleep Mode
Olivia Midnight (Black) Wall Mount
Olivia Midnight (Black) Wall Mount
  • Wi-Fi
  • Auto-Swing for horizontal louvers
  • Genius Core ultra-low compressor speed of 12Hz
  • New User-Friendly Remote Controller design
  • 46° Freeze Protection
  • Turbo Mode
  • Self-Clean Function (single zone only)
  • Eco Mode (single zone only)
  • Follow Me Mode
  • Timer On/Off
  • Sleep Mode
Astoria Wall Mount
Astoria Wall Mount

Distributor Exclusive Wall Mount

  • Wi-Fi
  • Humidity Sensor
  • E-Box and PCB located in the front of the unit with a cover kickstand providing easy access
  • Convenient disassembly & maintenance with an easy-to-remove fan blower
  • Larger air inlet / outlet for improved air flow
  • Auto-Swing for vertical and horizontal louvers
  • New User-Friendly Remote Controller design
  • Self-Clean Function (single zone only)
  • Follow Me Mode
  • Timer On/Off
  • Eco Mode (single zone only)
  • 46° Freeze Protection
  • Turbo Mode
  • Sleep Mode
Astoria Pro Wall Mount w/ Refrigerant Sensor
Astoria Pro Wall Mount

Distributor Exclusive Wall Mount

  • Wi-Fi
  • Humidity Sensor
  • E-Box and PCB located in the front of the unit with a cover kickstand providing easy access
  • Convenient disassembly & maintenance with an easy-to-remove fan blower
  • Larger air inlet / outlet for improved air flow
  • Auto-Swing for vertical and horizontal louvers
  • New User-Friendly Remote Controller design
  • Self-Clean Function (single zone only)
  • Follow Me Mode
  • Timer On/Off
  • Eco Mode (single zone only)
  • 46° Freeze Protection
  • Turbo Mode
  • Sleep Mode
Mini Floor Console
Mini Floor Console

Mini Floor Consoles are most popular in colder climates as, during winter seasons, dual air discharge locations provide heated air at ground level, which naturally rises to fill the room.

Floor-Ceiling Unit
Floor-Ceiling Unit

Universal Floor/Ceiling units offer flexibility in regard to location, as they can be installed horizontally on a ceiling or vertically on a wall. These units can be conveniently controlled by remote control, wall thermostat, or C&H Remote app. Universal Floor/Ceiling units are available in 18K and 24K mod. Condensate Pump NOT Included.

Slim Duct (Multi-Zone)
Slim Duct (Multi-Zone)

Slim Ducts provide an inconspicuous solution, hidden in attics and ceiling crawl spaces. Slim ducted can take care of hallways, closets, laundry rooms, and bathrooms of a home while the bedrooms themselves are controlled independently. Condensate pump built-in.

4-Way Ceiling Cassette
4-Way Ceiling Cassette

Ceiling Cassettes offer a convenient solution for offices and businesses, as they can easily fit into a standard ceiling grid, but they can be used for almost any application, as long as enough space between ceiling frame. Ceiling Cassettes provide omni-directional air flow and user-friendly Remote Control operation along with a built in condensate pump.

1-Way Slim Cassette
1-Way Slim Cassette

SLIM Ceiling Cassettes offer a convenient solution for homes, offices and businesses, as they can easily fit into a ceiling joist, unlike traditional cassettes, but they can be used for almost any application, as long as enough space exists. Slim Ceiling Cassettes provide ONE WAY air flow and user-friendly Remote Control operation along with a built in condensate pump.

Central Air Handler (AHU)
Central Air Handler (AHU)
  • INTELLIGENT AIR FLOW
  • ANTI-COLD AIR FUNCTION
  • TU1 COPPER TUBES
  • FAST COOL/HEAT FUNCTION
  • ALUMINUM COIL
  • AUTO RESTART FUNCTION
  • REFRIGERANT LEAK DETECT
  • WIRED CONTROLLER
  • 24V Interface
  • TRUE MULTI POSITION AIR HANDLER: Horizontal, vertical, or downward installation.

*Limitations: If using two AHU on one multi zone outdoor, NO OTHER INDOORS CAN BE USED, NO MATTER THE AVAILABLE BTU CAPACITY REMAINING ON THE OUTDOOR UNIT.

β˜… Key Features

10 Indoor Unit Types Available

Wall mounts, consoles, floor-ceiling, slim ducts, cassettes, and air handlers — all compatible with this outdoor unit via the dropdown selector.

Energy Star Certified

23 SEER2 / 10.7 HSPF2 qualifies for utility rebates in most states. Check DSIRE.org or your local utility for current incentive amounts.

Built-In Basepan Heater

Prevents outdoor unit drain pan freeze-up in extreme cold. Essential for reliable heating performance when ambient temps drop well below zero.

Gold-Coated Aluminum Fins

Hydrophilic pre-coated condenser fins resist corrosion and improve moisture shedding for longer outdoor unit life in coastal or humid climates.

Stepless Frequency Adjustment

Precise inverter control maintains stable room temperature while minimizing compressor cycling and reducing both noise level and energy consumption.

Hyper Heat to -22°F

Full heating capability in extreme cold climates — operates as a primary heat source nationwide without requiring a supplemental heat backup in most US regions.

Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Mini Split Warehouse trust badges

πŸ”’ Factory Warranty Coverage

All Cooper & Hunter systems ship with the full factory warranty. Register your system at cooperandhunter.us/warranty to activate coverage.

7 Yr
Compressor
5 Yr
Parts

❓ Frequently Asked Questions

Can I mix different indoor unit types across the five zones?

Yes — that's the point of this system. Each zone can be a different indoor unit type: you could have a wall mount in the bedroom, a cassette in the living room, a slim duct in the hallway, and a console in the sunroom — all connected to the same outdoor unit. Use the dropdown menus for each zone to select your preferred unit.

Does the 36K BTU outdoor unit support five full-size indoor units?

The total connected indoor BTU should not exceed the outdoor unit's rated capacity plus 20–30% (standard HVAC oversizing tolerance). The CH-RHP36M-230VO works well with a combination of smaller BTU indoor units. If you need five 18K+ BTU zones, upgrade to the 48K or 55K outdoor unit via the dropdown.

What is the R454B refrigerant, and does it require special handling?

R454B is a mildly flammable (A2L) lower-GWP refrigerant that replaces R410a. It requires EPA 608 certification for handling just like R410a. No special certification beyond standard 608 is needed for most installations, but technicians should review the A2L handling guidelines — most modern HVAC tools and practices already comply.

Do all indoor units come with WiFi?

Yes — all indoor units in this 5-zone package include remotes and WiFi control as standard. You can monitor and adjust each zone independently from a smartphone using the Cooper & Hunter app.

What warranty applies to this system?

The outdoor unit carries a 7-year compressor and 5-year parts factory warranty when registered at cooperandhunter.us/warranty. Indoor unit warranty terms match. Registration is required to activate the full coverage period.

Specification
Title C&H 5-Zone 23 SEER2 Mini Split H-Heat Pump AC (-22Β°F) E-Star: 13 EER/10.7 HSPF (R454B)
Brand Cooper and Hunter
Category Quint. | 5 Zone | Select Five Heads
SKU C&H 5-Zone Special (-22F)
Condition new
UPC 893088001157
MPN CH-RVHP36M-230VO
Reviews 1
4.0 1 review

Incredible power

Timothy Sheridan · June 2026

We bought this Cooper & Hunter 5-zone system to handle the heating and cooling across several of our busiest administrative offices, and it has been an absolute lifesaver. With multiple people and computers in different rooms, everyone used to fight over the thermostat, but now each office can set its own perfect temperature. It runs so quietly that you barely notice it’s on, which is perfect for a quiet work environment, and our monthly energy bills have dropped significantly thanks to its high efficiency. Even during the harshest winter weather, the heat stays incredibly strong without skipping a beat. It has made the whole office building a much more comfortable place to work every day.

Customer Reviews

4.0 / 5 · 1 reviews
Incredible power

We bought this Cooper & Hunter 5-zone system to handle the heating and cooling across several of our busiest administrative offices, and it has been an absolute lifesaver. With multiple people and computers in different rooms, everyone used to fight over the thermostat, but now each office can set its own perfect temperature. It runs so quietly that you barely notice it’s on, which is perfect for a quiet work environment, and our monthly energy bills have dropped significantly thanks to its high efficiency. Even during the harshest winter weather, the heat stays incredibly strong without skipping a beat. It has made the whole office building a much more comfortable place to work every day.

Timothy Sheridan · 2026-06-16
