Experience ultimate comfort with the C&H 5-zone ac mini split system featuring cutting-edge R454B refrigerant heat pump technology. This customizable five zone HVAC solution delivers exceptional 24 SEER2 efficiency and reliable heating down to -13 F. The 5 zone heat pump includes five ductless wall mount air conditioner units with WiFi control and remotes. Advanced features include high-frequency racer technology for 6-second startup, gold-coated coils, leak detection, and intelligent dusting switch. Perfect for year-round comfort with stepless frequency adjustment and basepan heater. Energy Star rated with 12 EER/9.5 HSPF performance makes this an ideal primary heating solution.
Cooper & Hunter's 5-Zone Custom Multi-Zone system gives you the flexibility to heat and cool up to five rooms independently from a single outdoor unit — in temperatures as low as -13°F. This R454B system hits 24 SEER2 and 9.5 HSPF2, making it one of the most efficient multi-zone configurations available. Energy Star certified.

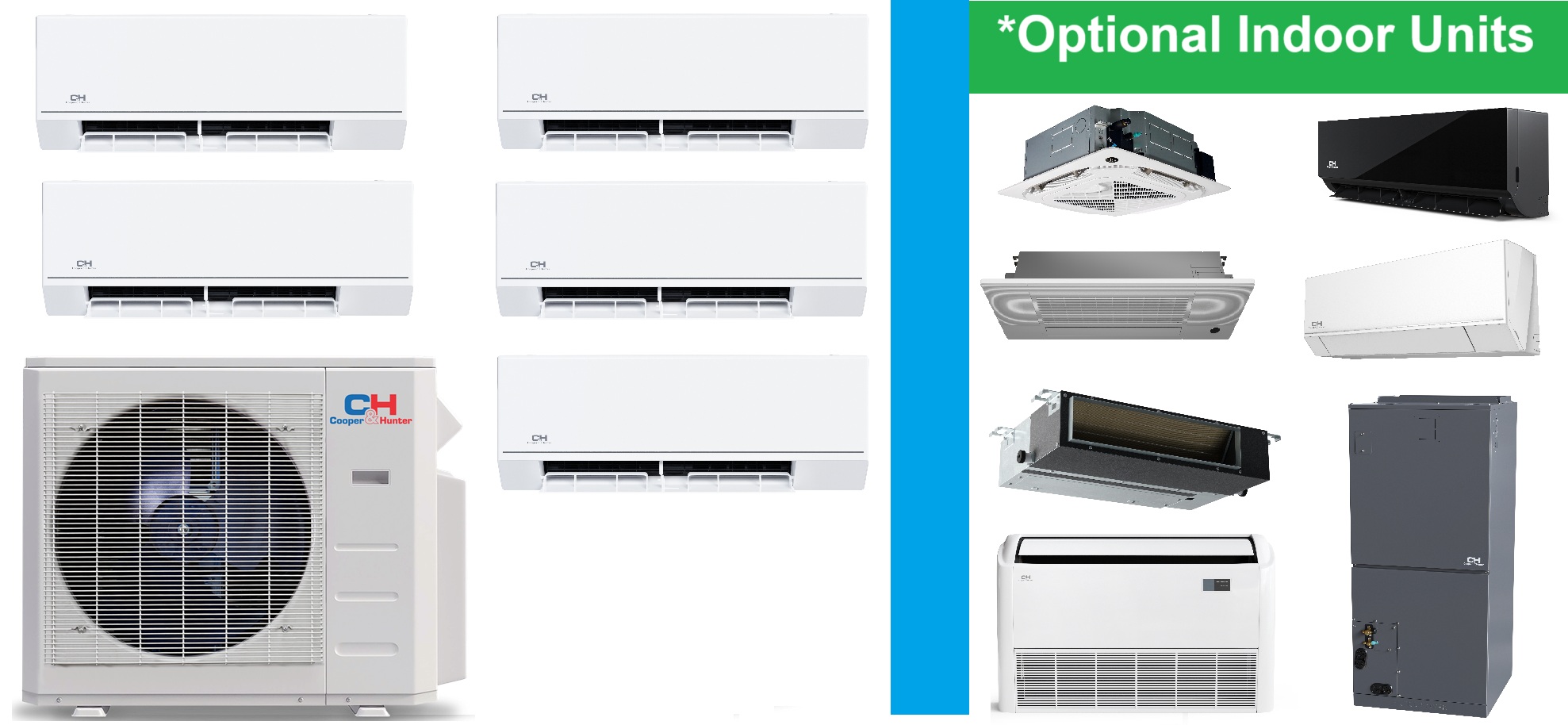

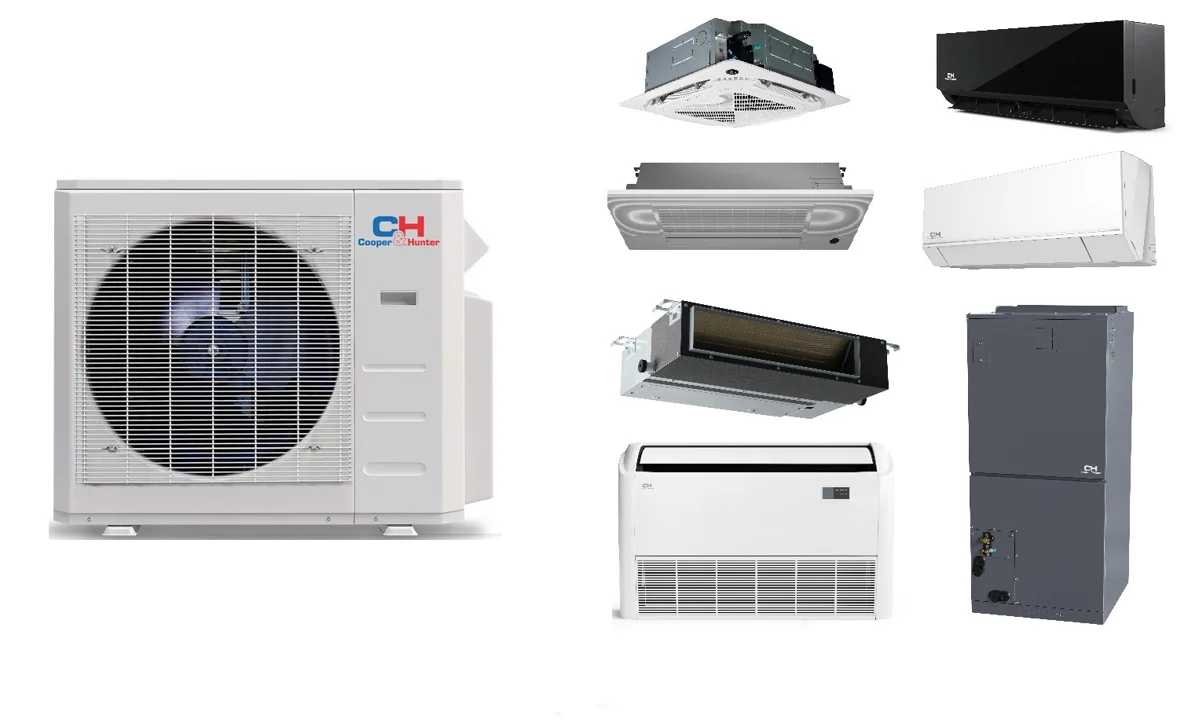

Choose from 10 indoor unit types — wall mounts, cassettes, floor consoles, slim ducts, and central air handlers — and upgrade to 36K, 48K, or 60K outdoor units as needed. Every outdoor unit includes a built-in basepan heater, gold-coated coils, and refrigerant leak detection. Factory warranty: 7-year compressor, 5-year parts.
| Technical Specifications | |
|---|---|
| System Type | 5-Zone Multi-Zone Heat Pump |
| Refrigerant | R454B (A2L Low-GWP) |
| Cooling Efficiency | 24 SEER2 |
| EER2 | 12 |
| Heating Efficiency | 9.5 HSPF2 |
| Min. Heating Temperature | -13°F / -25°C |
| Voltage | 208/230V / 60Hz / 1Ph |
| Outdoor Units Available | CH-R36MES-230VO (36K), CH-R48MES-230VO (48K), CH-R60MES-230VO (60K) |
| Outdoor Features | Basepan heater, gold coils, refrigerant leak detection, auto-restart |
| Energy Star | Yes — Certified |
| Warranty | 7-Year Compressor / 5-Year Parts |
| Compliance | AHRI Certified — see AHRI buttons per outdoor unit |
This system delivers full rated heating output down to -13°F — making it a reliable primary heat source, no backup required.
One of the highest SEER2 ratings available in a 5-zone multi-zone system. Drastically lower energy bills versus traditional HVAC.
Uses R454B, a next-generation refrigerant with significantly lower global warming potential than R410A or R32.
Wall mounts, cassettes, consoles, slim ducts, floor/ceiling mounts, and air handlers — customize each zone independently.
Pre-coated aluminum fins resist corrosion in coastal and humid environments, extending the system's outdoor unit lifespan.
Meets or exceeds ENERGY STAR requirements — qualifying for utility rebates and federal/state energy incentive programs.
No weight limits. No dimensional charges. Free freight delivery on every order.
Every unit ships with the full manufacturer warranty — no third-party coverage needed.
We cut out the middleman. Compare us against any competitor — we back our pricing.
Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.
Call or email our team. We answer specs, sizing, and installation questions — not scripts.
Pay by check or bank transfer and get 3% back — one of the easiest savings available.
The minimum is 36K BTU (CH-R36MES-230VO). Larger 48K and 60K options let you run higher combined indoor BTU loads. Rule: combined indoor BTU should not exceed the outdoor maximum allowed capacity per the Allowed Combinations chart.
Yes. This system supports up to 10 different indoor unit types on the same outdoor unit. The only restriction is AHU pairing: if using two AHUs, no other indoor unit types can be combined on that outdoor unit.
Yes — the -13°F minimum heating temperature means it operates as a primary heat source even in harsh winters, without needing a gas furnace or electric resistance backup.
This uses R454B, a low-GWP A2L refrigerant. R454B is EPA-approved for residential and commercial HVAC. It requires certified installers using proper tools — same process as any modern refrigerant.
No. Factory warranty coverage (7-year compressor, 5-year parts) is identical whether purchased here or through any authorized channel. We are an authorized Cooper & Hunter dealer. Warranty registration through cooperandhunter.us is required.
| Title | C&H 5-Zone Custom Mini Split Heat Pump AC (-13Β°F) E-Star: 24 SEER2/12 EER/9.5 HSPF (R454B) |
|---|---|
| Brand | Cooper and Hunter |
| Category | Quint. | 5 Zone | Select Five Heads |
| SKU | C&H 5-Zone (-13F) |
| Condition | new |
| UPC | 893088082174 |
| MPN | CH-R36MES-230VO |
This multi-zone system from Cooper & Hunter (C&H) is designed to be a flexible and highly efficient solution for home climate control. The "5-zone" capability means you can connect up to five separate indoor units to a single outdoor condenser, providing independent temperature control for different rooms or areas of a home. The downside is the upfront cost and more work to install and maintain five units, but overall, the comfort and flexibility made it worth it.
Five separate rooms, perfect temperatures all year, and an electric bill so small it will make you double-check the math.
I went with this 5-zone configuration because I needed to cover a mix of bedroom sizes and a larger living area. The outdoor condenser is surprisingly quiet for its sizeβI was worried a unit powering five heads would sound like a plane taking off, but itβs more of a low hum.
This multi-zone system from Cooper & Hunter (C&H) is designed to be a flexible and highly efficient solution for home climate control. The "5-zone" capability means you can connect up to five separate indoor units to a single outdoor condenser, providing independent temperature control for different rooms or areas of a home. The downside is the upfront cost and more work to install and maintain five units, but overall, the comfort and flexibility made it worth it.
M. Haynes · 2025-09-18Five separate rooms, perfect temperatures all year, and an electric bill so small it will make you double-check the math.
Larry Cole · 2026-10-03I went with this 5-zone configuration because I needed to cover a mix of bedroom sizes and a larger living area. The outdoor condenser is surprisingly quiet for its sizeβI was worried a unit powering five heads would sound like a plane taking off, but itβs more of a low hum.
