C&H 6-Zone Custom Mini Split AC H-Heat Pump (-22Β°F) E-Star: 23 SEER2/12 EER/11 HSPF (R454B)
New C&H R454B Six Zone Hyper Mini Split-Heat Pump AC. This Customizable Cooper and Hunter Sext-Zone Package Includes: (1) Multi Zone Outdoor Unit : 6 Indoor Units- Upgrade the outdoor and indoor units via the dropdown boxes above. Features : Heats & Cools ( -22F / -22F ) Base-pan Heater (Built in) Gold Coated Coils Refrigerant Leak Detection Auto Restart Brochure HIGH-FREQUENCY RACER TECHNOLOGY : Enables the compressor to reach maximum speed within 6 seconds on start up HIGH-EFFICIENCY PIPES...
Buy more, pay less
from each
C&H 6-Zone 23 SEER2 Mini Split AC Hyper Heat Pump (-22°F) E-Star | 12 EER / 11 HSPF | R454B
SKU: C&H 6-Zone (-22F) | Voltage: 208/230V | β Energy Star Certified
This Cooper & Hunter 6-Zone system is the most capable configuration in the multi-zone R454B lineup — six fully independent zones from one outdoor unit, using the latest low-GWP refrigerant with Energy Star certification and a 23 SEER2 efficiency rating. The Hyper (-22°F) outdoor unit operates reliably in heating mode down to -22°F, making it a true year-round system for cold-climate homes and commercial properties.

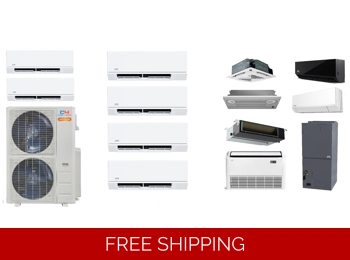

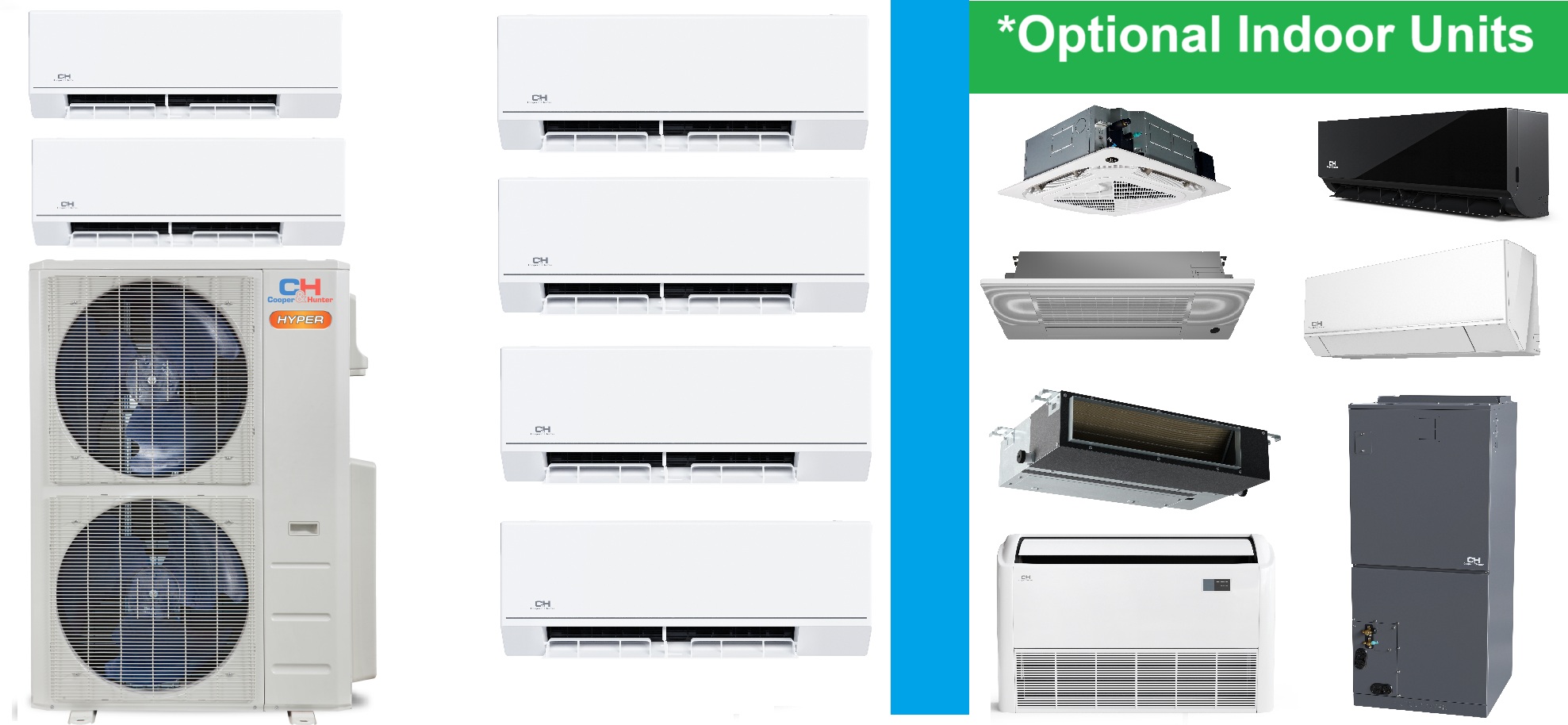

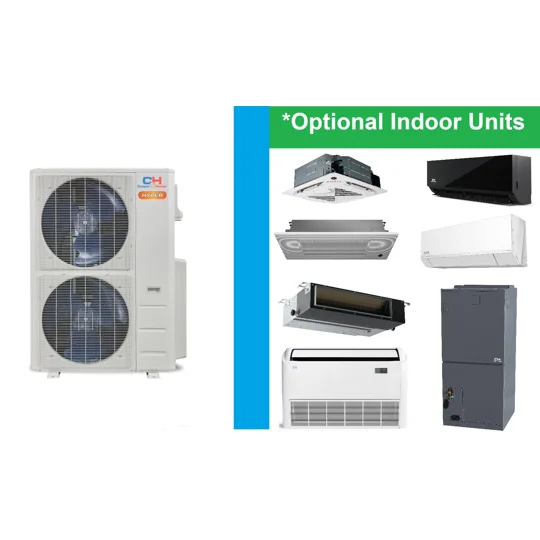

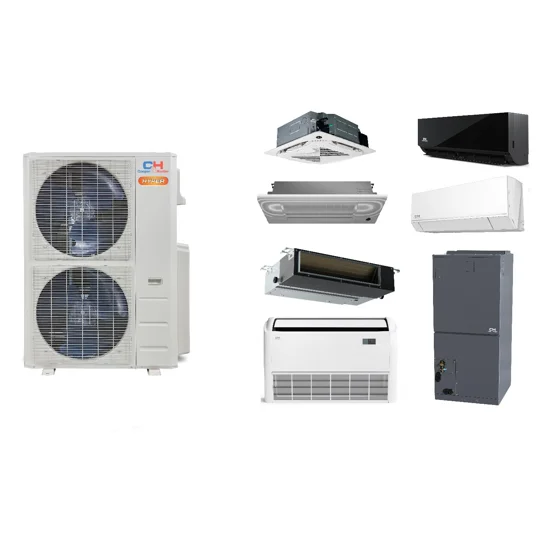

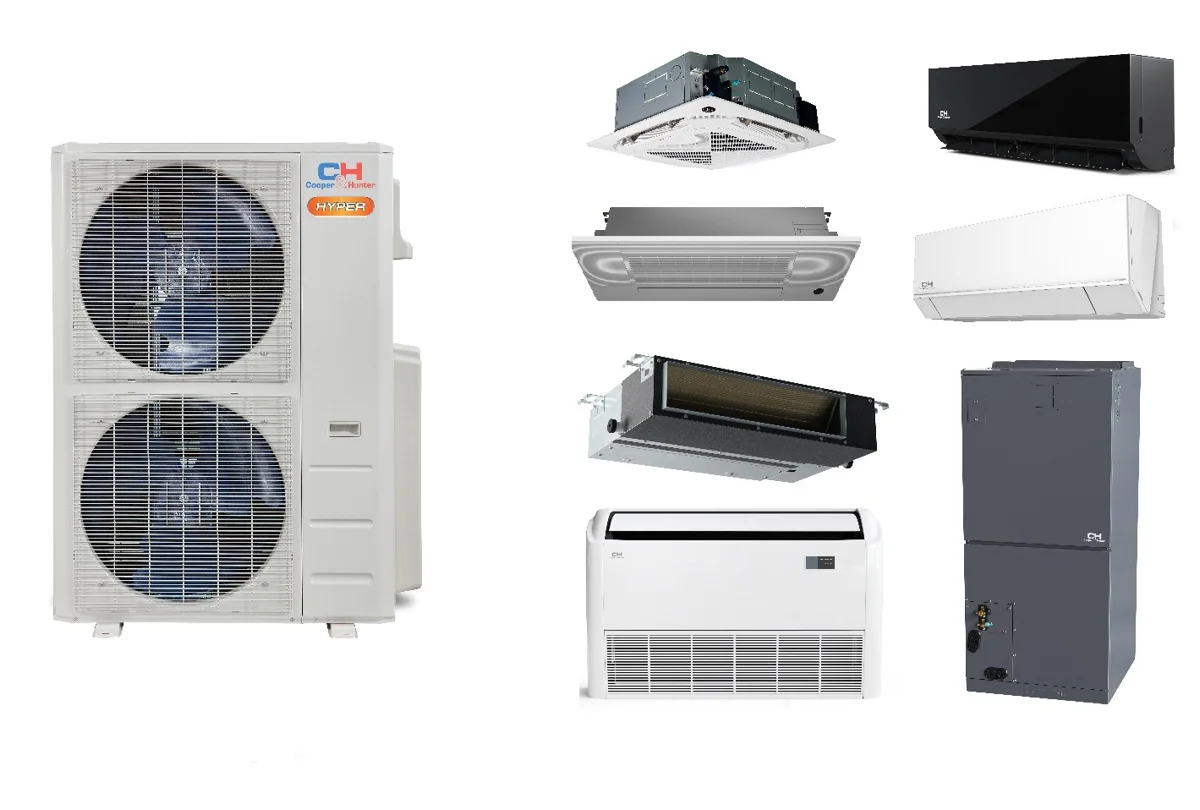

The base package includes (1) Multi-Zone Hyper Outdoor Unit rated to -22°F and your choice of indoor units per zone — configurable via dropdowns. Choose from 10 indoor unit types including Olivia (white), Olivia Midnight Black, Astoria, Astoria Pro, floor console, floor/ceiling, slim duct, 4-way cassette, slim cassette, and central air handler. The outdoor unit is also upgradeable to larger capacities (36K–55K RHP or RVHP with shutoff valves). 7-Year Compressor / 5-Year Parts factory warranty.
Efficiency & Performance Stats
| Product Specifications | |
|---|---|
| Zones | 6 Independent Zones |
| SEER2 | 23 |
| EER2 | 12 |
| HSPF2 | 11 |
| Refrigerant | R454B |
| Voltage | 208/230V, 1-Phase, 60Hz |
| Min Operating Temp (Heating) | -22°F |
| Cooling Range | -22°F ~ 122°F |
| Heating Range | -22°F ~ 75°F |
| Outdoor Unit Options | RHP (19K–55K) and RVHP with shutoff valve (19K–55K) — see outdoor unit options below |
| Indoor Unit Types | 10 styles available — see indoor unit options below |
| WiFi | WiFi Ready (C&H WiFi Kit or built-in per unit type) |
| Basepan Heater | Built-in |
| Gold Coated Coils | Yes |
| Warranty | 7 Yr Compressor / 5 Yr Parts (registration required) |
| Energy Star | Yes |
π Documents & Resources
πΏ Indoor Unit Options (Configure via Dropdown)

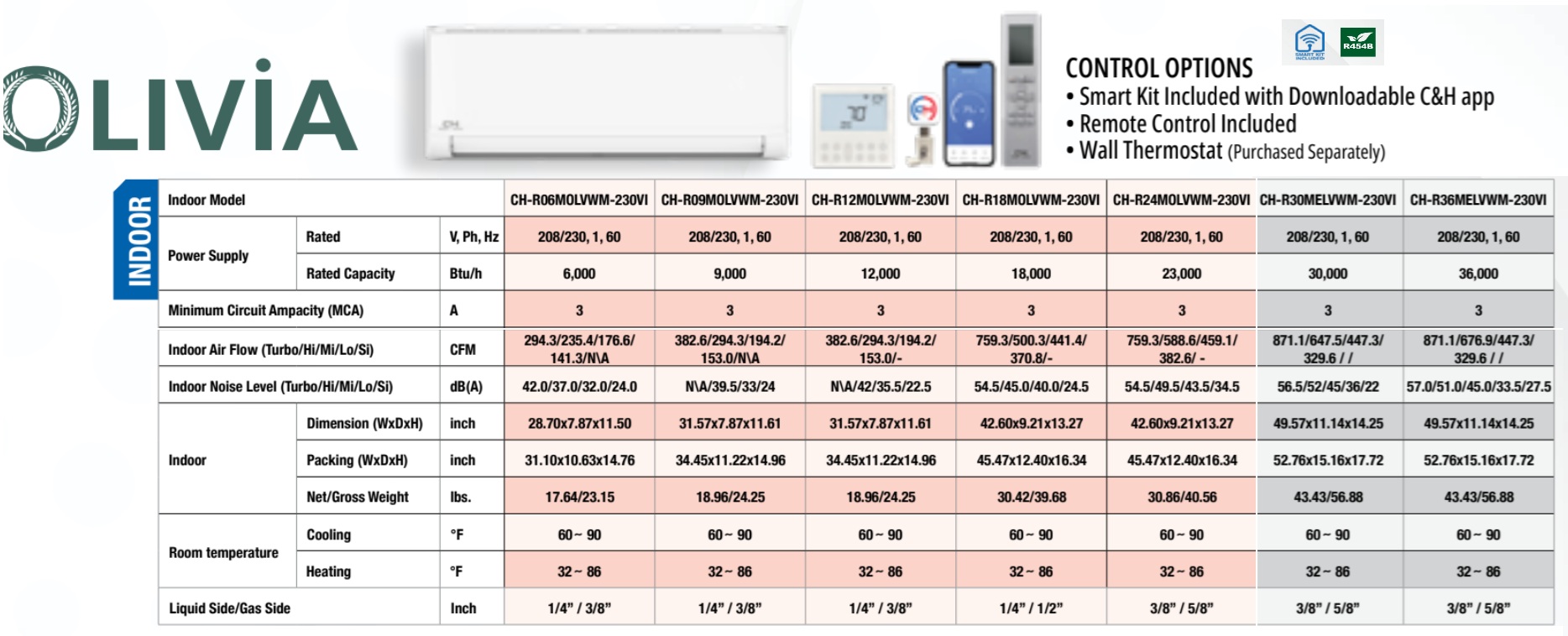

Olivia Wall Mount — White
- Wi-Fi Built-In
- Auto-Swing for horizontal louvers
- Genius Core ultra-low compressor speed (12Hz)
- New User-Friendly Remote Controller
- 46° Freeze Protection
- Turbo Mode
- Self-Clean Function (single zone only)
- Eco Mode (single zone only)
- Follow Me Mode
- Timer On/Off
- Sleep Mode
Available Models: CH-R06/09/12/18/24MOLVWM-230VI (also CH-R15/30/36)

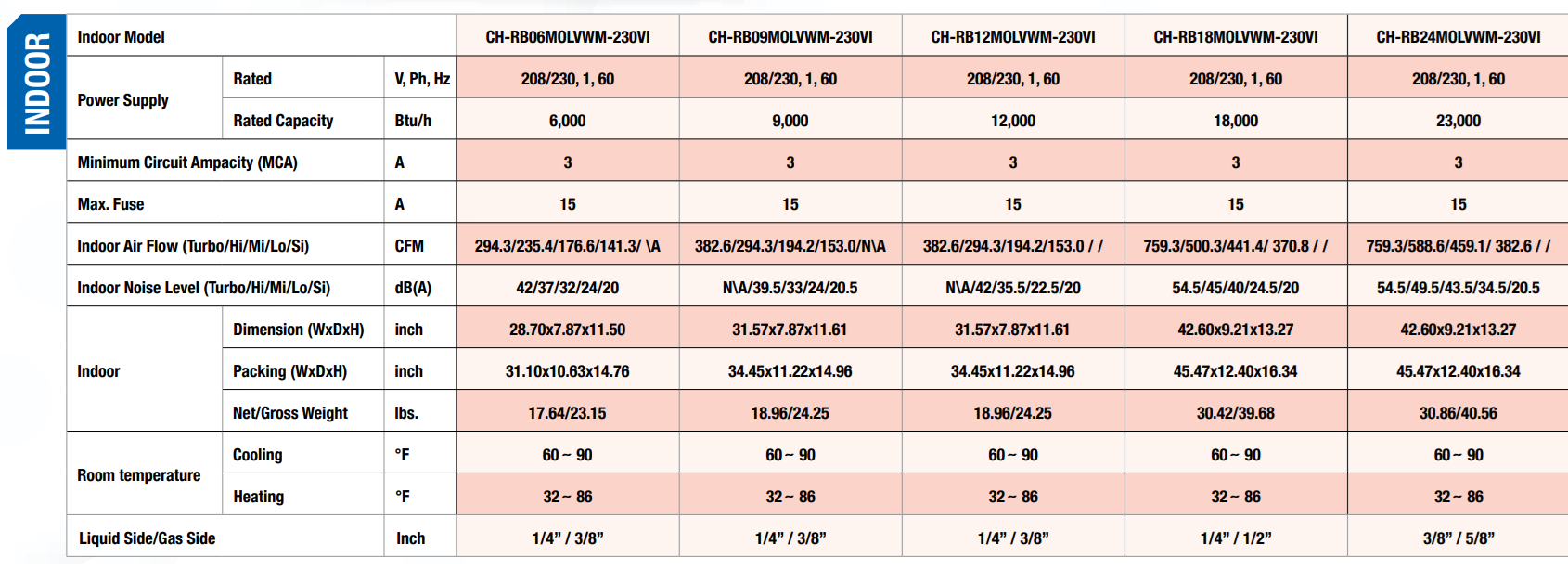

Olivia Wall Mount — Midnight Black
- Wi-Fi Built-In
- Auto-Swing for horizontal louvers
- Genius Core ultra-low compressor speed (12Hz)
- New User-Friendly Remote Controller
- 46° Freeze Protection
- Turbo Mode
- Self-Clean Function (single zone only)
- Eco Mode (single zone only)
- Follow Me Mode
- Timer On/Off
- Sleep Mode
Available Models: CH-RB09/12/18/24MOLVWM-230VI

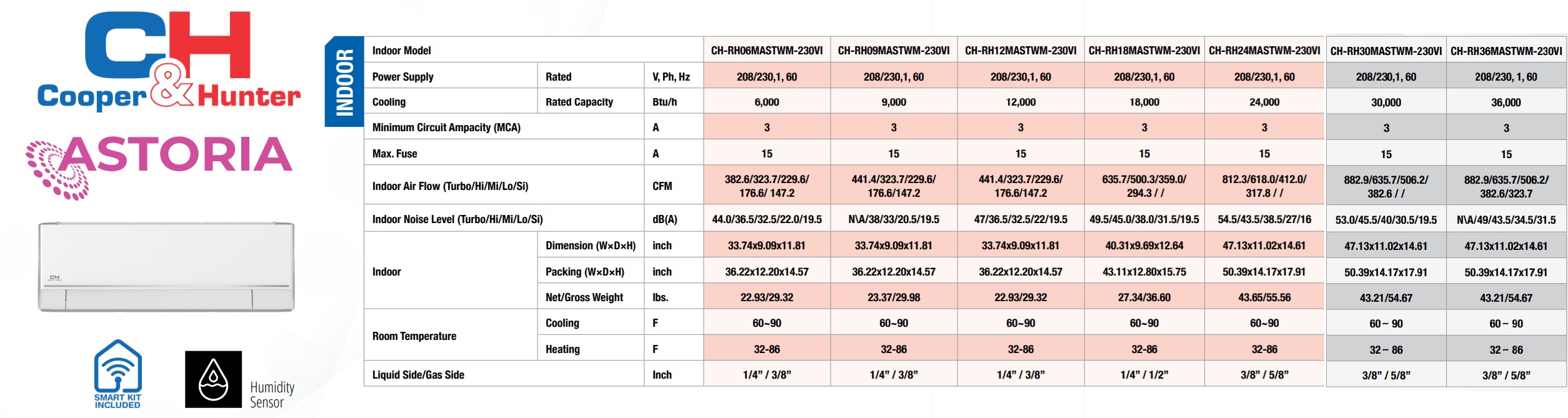

Astoria Wall Mount — Distributor Exclusive
- Distributor Exclusive
- Wi-Fi & Humidity Sensor Built-In
- E-Box and PCB in front with cover kickstand for easy service access
- Convenient disassembly with easy-to-remove fan blower
- Larger air inlet/outlet for improved airflow
- Auto-Swing for vertical and horizontal louvers
- New User-Friendly Remote Controller
- Self-Clean Function (single zone only)
- Follow Me Mode
- Timer On/Off
- Eco Mode (single zone only)
- 46° Freeze Protection
- Turbo Mode
- Sleep Mode
Available Models: CH-RH06/09/12/18/24MXSTWM-230VI (also CH-RH15/30/36)

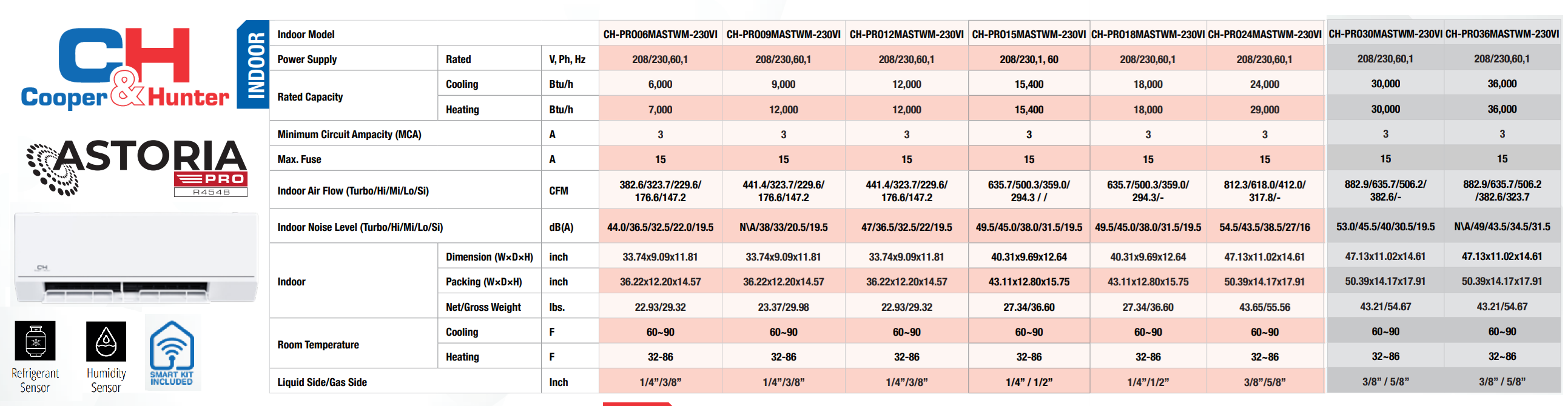

Astoria Pro Wall Mount — Premium
- Premium upgrade over standard Astoria
- Wi-Fi & Humidity Sensor Built-In
- E-Box and PCB in front with cover kickstand
- Convenient disassembly with easy-to-remove fan blower
- Larger air inlet/outlet
- Auto-Swing for vertical and horizontal louvers
- Self-Clean Function (single zone only)
- Follow Me Mode
- Timer On/Off
- Eco Mode (single zone only)
- 46° Freeze Protection
- Turbo Mode
- Sleep Mode
Available Models: CH-PRO06/09/12/15/18/24MXSTWM-230VI (also 30/36)

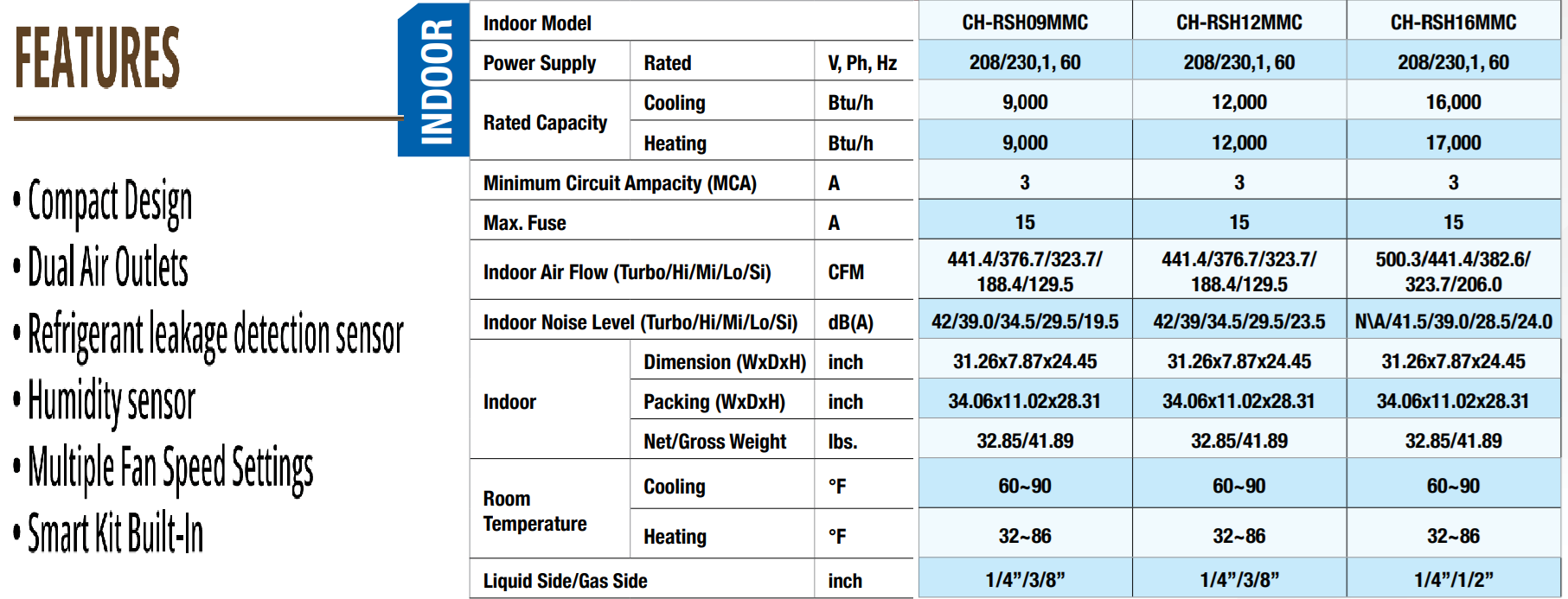

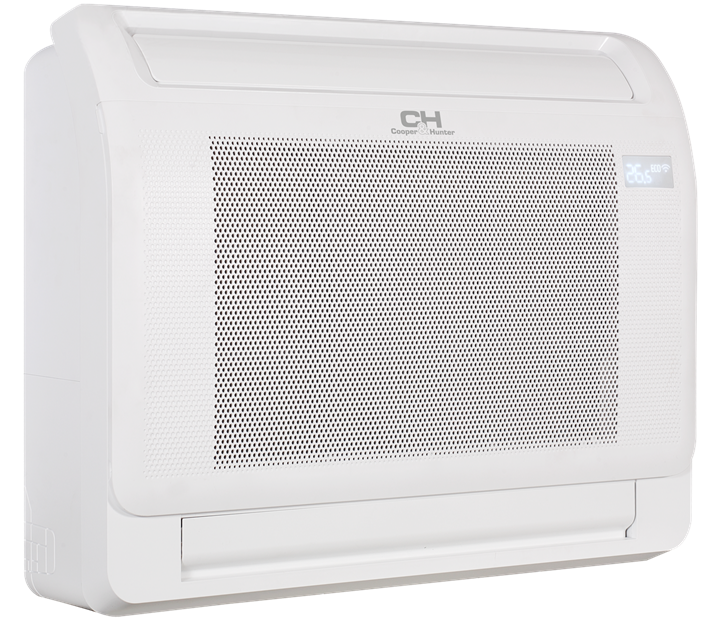

Floor Console — 9K / 12K BTU
- Most popular in colder climates — heated air rises naturally from ground level
- Dual air discharge locations provide even floor-to-ceiling coverage
- Available in 9K and 12K BTU (16K = 18K unit)
Available Models: CH-RSH09MMC, CH-RSH12MMC

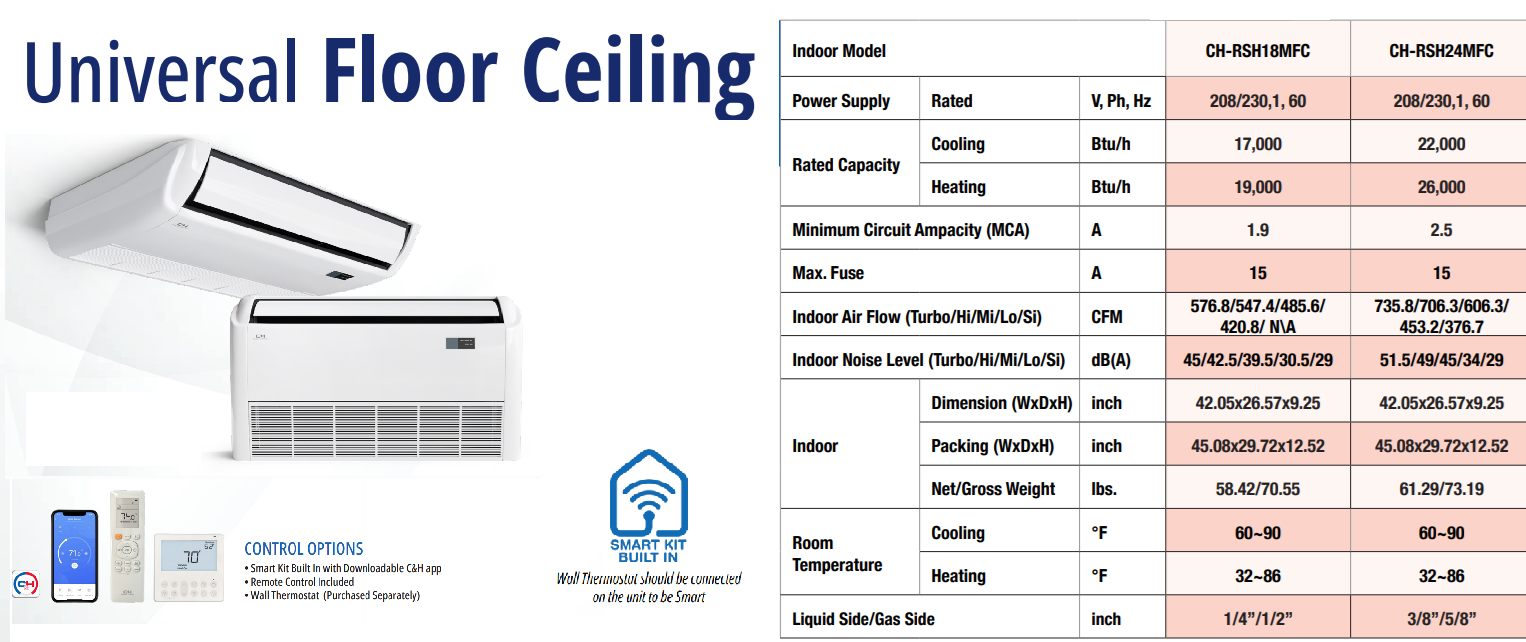

Floor / Ceiling Universal Mount — 18K / 24K BTU
- Universal install — horizontal on ceiling or vertical on wall
- Controlled by remote, wall thermostat, or C&H app
- Available in 18K and 24K BTU
- Note: Condensate pump NOT included — external pump may be required
Available Models: CH-RSH18MFC, CH-RSH24MFC

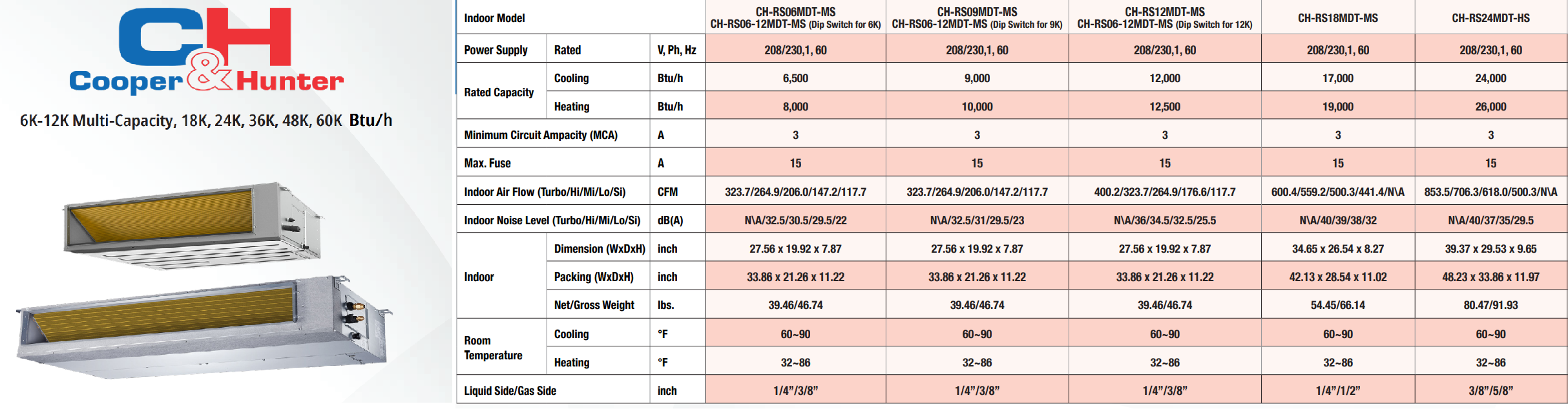

Slim Duct (Hidden / Concealed)
- Concealed installation in attic or ceiling crawl space
- Can duct to multiple separate areas (hallways, laundry, bathrooms) from one unit
- Built-in condensate pump
- MS = Mid Static / HS = High Static pressure options available
Available Models: CH-RS06-12MDT-MS, CH-RS18MDT-MS, CH-RS24MDT-HS

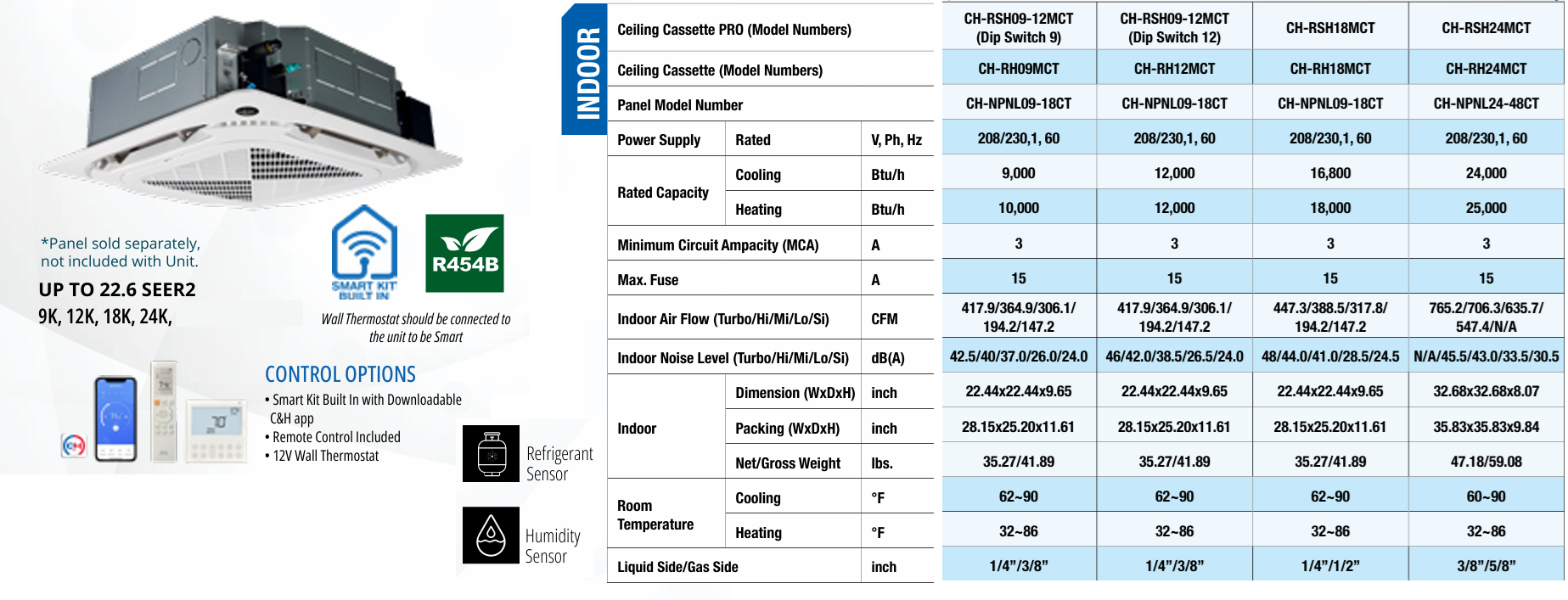

4-Way Ceiling Cassette
- Fits standard commercial ceiling grid
- 360° omni-directional airflow for uniform coverage
- Built-in condensate pump
- RS models include refrigerant sensor (RS = Refrigerant Sensor)
Available Models: CH-RSH09-12/18/24MCT (with RS sensor), CH-RH09/12/18/24MCT (without)

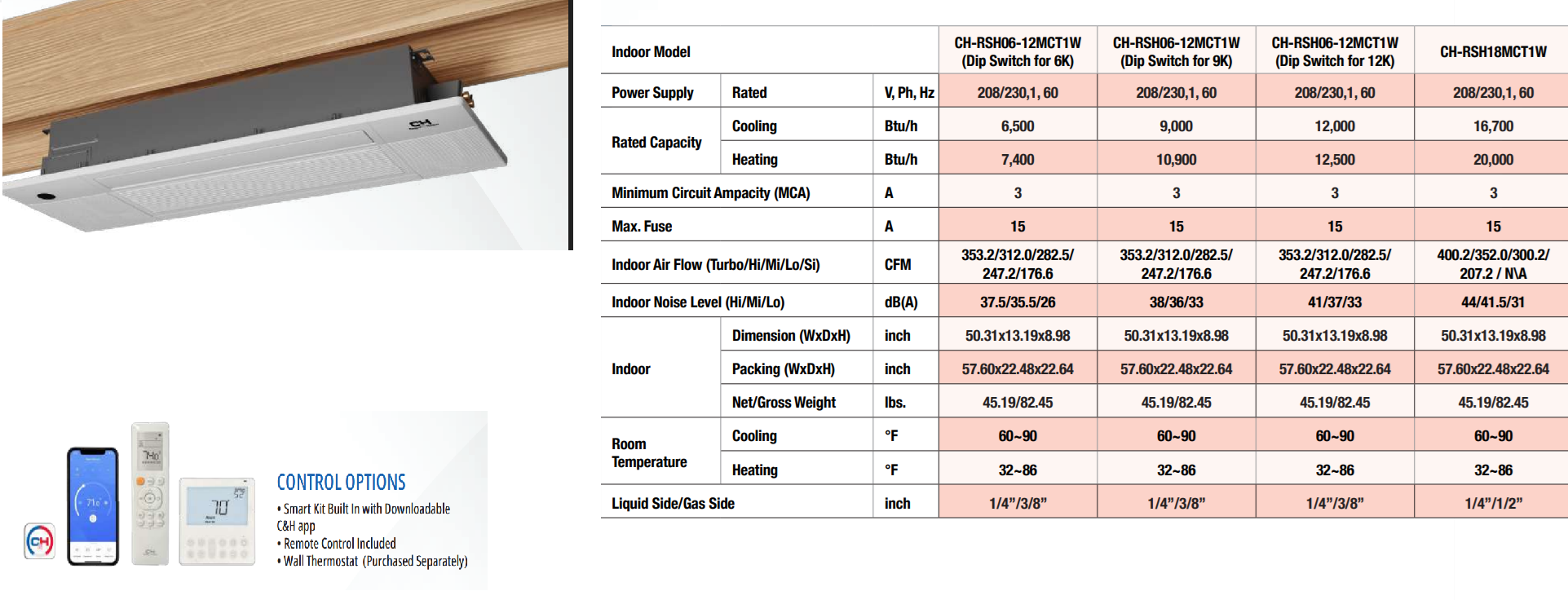

NEW 1-Way SLIM Ceiling Cassette
- NEW SLIM design fits into ceiling joists — no ceiling grid required
- ONE WAY directional airflow
- Built-in condensate pump
Available Models: CH-RSH06-12MCT1W, CH-RSH18MCT1W

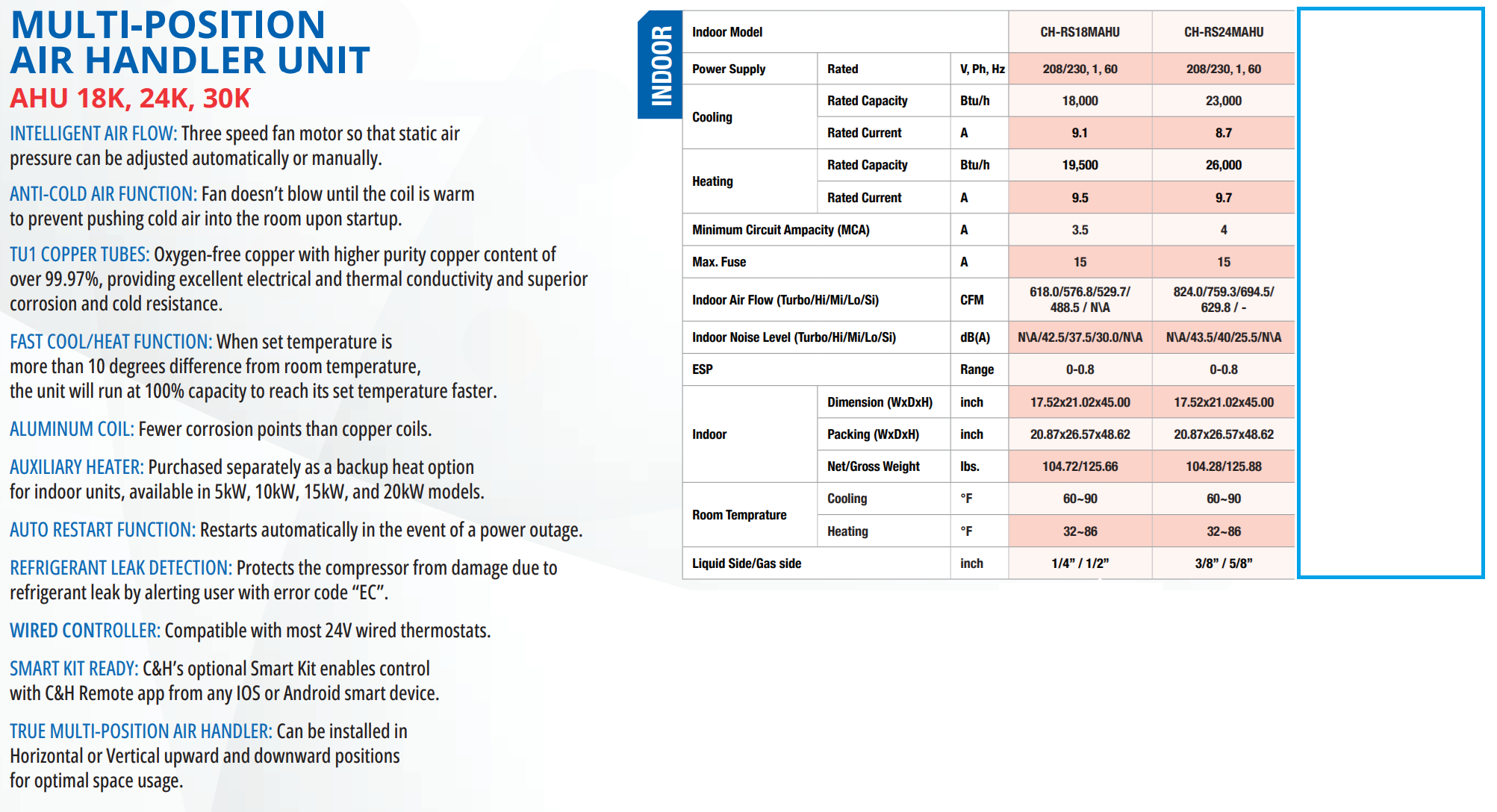

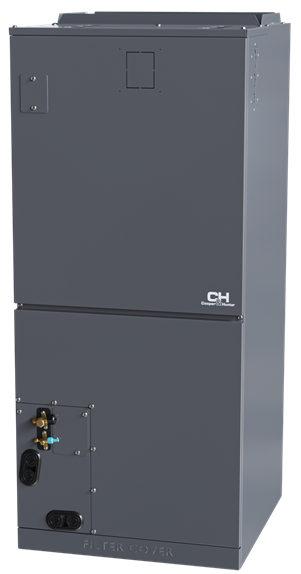

Central Air Handler (AHU)
- INTELLIGENT AIR FLOW — auto or manual static pressure control
- ANTI-COLD AIR FUNCTION — fan waits for coil to warm
- TU1 COPPER TUBES — over 99.97% copper purity
- FAST COOL/HEAT FUNCTION — 100% capacity when >10°F off setpoint
- ALUMINUM COIL — fewer corrosion points
- AUTO RESTART — auto restarts after power outage
- REFRIGERANT LEAK DETECT — error code EC alert
- WIRED CONTROLLER — 24V interface compatible
- TRUE MULTI POSITION: Horizontal, vertical, or downward
Important Limitation: If using two AHU units on one multi-zone outdoor unit, NO other indoor unit types can be connected — regardless of remaining BTU capacity.
Available Models: CH-RS18/24/30MAHU

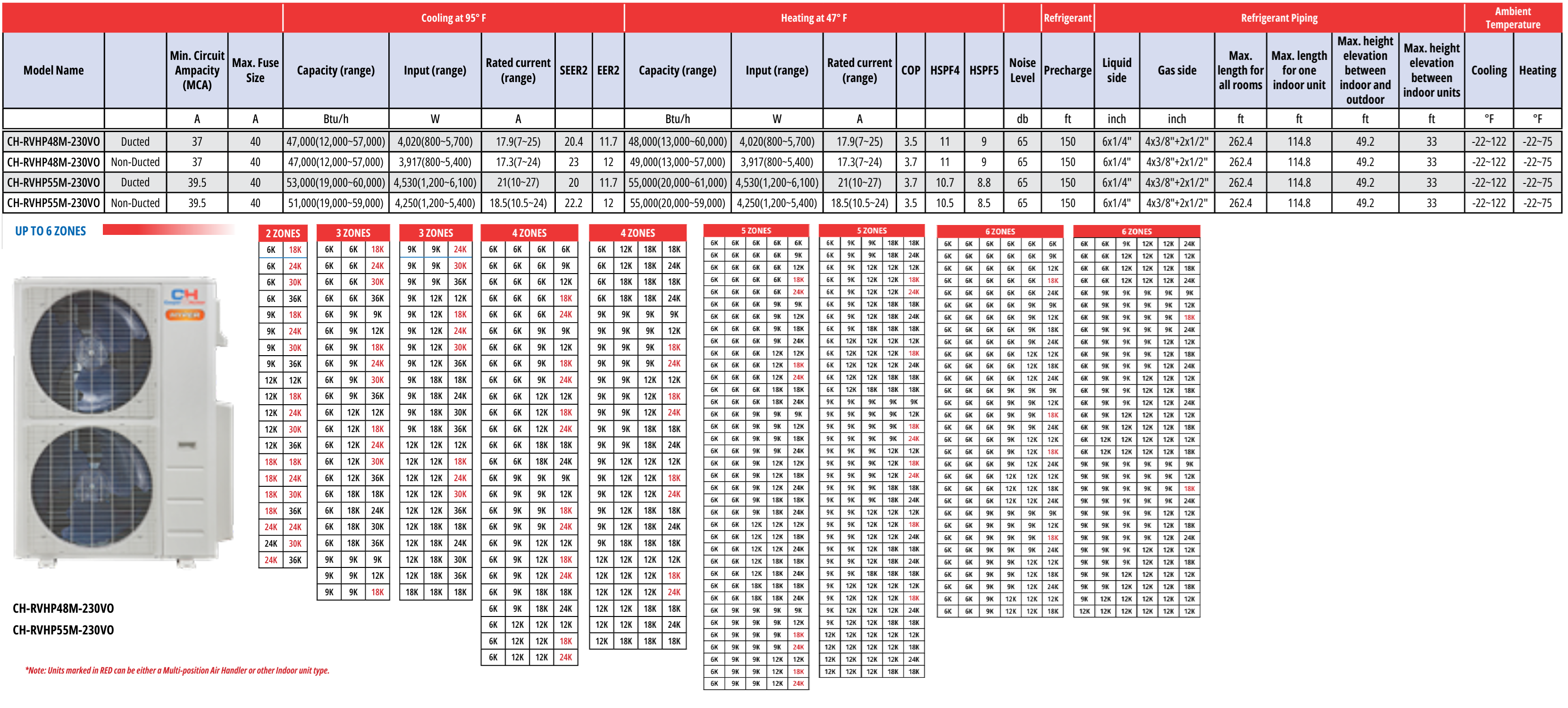

β Outdoor Unit Options (Upgradeable via Dropdown)
CH-RHP48M-230VO — 48K Non-Valve (RHP)
48K Non-Valve (RHP) — Hyper Heat R454B outdoor unit, rated to -22°F. RHP series does not include shutoff valves.
CH-RHP55M-230VO — 55K Non-Valve (RHP) — Tall Double Fan
55K Non-Valve (RHP) — Tall Double Fan — Hyper Heat R454B outdoor unit, rated to -22°F. RHP series does not include shutoff valves.
CH-RVHP48M-230VO — 48K With Shutoff Valve (RVHP) — Tall Double Fan
48K With Shutoff Valve (RVHP) — Tall Double Fan — Hyper Heat R454B outdoor unit with shutoff valves, rated to -22°F. RVHP (V = Shutoff Valve) series allows line isolation per zone for service.
CH-RVHP55M-230VO — 55K With Shutoff Valve (RVHP) — Tall Double Fan
55K With Shutoff Valve (RVHP) — Tall Double Fan — Hyper Heat R454B outdoor unit with shutoff valves, rated to -22°F. RVHP (V = Shutoff Valve) series allows line isolation per zone for service.
β‘ Product Features
6 Independent Zones
Six separately controlled zones from one outdoor unit. Heat the master bedroom, cool the home office, turn off unused rooms — all simultaneously, all independent.
23 SEER2 / Energy Star
Highest-tier multi-zone efficiency. Energy Star certified for federal tax credits and utility rebate eligibility across most states.
-22°F Hyper Heat Capability
The most cold-weather capable configuration in the C&H lineup. Primary heat source performance at -22°F — no backup required in any continental U.S. location.
R454B Next-Gen Refrigerant
Low-GWP refrigerant meeting current and upcoming EPA phasedown timelines. Better efficiency at extreme temperatures versus R410a.
10 Indoor Unit Types Available
From Olivia wall mounts to ceiling cassettes, slim ducts, and central air handlers — configure each of the 6 zones for its specific application.
Gold Coils + Basepan Heater
Gold-coated hydrophilic fins resist corrosion. Built-in basepan and crankcase heater prevent ice accumulation and enable reliable cold-climate startup.
