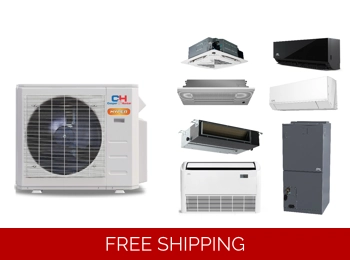

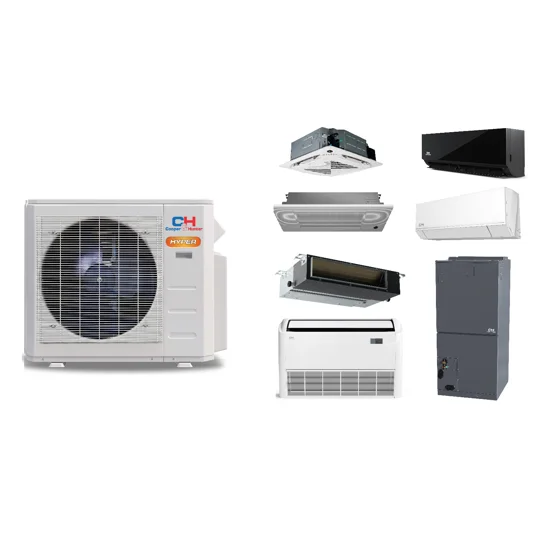

Experience the ultimate in comfort with the C&H (2-6 Zone) Custom Multi-Zone Heat Pump! This advanced cooling system is designed to keep your space cozy, even in the coldest conditions, with a remarkable heating capability down to -22 F. Featuring a customizable AC system, this ductless mini split AC offers flexibility and efficiency tailored to your needs. With an impressive 25 SEER2, 15 EER, and 10.4 HSPF ratings, this energy-efficient heat pump not only saves you money but also reduces your carbon footprint. The high-frequency compressor ensures quiet operation while maintaining a stable room temperature. Plus, with built-in features like a basepan heater and refrigerant leak detection, you can enjoy peace of mind. Upgrade your comfort today with this reliable and efficient solution!
Extra Low Temperature Heating For when its cold outside, the heat output for this system is rated down to -22° F, making this a primary heat source and eliminating the need for a backup heat source.
Stepless Frequency Adjustment Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.
FEATURES
Built-in basepan & crankcase heater
Auto-restart function
Condenser high-temperature protection
Refrigerant leakage detection
Quiet outdoor operation
Aluminum Golden Hydrophilic pre-coated fins
Cooling operating range
-22~122
Heating operating range
-22° ~ 75° F
Heats & Cools (-22F/-22F)
*Upgrade the Outdoor unit to larger sizes (Click) model numbers for cut sheets

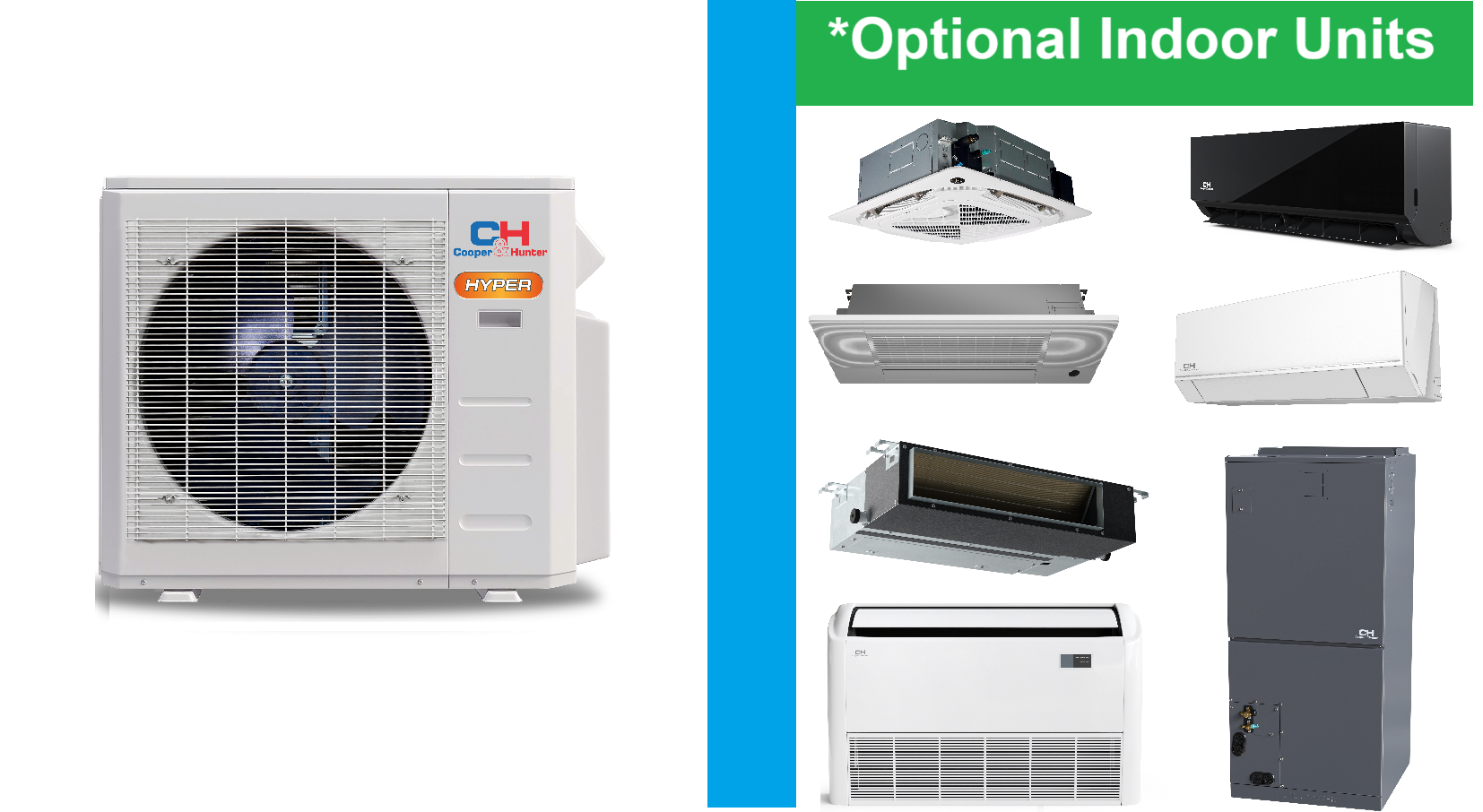

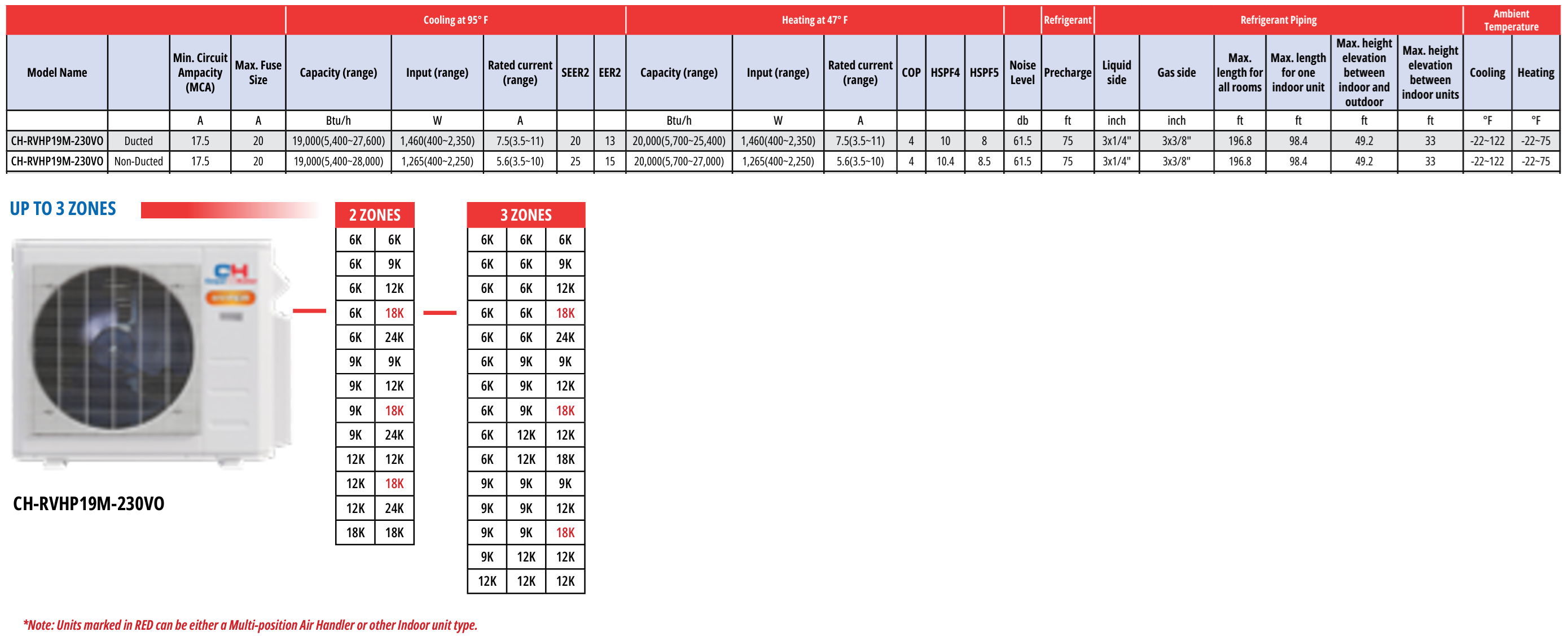

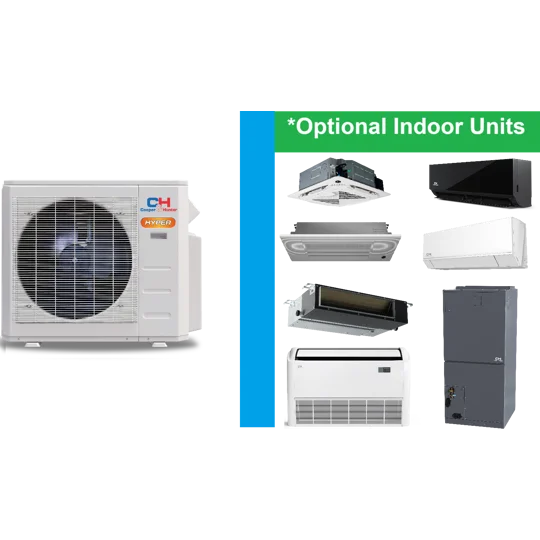

*ADD the indoor units below via the dropdown boxes above Do not exceed the outdoor capacity. Indoor Combined BTU ≤ OUTDOOR MAX BTU Allowed Combinations
Olivia Wall Mount • Wi-Fi • Auto-Swing for horizontal louvers • Genius Core ultra-low compressor speed of 12Hz • New User-Friendly Remote Controller design • 46° Freeze Protection • Turbo Mode • Self-Clean Function (single zone only) • Eco Mode (single zone only) • Follow Me Mode • Timer On/Off • Sleep Mode SPECIFICATIONS
Distributor Exclusive Wall Mount • Wi-Fi• Humidity Sensor• E-Box and PCB located in the front of the unit with a cover kickstand providing easy access • Convenient disassembly & maintenance with an easy-to-remove fan blower • Larger air inlet / outlet for improved air flow • Auto-Swing for vertical and horizontal louvers • New User-Friendly Remote Controller design • Self-Clean Function (single zone only) • Follow Me Mode • Timer On/Off • Eco Mode (single zone only) • 46° Freeze Protection • Turbo Mode • Sleep Mode
Floor Console: Mini Floor Consoles are most popular in colder climates as, during winter seasons, dual air discharge locations provide heated air at ground level, which naturally rises to fill the room.
Floor or Ceiling Mount (Universal) :Universal Floor/Ceiling units offer flexibility in regard to location, as they can be installed horizontally on a ceiling or vertically on a wall. These units can be conveniently controlled by remote control, wall thermostat, or C&H Remote app. Universal Floor/Ceiling units are available in 18K and 24K models. Condensate Pump NOT Included
Slim Ducted (Hidden/Concealed): Slim Ducts provide an inconspicuous solution, hidden in attics and ceiling crawl spaces. Slim ducted can take care of hallways, closets, laundry rooms, and bathrooms of a home while the bedrooms themselves are controlled independently. Condensate pump built-in.
4-Way Ceiling Cassette: Ceiling Cassettes offer a convenient solution for offices and businesses, as they can easily fit into a standard ceiling grid, but they can be used for almost any application, as long as enough space between ceiling frame. Ceiling Cassettes provide omni-directional air flow and user-friendly Remote Control operation along with a built in condensate pump.
NEW 1-Way SLIM Ceiling Cassette: SLIM Ceiling Cassettes offer a convenient solution for homes, offices and businesses, as they can easily fit into a ceiling joist, unlike traditional cassettes, but they can be used for almost any application, as long as enough space exists. Slim Ceiling Cassettes provide ONE WAY air flow and user-friendly Remote Control operation along with a built in condensate pump.
CENTRAL AHU: • INTELLIGENT AIR FLOW • ANTI-COLD AIR FUNCTION • TU1 COPPER TUBES • FAST COOL/HEAT FUNCTION• ALUMINUM COIL • AUTO RESTART FUNCTION• REFRIGERANT LEAK DETECT • WIRED CONTROLLER• 24V Interface. • TRUE MULTI POSITION AIR HANDLER: Horizontal, vertical, or downward installation.
*Limitations: If using two AHU on one multi zone outdoor, NO OTHER INDOORS CAN BE USED, NO MATTER THE AVAILABLE BTU CAPACITY REMAINING ON THE OUTDOOR UNIT
When I set up the CH Custom Multi-Zone Hyper Heat Pump, it felt like I was giving each room in my house its own personality. The living room now cools like a quiet movie theater, while the bedrooms warm up just enough to feel cozy without stuffiness. What I love most is the sense of balance. Iโm not forcing the whole house into one climate anymore; instead, each space feels tuned, like instruments in an orchestra. Itโs the first time Iโve had comfort that feels thisโฆ personal.
Zero Regrets
W. Davis · December 2025
It uses R454B refrigerant. I wanted to be "future-proof" so Iโm not hunting for obsolete, expensive gas if I need a recharge in five years. The setup is beefy and clearly built to last.
It's truly redefined what "comfortable" means in my house.
R. Devos · June 2025
This CH multi-zone mini-split has honestly transformed my home's comfort. It runs on R-454B, so I know I'm making a more environmentally conscious choice without sacrificing an ounce of performance. If you're looking for a powerful, flexible, and eco-friendlier way to heat and cool your home, this system is a seriously smart move.
Itโs running on R-454B
Marvin Mayville · April 2026
Ditching the window units for this C&H Dual-Zone Hyper Heat was the best "adulting" move Iโve made. My open-concept living area used to have a permanent "hot corner" by the kitchen, but the 18k unit reaches every square inch without sounding like a jet engine. In the master bedroom, the 9k unit is so quiet Iโve actually checked the display to see if I forgot to turn it on. I was worried about mounting the condenser on my apartment wall, but the Inverter technology is incredibly smoothโno rattling or "thumping" when it kicks in. The units are sleek, but they aren't "small." In an apartment, you have to be strategic about placement so they don't dominate the room. Also, get a pro for the vacuum pullโthe tech is high-end, so don't cut corners on the install.
Elevating the Glass Box
David Jacobs · December 2025
Living in a "glass box" penthouse means battling extreme sun and high-altitude winds, but this Cooper & Hunter Hyper Heat system handles the exposure effortlessly. The slim condenser is a lifesaver for limited balcony real estate, staying whisper-quiet even when Iโm sitting right next to it, and the R454B refrigerant gives me peace of mind that Iโve future-proofed my home against changing environmental codes. Itโs rare to find a unit thatโs powerful enough to counteract floor-to-ceiling heat gain while remaining discreet enough for a luxury setting, making it the perfect upgrade for anyone living on the top floor.
Perfect
Thomas Hutchins · July 2025
Running a bakery means dealing with ovens, humidity, and early morningsโand keeping the space comfortable for both staff and customers has always been a challenge. I decided to go with the CH Custom Multi-Zone Mini Split, and it turned out to be one of the best upgrades I've made to the shop. The custom zoning was a lifesaver. I set up one unit for the kitchen, another for the front customer area, one in the storage room, and another in the tiny office upstairs. Each space has totally different temperature needsโespecially the kitchen, which can get hot fastโand now I can fine-tune the climate in every zone. All in all, Iโd highly recommend this system to anyone in the food business.
When I set up the CH Custom Multi-Zone Hyper Heat Pump, it felt like I was giving each room in my house its own personality. The living room now cools like a quiet movie theater, while the bedrooms warm up just enough to feel cozy without stuffiness. What I love most is the sense of balance. Iโm not forcing the whole house into one climate anymore; instead, each space feels tuned, like instruments in an orchestra. Itโs the first time Iโve had comfort that feels thisโฆ personal.
Henry Walker · 2025-10-01
Zero Regrets
It uses R454B refrigerant. I wanted to be "future-proof" so Iโm not hunting for obsolete, expensive gas if I need a recharge in five years. The setup is beefy and clearly built to last.
W. Davis · 2025-12-20
It's truly redefined what "comfortable" means in my house.
This CH multi-zone mini-split has honestly transformed my home's comfort. It runs on R-454B, so I know I'm making a more environmentally conscious choice without sacrificing an ounce of performance. If you're looking for a powerful, flexible, and eco-friendlier way to heat and cool your home, this system is a seriously smart move.
R. Devos · 2025-06-13
Itโs running on R-454B
Ditching the window units for this C&H Dual-Zone Hyper Heat was the best "adulting" move Iโve made. My open-concept living area used to have a permanent "hot corner" by the kitchen, but the 18k unit reaches every square inch without sounding like a jet engine. In the master bedroom, the 9k unit is so quiet Iโve actually checked the display to see if I forgot to turn it on. I was worried about mounting the condenser on my apartment wall, but the Inverter technology is incredibly smoothโno rattling or "thumping" when it kicks in. The units are sleek, but they aren't "small." In an apartment, you have to be strategic about placement so they don't dominate the room. Also, get a pro for the vacuum pullโthe tech is high-end, so don't cut corners on the install.
Marvin Mayville · 2026-04-24
Elevating the Glass Box
Living in a "glass box" penthouse means battling extreme sun and high-altitude winds, but this Cooper & Hunter Hyper Heat system handles the exposure effortlessly. The slim condenser is a lifesaver for limited balcony real estate, staying whisper-quiet even when Iโm sitting right next to it, and the R454B refrigerant gives me peace of mind that Iโve future-proofed my home against changing environmental codes. Itโs rare to find a unit thatโs powerful enough to counteract floor-to-ceiling heat gain while remaining discreet enough for a luxury setting, making it the perfect upgrade for anyone living on the top floor.
David Jacobs · 2025-12-20
Perfect
Running a bakery means dealing with ovens, humidity, and early morningsโand keeping the space comfortable for both staff and customers has always been a challenge. I decided to go with the CH Custom Multi-Zone Mini Split, and it turned out to be one of the best upgrades I've made to the shop. The custom zoning was a lifesaver. I set up one unit for the kitchen, another for the front customer area, one in the storage room, and another in the tiny office upstairs. Each space has totally different temperature needsโespecially the kitchen, which can get hot fastโand now I can fine-tune the climate in every zone. All in all, Iโd highly recommend this system to anyone in the food business.
Thomas Hutchins · 2025-07-31
Why Ductless Mini Splits
Experience superior comfort and energy savings with ductless mini splits, featuring industry-leading technology. These AHRI-certified mini splits use inverter technology and variable-speed DC inverter operation for optimal efficiency and quiet operation, with exceptional SEER2 performance that exceeds standard SEER ratings. Whether you prefer a wall mount, ducted, floor or ceiling-cassette design, these split air conditioner units give you zone control for precise heating and cooling in your home.
Key features:
Single or multi-zone capability for customized comfort
High-efficiency ductless design minimizes energy loss
Quiet operation for a peaceful living environment
Improved air quality with advanced filtration options
Flexible installation for any home layout
Manufacturer warranty included
Works With Alexaโพ
Control your mini split with Alexa or Google Assistant, or remotely with an Android or iOS phone via Wi-Fi. Set schedules and control multiple rooms from anywhere — change your temperature settings from the office or while traveling, as long as you have an internet connection.
Energy-Star Certifiedโพ
Our efficient mini splits are Energy-Star certified. With ultra-efficient ductless air conditioners you can expect to save upwards of 50–60% on your energy bills yearly — a great system for heating and cooling a home or business while minimizing long-term energy costs.
Heating and Cooling (to -13F/-22F)โพ
Our Ultra-DC-Inverter technology lets these systems provide cooling and heating at up to −13°F/−22°F with up to 100% efficiency, so hyper-rated models can serve as your primary heat source all year round — even in the coldest climates. The hyper feature is available on most of our mini splits.
Auto Leak Detection and Diagnosisโพ
Our ductless mini splits include self-cleaning, leak detection and self-diagnostics — all there to keep the system running properly for years. Enjoy peace of mind knowing your mini split will warn you of any equipment problems.
DC ULTRA Inverter Technologyโพ
The DC Ultra inverter compressor delivers a superb reduction in energy consumption, making these some of the most efficient systems with DC-inverter technology — it's what pushes mini splits to high SEER2 certifications while minimizing your energy costs.
Air Conditioner Size Chartโพ
What BTU/ton for your area?
Square footage
BTU (ton)
100–200 sq ft
6,000 BTU | ½ ton
150–400 sq ft
9,000 BTU | ¾ ton
400–600 sq ft
12,000 BTU | 1 ton
600–800 sq ft
18,000 BTU | 1.5 ton
800–1,200 sq ft
24,000 BTU | 2 ton
1,200–1,500 sq ft
30,000 BTU | 2.5 ton
1,500–1,800 sq ft
36,000 BTU | 3 ton
1,800–2,000 sq ft
48,000 BTU | 4 ton
2,000–2,500 sq ft
60,000 BTU | 5 ton
Use this BTU/ton size chart to size your mini split indoor or outdoor unit.
What Nobody Tells You Before You Buyโพ
If you are looking for mini splits, most sellers cover the basics: an outdoor compressor connected to indoor units via small refrigerant lines, high energy efficiency without duct loss, and separate room temperatures — plus the simple setup needing just a small 3-inch wall opening. All true, but there are critical technical details and long-term ownership realities almost nobody tells you before you buy.
Beyond washing your mesh air filters every few weeks, mini splits need a deep chemical cleaning of the internal blower wheel and evaporator coil every 1–2 years. Because the heads recirculate the air in your living space, neglected moisture can breed toxic black mold inside the barrel fan. And while most guides cover summer condensation draining from the indoor head, heat pumps reverse in winter: during freezing weather the outdoor unit sheds gallons of water in defrost cycles — without a base pan heater or proper drainage that runoff freezes solid, destroying fan blades and icing the compressor base.
Finally, budget for electrical and warranty requirements upfront. A multi-zone system frequently requires upgrading your home's main electrical panel — often from 100-amp to 200-amp service — plus dedicated 208/230V double-pole breakers. Most importantly, beware of online DIY claims: almost every major manufacturer explicitly voids your multi-year parts and compressor warranty unless a licensed HVAC technician performs the final nitrogen pressure test, line evacuation, and refrigerant commissioning.
