Midea's 24K central ducted heat pump is a complete whole-home system built around a multi-position air handler and inverter outdoor unit no fossil fuel burn required. Rated as a primary heat source down to -13 F, it heats and cools through your existing ductwork. The air handler offers dual voltage (115V/230V) capability, a factory-installed 24V interface for third-party thermostats, and multi-position install: vertical upflow/downflow or horizontal left/right. Outdoor unit ships with factory base pan and crankcase heaters for reliable cold-weather starts.
This is a complete central ducted mini split system built around a multi-position air handler and an inverter-driven outdoor unit. It's designed for whole-home or large-zone comfort where the air handler can be mounted vertically upflow or downflow, or horizontally left or right — making it a flexible replacement for a conventional furnace-and-coil setup without the fossil fuel burn.
The system is rated for heating down to -13°F and is intended to serve as a primary heat source in cold climates, eliminating the need for a backup heat source in most applications. A factory-installed 24V interface lets you pair it with a third-party thermostat, and the outdoor unit ships with a factory base pan heater and crankcase heater for reliable cold-weather starts. The air handler offers dual voltage (115V/230V) capability for flexible electrical installation.
| Technical Specifications | |
|---|---|
| System Type | Single-Zone Central Ducted Mini Split (Air Handler + Outdoor) |
| Capacity | 24,000 BTU (2 Ton) |
| Indoor Unit | D5FUAAH24XAK (Central Air Handler) |
| Outdoor Unit | D5CURAH24AAK |
| SEER2 Rating | 18.2 |
| EER Rating | 11 |
| HSPF Rating | 9.7 |
| Refrigerant | R454B (Low-GWP) |
| Voltage | 208/230V, Single Phase (indoor dual voltage 115V/230V) |
| Min Heating Temperature | -13°F |
| Max Heating Capacity @ 5°F | 21,600 BTU/h |
| Rated Heating Capacity @ 47°F | 26,000 BTU/h |
| Rated Cooling Capacity @ 95°F | 24,000 BTU/h |
| Auxiliary Heater | Optional Electric Heat Packages EHKMC05KN, EHKMC08KN, EHKMC10KN, EHKMC15KN, EHKMC20KN, EHKMC25KN (sold separately, requires separate 208-230V power) |
| Controls Included | Wireless remote; factory-installed 24V interface for third-party thermostat |
| Airflow | Constant air motor/blower |
| Modes | Cool, Heat, Dry, Fan, Auto |
| Coil Coating | Anti-corrosive fin coating (indoor and outdoor) |
| Installation Type | Multi-position: vertical upflow/downflow, horizontal left/right |
| Special Features | Factory-installed leak detection system; base pan heater; crankcase heater; reverse fan operation; condenser high-temp protection; stepless frequency adjustment |
| AHRI Certified | Yes |
| Warranty | 7yr Compressor / 5yr Parts (Registration Required) |
| Warranty Registration | Register Your System |
Rated to operate as a primary heat source at -13°F outdoor ambient, eliminating the need for a backup heat source in most cold-climate installations.

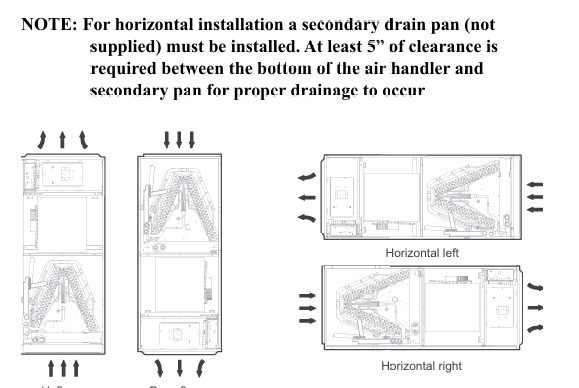

Mount vertically upflow or downflow, or horizontally left or right. A secondary drain connection supports the configuration you choose.
The indoor air handler supports both 115V and 230V power configurations, offering maximum flexibility for your existing electrical setup.
Factory-installed 24V interface lets you control the system with most standard third-party thermostats instead of a proprietary controller.
Both heaters come factory-installed on the outdoor unit — they prevent ice accumulation and protect the compressor in freezing weather.
The indoor air handler ships with a factory-installed refrigerant leak detection system for early warning on the R454B circuit.
Replaces a fossil-fuel furnace with an electric heat pump system that meets many local and federal clean-energy requirements.
Variable-speed inverter compressor with stepless frequency adjustment holds a stable room temperature while reducing sound levels and energy use.
No weight limits. No dimensional charges. Free freight delivery on every order.
Every unit ships with the full manufacturer warranty — no third-party coverage needed.
We cut out the middleman. Compare us against any competitor — we back our pricing.
Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.
Call or email our team. We answer specs, sizing, and installation questions — not scripts.
Pay by check or bank transfer and get 3% back — one of the easiest savings available.
*Warranty registration REQUIRED — Register Your System
No. This is a traditional line-set system with a ducted air handler — brazing, evacuation and charging the refrigerant circuit must be performed by an EPA 608-certified technician, and the ducted side requires sheet metal or ducting work. The Midea warranty also depends on professional installation and online registration via the link in the warranty section above. Our team can answer sizing and ductwork questions before you order — just call or email.
Like all inverter heat pumps, output declines as outdoor temperature falls. At 5°F outdoor ambient, this system delivers 21,600 BTU/h against a rated 26,000 BTU/h at 47°F — about 83% of rated capacity. It's rated as a primary heat source down to -13°F. A manual J load calculation is the right way to confirm it meets your home's load at design temperature.
The indoor air handler is dual voltage, meaning it can be wired to operate on either a 115V or a 208-230V circuit. That gives your installer flexibility depending on what power is available in your mechanical closet. The outdoor heat pump unit always requires a 208/230V circuit.
The electric heat packages (EHKMC05KN, EHKMC08KN, etc.) are sold separately. They're optional backup heat strips that require their own separate 208-230V power connection. Most cold-climate installations don't need them because the -13°F outdoor unit already provides strong heating, but they can be added if you want a safety net.
The air handler can be installed in four configurations: upflow, downflow, horizontal left, or horizontal right. This lets your installer work with the space you have — attic, closet, basement, or crawlspace — rather than forcing a specific orientation. Your installer will confirm clearances, drain routing, and duct connections for your specific space.

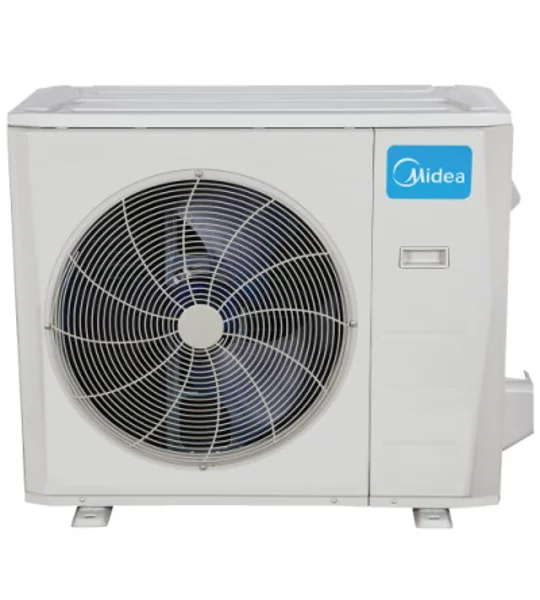

| Title | Midea 24K-Btu 18.2 SEER2 Central AC Mini Split Heat Pump (-13Β°F) E-Star: 11 EER/9.7 HSPF (R454B) |
|---|---|
| Brand | Carrier Midea North America |
| Category | 24000 Btu | 2 Ton | 800-1200 Sq Ft |
| SKU | D5CURAH24AAK/D5FUAAH24XAK |
| Condition | new |
| UPC | 893088008514 |
| MPN | D5FUAAH24XAK |
The flexible mounting options made it easy to slide into a tight spot. It stays warm even when the outdoor temp drops way below freezing. Itβs so quiet I sometimes have to check the vents to make sure itβs actually running. It worked with my existing 24V thermostat right away.
