30000 Btu | 2.5 Ton | 1200-1500 Sq Ft Carrier Midea North America

Midea 30K-Btu 17 SEER2 Central AC Mini Split Heat Pump (-13°F) 10.8 EER/8.5 HSPF (R454B)

Name: Midea 30K-Btu 17 SEER2 Central AC Mini Split Heat Pump (-13°F) 10.8 EER/8.5 HSPF (R454B)
Brand: Carrier Midea North America
SKU: D5CURAH30AAK/D5FUAAH30XAK
Price: 3579.00 USD
Availability: InStock
Rating: 5.0 (2 reviews)

(2 reviews)

Free Shipping

In Stock D5CURAH30AAK/D5FUAAH30XAK

This Midea Central Ducted system pairs a multi-position air handler with a cold-climate inverter outdoor unit for whole-home comfort through existing or new ductwork. It runs on next-generation R454B refrigerant and keeps heating operation down to -13 F outdoor ambient temperature. The air handler installs upflow, downflow, horizontal left, or horizontal right without a different cabinet a drop-in fit for replacement central systems and mechanical closets. Optional electric heat packages (5kW 25kW) are available separately for backup heating or code compliance.

Your price

Description

Midea

Central Ducted Heat Pump — -13°F

30,000 BTU 17 SEER2 10.8 EER 8.5 HSPF -13°F Min Heating R454B Refrigerant ENERGY STAR

Midea 30K BTU 17 SEER2 Central Ducted Heat Pump — -13°F

17 SEER2 R454B -13°F Cold Climate Dual Voltage Multi-Position AHU 7-Year Compressor Warranty

This Midea Central Ducted system pairs a multi-position indoor air handler with a cold-climate inverter outdoor unit, delivering whole-home comfort through existing or new ductwork. The air handler can be installed vertically upflow, vertically downflow, horizontally left, or horizontally right — a direct fit for replacement central systems and new construction where a mechanical closet is already in place. It runs on next-generation R454B refrigerant and holds heating operation down to -13°F outdoor ambient.

The system is built for cold climates, with a maximum heating capacity of 19,100 BTU/h at 5°F and 31,000 BTU/h rated heating at 47°F. The air handler supports dual voltage (115V or 208–230V) with an auto-detect circuit, includes a factory-installed leak detection system on the R454B circuit, and ships with a 24V interface for third-party thermostat compatibility. Cooling and heating modes include Cool, Heat, Dry, Fan, and Auto. Optional electric heat packages (EHKMC series) are available separately in 5kW through 25kW for backup heating or code compliance in cold jurisdictions.

✅ This Midea Central Ducted 30K BTU Package Includes

(1) Multi-Position Air Handler (D5FUAAH30XAK) — with wireless remote
(1) (-13°F) Heat Pump Outdoor Unit (D5CURAH30AAK) — with R454B refrigerant

Efficiency & Performance

SEER2

10.8

EER

8.5

HSPF

-13°F

Min Heat Temp

R454B

Refrigerant

Technical Specifications
System Type	Ducted Central Split Heat Pump (Multi-Position Air Handler)
Capacity	30,000 BTU (2.5 Ton)
Indoor Unit	D5FUAAH30XAK (Multi-Position Air Handler)
Outdoor Unit	D5CURAH30AAK
SEER2 Rating	17
EER Rating	10.8
HSPF Rating	8.5
Refrigerant	R454B (Factory Leak Detection System)
Voltage	Outdoor: 208/230V; Indoor Air Handler: Dual Voltage (115V or 208–230V)
Min Heating Temperature	-13°F
Max Heating Capacity @ 5°F	19,100 BTU/h
Rated Heating Capacity @ 47°F	31,000 BTU/h
Rated Cooling Capacity @ 95°F	30,000 BTU/h

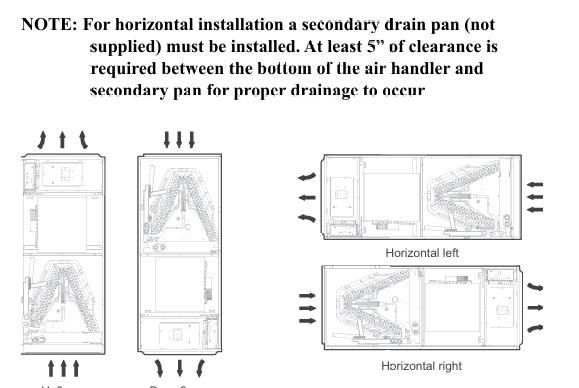

Installation Type	True Multi-Position — vertical upflow, vertical downflow, horizontal left, horizontal right
Controls Included	Wireless remote; factory-installed 24V interface for third-party thermostats
Modes	Cool, Heat, Dry, Fan, Auto
Special Features	Stepless frequency adjustment; factory leak detection; anti-corrosive fin coating; constant air motor/blower; quiet operation
Outdoor Features	Variable-speed inverter; factory-installed base pan heater; factory-installed crankcase heater; built-in 24V interface; reverse fan operation; condenser high-temp protection; quiet operation
Optional Accessory	Electric heat packages (EHKMC05KN / 08 / 10 / 15 / 20 / 25) — sold separately, requires separate 208–230V power
Warranty	7yr Compressor / 5yr Parts (Registration Required)

📄 Documents & Resources

📄 Indoor Cut Sheet 📄 Indoor Product Data 🔧 Indoor Installation Instructions 📄 Outdoor Cut Sheet 📄 Outdoor Product Data 🔧 Outdoor Installation Instructions 🔎 AHRI Certificate 📄 NEEP Report

Heating to -13°F

Operates as a heat pump down to -13°F outdoor ambient, with 19,100 BTU/h max heating output at 5°F — a genuine primary heat source in cold climates without backup.

Multi-Position Air Handler

Installs upflow, downflow, horizontal left, or horizontal right without a different cabinet — a drop-in fit for existing duct layouts, furnace closets, and new construction.

Dual Voltage Indoor Unit

The air handler auto-detects 115V or 208–230V supply and configures itself, eliminating manual rewiring or conversion kits when the available circuit differs from the outdoor unit.

Factory Leak Detection

A factory-installed refrigerant leak detection system monitors the R454B circuit and alerts before a leak becomes a safety issue — protecting the compressor and occupants.

Factory Base Pan Heater

Both a base pan heater and a crankcase heater are installed at the factory on the outdoor unit, preventing ice accumulation and protecting the compressor in freezing weather.

Optional Electric Heat

Electric heat packages are available separately in 5kW through 25kW for backup heating, faster recovery after setbacks, or to meet local code requirements in cold jurisdictions.

24V Third-Party Controls

The included 24V interface works with most conventional thermostats, so you're not locked into a proprietary controller if you prefer a smart thermostat ecosystem.

Stepless Frequency Adjustment

The inverter compressor modulates output continuously rather than stepping between fixed speeds — smoother temperature control, quieter operation, and better energy efficiency.

Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

✅ Factory Warranty Coverage

Year Compressor

Year Parts

*Warranty registration REQUIRED — Register Your System

Frequently Asked Questions

Will my warranty be valid if I don't use a licensed installer?

No. This is a traditional line-set system — brazing, evacuation and charging the refrigerant circuit must be performed by an EPA 608-certified technician. Midea's warranty also depends on professional installation and online registration via the link in the warranty section above. Our team can answer sizing and line-set questions before you order — just call or email.

Does this system lose heating capacity in cold weather?

Yes, output declines as outdoor temperature drops, like all inverter heat pumps. It operates down to -13°F outdoor ambient, with 19,100 BTU/h max heating at 5°F versus 31,000 BTU/h rated at 47°F — roughly 62% of rated capacity at 5°F. A manual J load calculation is the right way to confirm sizing at your local design temperature — our team can help before you order.

What is a multi-position air handler, and do I need one?

A multi-position air handler can be installed vertically upflow (in a closet), vertically downflow, or horizontally (in an attic or crawlspace), without buying a different cabinet for each orientation. If your existing ductwork enters from the top, bottom, or side, the installer can configure the cabinet to match rather than re-routing ducts. This is the standard configuration for replacement central systems where the mechanical space is already fixed.

Is an auxiliary heater included?

No. Electric heat packages (EHKMC05KN, EHKMC08KN, EHKMC10KN, EHKMC15KN, EHKMC20KN, EHKMC25KN) are sold separately. They're not required for normal operation — the outdoor unit is designed as a primary heat source down to -13°F — but they're often added for backup heating, faster recovery after setbacks, or to meet local code requirements in cold jurisdictions. Note that the auxiliary heat requires a separate 208–230V power supply.

Specification

Title	Midea 30K-Btu 17 SEER2 Central AC Mini Split Heat Pump (-13°F) 10.8 EER/8.5 HSPF (R454B)
Brand	Carrier Midea North America
Category	30000 Btu \| 2.5 Ton \| 1200-1500 Sq Ft
SKU	D5CURAH30AAK/D5FUAAH30XAK
Condition	new
UPC	840255522090
MPN	D5FUAAH30XAK

Reviews 2

5.0 2 reviews

this Midea system is the way to go

George Wenger · January 2026

Finding a balance between high-tech efficiency and "old-school" ductwork usually feels like a compromise, but this Midea unit feels like the secret handshake of the HVAC world. It manages to bridge the gap between those whisper-quiet mini-split systems and a traditional whole-home setup, trading that annoying "on-off" clatter of a standard compressor for a smooth, modulated hum that you eventually stop hearing altogether. It’s like switching from a loud, flickering lightbulb to a dimmable LED—the air doesn’t just arrive in cold blasts; it settles into the room with a surgical precision that makes you realize just how much energy your old unit was wasting on brute force alone.

Quiet, Clean Air

Byron Langley · June 2026

Sterility and silence are everything when a pet is on the table, and this system transformed our surgical suite from a drafty, loud space into a calm sanctuary. We couldn't risk a wall unit that blows raw air directly over an open incision or collects fur in hard-to-clean plastic vents right above our sterile field. By pushing perfectly steady, filtered climate control through our existing ceiling ducts, the room stays perfectly crisp and still, keeping our patients stable without kicking up loose dander. It runs so quietly that we can easily hear our heart monitors ticking, giving our team the absolute focus needed to save lives without the constant hum of a typical AC.

Customer Reviews

5.0 / 5 · 2 reviews

this Midea system is the way to go

George Wenger · 2026-01-30

Quiet, Clean Air

Byron Langley · 2026-06-25

Experience superior comfort and energy savings with ductless mini splits, featuring industry-leading technology. These AHRI-certified mini splits use inverter technology and variable-speed DC inverter operation for optimal efficiency and quiet operation, with exceptional SEER2 performance that exceeds standard SEER ratings. Whether you prefer a wall mount, ducted, floor or ceiling-cassette design, these split air conditioner units give you zone control for precise heating and cooling in your home.

Key features:

Single or multi-zone capability for customized comfort
High-efficiency ductless design minimizes energy loss
Quiet operation for a peaceful living environment
Improved air quality with advanced filtration options
Flexible installation for any home layout
Manufacturer warranty included

Works With Alexa

Control your mini split with Alexa or Google Assistant, or remotely with an Android or iOS phone via Wi-Fi. Set schedules and control multiple rooms from anywhere — change your temperature settings from the office or while traveling, as long as you have an internet connection.

Energy-Star Certified

Our efficient mini splits are Energy-Star certified. With ultra-efficient ductless air conditioners you can expect to save upwards of 50–60% on your energy bills yearly — a great system for heating and cooling a home or business while minimizing long-term energy costs.

Heating and Cooling (to -13F/-22F)

Our Ultra-DC-Inverter technology lets these systems provide cooling and heating at up to −13°F/−22°F with up to 100% efficiency, so hyper-rated models can serve as your primary heat source all year round — even in the coldest climates. The hyper feature is available on most of our mini splits.

Auto Leak Detection and Diagnosis

Our ductless mini splits include self-cleaning, leak detection and self-diagnostics — all there to keep the system running properly for years. Enjoy peace of mind knowing your mini split will warn you of any equipment problems.

DC ULTRA Inverter Technology

The DC Ultra inverter compressor delivers a superb reduction in energy consumption, making these some of the most efficient systems with DC-inverter technology — it's what pushes mini splits to high SEER2 certifications while minimizing your energy costs.

Air Conditioner Size Chart

What BTU/ton for your area?

Square footage	BTU (ton)
100–200 sq ft	6,000 BTU \| ½ ton
150–400 sq ft	9,000 BTU \| ¾ ton
400–600 sq ft	12,000 BTU \| 1 ton
600–800 sq ft	18,000 BTU \| 1.5 ton
800–1,200 sq ft	24,000 BTU \| 2 ton
1,200–1,500 sq ft	30,000 BTU \| 2.5 ton
1,500–1,800 sq ft	36,000 BTU \| 3 ton
1,800–2,000 sq ft	48,000 BTU \| 4 ton
2,000–2,500 sq ft	60,000 BTU \| 5 ton

Use this BTU/ton size chart to size your mini split indoor or outdoor unit.

What Nobody Tells You Before You Buy

If you are looking for mini splits, most sellers cover the basics: an outdoor compressor connected to indoor units via small refrigerant lines, high energy efficiency without duct loss, and separate room temperatures — plus the simple setup needing just a small 3-inch wall opening. All true, but there are critical technical details and long-term ownership realities almost nobody tells you before you buy.

Beyond washing your mesh air filters every few weeks, mini splits need a deep chemical cleaning of the internal blower wheel and evaporator coil every 1–2 years. Because the heads recirculate the air in your living space, neglected moisture can breed toxic black mold inside the barrel fan. And while most guides cover summer condensation draining from the indoor head, heat pumps reverse in winter: during freezing weather the outdoor unit sheds gallons of water in defrost cycles — without a base pan heater or proper drainage that runoff freezes solid, destroying fan blades and icing the compressor base.

Finally, budget for electrical and warranty requirements upfront. A multi-zone system frequently requires upgrading your home's main electrical panel — often from 100-amp to 200-amp service — plus dedicated 208/230V double-pole breakers. Most importantly, beware of online DIY claims: almost every major manufacturer explicitly voids your multi-year parts and compressor warranty unless a licensed HVAC technician performs the final nitrogen pressure test, line evacuation, and refrigerant commissioning.
