Midea 48K-Btu 15.2 SEER2 Central Coil Mini Split Heat Pump (-13Β°F) E-Star: 10 EER/9 HSPF (R454B)

Free Shipping
In Stock D5CURAH48AAK/Coil

The Midea 4 Ton Central Coil Heat Pump Air Conditioner is your go-to solution for efficient year-round heating and cooling! This 48,000 BTU ducted split package pairs a multi-poise evaporator coil with a hyper-heat inverter outdoor unit, delivering a 15.2 SEER2 rating and reliable performance even in extreme temperatures as low as -13 F. The included programmable wired controller features built-in WiFi and Dual Fuel Mode, while the coil fits virtually any furnace in upflow, downflow, or horizontal left/right orientation. Factory warranty included for peace of mind.

Your price

Buy more, pay less

from each
1 × =
Description

Midea 48K BTU Central Coil Heat Pump System
Midea
48K BTU Central Coil Heat Pump AC — 15.2 SEER2, E-Star
48,000 BTU 15.2 SEER2 10 EER 9 HSPF -13°F Min Heating R454B Refrigerant ENERGY STAR

48K BTU 15.2 SEER2 Central Coil Heat Pump — -13°F

15.2 SEER2 R454B -13°F Heating Wired Thermostat + WiFi Multi-Poise Coil Dual Fuel Mode

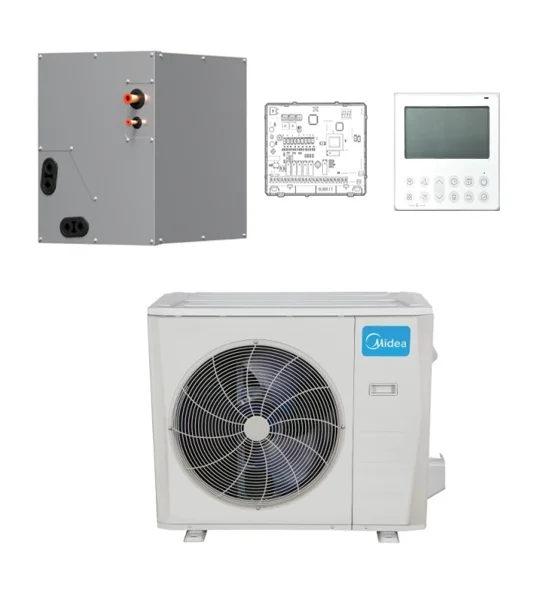

This 48,000 BTU central coil system pairs a multi-poise evaporator coil with a hyper-heat inverter outdoor unit, giving you a heat pump replacement path for an existing furnace without replacing the furnace itself. The coil is designed to work with virtually any furnace (some restrictions apply) and mounts vertically upflow or downflow, or horizontally left or right, so it fits existing duct layouts. It runs on next-generation R454B refrigerant with a factory-installed leak mitigation system.

The outdoor unit heats down to -13°F and cools down to -13°F outdoor ambient, making it a primary heat source in cold climates without a backup. The included wired controller has built-in WiFi and a Dual Fuel Mode for coordinating with a furnace, and the system carries a factory-installed 24V interface for third-party thermostat compatibility. Maximum heating capacity is 40,000 BTU/h at 5°F, rated heating is 47,000 BTU/h at 47°F, and rated cooling is 45,000 BTU/h at 95°F.

βœ… This Midea 48K BTU Package Includes
  • (1) Multi-Poise Evaporator Coil — with wired thermostat & coil interface PCB
  • (1) Heat Pump Outdoor Unit (D5CURAH48AAK) — -13°F heating / -13°F cooling
NEEP Cold-Climate Ratings
40,000BTU/h
Max Heating @ 5°F
Cold-climate peak output
47,000BTU/h
Rated Heating @ 47°F
Rated heating capacity
45,000BTU/h
Rated Cooling @ 95°F
Rated cooling capacity

Efficiency & Performance

15.2
SEER2
10
EER
9
HSPF
-13°F
Min Heat Temp
R454B
Refrigerant
Technical Specifications
System Type Central Coil Split Heat Pump (Furnace-Replacement Coil)
Capacity 48,000 BTU (4 Ton)
Outdoor Model D5CURAH48AAK
SEER2 Rating 15.2
EER Rating 10
HSPF Rating 9
Refrigerant R454B
Voltage 208/230V
Min Heating Temperature -13°F
Max Heating Cap @ 5°F 40,000 BTU/h
Rated Heating Cap @ 47°F 47,000 BTU/h
Rated Cooling Cap @ 95°F 45,000 BTU/h
Installation Type Multi-Poise — vertical upflow/downflow, horizontal left/right
Coil Features Factory-installed leak detection system; secondary drain; conventional line set; constant air motor/blower; anti-corrosive fin coating
Outdoor Features Variable speed inverter; factory-installed base pan heater; factory-installed crankcase heater; built-in 24V interface; low voltage controls; reverse fan operation; condenser high-temp protection; quiet operation; anti-corrosive fin coating
Controls Included Wired controller with built-in WiFi and Dual Fuel Mode; factory-installed 24V interface for third-party thermostat compatibility
AHRI Certified Yes (MX Coil & DX Coil certifications available)
Warranty 7yr Compressor / 5yr Parts (Registration Required)

Furnace-Replacement Coil

Works with virtually any furnace (some restrictions may apply), giving you a heat pump path without replacing your existing furnace.

Multi-Poise Installation

Mount vertically upflow or downflow, or horizontally left or right — a secondary drain supports every orientation for existing duct layouts.

Dual Fuel Mode

The wired controller's Dual Fuel Mode coordinates heat pump and furnace operation so each runs where it's most efficient.

WiFi Wired Controller

The included programmable wired controller has built-in WiFi for app control, and the coil interface is powered from the furnace's 24V AC.

Factory Leak Mitigation

The coil ships with a factory-installed leak detection system and works exclusively with R454B refrigerant.

Stepless Frequency Adjustment

Precise inverter control maintains a stable, constant room temperature while reducing sound level and saving energy.

Cold-Climate Heaters

Factory-installed base pan heater and crankcase heater support reliable cold-weather startups and operation down to -13°F.

Third-Party Thermostat Ready

A factory-installed 24V interface on the coil allows compatibility with most third-party thermostats.

Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Trust Badges

βœ… Factory Warranty Coverage

7
Year Compressor
5
Year Parts

*Warranty registration REQUIRED — Register Your System

Frequently Asked Questions

Will my warranty be valid if I don't use a licensed installer?

No. This is a traditional line-set system — brazing, evacuation, and charging the refrigerant circuit must be performed by an EPA 608-certified technician. The manufacturer's warranty also depends on professional installation and online registration via the link in the warranty section above. Our team can answer sizing and line-set questions before you order — just call or email.

Do I need to replace my furnace to use this coil?

No. The coil is designed to work with virtually any existing furnace (some restrictions may apply) and mounts in line with your current ductwork in upflow, downflow, horizontal left, or horizontal right orientation. It's a way to add heat pump capability to a furnace-based system without a full furnace replacement. Confirm compatibility with our team before ordering.

What does Dual Fuel Mode do?

Dual Fuel Mode lets the system coordinate the heat pump and your furnace, running whichever is more efficient at a given outdoor temperature. That typically means the heat pump handles mild and moderate weather while the furnace covers the coldest stretches, though your installer will configure the switchover point based on your climate and utility rates.

How cold can this system heat, and does output drop below that?

The system is rated down to -13°F outdoor ambient and holds up to 40,000 BTU/h at 5°F (versus its 47,000 BTU/h rating at 47°F), so there is some capacity taper in extreme cold. A Manual J load calculation is the right way to confirm the system meets your home's heat load at your local design temperature — our team can help with sizing before you order.
