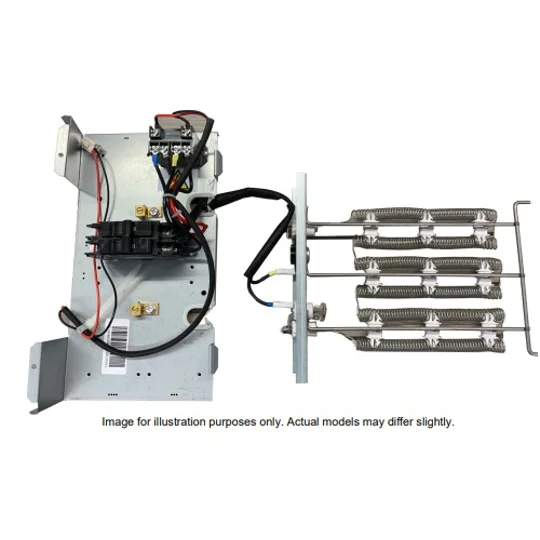

Midea Electric Heater kit for DLFSAA, DLFLAA Central Ducted Air Handlers

*DLFSAA, DLFLAA Central Ducted Air Handlers ONLY (DOES NOT WORK WITH DLFSAB, DLFLAB Models)

Features
• 208/230/240V Electric Heater Kits
• Mounts directly to the supply duct connection of the Air Handler
• Plug-in wiring harness for ease of installation into air handler
IMPORTANT:
A separate power is required for an Auxiliary Electric Heater.
Do not power the electric heater directly from the outdoor unit.
Always follow the recommendations listed on the installation instructions manuals
Only use these with the compatible indoor units

Part numbers Description For Models
EHKMA05KN Electric Heater for Air Handler 5 KW Air handler sizes 24, 36, 48
EHKMA10KN Electric Heater for Air Handler 10 KW Air handler sizes 24, 36, 48
EHKMA15KN Electric Heater for Air Handler 15 KW Air handler sizes 36, 48
EHKMA20KN Electric Heater for Air Handler 20 KW Air handler size 48

Parts included
o Electric Heater kit
o Installation manual
o Screws
o Seal
o Rubber Cap
o Wiring Diagram
o Circuit Breaker
Compatibility
Air Handler Ductless system only.
*Refer to the product data of the air handlers 40MBAA / DLFSAA / DLFLAA for specific model numbers.

---
