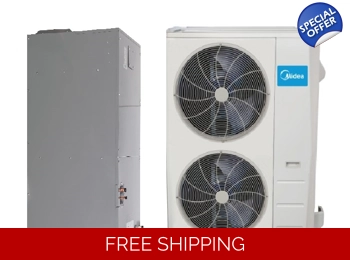

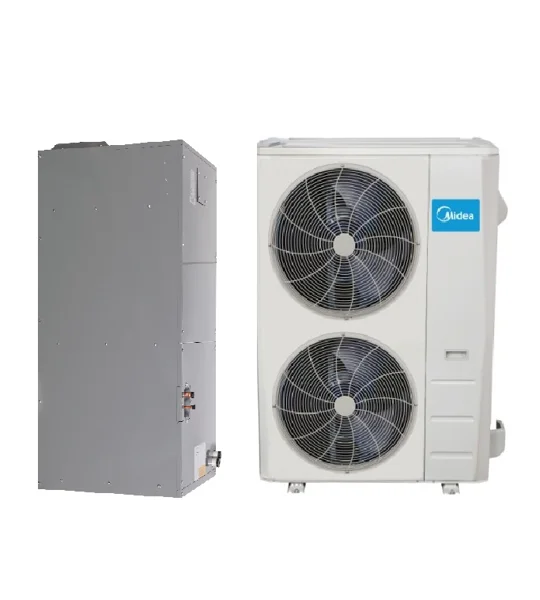

Midea 48000 BTU 16.2 SEER Central Ducted Heat Pump AC is your ultimate climate control solution! This powerful 4 Ton Split air conditioner includes an indoor air handler with a wireless remote and a hyper heat pump outdoor unit that operates efficiently even in extreme temperatures as low as -22 F. With modes for cooling, heating, drying, and fan, you can customize your comfort year-round. Enjoy quiet indoor and outdoor operation, less than 2% air leakage, and multi-poise installation options for ultimate flexibility. Plus, it features built-in thermostat compatibility, a crankcase heater, and high-temperature protection for peace of mind.

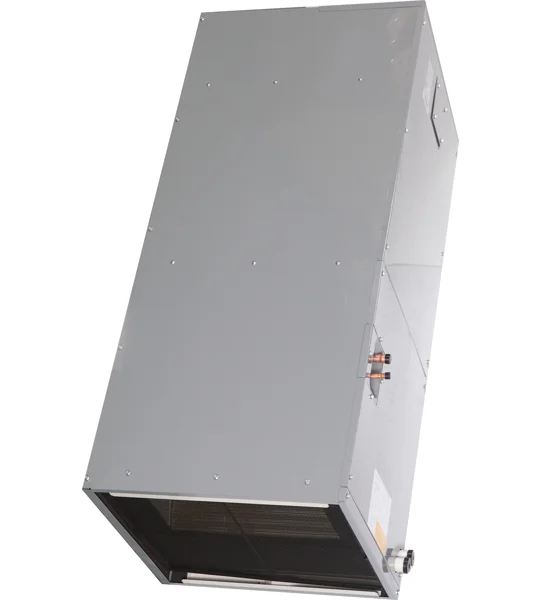

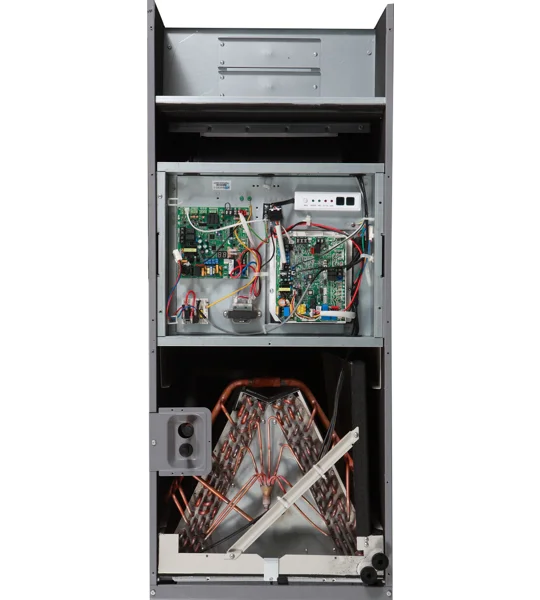

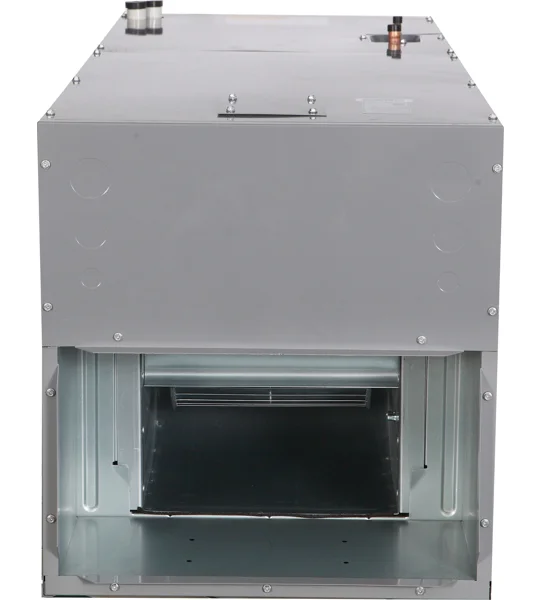

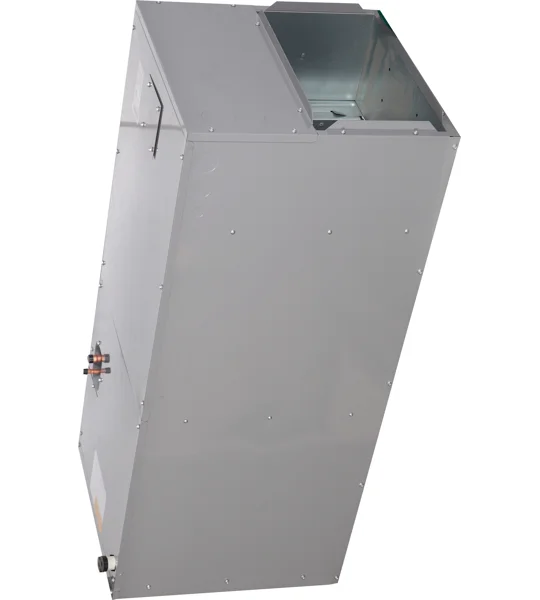

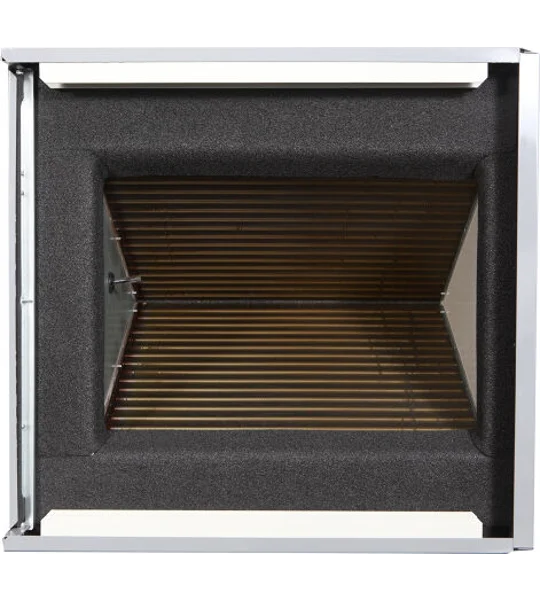

This 48,000 BTU central ducted system pairs a multi-poise air handler with a hyper-heat inverter outdoor unit, built as a whole-home ducted replacement that can run as a traditional central system when matched to a compatible single-zone outdoor unit. The air handler mounts vertically upflow or downflow, or horizontally left or right, and supports total system static pressure up to 0.8 in. W.C. with less than 2% air leakage.

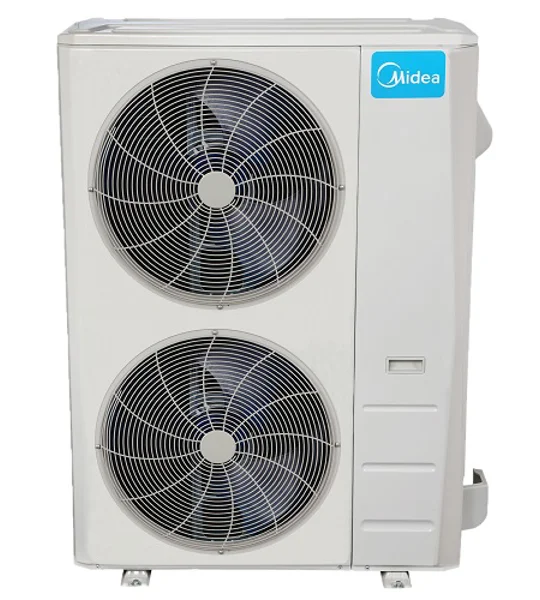

The outdoor unit heats down to -22°F and cools from -22° to 130°F, holding up to 69% of rated capacity at -22°F — enough to serve as a primary heat source without a backup in most cold climates. A factory-installed 24V interface supports single-stage third-party thermostats, and optional electric heat packages are available separately. Piping runs can reach 213 ft, and both indoor and outdoor coils carry anti-corrosive fin coatings.
| Technical Specifications | |
|---|---|
| System Type | Central Ducted Split Heat Pump (Multi-Poise Air Handler) |
| Capacity | 48,000 BTU (4 Ton) |
| Indoor Model | DLFLABH48XAK |
| Outdoor Model | DLCLRCH48AAK |
| SEER2 Rating | 15.3 |
| EER Rating | 8.2 |
| HSPF Rating | 9.2 |
| Refrigerant | R410A |
| Voltage | 208/230V |
| Min Heating Temperature | -22°F |
| Heating Operating Range | -22° to 86°F |
| Cooling Operating Range | -22° to 130°F |
| Capacity at -22°F | Up to 69% of rated heating capacity |
| Piping Length | Up to 213 ft |
| Installation Type | Multi-Poise — upflow, downflow, horizontal left, horizontal right |
| Static Pressure | Total system up to 0.8 in. W.C.; less than 2% air leakage |
| Coil Coating | Anti-corrosive fin coating (indoor and outdoor); aluminum golden hydrophilic pre-coated fins (outdoor) |
| Outdoor Features | Built-in basepan heater; factory-installed crankcase heater; auto-restart; condenser high-temperature protection; refrigerant leakage detection; quiet operation |
| Controls Included | Wireless remote; factory-installed 24V interface for single-stage third-party thermostat compatibility |
| Optional Accessory | Electric heat packages (EHKMB05KN / 08KN / 10KN / 15KN / 20KN / 25KN), sold separately; requires separate 208-230V power |
| Warranty | 7yr Compressor / 5yr Parts (Registration Required) |
Holds up to 69% of rated heating capacity down to -22°F, making it a primary heat source without a backup heat kit in most cold climates.
Installs upflow, downflow, horizontal left, or horizontal right with a built-in secondary drain — a fit for existing duct layouts and mechanical closets.
Supports total system static pressure up to 0.8 in. W.C. with less than 2% air leakage, keeping delivery consistent across longer duct runs.
A factory-installed 24V interface supports single-stage third-party thermostats — a 5-wire thermostat with R, C, G, Y, and B connections.
Electric heat packages are available separately in 5kW through 25kW sizes for backup heat or local code requirements (requires separate 208-230V power).
The outdoor unit monitors the refrigerant circuit for leaks, and condenser high-temperature protection guards the compressor in extreme conditions.
A built-in basepan heater and factory-installed crankcase heater support reliable startups and operation through deep freezes.
Precise inverter control maintains a stable, constant room temperature while reducing sound level and saving energy.
No weight limits. No dimensional charges. Free freight delivery on every order.
Every unit ships with the full manufacturer warranty — no third-party coverage needed.
We cut out the middleman. Compare us against any competitor — we back our pricing.
Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.
Call or email our team. We answer specs, sizing, and installation questions — not scripts.
Pay by check or bank transfer and get 3% back — one of the easiest savings available.
*Warranty registration REQUIRED — Register Your System
No. This is a traditional line-set system — brazing, evacuation, and charging the refrigerant circuit must be performed by an EPA 608-certified technician. The manufacturer's warranty also depends on professional installation and online registration via the link in the warranty section above. Our team can answer sizing and line-set questions before you order — just call or email.
The air handler has a factory-installed 24V interface for single-stage third-party thermostats. Your thermostat needs to be a 5-wire thermostat with at least R, C, G, Y, and B connections. A wireless remote is included, but the system is designed to work with a conventional wall thermostat as well.
The system operates down to -22°F outdoor ambient and holds up to 69% of rated heating capacity at -22°F — meaning output does taper in extreme cold, but the system is designed as a primary heat source without a backup. A Manual J load calculation is the right way to confirm the system meets your home's heat load at your local design temperature.
No. Electric heat packages are sold separately in 5kW, 10kW, 15kW, 20kW, and 25kW sizes (EHKMB series) and require a separate 208-230V power supply. They're optional — the hyper-heat outdoor unit is designed to serve as the primary heat source down to -22°F — but they're commonly added for backup heat, faster recovery, or local code requirements.
| Title | Midea 48K-Btu 15.3 SEER2 (Central Ducted) Mini Split H-Heat Pump (-22Β°F) 8.2 EER/9.2 HSPF (R410a) |
|---|---|
| Brand | Carrier Midea North America |
| Category | 48000 Btu | 4 Ton | 1800-2000 Sq Ft |
| SKU | A9: DLCLRCH48AAK/DLFLABH48XAK |
| Condition | new |
| UPC | 810512032990 |
| MPN | DLCLRCH48AAK |
