Norton 4-Zone 22.5 SEER2 Mini Split Heat Pump (-13°F) 11.5 EER/9 HSPF (R410a)

Product Code: A53: 4 Zone (Norton)
Rating: Be the first to write a review
Brand: Norton
Product Condition: New
Units in Stock: 10

Norton 4 ZONE AC Mini Split Heat Pump (-13°F)

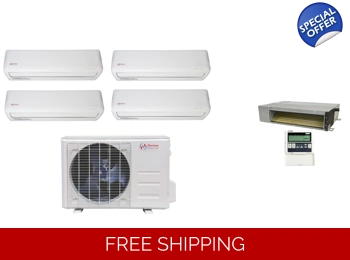

*This Norton 4-Zone Mini Split Package Includes:

(1) (-13°F) Heat Pump 4 Zone Outdoor Unit

(4) Wall Mount Indoor Units (with remotes)
*Outdoor and indoor units can be upgraded
via the dropdown boxes above.





Features :
˜Heats & Cools (-13F/-13F

˜Basepan Heater (Built in)˜
˜Gold Coated Coils˜ ˜Refrigerant Leak Detection
˜Auto Restart˜

Product Sheet

HIGH-FREQUENCY INVERTER TECHNOLOGY
Enables the compressor  to reach maximum speed within 6 seconds on start up
HIGH-EFFICIENCY PIPES

Norton Multi Zone systems, with inverter technology, are some of today’s most advanced ductless split heat pumps. Up to 5 indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required. All indoor units can be individually controlled and do not need to be installed at the same time.

With Norton heat pump technology, offers dependable cooling as well as the capability to heat in ambient temperatures as low as -13°F, making it an excellent, energy-efficient solution for colder climates.


(1) Factory Warranty

(*Terms apply)
Norton Warranty/Support: 203-388-8377



*Upgrade the outdoor unit to larger sizes

(Click) model numbers below for cut sheets


OHP14-36-42-23
 *OHP14-48-52-23


*OHP14-48-52-23  is a tall model.

*ADD the indoor units below via the dropdown boxes above

When adding your indoor units, please do not exceed the outdoor BTU capacity.
Indoor Combined BTU ≤ OUTDOOR MAX BTU

*Allowed indoor combinations
Click HERE







Wall Mount • Modes: Cool, Heat, Dry, Fan, Auto • Turbo Mode • Four fan speeds • Sleep Mode • ECO Mode • Up-Down Louver control (fixed or swing) • Follow Me (senses temperature at handheld remote) • Quiet indoor operation • Aluminum Golden Hydrophilic pre-coated fins •(5yr Warranty) - Cut Sheets Below

DWHP14-09-12-25 DWHP14-12-12-25
DWHP14-18-12-25 DWHP14-24-12-25

Slim Ducted (Hidden/Concealed): Slim Ducts provide an inconspicuous solution, hidden in attics and ceiling crawl spaces, without the energy loss associated with central ducted systems. Slim Ducts offer flexibility of installation as the ducts can be directed into separate areas which are collectively controlled by one wall thermostat. For example, one slim duct can be directed to cool and heat hallways, closets, laundry rooms, and bathrooms of a home while the bedrooms themselves are controlled independently. Slim Ducts are available in 9K, 12K, 18K and 24K Btu/h models. Condensate pump built in. (5yr Warranty). Cut Sheets below

DHP14-09-12-U DHP14-12-12-U
DHP14-18-12-U DHP14-24-12-U

 See Related Items Below For More Accessories ⇓


  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is rated capacity down to -13° F, making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • Available in 208/230V
  • Built-in basepan & crankcase heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation
  • Aluminum Golden Hydrophilic pre-coated fins
  • Cooling operating range
    • -13~122
  • Heating operating range
    • -13° ~ 75° F

Installation Manual

Norton Mini Split AC is your go-to solution for year-round comfort! This heat pump delivers powerful heating and cooling performance, even in temperatures as low as -13 F. With a remarkable SEER2, EER, and HSPF ratings, you can enjoy energy efficiency without sacrificing comfort. The package includes a sleek indoor unit with a remote, and an outdoor unit designed for durability and efficiency. Enjoy features like independent dehumidification, a 24-hour timer, and multiple modes including Turbo, Auto, Sleep, and Eco. The follow-me function ensures the perfect temperature wherever you are, while the easy-clean filter keeps the air fresh and healthy.


Bulk Buying Options
  • 2 up to 4 - $3,284.99 ex. tax - per item
  • 5 up to 10 - $3,184.99 ex. tax - per item

$3,484.99
$3,384.99 inc. tax

$3,384.99 ex. tax
? Tax based on United States.

Customer Reviews
(write review)
Split Four Ways 5 product stars
"I installed the Norton 4-Zone Mini Split to finally give every room its own mood and it delivered. The setup runs whisper-quiet, shifts from cool to cozy fast, and feels surprisingly balanced no matter the season. Installation took some planning, but once done, it s been pure comfort and control. This system doesn t just heat and cool it tunes the house." Kathryn B - Friday, November 7, 2025
Veterinary Hospital 4 product stars
"After installing the Norton 4-Zone Mini Split Heat Pump AC in our veterinary hospital, I couldn't be more satisfied with its performance. Living in a place, where temperatures can vary, this system has proven its reliability. It efficiently heats and cools even when outdoor temperatures drop to -13 F, making it an excellent choice for year-round comfort. With the ability to connect up to five indoor units to a single outdoor unit, the system offers flexibility in installation. Each indoor unit can be individually controlled, allowing for customized comfort in different rooms. The included remotes make adjustments convenient and straightforward." Tommy H. Gonzalez - Thursday, August 14, 2025
Four Zones, One Big Win 5 product stars
"What really surprised me was how natural it felt to have four totally independent zones. I turned the guest room into a low-energy mode cave (since it s empty most of the time), cranked up the cool in the kitchen where it gets stuffy fast, and fine-tuned the living room for comfort without blasting air everywhere. The system is silent in a way that almost feels suspicious at first like, is this thing even on? until you realize the room is just perfect. It s not flashy, it s not complicated, it just works better than I thought it would. And that s kind of the whole point." Lawrence Stine - Thursday, June 26, 2025
Norton 4-Zone Mini-Split 5 product stars
"Quiet, efficient, and surprisingly easy to manage. It's like having a personal climate control system tailored precisely to my needs. Honestly, it has transformed my home comfort. It's the kind of upgrade you didn't know you needed until you experience it. If you're looking for a way to achieve perfect climate harmony in your home, look no further." David Pereira - Saturday, May 3, 2025
I'd definitely recommend checking this one out. 5 product stars
"The real magic, though, is in the individual zone control. Now, we can each have our own little climate bubble! One thing I've noticed is how quiet the indoor units are. You can barely hear them running. Norton 4-Zone mini-split has made a significant difference in the comfort level of our home." Bernard Rivera - Saturday, April 26, 2025
Got it fast, works good 5 product stars
"Got it quick, delivery was good- HVAC tch installed in one day, and its working good." Paul B. - Friday, April 11, 2025
