Norton 5-Zone 22.4 SEER2 Mini Split Heat Pump (-13Β°F) 12.5 EER/10.2 HSPF (R410a)

Free Shipping
In Stock A5: OHP14-48-52-23 Special

Introducing the Norton 5-Zone 22.4 SEER2 Mini Split Heat Pump, your ultimate solution for year-round comfort! This energy-efficient mini split system is designed to heat and cool effectively, even in temperatures as low as -13 F. With its high-frequency inverter technology, the compressor reaches maximum speed in just 6 seconds, ensuring quick and reliable performance. The package includes one outdoor unit and five wall mount indoor units, each equipped with remotes for individual control. Say goodbye to bulky ductwork with this sleek ductless split heat pump, featuring built-in basepan heaters and gold-coated coils for enhanced durability. Plus, with refrigerant leak detection and auto restart features, you can enjoy peace of mind. Upgrade your home with this high-efficiency heat pump for low temperatures and experience the perfect balance of comfort and efficiency!

Your price

Buy more, pay less

from each
1 × =
Description

5 ZONE Norton Split Heat Pump (-13°F)

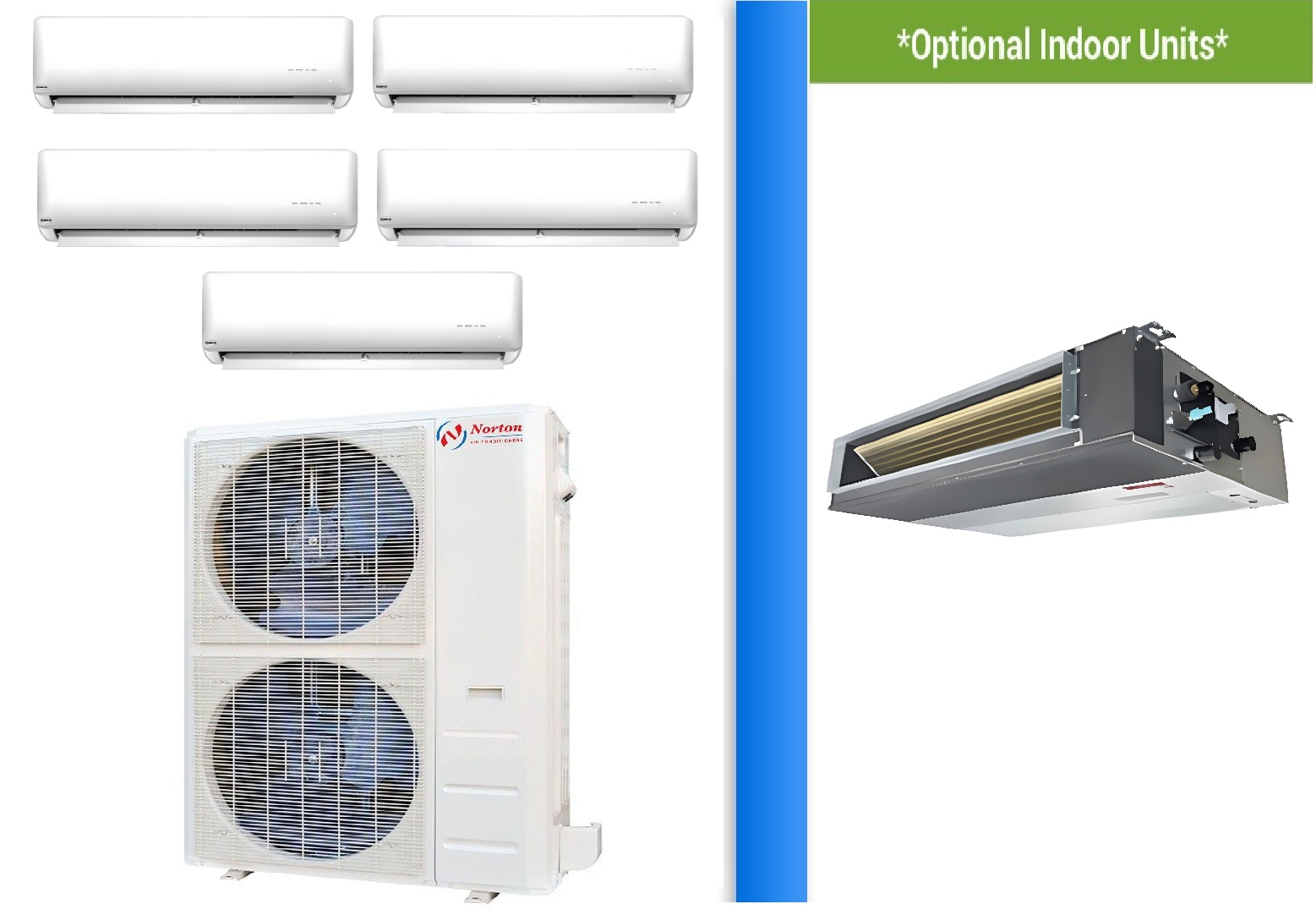

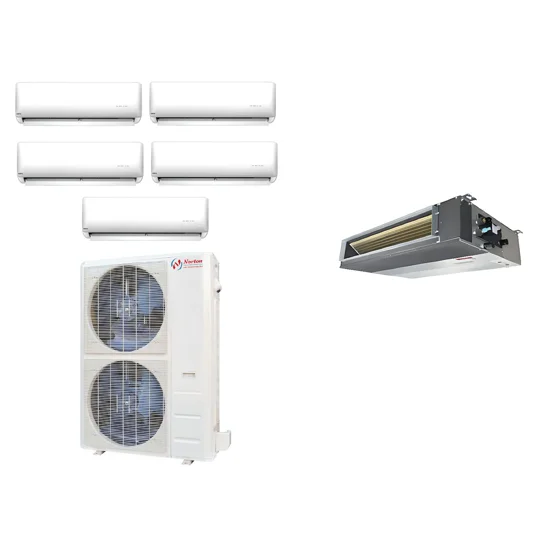

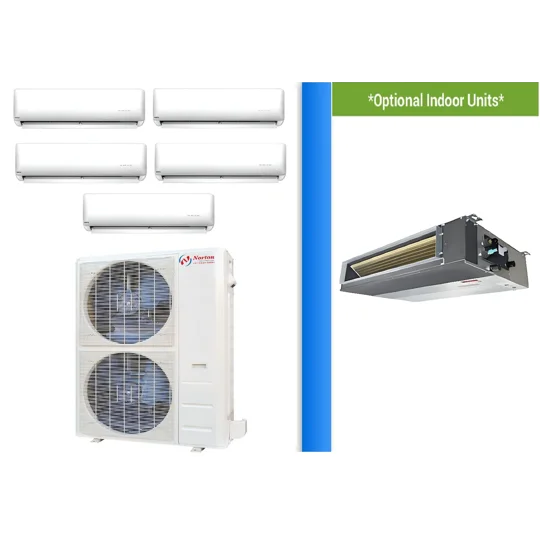

*This 5-Zone Norton Split Package Includes:

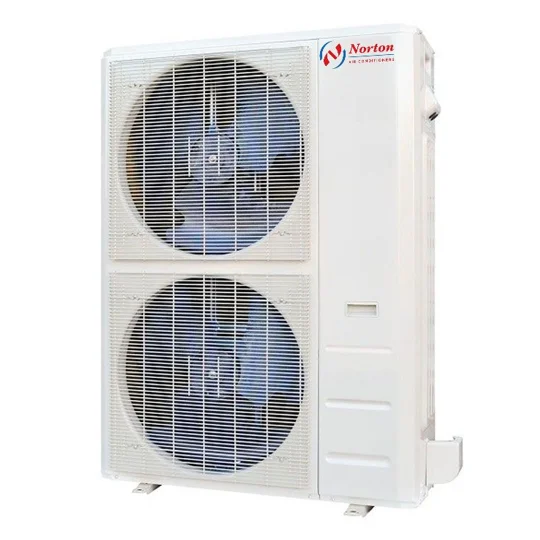

(1) (-13°F) Heat Pump 5 Zone Outdoor Unit

(5) Wall Mount Indoor Units (with Remotes)

*ADD the indoor units via the dropdown boxes above.


Features :
˜Heats & Cools (-13F/-13F)

˜Basepan Heater (Built in)˜
˜Gold Coated Coils˜ ˜Refrigerant Leak Detection
˜Auto Restart˜

Product Sheet

HIGH-FREQUENCY INVERTER TECHNOLOGY:
Enables the compressor  to reach maximum speed within 6 seconds on start up
HIGH-EFFICIENCY PIPES

Norton Multi Zone systems, with inverter technology, are some of today’s most advanced ductless split heat pumps. Up to 5 indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required. All indoor units can be individually controlled and do not need to be installed at the same time.

With Norton heat pump technology, offers dependable cooling as well as the capability to heat in ambient temperatures as low as -13°F, making it an excellent, energy-efficient solution for colder climates.


(1) Factory Warranty

(*Terms apply)
Norton Warranty/Support: 203-388-8377



*Upgrade the outdoor unit to larger sizes

(Click) model numbers below for cut sheets


 *OHP14-48-52-23


*OHP14-48-52-23  is a tall model.

*ADD the indoor units below via the dropdown boxes above

When adding your indoor units, please do not exceed the outdoor BTU capacity.
Indoor Combined BTU ≤ OUTDOOR MAX BTU

*Allowed indoor combinations
Click HERE

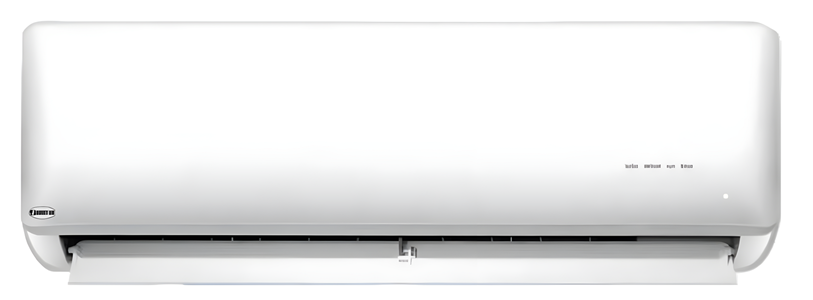

Wall Mount • Modes: Cool, Heat, Dry, Fan, Auto • Turbo Mode • Four fan speeds • Sleep Mode • ECO Mode • Up-Down Louver control (fixed or swing) • Follow Me (senses temperature at handheld remote) • Quiet indoor operation • Aluminum Golden Hydrophilic pre-coated fins •(5yr Warranty) - Cut Sheets Below

DWHP14-09-12-25 DWHP14-12-12-25
DWHP14-18-12-25 DWHP14-24-12-25

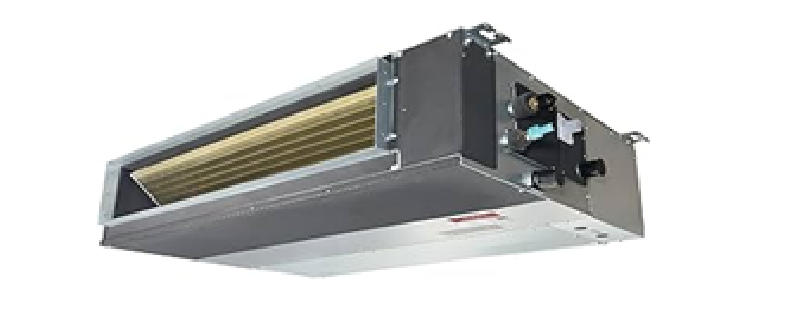

Slim Ducted (Hidden/Concealed): Slim Ducts provide an inconspicuous solution, hidden in attics and ceiling crawl spaces, without the energy loss associated with central ducted systems. Slim Ducts offer flexibility of installation as the ducts can be directed into separate areas which are collectively controlled by one wall thermostat. For example, one slim duct can be directed to cool and heat hallways, closets, laundry rooms, and bathrooms of a home while the bedrooms themselves are controlled independently. Slim Ducts are available in 9K, 12K, 18K and 24K Btu/h models. Condensate pump built in. (5yr Warranty). Cut Sheets below

DHP14-09-12-U DHP14-12-12-U
DHP14-18-12-U DHP14-24-12-U

 See Related Items Below For More Accessories ⇓


  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is rated capacity down to -13° F, making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • Available in 208/230V
  • Built-in basepan & crankcase heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation
  • Aluminum Golden Hydrophilic pre-coated fins
  • Cooling operating range
    • -13~122
  • Heating operating range
    • -13° ~ 75° F

Installation Manual

Norton Mini Split AC is your go-to solution for year-round comfort! This heat pump delivers powerful heating and cooling performance, even in temperatures as low as -13 F. With a remarkable SEER2, EER, and HSPF ratings, you can enjoy energy efficiency without sacrificing comfort. The package includes a sleek indoor unit with a remote, and an outdoor unit designed for durability and efficiency. Enjoy features like independent dehumidification, a 24-hour timer, and multiple modes including Turbo, Auto, Sleep, and Eco. The follow-me function ensures the perfect temperature wherever you are, while the easy-clean filter keeps the air fresh and healthy.

Specification
Title Norton 5-Zone 22.4 SEER2 Mini Split Heat Pump (-13Β°F) 12.5 EER/10.2 HSPF (R410a)
Brand Norton
Category Quint. | 5 Zone | Select Five Heads
SKU A5: OHP14-48-52-23 Special
Condition new
UPC 810102180315
MPN OHP14-48-52-23
