Triple | 3 Zone | Select Three Heads Westinghouse

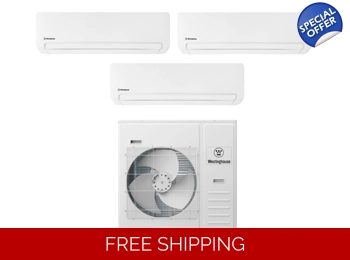

Westinghouse 3x12K 36K-Btu 21 SEER2 Mini Split Heat Pump (-13°F) E-Star: 12.5 EER/9 HSPF (R410a)

Name: Westinghouse 3x12K 36K-Btu 21 SEER2 Mini Split Heat Pump (-13°F) E-Star: 12.5 EER/9 HSPF (R410a)
Brand: Westinghouse
SKU: A45: WHP36M4A21S/3xWHP12WMA21S
Price: 1986.75 USD
Availability: InStock
Rating: 4.5 (4 reviews)

(4 reviews)

Free Shipping

In Stock A45: WHP36M4A21S/3xWHP12WMA21S

Introducing the Westinghouse 3x12K Mini Split Heat Pump, your ultimate solution for year-round comfort! This energy-efficient AC system features three 12,000 BTU wall mounts and a powerful 36,000 BTU outdoor unit, ensuring optimal heating and cooling even in temperatures as low as -13 F. Say goodbye to bulky ducted air conditioning systems and embrace the sleek design of this mini split system. With a remarkable 21 SEER2 rating, it s not just a fossil fuel alternative heating option; it s a smart investment for your home. Enjoy features like auto restart, quiet mode, and a 24-hour timer for ultimate convenience. Plus, with a factory warranty, you can rest easy knowing your purchase is protected. Upgrade your home with the Westinghouse Split Heat Pump and experience the perfect blend of comfort and efficiency!

Your price

Description

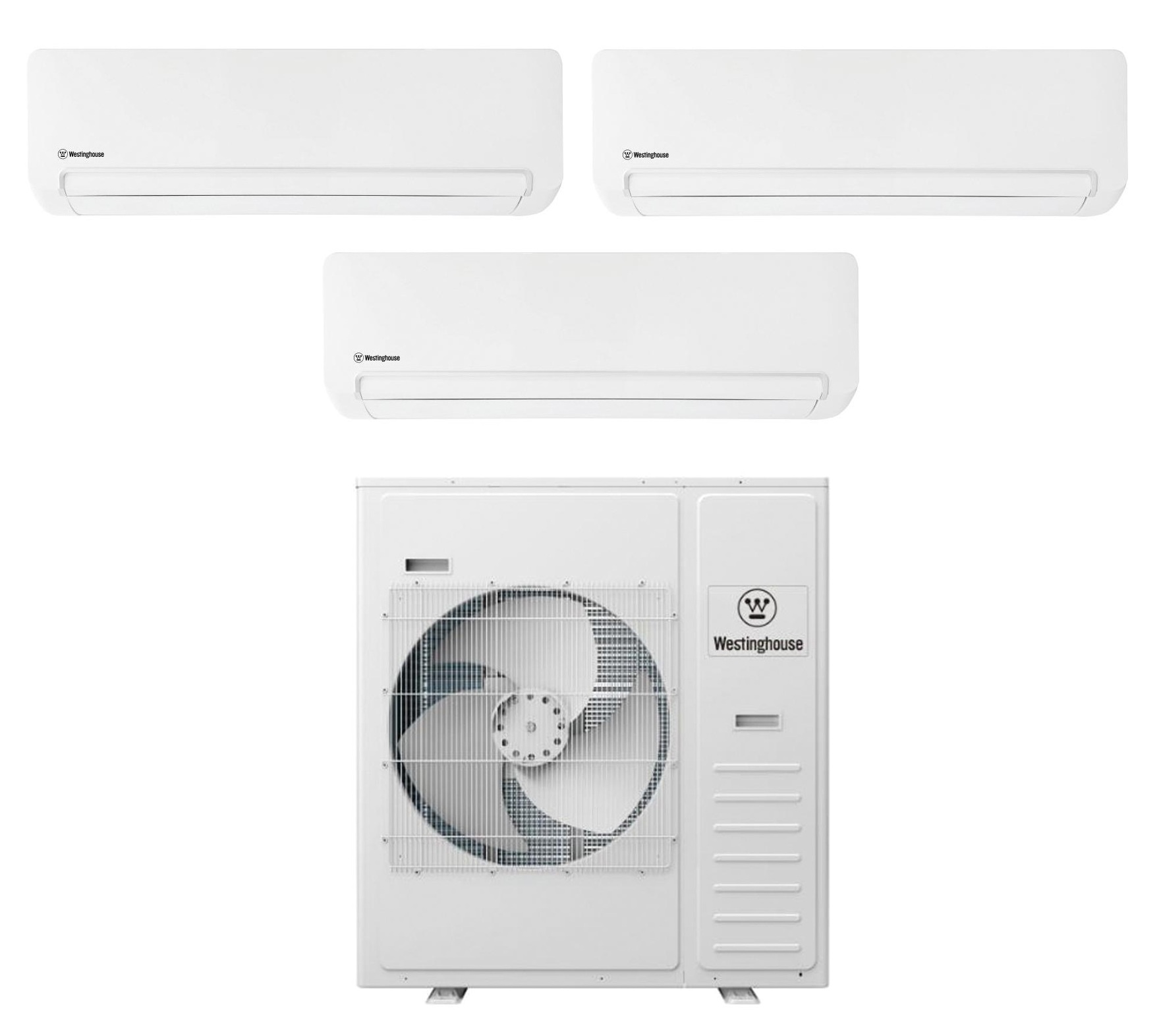

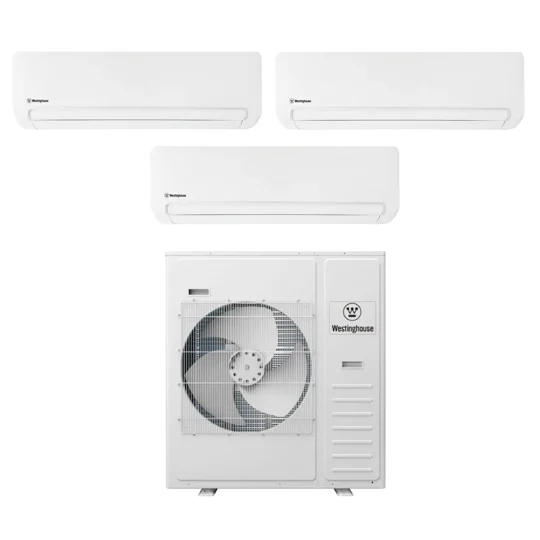

*Westinghouse 3 Zone Mini Split Heat Pump System

Included in Package:
(3) Three 12000 Btu Wall Mounts (with remotes)
(1) One Heat Pump 36000 Btu Multi Zone Outdoor (-13F/14F)

AHRI

technical info

*Factory Warranty:

*Registration Required

*WARRANTY CARD

*REGISTER ONLINE!

⇓ See Related Items Below For More Accessories ⇓

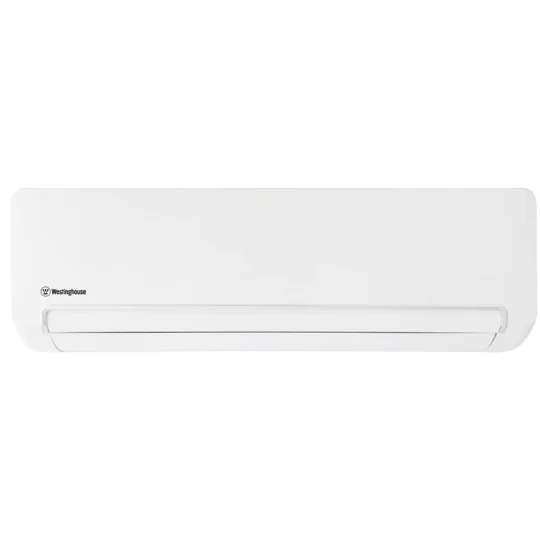

INDOOR KEY FEATURES

Features / Benefits

Auto Restart
Quiet Mode
24 Hour Timer
Horizontal Auto Swing Louver

Specifications

Additional Information	Heating Capacity 13000 BTU/Hour; Refrigerant Type R-410A; Energy Efficiency Ratio 22 SEER/13.04 EER/10.5 HSPF; Air Flow Rating 394 CFM; Sound Pressure Level 42 Decibel; Connection Size 1/4 Inch (Liquid), 3/8 Inch (Gas)
Approval	ETL (Canada and US)
COMMODITY LEAF	Window and Wall Air Conditioners
Cooling Capacity	12000 BTU/Hour
Cooling Coefficient	3.43
Current Rating	4.3 Amp (Cooling), 5 Amp (Heating), 10 Amp (MCA), 15 Amp (Circuit Breaker)
Customer ID	WH WHP12WMA21S
Frequency Rating	60 Hertz
Installation	Wall Mount
Item Desc	12K Indoor Unit, Multi Zone 230V
Item Id	WH WHP12WMA21S
Number Of Phases	1
Operating Temperature	61 to 86 Deg F Cooling/Heating
Power Rating	920 Watt (Cooling), 1110 Watt (Heating)
Series/Model	WHP
Size	33-7/16 Inch Width x 8-7/16 Inch Depth x 10-10/16 Inch Height
Temperature Control Type	Handheld Remote
Type	Multi-Zone, Inverter, Mid Tier, Standard, Mini-Split System
Voltage Rating	208/230 Volt AC
Weight	20 Pound

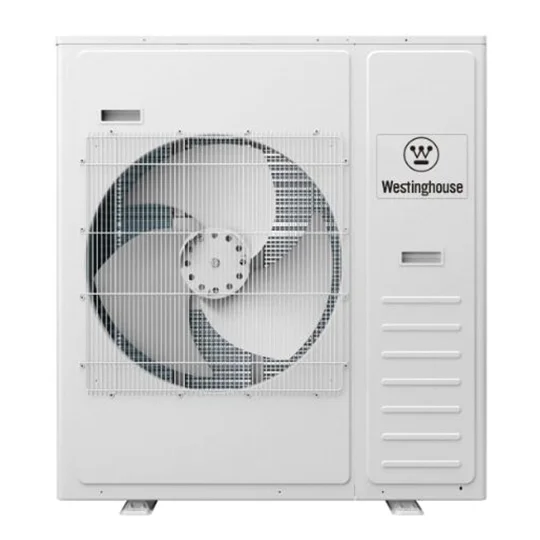

OUTDOOR KEY FEATURES

Extra Low Temperature Heating
For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -13° F , making this a primary heat source and eliminating the need for a backup heat source.
Stepless Frequency Adjustment
Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.

FEATURES

Built-in basepan heater
Auto-restart function
Condenser high-temperature protection
Refrigerant leakage detection
Quiet outdoor operation, as low as 59 dB(A)
Aluminum Hydrophilic pre-coated fins
Max Piping length 246'
Cooling operating range
- 14° ~ 122° F
Heating operating range
- -13° ~ 86° F

Brochure

Specification

Title	Westinghouse 3x12K 36K-Btu 21 SEER2 Mini Split Heat Pump (-13°F) E-Star: 12.5 EER/9 HSPF (R410a)
Brand	Westinghouse
Category	Triple \| 3 Zone \| Select Three Heads
SKU	A45: WHP36M4A21S/3xWHP12WMA21S
Condition	new
UPC	497443779987
MPN	WHP36M4A21S

Reviews 4

4.5 4 reviews

a reliable, high-efficiency, multi-zone solution

Jose Searle · December 2025

I had a local HVAC professional handle the installation, and while it was a full day's work connecting the linesets for all three heads, the process was straightforward for them. The wall-mounted indoor units are surprisingly sleek and blend right into the rooms. The three separate handheld remotes make controlling each zone independently a breeze. My goal was to get reliable, zoned heating and cooling for three key areas of my house—the living room, a master bedroom, and a home office—without the huge expense and complexity of running new ductwork. The 36,000 BTU, three-zone setup was perfect, and the 21 SEER rating promised serious energy savings over my old central AC unit. The system is remarkably quiet. The indoor heads run on a "Quiet Mode" that is barely audible—I often forget they are on. The outdoor condenser is also very quiet (listed at 59 dB(A)), which is a huge plus since it's mounted outside my office window.

incredibly efficient

P. Brinker · April 2026

Stepping into my house now feels like entering a perfectly curated sanctuary where the air itself seems to have been polished to a smooth, effortless silk. Instead of the old, clunky rattles and uneven drafts that used to haunt different corners of my home, there is only a deep, meditative hush and a seamless blanket of comfort that follows me from the bedroom to the kitchen. It has transformed my living space from a place where I constantly wrestled with the thermostat into a haven that just intuitively understands how I want to feel, regardless of the chaos the seasons are causing outside. This isn’t just about staying cool or warm anymore; it’s about a newfound sense of quiet luxury that breathes life into every room without ever making a sound.

Voltage sensitive

Jim · July 2026

I have 3 Westinghouse (Fujitsu China plant) units 24 24 and a 12 all single zone 17 6 seer. For 4 years. My voltage at my home is 242-244v I was having endless problems on all 3 until we put all three on buck boost voltage converters and got the voltage down to 220v steady Haven't had a problem since These units claim 196-253v range but they are sensitive to the high end of that range. If you are reading this somewhere with problems like me, have your electrician put in buck boost converters (or watch the hvac YouTube channel and install them yourself like me, just use voltmeter to test voltage coming off of them) Cheers all

Fujistu Model!!! Great Price

Christopher Wilkins · August 2025

These are Fujitsu models, awesome quality for a super low price. A buddy of mine paid $1500 more for the same system.

Customer Reviews

4.5 / 5 · 4 reviews

a reliable, high-efficiency, multi-zone solution

Jose Searle · 2025-12-09

incredibly efficient

P. Brinker · 2026-04-18

Voltage sensitive

Jim · 2026-07-31

Fujistu Model!!! Great Price

These are Fujitsu models, awesome quality for a super low price. A buddy of mine paid $1500 more for the same system.

Christopher Wilkins · 2025-08-24

Experience superior comfort and energy savings with ductless mini splits, featuring industry-leading technology. These AHRI-certified mini splits use inverter technology and variable-speed DC inverter operation for optimal efficiency and quiet operation, with exceptional SEER2 performance that exceeds standard SEER ratings. Whether you prefer a wall mount, ducted, floor or ceiling-cassette design, these split air conditioner units give you zone control for precise heating and cooling in your home.

Key features:

Single or multi-zone capability for customized comfort
High-efficiency ductless design minimizes energy loss
Quiet operation for a peaceful living environment
Improved air quality with advanced filtration options
Flexible installation for any home layout
Manufacturer warranty included

Works With Alexa

Control your mini split with Alexa or Google Assistant, or remotely with an Android or iOS phone via Wi-Fi. Set schedules and control multiple rooms from anywhere — change your temperature settings from the office or while traveling, as long as you have an internet connection.

Energy-Star Certified

Our efficient mini splits are Energy-Star certified. With ultra-efficient ductless air conditioners you can expect to save upwards of 50–60% on your energy bills yearly — a great system for heating and cooling a home or business while minimizing long-term energy costs.

Heating and Cooling (to -13F/-22F)

Our Ultra-DC-Inverter technology lets these systems provide cooling and heating at up to −13°F/−22°F with up to 100% efficiency, so hyper-rated models can serve as your primary heat source all year round — even in the coldest climates. The hyper feature is available on most of our mini splits.

Auto Leak Detection and Diagnosis

Our ductless mini splits include self-cleaning, leak detection and self-diagnostics — all there to keep the system running properly for years. Enjoy peace of mind knowing your mini split will warn you of any equipment problems.

DC ULTRA Inverter Technology

The DC Ultra inverter compressor delivers a superb reduction in energy consumption, making these some of the most efficient systems with DC-inverter technology — it's what pushes mini splits to high SEER2 certifications while minimizing your energy costs.

Air Conditioner Size Chart

What BTU/ton for your area?

Square footage	BTU (ton)
100–200 sq ft	6,000 BTU \| ½ ton
150–400 sq ft	9,000 BTU \| ¾ ton
400–600 sq ft	12,000 BTU \| 1 ton
600–800 sq ft	18,000 BTU \| 1.5 ton
800–1,200 sq ft	24,000 BTU \| 2 ton
1,200–1,500 sq ft	30,000 BTU \| 2.5 ton
1,500–1,800 sq ft	36,000 BTU \| 3 ton
1,800–2,000 sq ft	48,000 BTU \| 4 ton
2,000–2,500 sq ft	60,000 BTU \| 5 ton

Use this BTU/ton size chart to size your mini split indoor or outdoor unit.

What Nobody Tells You Before You Buy

If you are looking for mini splits, most sellers cover the basics: an outdoor compressor connected to indoor units via small refrigerant lines, high energy efficiency without duct loss, and separate room temperatures — plus the simple setup needing just a small 3-inch wall opening. All true, but there are critical technical details and long-term ownership realities almost nobody tells you before you buy.

Beyond washing your mesh air filters every few weeks, mini splits need a deep chemical cleaning of the internal blower wheel and evaporator coil every 1–2 years. Because the heads recirculate the air in your living space, neglected moisture can breed toxic black mold inside the barrel fan. And while most guides cover summer condensation draining from the indoor head, heat pumps reverse in winter: during freezing weather the outdoor unit sheds gallons of water in defrost cycles — without a base pan heater or proper drainage that runoff freezes solid, destroying fan blades and icing the compressor base.

Finally, budget for electrical and warranty requirements upfront. A multi-zone system frequently requires upgrading your home's main electrical panel — often from 100-amp to 200-amp service — plus dedicated 208/230V double-pole breakers. Most importantly, beware of online DIY claims: almost every major manufacturer explicitly voids your multi-year parts and compressor warranty unless a licensed HVAC technician performs the final nitrogen pressure test, line evacuation, and refrigerant commissioning.
