Custom Comfort
Finally, a multi-zone system that turns five unpredictable rooms into one perfectly effortless climate.
πΈ 3% Cash Back | Cash, Check, Wire or Zelle πΈ
SAVE 3%
Introducing the Bravo 5-Zone Split Heat Pump, your ultimate solution for year-round comfort! This energy-efficient heat pump is designed to tackle even the coldest climates, heating down to a brisk -13 F. With its advanced DC Inverter technology, the Bravo Heat Pump R32 ensures optimal performance while keeping your energy bills low. This versatile system includes one multi-zone outdoor unit and five stylish wall mount indoor units, all equipped with remotes and WIFI for seamless control. Enjoy features like auto restart, multiple fan speeds, and a comfortable sleep mode, making it perfect for any home. Upgrade your comfort with the Bravo 5-Zone Split Heat Pump and experience the perfect balance of heat and cool, no matter the season!

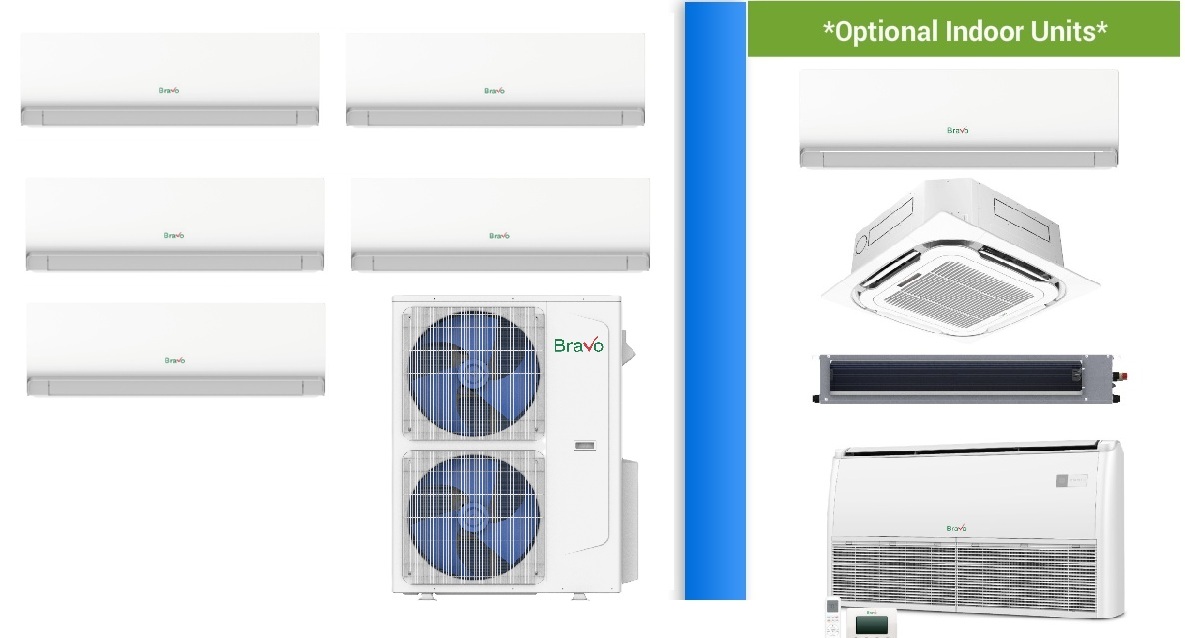

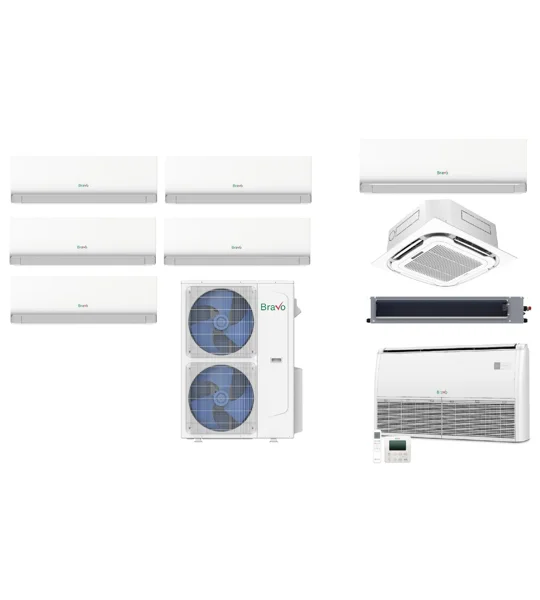

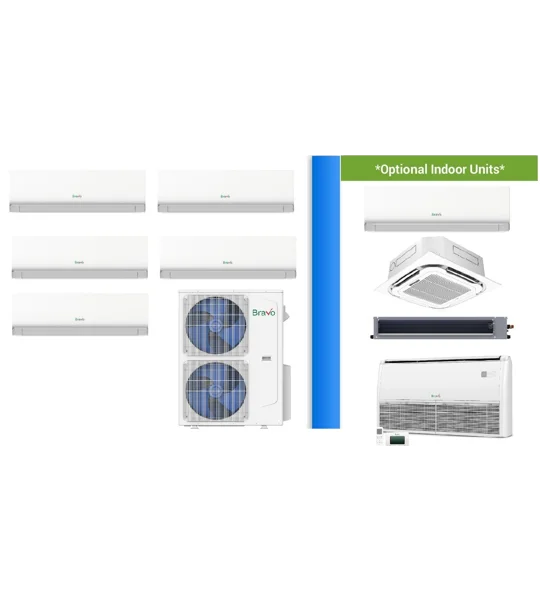

Bravo is the newest high-performance brand from a global HVAC manufacturer, engineered for North American homes by blending Italian design with Japanese efficiency standards. The Milano multi-zone system pairs a single outdoor condenser with up to five indoor units, each independently controlled. This 5-zone package ships with five wall mount indoor units already selected and matched to the 42K outdoor condenser, and both the outdoor and indoor units are upgradeable via the drop-downs above.
Using R32 refrigerant, the Milano series delivers strong heating and cooling performance with a lower environmental footprint than legacy refrigerants. The outdoor unit heats and cools down to -13°F ambient, with Full DC Inverter technology, Bluefin coil protection, and refrigerant leak protection. The 24 SEER2 / 12.5 EER / 10.5 HSPF figures shown are for the default 42K configuration.
| Outdoor Model | BTU | Zones | Min Heat Temp | Documents |
|---|---|---|---|---|
| BRV-M42-230VO | 42K | 5-Zone | -13°F | π Cut Sheet π AHRI |
Note: This listing is configured as a 5-zone system with the 42K outdoor unit. Additional AHRI certificates for mixed, ducted, and multi-zone pairings are available in the Documents section below.
Important: Do not exceed the outdoor unit's maximum BTU capacity when selecting indoor units. Confirm your selections against the Allowed Combinations document before ordering.

Wall Mount • Remote + WiFi • Inverter • Quick heating & cooling • Energy Saving Mode • Night Set Mode • Econo Mode • Louver control • Cool, Heat, Dry, Fan modes • Comfort Air-Flow • Timer • Auto Clean • Pre-Heat • Condensate pump NOT included • (Warranty per factory terms)
Cut Sheets:

4-Way Ceiling Cassette • Remote + WiFi + Grill • 360° coverage • Built-in condensate pump • Quiet, Turbo, Auto, Cool, Dry, Fan, Heat modes • Timer On/Off • Child lock • Air and Health functions • Follow Me • Sleep mode • (Warranty per factory terms)
Cut Sheets:

Slim Ducted • Thermostat + WiFi • Built-in condensate pump • Ideal for attics, crawl spaces, closets • Quiet, Turbo, Auto, Cool, Dry, Fan, Heat modes • X-FAN function • Timer On/Off • Child lock • Follow Me • Sleep mode • (Warranty per factory terms)
Cut Sheets:

Floor or Ceiling Mount • Remote + WiFi • Versatile low-wall or ceiling installation • No condensate pump • Quiet, Turbo, Auto, Cool, Dry, Fan, Heat modes • X-FAN function • Timer On/Off • Child lock • Follow Me • Sleep mode • (Warranty per factory terms)
Cut Sheets:
| Technical Specifications | |
|---|---|
| System Type | 5-Zone Multi-Zone Heat Pump |
| Default Configuration | (1) 42K Outdoor + (5) Wall Mount Indoor Units |
| Outdoor Units Available | BRV-M42-230VO (42K) — additional sizes via drop-down |
| Indoor Types Available | Wall Mount, 4-Way Ceiling Cassette, Slim Ducted, Floor/Ceiling Mount |
| Factory | Fujitsu General |
| Refrigerant | R32 |
| SEER2 Rating | 24 (default 42K configuration) |
| EER Rating | 12.5 (default 42K configuration) |
| HSPF Rating | 10.5 (default 42K configuration) |
| Min Heating Temperature | -13°F |
| Cooling Operating Range | -13°F to 122°F |
| Heating Operating Range | -13°F to 75°F |
| Voltage | 208/230V / 60Hz / 1Ph |
| WiFi | Included (Smart App) |
| Outdoor Features | Full DC Inverter, Auto Restart, Auto Defrost, Bluefin Protection, Refrigerant Leak Protection, Compact Design |
| Certifications | AHRI Certified |
| Warranty | 7yr Compressor / 5yr Parts (Registration Required) |
Full DC inverter compressor and fan motors deliver precise capacity modulation for stable room temperature and lower energy use.
Rated for heating operation down to -13°F outdoor ambient, suitable for cold-climate installations as a primary or supplemental heat source.
R32 has a lower global warming potential than R410A while maintaining strong heating and cooling performance.
Bluefin coil coating on the outdoor condenser resists corrosion from salt air, rain, and other environmental exposure.
The outdoor unit monitors the refrigerant circuit for leaks, protecting the compressor from damage.
Control the system from your phone via the included WiFi module and smart app.
Auto restart resumes operation after a power outage, and auto defrost clears frost from the outdoor coil in heating mode.
The compact outdoor condenser footprint simplifies placement on balconies, side yards, and tight installation spaces.
No weight limits. No dimensional charges. Free freight delivery on every order.
Every unit ships with the full manufacturer warranty — no third-party coverage needed.
We cut out the middleman. Compare us against any competitor — we back our pricing.
Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.
Call or email our team. We answer specs, sizing, and installation questions — not scripts.
Pay by check or bank transfer and get 3% back — one of the easiest savings available.

*Warranty registration REQUIRED — Register Your System
No. This is a traditional line-set system — brazing, evacuation, and charging the refrigerant circuit must be performed by an EPA 608-certified technician. The manufacturer's warranty also depends on professional installation and online registration. Our team can answer sizing and line-set questions before you order — just call or email.
No line sets are included in this listing. Verify the required line-set sizes and lengths against the outdoor and indoor cut sheets before ordering, and confirm whether your installer will supply them. Our team can help you match lengths and sizes if you're unsure.
The system operates down to -13°F outdoor ambient. As with any air-source heat pump, heating capacity tapers as outdoor temperature falls; a Manual J load calculation is the right way to confirm the system meets your home's heat load at your local design temperature. Our team can help with sizing before you order.
Yes. The 24 SEER2 / 12.5 EER / 10.5 HSPF figures apply to the default 42K configuration — changing indoor sizes or types changes the system's efficiency. Use the AHRI certificates in the Documents section to verify ratings for a specific pairing. This is a special listing with upgrades, so treat the listing figures as a reference point.
| Title | Bravo 5-Zone 24 SEER2 Mini Split Heat Pump (-13Β°F) WIFI, 12.5 EER/10.5 HSPF (R32) |
|---|---|
| Brand | Bravo |
| Category | Quint. | 5 Zone | Select Five Heads |
| SKU | R32 Bravo (5 Zone Special) |
| Condition | new |
| UPC | 658515761512 |
| MPN | BRV-M42-230VO |
