Daikin 5 Zone 20 SEER2 Mini Split HVAC System - H-Heat Pump (-13Β°F) E-Star: 11.7 EER/9.5 HSPF (R32)

Promotion
In Stock Daikin 5 Zone (H-Heat)

Introducing the NEW Daikin 20 SEER2 5 Zone Split Hyper Heat Pump, designed to keep your home cozy even in the coldest temperatures down to -13 F! This energy-efficient 4 ton heat pump features Daikin Inverter Technology, ensuring optimal performance and comfort. With its Automatic Defrosting feature, you can trust that your system will maintain peak efficiency, even in frosty conditions. The quint zone split system includes two stylish wall mount indoor units, complete with remotes and Wi-Fi, allowing for precise temperature control in individual rooms. Plus, the outdoor unit operates quietly, making it perfect for any setting. Upgrade your heating and cooling experience with the Daikin 5 Zone, where comfort meets efficiency!

Your price
Description

Daikin 5-Zone Hyper Heat Custom Mini Split 20 SEER2 -13F R32
Daikin
5-Zone Custom Hyper Heat Mini Split Heat Pump — 5MXT40AVJU9 (-13°F) R32
20 SEER2 11.7 EER2 9.5 HSPF2 -13°F Min Heating R32 Refrigerant 5-Zone Energy Star

Daikin 5-Zone Custom Hyper Heat Pump (-13°F) — 20 SEER2, R32

Energy Star 20 SEER2 Hyper Heat -13°F R32 12-Year Warranty*

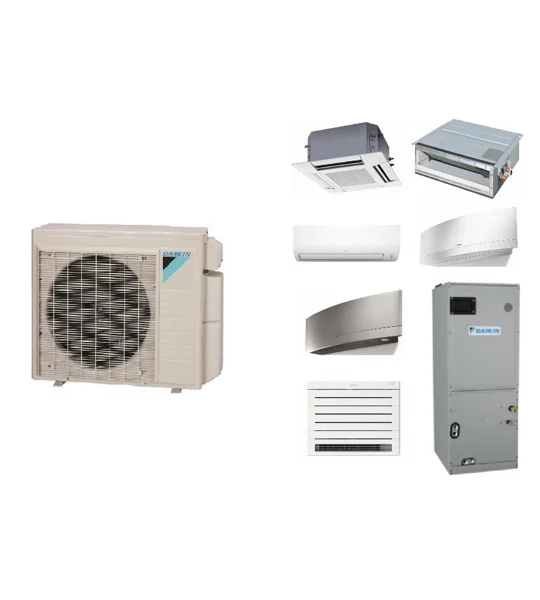

The Daikin 5-Zone Custom Hyper Heat system gives you five independently controlled rooms off one 5MXT40AVJU9 (40,000 BTU) outdoor unit. Build it your way: pick an indoor unit for each zone from Daikin's wall mount, slim ducted, floor console, central air handler and Vista cassette lineup. The indoor units don't need to be installed all at once.

Daikin's MXT multi-zone series is built for cold ambient conditions. It delivers up to 114% of rated heating capacity at 5°F and keeps heating efficiently down to -13°F, so it works as a true primary heat source. At 20 SEER2, 11.7 EER2 and 9.5 HSPF2 it's Energy Star rated and uses R32 refrigerant. Want a drain pan heater? Upgrade to the 5MXTH40AVJU9 outdoor unit from the dropdown.

Efficiency & Performance

20
SEER2
11.7
EER2
9.5
HSPF2
-13°F
Min Heat Temp
R32
Refrigerant
12yr
Compressor Warranty
Technical Specifications
System Type 5-Zone Custom Ductless Mini Split Heat Pump (Hyper Heat)
Outdoor Unit 5MXT40AVJU9 — 40,000 BTU (5MXTH40AVJU9 base pan heater upgrade available)
Indoor Units (5) selected via the zone dropdowns — do not exceed outdoor max BTU
SEER2 20
EER2 11.7
HSPF2 9.5
Refrigerant R32
Min Heating Temperature -13°F
Min Cooling Temperature 14°F
Voltage 208/230V / Single Phase
Energy Star Yes
Warranty 12 Years (registration required)
Warranty Registration daikincomfort.com/owner-support/product-registration
🧩 Build Your Zones — Read Before Selecting Indoor Units

The outdoor unit in this package (5MXT40AVJU9) is rated for a maximum combined indoor capacity of 40,000 BTU. This ceiling stays the same if you upgrade to the 5MXTH40AVJU9 (base pan heater version) — both are 40K class. When you pick indoor units for each zone, the sum of all indoor BTU ratings must not exceed 40,000 BTU — going over will reduce performance, void the AHRI rating for your configuration, and may prevent the system from operating correctly.

Not every indoor model pairs with every outdoor unit. Use the Indoor Combinations chart below to confirm your exact pairing before ordering, and call or email us if you need help sizing.

🏠 Indoor Unit Options — Choose Any Indoor Unit For Each Zone

FTXV Wall Mount
FTXV Wall Mount
  • Built-in WiFi
  • Intelligent Eye occupancy sensor for energy savings
  • Power airflow dual flaps and 3D airflow
  • Indoor sound pressure as low as 22 dB(A)
  • Titanium Photocatalytic air purifying filter
  • Weekly Timer
  • Program Dry Function
  • Eco Mode
  • Powerful Operation Mode
  • Auto-Changeover
  • Auto-Fan Speed Control
  • Available models: CTXV07AVJU9, FTXV09AVJU9, FTXV12AVJU9, FTXV15AVJU9, FTXV18AVJU9, FTXV24AVJU9

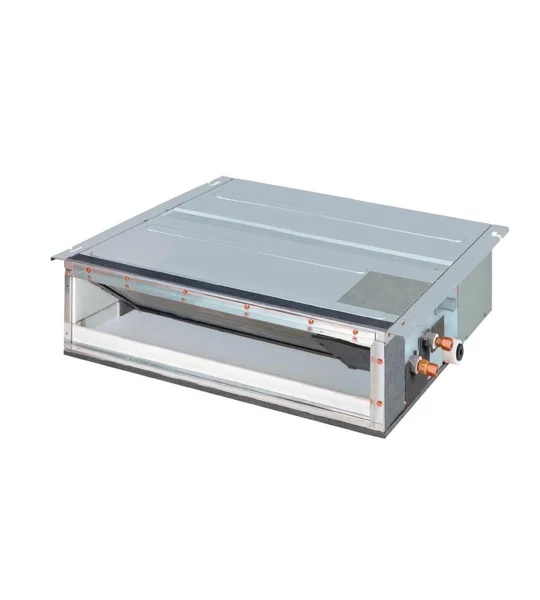

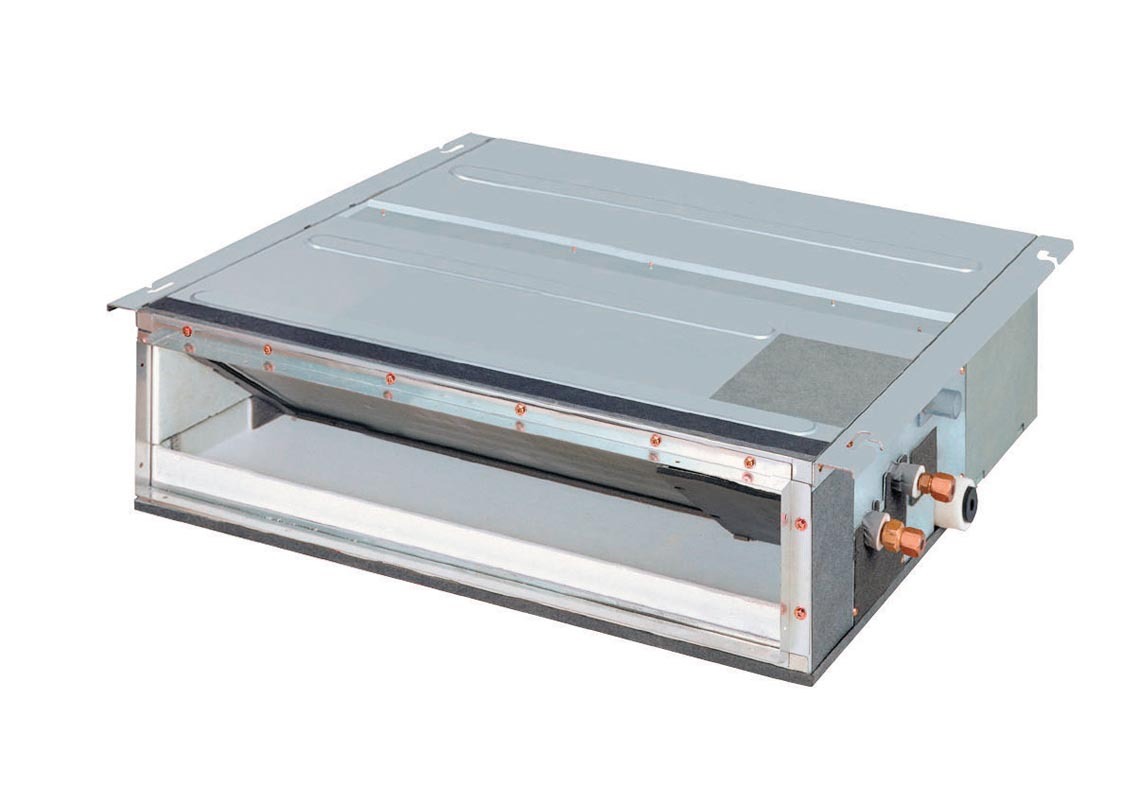

FDMA / CDMA Slim Ducted (Concealed)

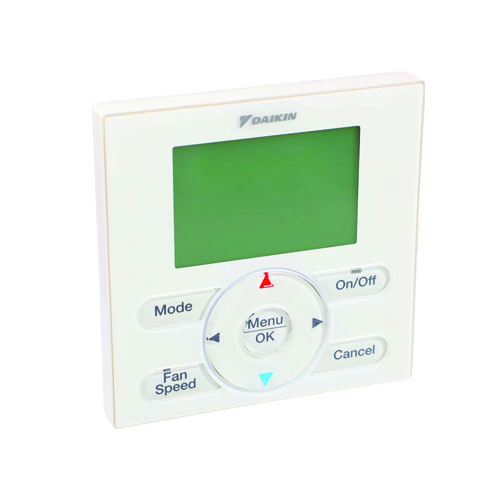

FDMA Slim DuctBRC1NRV71 thermostat
  • Completely concealed installation minimizes the impact on decor
  • BRC1NRV71 thermostat included
  • Efficient performance and reduced energy consumption
  • Preserved interior aesthetics
  • Zoned comfort with minimal ductwork
  • Efficient multi-room conditioning
  • Compact, space-saving design
  • Individualized climate control
  • Quick warming and hot start
  • Quiet operation
  • Available models: CDMA07AVJU9, FDMA09AVJU9, FDMA12AVJU9, FDMA15AVJU9, FDMA18AVJU9, FDMA24AVJU9

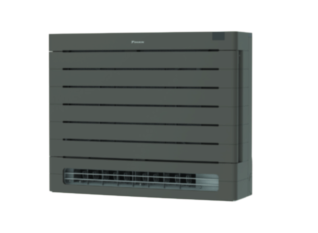

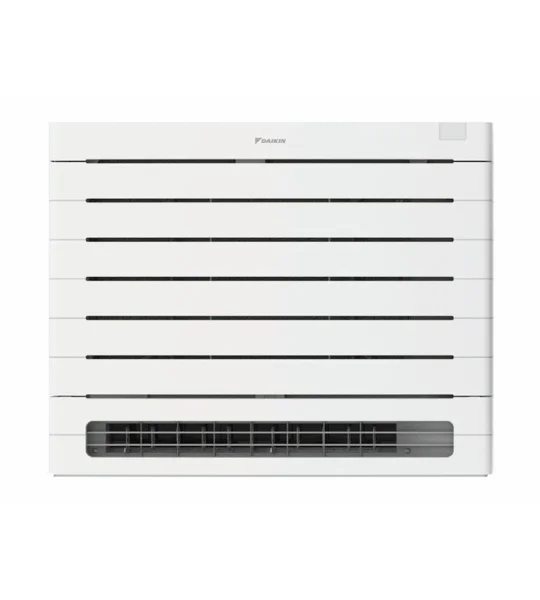

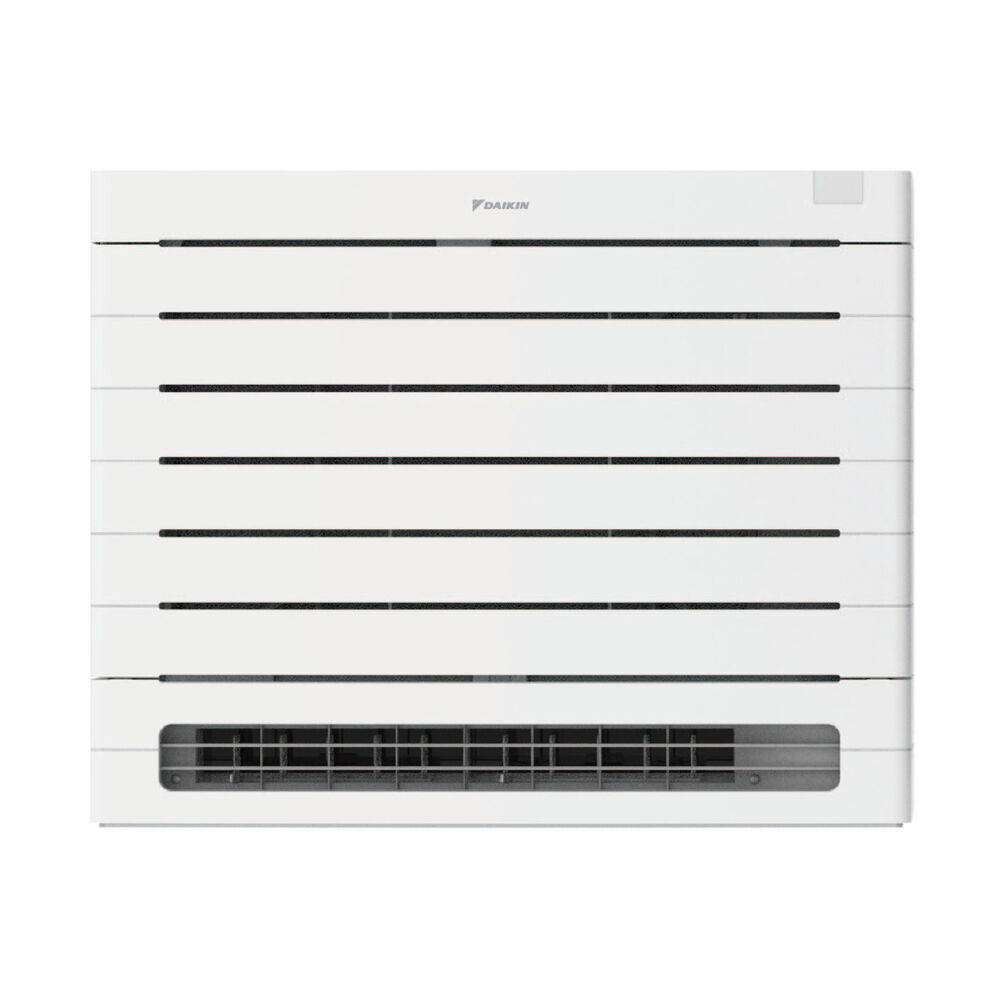

FVXV Floor Console (Standard White & Espresso)
FVXV Floor ConsoleFVXV Floor Console detail
  • Simple to install; can be set up on the floor or hanging low on a wall
  • Low height fits perfectly beneath a window
  • Airflow pattern ideal for heating or cooling a space — a good replacement for traditional radiant systems
  • Available in 2 colors: Standard (white) and Espresso
  • Titanium Apatite Photocatalytic air purifying filter
  • Washable air filter
  • Anti-corrosion heat exchanger treatment
  • Dry Function and Econo Mode
  • Powerful Operation Mode
  • Auto-Changeover and Auto-Fan Speed Control
  • Self-diagnostics
  • Quick warming and hot start
  • Quiet operation
  • Available sizes: FVXV 9,000 / 12,000 / 15,000 / 18,000 BTU

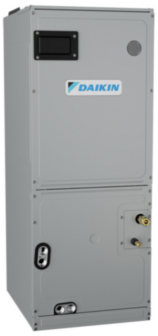

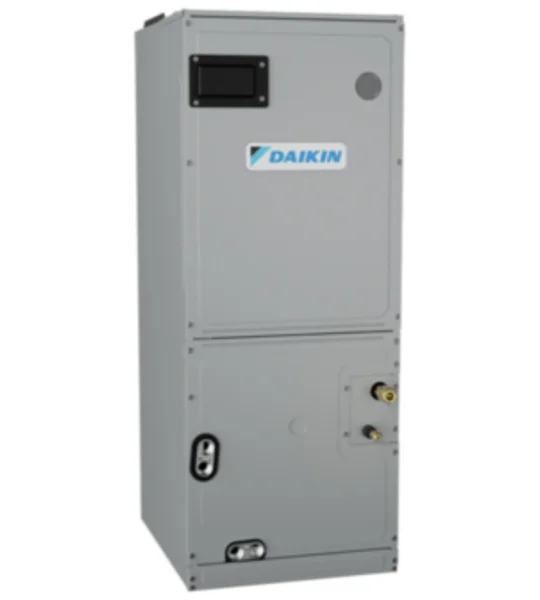

CMXV Multi-Position Air Handler (Daikin One+ Thermostat Included)
CMXV Air HandlerDaikin One+ thermostat

The CMXV Multi-Position Air Handler is the bridge between traditional ducted systems and inverter technology — a ducted solution for homeowners who still want modern efficiency. Includes the Daikin One+ Thermostat.

  • Flexible up, down, left or right installation
  • Variable-speed ECM blower motor
  • All-aluminum evaporator coil
  • Program Dry Function
  • Powerful Operation Mode
  • Auto-Changeover and Auto-Fan Speed Control
  • Quick warming and hot start
  • Quiet operation
  • Available models: CMXV12AVJUA, CMXV18AVJUA, CMXV24AVJUA

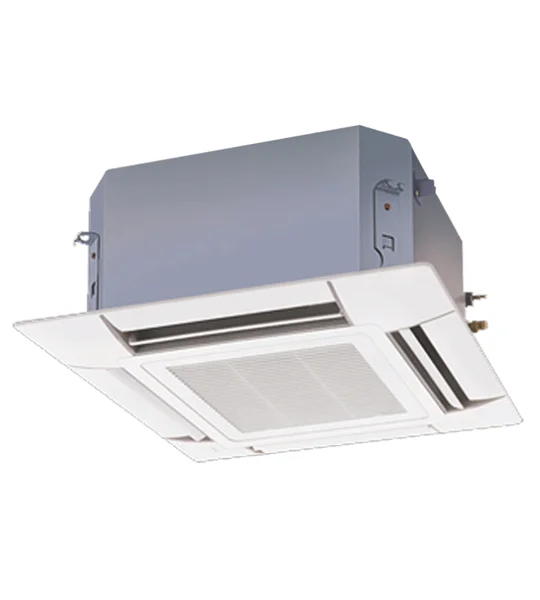

FFA-A9 Vista Ceiling Cassette (Decoration Panel & Thermostat Included)
FFA Vista Ceiling CassetteBRC1NRV71 thermostatDecoration panel

The Vista Ceiling Cassette delivers sleek, low-profile climate control designed to integrate into standard architectural ceilings and ceiling grids. Includes the BYFQ60C3W2W decoration panel and BRC1NRV71 thermostat.

  • Presence & floor sensor
  • Home Leave Operation
  • Draught Prevention
  • Individual Flap Control
  • Onecta app control
  • Fan Only Mode
  • Auto Cooling-Heating Changeover
  • Whisper-quiet operation
  • Ceiling soiling prevention
  • Vertical auto swing
  • Selectable fan speed
  • Dry Programme
  • Air filter
  • Weekly Timer
  • Infrared remote control and wired remote control
  • Centralised control
  • Auto-Restart and Self-Diagnosis
  • Integrated drain pump kit
  • Available models: FFA09AVJU9, FFA12AVJU9, FFA15AVJU9, FFA18AVJU9

🏭 Outdoor Unit Options

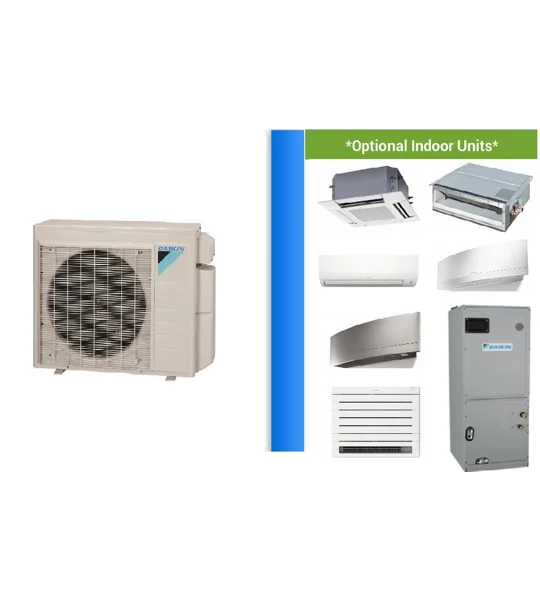

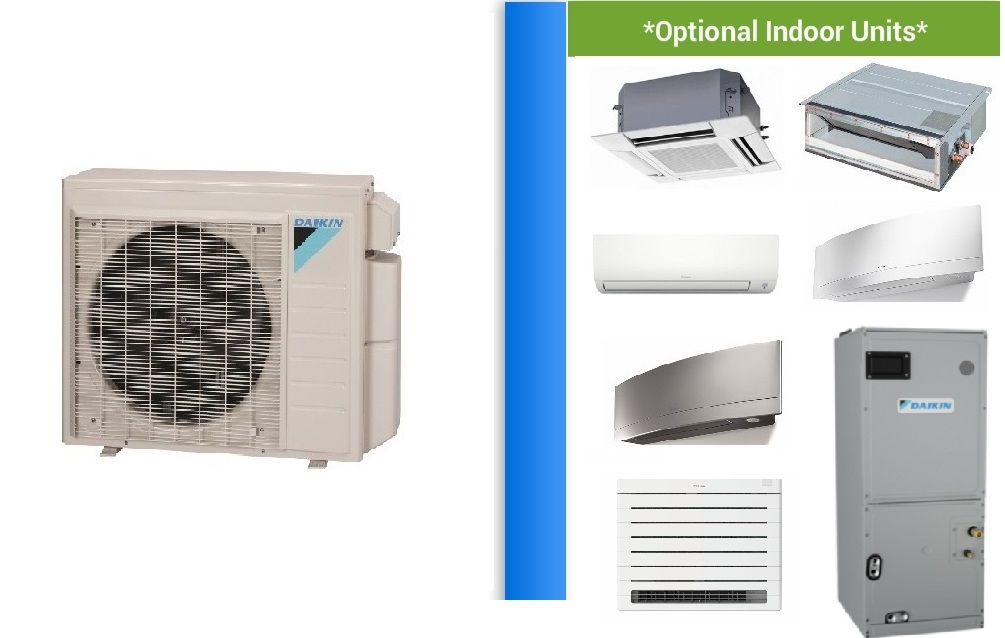

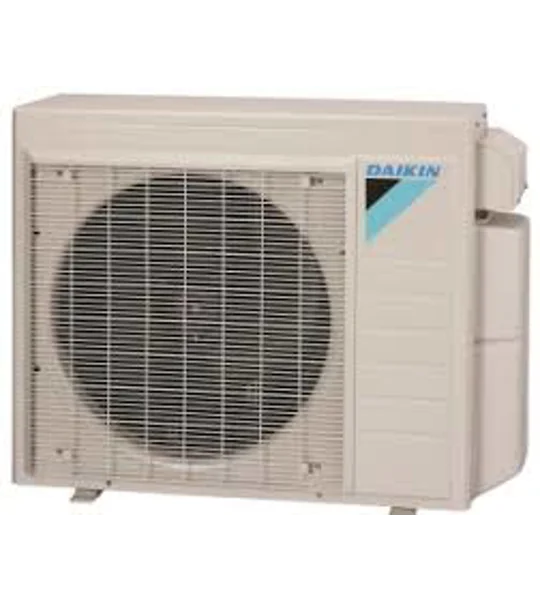

5MXT40AVJU9 — 40,000 BTU Hyper Heat Outdoor Unit (Included)
Daikin 5MXT40AVJU9 outdoor unit
  • Included with the system
  • Heats down to -13°F ambient
  • Up to 114% rated heating capacity at 5°F
  • R32 refrigerant, 208/230V single phase
5MXTH40AVJU9 — 40,000 BTU Hyper Heat Outdoor Unit with Base Pan Heater (Upgrade)
  • Upgrade option on the product page
  • Same 40,000 BTU MXT Hyper Heat platform, with an included drain pan heater
  • Heats down to -13°F ambient

-13°F Hyper Heating

Up to 114% of rated heating capacity at 5°F and efficient operation down to -13°F, built for cold climates.

Build Your Own 5 Zones

Pick a different indoor style for every zone: wall mount, slim duct, floor console, air handler or ceiling cassette.

Energy Star Certified

20 SEER2 efficiency keeps operating costs low in both heating and cooling.

Base Pan Heater Option

Step up to the 5MXTH40AVJU9 outdoor unit for an included drain pan heater, which helps in cold, icy conditions.

Individual Zone Control

Every indoor unit is controlled independently, and the indoor units don't all have to be installed at the same time.

R32 Refrigerant

R32 is a lower-GWP refrigerant than R410a and is the new standard across Daikin's residential lineup.

Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Trust Badges

βœ… Factory Warranty Coverage

12
Year Compressor
12
Year Parts

*12-year compressor / parts warranty applies with online registration at daikincomfort.com/owner-support/product-registration.

Frequently Asked Questions

Will my warranty be valid if I don't use a licensed installer?

No. This is a traditional line-set system requiring brazing, evacuation and charging — work that must be performed by an EPA 608-certified technician. The Daikin warranty also depends on professional installation and online registration at daikincomfort.com/owner-support/product-registration. We can answer sizing and line-set questions before you order — just call or email.

Which indoor units can I choose for each zone?

Each zone has its own selector on the product page: FTXV/CTXV wall mounts, FDMA/CDMA slim ducted, FVXV floor consoles (white or espresso), CMXV central air handlers and FFA Vista ceiling cassettes. Sizes available per zone are limited by what the outdoor unit can support, so check the Indoor Combinations chart and don't exceed the outdoor unit's max BTU.

What is R32 and is it safe?

R32 is a lower-GWP refrigerant than R410a and is classified A2L (mildly flammable). It is widely used in modern mini splits and is perfectly safe when installed to code by a qualified tech. Installation must follow the requirements for A2L refrigerants in your area.

How long is the Daikin warranty?

Daikin covers this system for 12 years on the compressor and 12 years on parts with online registration. Register the install at daikincomfort.com/owner-support/product-registration after the system is commissioned to lock in the full term. See the Brochure or Engineering Data PDF above for the exact warranty terms.

What's the difference between the 5MXT40AVJU9 and 5MXTH40AVJU9?

The 5MXTH40AVJU9 is the same 40,000 BTU Hyper Heat outdoor unit with an included base (drain) pan heater. It is available as an upgrade in the outdoor unit dropdown. Both heat down to -13°F and both carry the same 40,000 BTU indoor ceiling.
