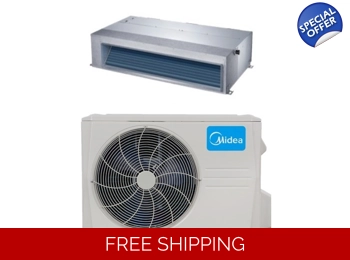

Midea 9K-Btu 20.2 SEER2 Ducted Mini Split H-Heat Pump (-22Β°F) E-Star: 13.2 EER/12 HSPF (R410a)

Free Shipping
In Stock A7: DLCSRBH09AAK/DLFSDAH09XAK

This Midea 9000 BTU Slim Ducted Split Heat Pump AC is your go-to solution for year-round comfort! With an impressive 20.2 SEER2 efficiency rating and ENERGY STAR certification, this unit not only keeps your space cozy but also helps you save on energy bills. Designed to perform even in extreme conditions, it delivers up to 69% of its rated capacity at a chilling -22 F, ensuring you stay warm when it matters most. The package includes a sleek indoor unit that fits seamlessly in attics, crawl spaces, or closets, paired with a HYPER outdoor unit that guarantees 100% heating capacity at 5 F. Plus, enjoy peace of mind with a built-in water pump and refrigerant leak detection. With a 7-year warranty on the compressor and 5 years on parts, you can trust Midea to keep your home comfortable for years to come. Experience the perfect blend of efficiency and performance with the Midea 9K BTU Slim Ducted Split Heat Pump!

Your price
Description

Midea 9K Slim Ducted HYPER Heat Pump
Midea
9K BTU Slim Ducted HYPER Heat Pump — 20.2 SEER2, R410A, -22°F
9,000 BTU 20.2 SEER2 ENERGY STAR R410A -22°F Hyper Heat Built-In Water Pump 7yr / 5yr Warranty

Midea 9K Slim Ducted HYPER Heat Pump — 20.2 SEER2, R410A, -22°F

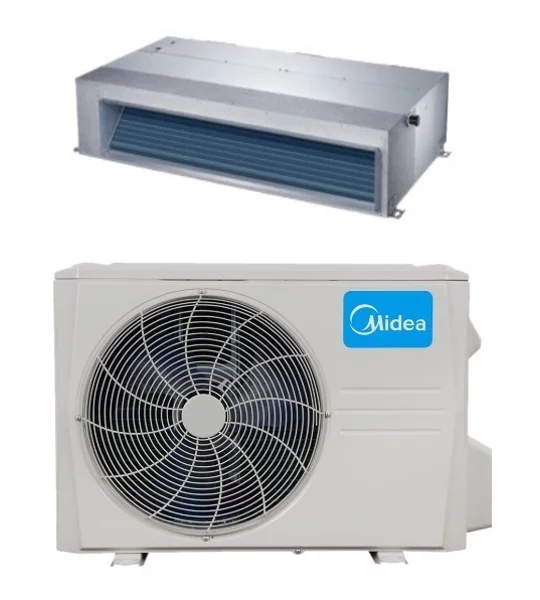

This package includes one Midea Slim-Ducted indoor unit (DLFSD) with wired thermostat, and one HYPER -22°F rated heat pump outdoor unit (DLCSR) using R410A refrigerant. The slim ducted indoor unit mounts in attics, crawl spaces, or closets and connects to short duct runs for discreet, centralized air distribution.

Extra low temperature heating delivers up to 69% of rated capacity down to -22°F and 100% heating capacity at 5°F — making this a primary heat source without backup heat. Built-in condensate pump and refrigerant leak detection included. 20.2 SEER2 efficiency rating with ENERGY STAR certification. Free nationwide shipping included.

βœ… This Midea Ducted Package Includes
  • (1) Slim Duct Indoor Unit (DLFSD) — with Wired Thermostat
  • (1) HYPER -22°F Outdoor Unit (DLCSR) — with R410A Refrigerant
⚑ Efficiency & Performance
20.2
SEER2
13.2
EER
12.0
HSPF
-22°F
Min Heat Temp
R410A
Refrigerant
7 yr
Compressor Warranty
Key Specifications
Model (Outdoor / Indoor) DLCSRBH09AAK / DLFSDAH09XAK
Capacity 9,000 BTU
SEER2 Rating 20.2
EER Rating 13.2
HSPF Rating 12.0
Energy Star Certified Yes
Voltage 208/230V, Single Phase
Refrigerant R410A
Min Heating Temperature -22°F
Cooling Operating Range -22°F to 130°F
Heating Operating Range -22°F to 86°F
Installation Type Slim Ducted (Concealed, Recessed)
Indoor Unit Includes Wired Thermostat, Condensate Pump, Refrigerant Leak Sensor, Outside Air Intake, Rear or Bottom Return, Vertical or Horizontal Install (9-48K)
Warranty 7yr Compressor / 5yr Parts (Registration Required)

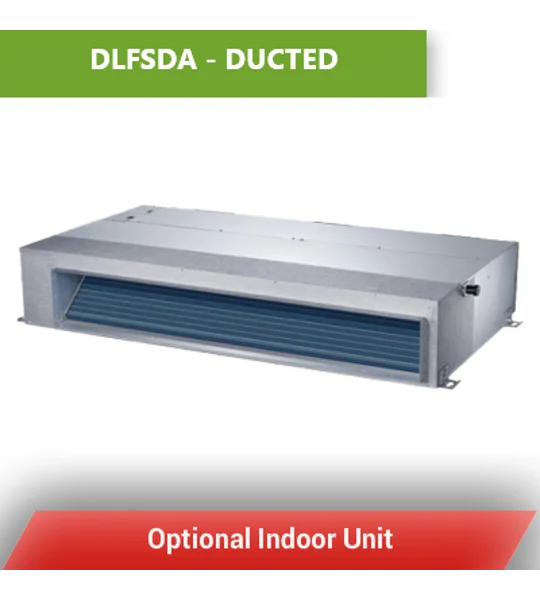

Midea Slim Ducted Indoor Unit

Midea Slim Ducted indoor unit — concealed ceiling or wall install, built-in condensate pump, refrigerant leak sensor, and outside air intake.

β˜… Product Features

HYPER Cold Climate Heating

Delivers up to 69% of rated heating capacity down to -22°F and 100% rated capacity at 5°F — a true primary heat source in extreme climates.

Built-In Condensate Pump

Handles condensate automatically without requiring gravity drainage — essential for attic and crawl space installs where a floor drain is not accessible.

Vertical or Horizontal Install

Supports both rear and bottom return-air configurations and can be installed vertically or horizontally (available on 9K-48K models).

Refrigerant Leak Detection

Built-in sensor monitors refrigerant levels and alerts you to potential leaks before performance drops.

Wired Thermostat Included

Includes a wired thermostat alongside the wireless remote — set schedules and control from either interface.

Outside Air Intake

Brings in fresh outside air — improves indoor air quality and reduces stale air buildup in tightly sealed spaces.

Factory Base Pan & Crankcase Heater

Both heaters come factory-installed — they prevent ice accumulation and protect the compressor in freezing weather.

Gold Fin Anti-Corrosion Coating

Aluminum golden hydrophilic pre-coated fins on both coils resist corrosion and inhibit microbial growth.

Why Buy From Mini Split Warehouse

🚚

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

βœ…

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

πŸ’°

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

🏭

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

πŸ“ž

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

πŸ’΅

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Trust Badges
βœ… Factory Warranty Coverage
7
Year Compressor
5
Year Parts

*Warranty registration required at mideaductlesswarranty.com

❓ Frequently Asked Questions
What is a slim ducted system?
A slim ducted system is a concealed indoor unit that mounts in attics, crawl spaces, or closets and connects to short duct runs. It provides centralized air distribution without visible equipment — ideal for rooms where a wall or cassette mount isn't practical.
Is the condensate pump built in or separate?
The condensate pump is built into the indoor unit. No external pump is required — which is why this unit works well for attic and crawl space installs where a gravity drain isn't available.
Can this unit be installed vertically?
Yes — this 9K model supports vertical or horizontal installation. It also supports rear or bottom return-air configurations to match various framing and duct layouts.
Will my warranty be valid if I don't use a licensed installer?
No. To maintain the manufacturer warranty, this system must be installed by a licensed HVAC technician. DIY installation voids the warranty. Registration is also required at mideaductlesswarranty.com.

Specification
Title Midea 9K-Btu 20.2 SEER2 Ducted Mini Split H-Heat Pump (-22Β°F) E-Star: 13.2 EER/12 HSPF (R410a)
Brand Carrier Midea North America
Category 9,000 Btu | .75 Ton | 150-400 Sq Ft
SKU A7: DLCSRBH09AAK/DLFSDAH09XAK
Condition new
UPC 813084025360
MPN DLCSRBH09AAK
