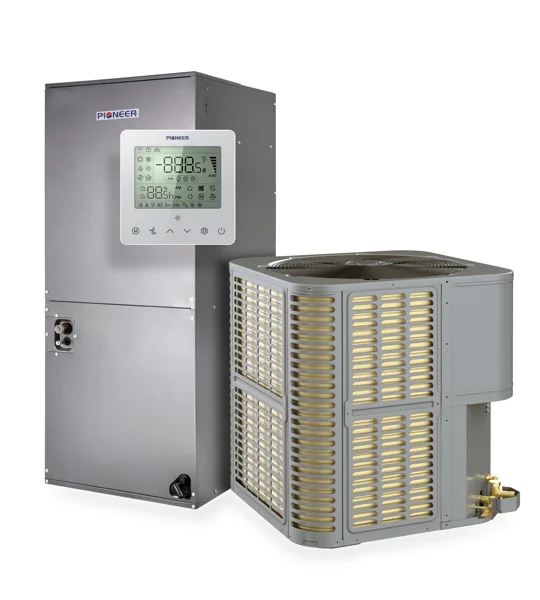

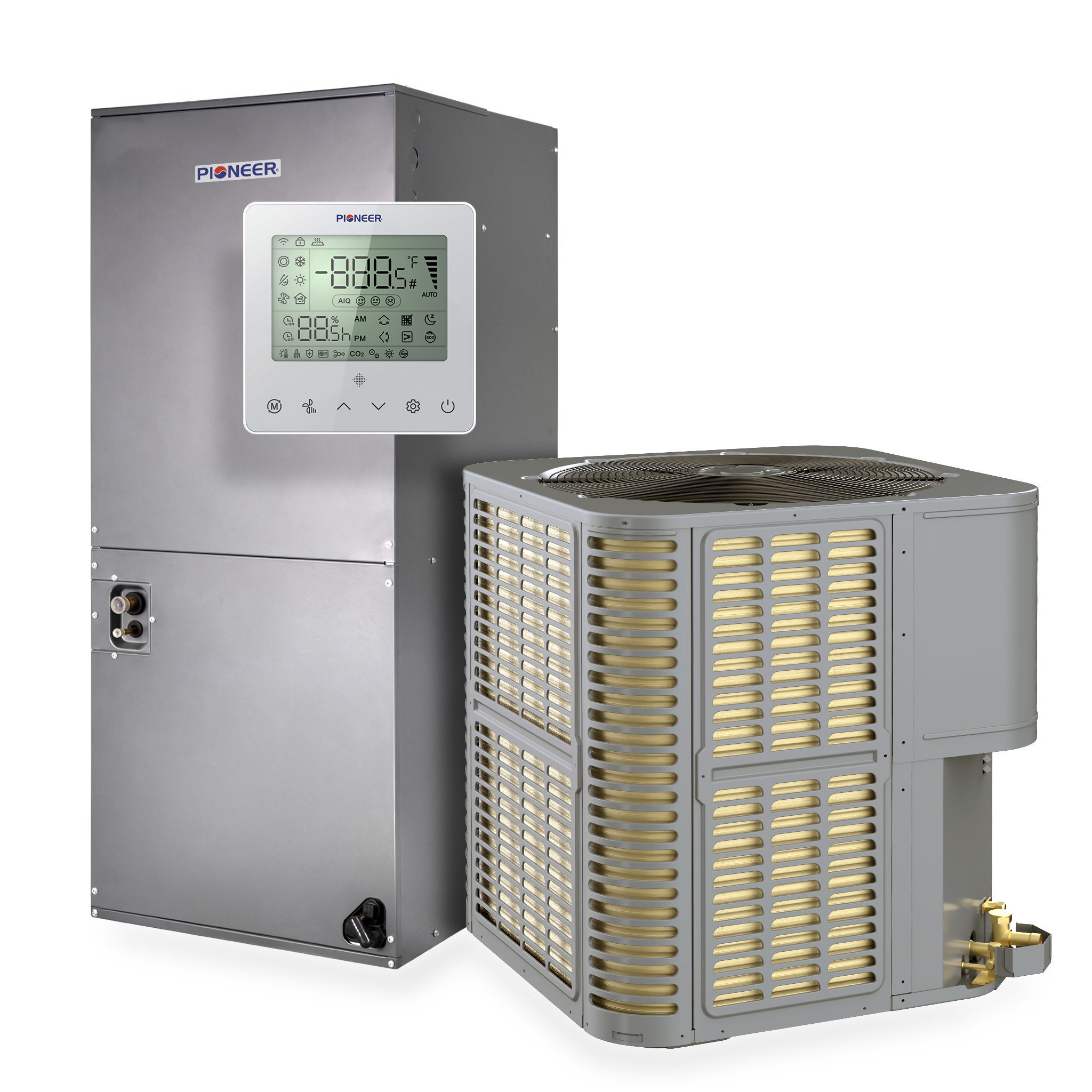

Pioneer 24k-BTU 20 SEER2 Central Ducted Heat Pump AC (-4Β°F) Wifi, E-Star: 13.3 EER/9.4 HSPF (R454B)

Free Shipping
Unavailable DYC024GCSI18RD

7-year parts and 10-year compressor coverage designed to give you absolute peace of mind. Pioneer 24k-BTU Vertex Central Ducted Split Heat Pump AC is your go-to solution for year-round comfort! This energy-efficient AC system delivers powerful heating and cooling capabilities, operating effectively in temperatures as low as -4 F and up to 131 F. With a robust 2 ton heat pump, you can enjoy a cozy home environment no matter the season. The DC inverter features a variable speed compressor and a high-efficiency fan motor, ensuring quiet operation and optimal energy savings. Plus, it uses environmentally friendly refrigerant R454b, making it a smart choice for eco-conscious homeowners. This central air conditioning unit comes complete with an air handler unit and a smart thermostat for easy control. Upgrade your home comfort with the Pioneer Vertex today!

Your price

Buy more, pay less

from each
1 × =
Description

Pioneer Vertex 24K BTU 20 SEER2 Ducted Central Split Heat Pump
Pioneer
Vertex 24K BTU 20 SEER2 Ducted Central Split Heat Pump — -4°F
24,000 BTU 20 SEER2 13.3 EER2 9.4 HSPF2 -4°F Min Heating R454B Refrigerant ENERGY STAR

Pioneer Vertex 24K BTU 20 SEER2 Ducted Central Split Heat Pump — -4°F

20 SEER2 R454B -4°F Cold Climate WiFi Built-In Communicating System Multi-Position Air Handler

The Pioneer Vertex Ducted Central Split is a whole-home comfort solution that connects a single outdoor heat pump to a network of ducts, delivering conditioned air to multiple rooms from one centrally located air handler. This 24,000 BTU system is ideal for homeowners replacing a traditional central AC and gas furnace combo, or for new construction where a ducted system is already in place. The multi-position air handler can be configured horizontally, vertically, or in a downflow orientation to fit tight mechanical closets and attics.

This system is built around a communicating RS485 platform with a dedicated digital thermostat, variable-speed DC inverter compressor, and factory-precharged R454B refrigerant. It maintains heating operation down to -4°F outdoor ambient, uses a refrigerant leakage sensor built into the indoor unit for safety, and includes a condensate float switch and high-capacity bi-directional filter dryer in the box. WiFi control is built in through the included communicating thermostat, giving you app-based access and programming without an add-on module.

βœ… This Pioneer Vertex 24K BTU Package Includes

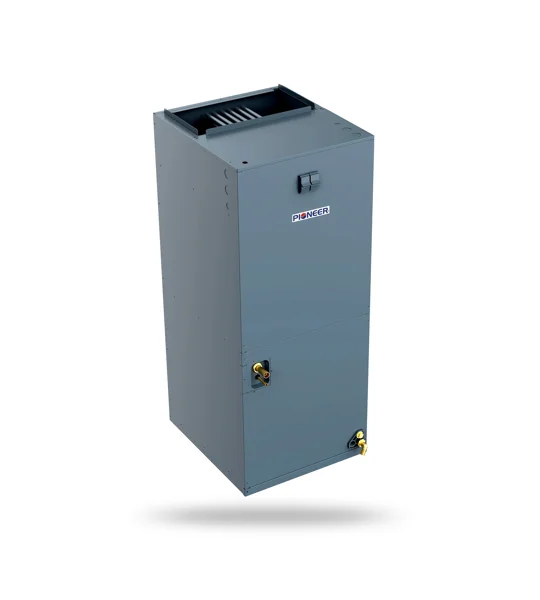

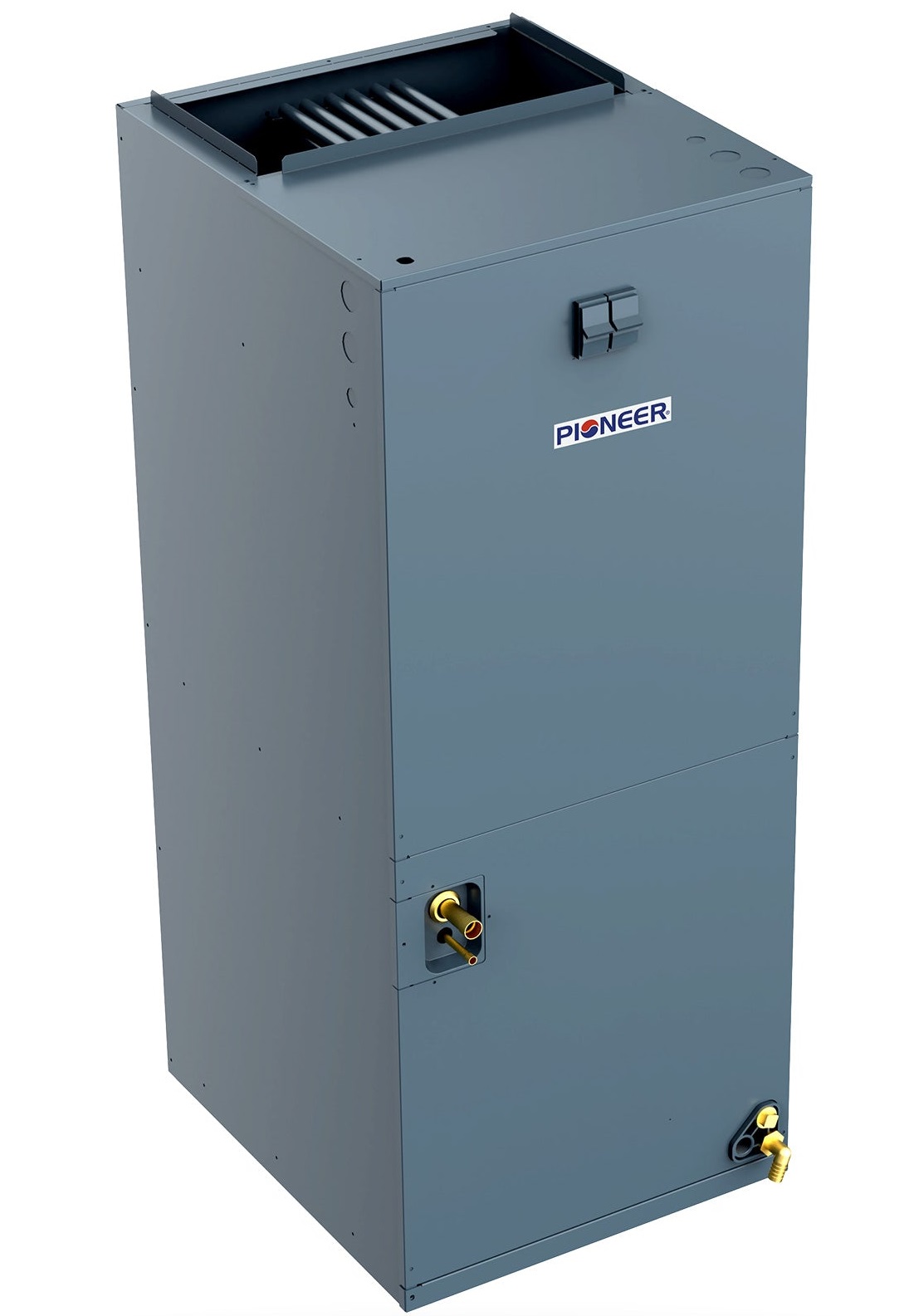

  • (1) Multi-Position Air Handling Unit (DC024GCSICDHRT) — convertible horizontal/vertical/downflow configuration

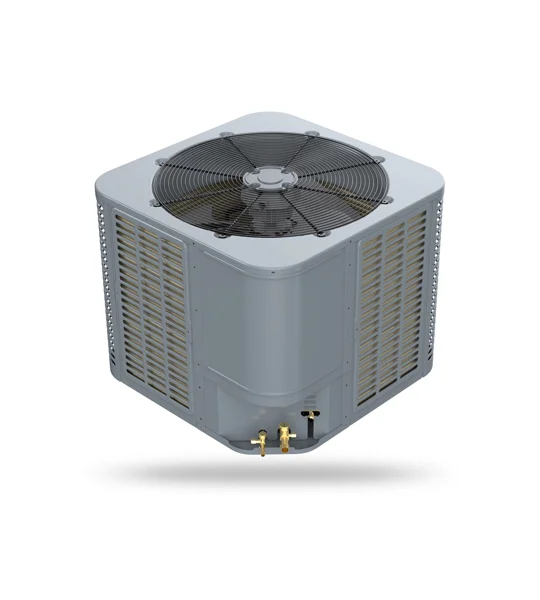

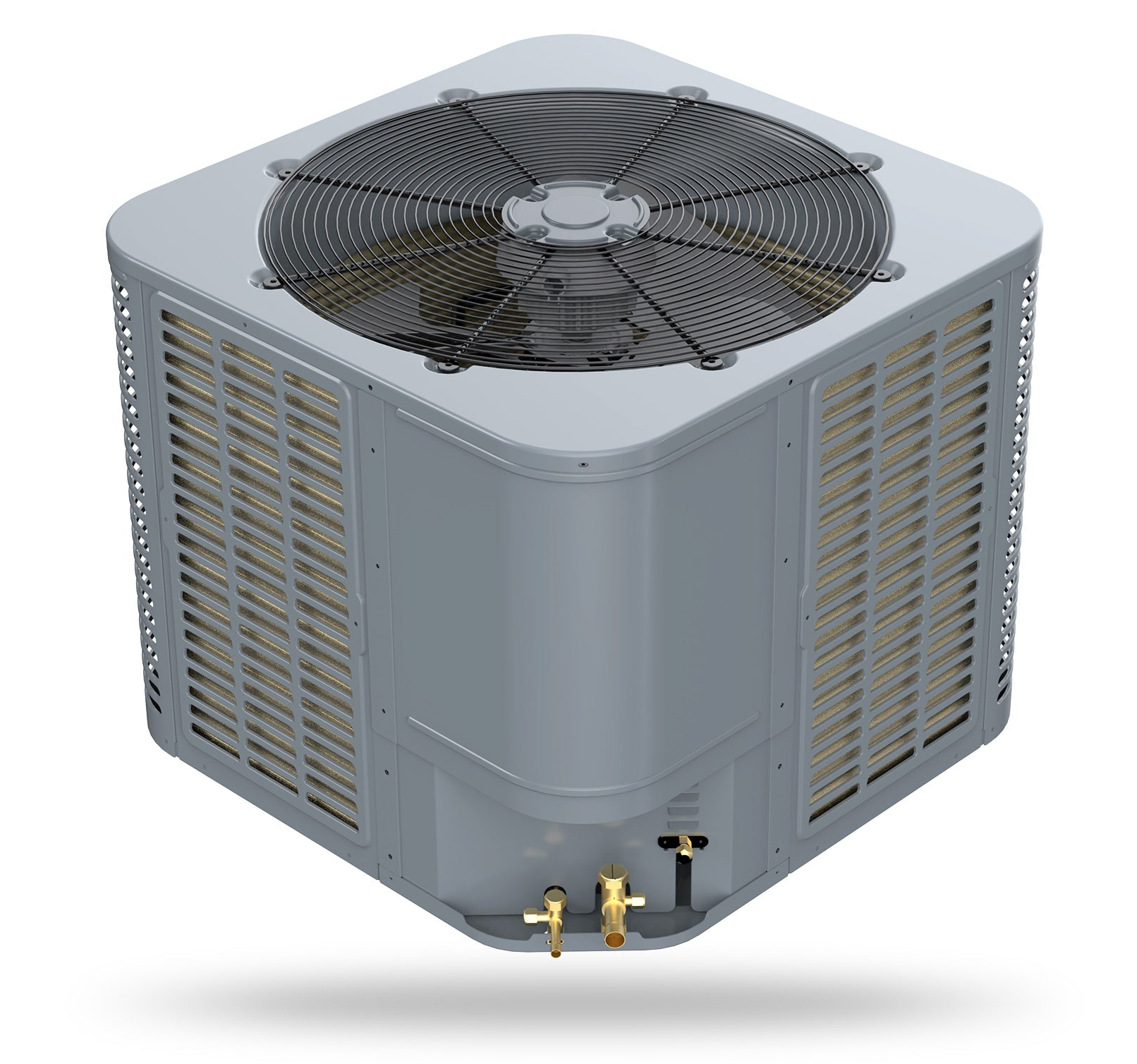

  • (1) Outdoor Heat Pump Unit (YD2436GCSI18RD) — with R454B refrigerant, factory-precharged

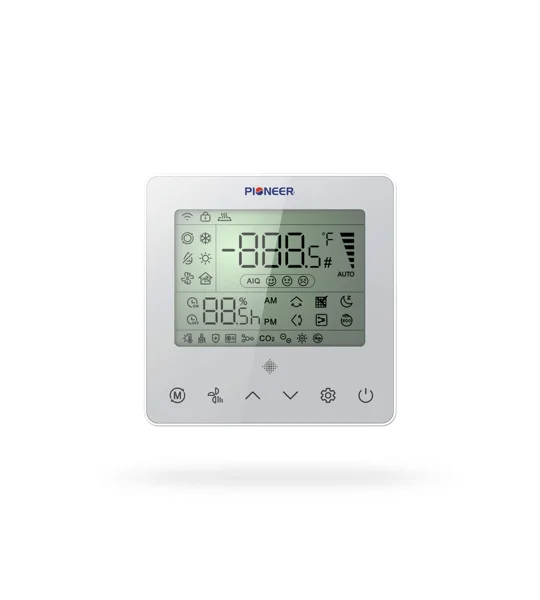

  • (1) Digital Fully Communicating RS485 Thermostat — with WiFi remote access and programming
  • Thermostat and Digital Communication Cables
  • Condensate Float Switch
  • High-Capacity Bi-Directional Filter Dryer
  • Installation and User Manuals

Efficiency & Performance

20
SEER2
13.3
EER2
9.4
HSPF2
-4°F
Min Heat Temp
R454B
Refrigerant
Technical Specifications
System Type Ducted Central Split Heat Pump (Multi-Position Air Handler)
Capacity 24,000 BTU (2 Ton)
Indoor Unit DC024GCSICDHRT (Multi-Position Air Handler)
Outdoor Unit YD2436GCSI18RD
SEER2 Rating 20
EER2 Rating 13.3
HSPF2 Rating 9.4
Refrigerant R454B (Factory-Precharged)
Voltage 208/230V, Single Phase, 60Hz
Min Heating Temperature -4°F
Cooling Operating Range Up to 131°F
Heating Capacity @ 5°F 20,000 BTU/h (COP 2.1)
Heating Capacity @ 17°F 19,200 BTU/h
Cooling Capacity Range 13,500 ~ 31,400 BTU/h
Heating Capacity Range 10,200 ~ 35,900 BTU/h
Indoor Airflow (Hi/Lo) 690 / 600 CFM
Indoor Sound Level (Hi/Lo) 51 / 48 dB(A)
Outdoor Sound Level 76 dB(A)
Controls Included Digital Fully Communicating RS485 Thermostat with WiFi
Communication RS485 communicating system with dedicated signal transmission
Compressor Twin-Rotary Inverter (25-110% output modulation)
Indoor Coil Hydrophilic aluminum fin, rifled copper tube
Safety Features Refrigerant leakage sensor (indoor unit); condensate float switch
AHRI Reference 217048497
Warranty 10yr Compressor / 7yr Parts (Registration Required)
Warranty Registration Register Your System

πŸ“„ Documents & Resources

Multi-Position Air Handler

The indoor unit converts to horizontal, vertical upflow, or downflow orientation, fitting mechanical closets, attics, and tight install spaces without custom ductwork.

Communicating RS485 System

The outdoor unit, air handler, and thermostat communicate over a dedicated RS485 signal for precise capacity matching and diagnostics — no third-party thermostat adapter needed.

Twin-Rotary Inverter Compressor

Modulates output between 25% and 110% to match load precisely, avoiding the on/off cycling of single-stage systems and holding room temperature without swings.

Refrigerant Leak Sensor

A refrigerant leakage sensor is built into the indoor air handler, providing early detection on the R454B circuit — a safety feature often omitted on entry-tier ducted systems.

Switchable BTU Capacity

DIP switches on the condenser allow capacity switching between 24,000 and 36,000 BTU, so the same outdoor unit can serve either a 2-ton or 3-ton air handler configuration.

Extended Line Set Routing

Allows up to 100 feet of total line set run and 50 feet of vertical separation between indoor and outdoor units, giving installers flexibility for difficult placements.

0.6 in. w.c. Static Pressure

Up to 0.6 inches of water column static pressure moves air through longer duct runs and multi-room layouts while maintaining consistent temperatures throughout the home.

WiFi via Communicating Thermostat

The included RS485 thermostat has WiFi built in for app-based control and programming — no separate WiFi module or adapter required.

Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Trust Badges

βœ… Factory Warranty Coverage

10
Year Compressor
7
Year Parts

*Warranty registration REQUIRED — Register Your System

Frequently Asked Questions

Will my warranty be valid if I don't use a licensed installer?

No. This is a traditional line-set system — brazing, evacuation and charging the refrigerant circuit must be performed by an EPA 608-certified technician. Pioneer's warranty also depends on professional installation and online registration via the link in the warranty section above. Our team can answer sizing and line-set questions before you order — just call or email.

Does this system lose heating capacity in cold weather?

Yes, like all inverter heat pumps, output declines as outdoor temperature drops. The technical manual lists heating capacity at 20,000 BTU/h at 5°F (with a COP of 2.1) versus the rated 24,000 BTU/h at 47°F — roughly 83% of rated capacity at 5°F. It operates down to -4°F, but below the design temperature output continues to taper. A manual J load calculation is the right way to confirm this system meets your home's heat load at your local design temperature — our team can help with sizing before you order.

What does "communicating system" mean, and why does it matter?

A communicating system means the outdoor unit, indoor air handler, and thermostat exchange data over a dedicated digital signal (RS485 in this case) rather than simple on/off voltage calls. The system can stage capacity more precisely, report diagnostics more clearly, and coordinate defrost and fan behavior without extra wiring. It also means you must use the included Pioneer communicating thermostat — a standard 24V thermostat will not access the full feature set without reconfiguring the DIP switches.

What is a multi-position air handler, and do I need one?

A multi-position air handler can be installed horizontally (in an attic or crawlspace), vertically upflow (in a closet), or downflow, without buying a different cabinet for each orientation. If your existing ductwork enters from the top, bottom, or side, the installer can configure the cabinet to match rather than re-routing ducts. This is the standard configuration for replacement central systems where the mechanical space is already fixed.
