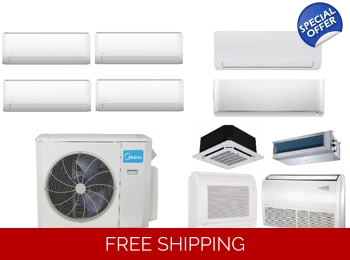

Midea 4-Zone Custom Mini Split H-Heat Pump (-22Β°F) E-Star: 22.4 SEER2/12 EER/9.5 HSPF (R410a)

Free Shipping
In Stock A6: 4 Zone (CMNA)

This Midea 4 Zone Mini Split Package Includes: (1) 4 Zone Outdoor Unit 30,000Btu DLCMHB Features Include : Heats & Cools ( -22F / -22F ) Basepan Heater ( Built in) 7yr Compressor 5yr Parts Warranty Specifications Allowed Indoor Combinations Compressor Upgrade for More Combinations (4) Indoor Units 9000Btu Wall Mount ( DLFEH ) DLFEH Features Include : Convenient Filter Removal Remove filter from top of unit, no need to open front cover . Improved Servicability Full Access to terminal connectio...

Your price

Buy more, pay less

from each
1 × =
Description

4 ZONE Midea Mini Split HYPER Heat Pump AC

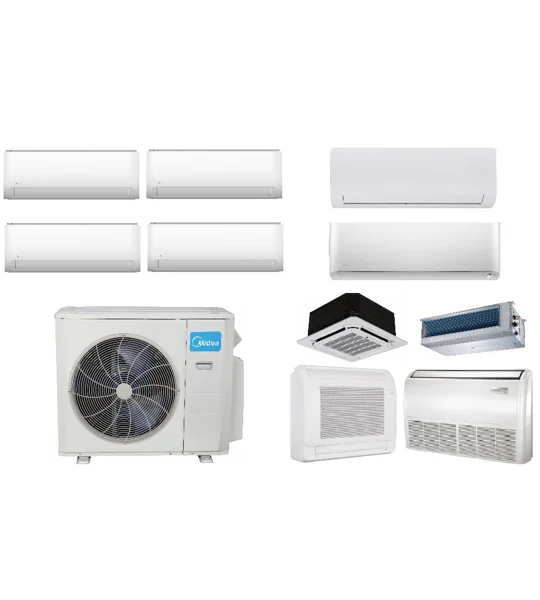

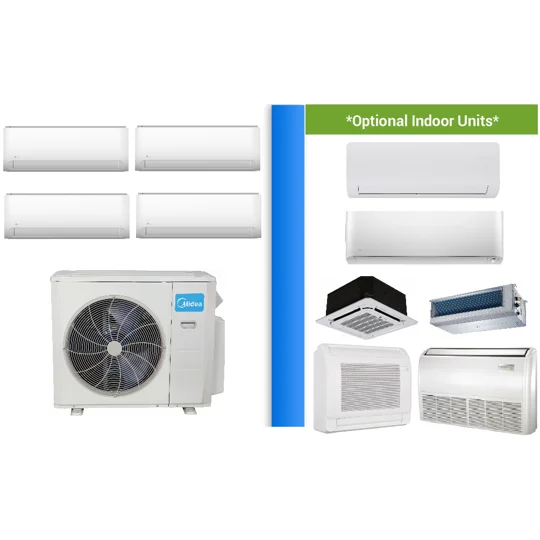

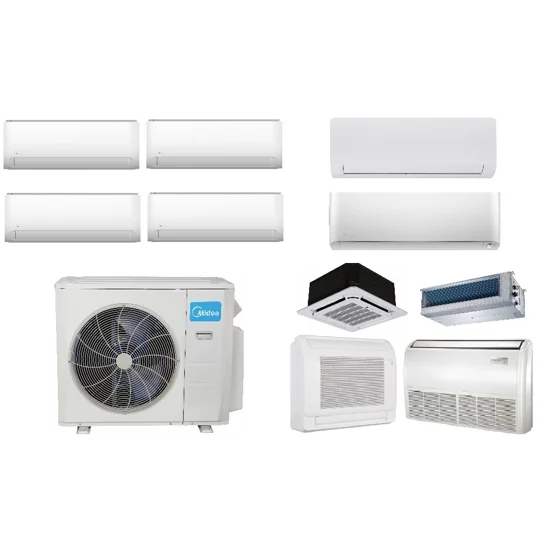

*This 4-Zone Midea Mini Split Package Includes:

*(1) Hyper Multi Zone Outdoor Unit

*Upgrade the outdoor unit and ADD indoor units via the dropdown boxes.



Features :
˜Heats & Cools (-22F/-22F

˜Basepan Heater (Built in)˜
˜Gold Coated Coils˜ ˜Refrigerant Leak Detection
˜Auto Restart˜

Brochure

HIGH-FREQUENCY INVERTER TECHNOLOGY
Enables the compressor  to reach maximum speed within 6 seconds on start up
HIGH-EFFICIENCY PIPES

Midea Multi Zone systems, with inverter technology, are some of today’s most advanced ductless split heat pumps. Up to 5 indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required. All indoor units can be individually controlled and do not need to be installed at the same time.

With Midea heat pump technology, the Included Hyper Heat series offers dependable cooling as well as the capability to heat in ambient temperatures as low as -22°F, making it an excellent, energy-efficient solution for colder climates.



7yr Compressor 5yr Parts Warranty
Warranty Card  Warranty Registration

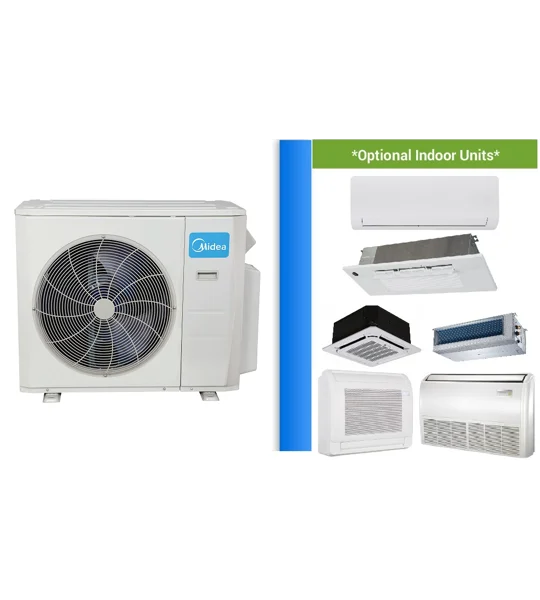

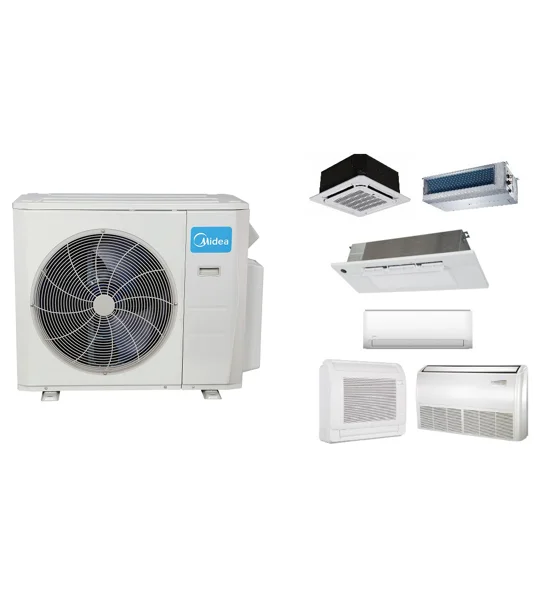

*Upgrade the outdoor unit to larger sizes

(Click) model numbers below for cut sheets
and to see allowed indoor combinations


DLCMRBH18BAK DLCMHBH24CAK DLCMHBH30DAK
DLCMRBH36DAK DLCMRBH48EAK*
DLCMHBH36DAK * DLCMHBH48EAK *
Please see cut sheets above for allowed indoor combinations.

*DLCMHBH36DAK, DLCMHBH48EAK are all tall models.

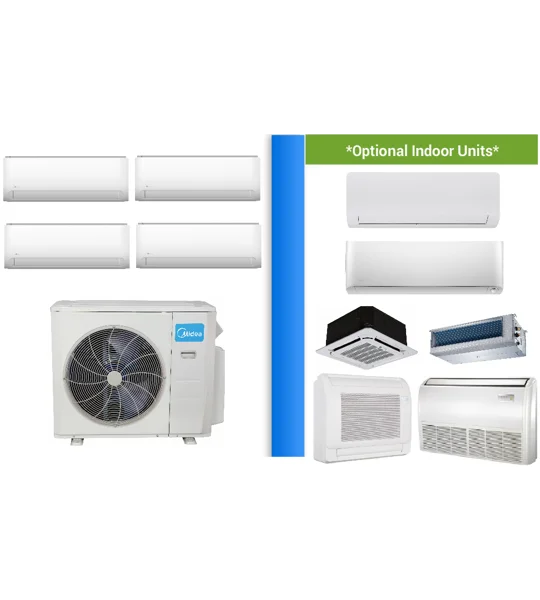

*ADD the indoor units below via the dropdown boxes above

When adding your indoor units, please do not exceed the outdoor BTU capacity.
Indoor Combined BTU ≤ OUTDOOR MAX BTU

*Please see cut sheets above for allowed indoor combinations
or Click HERE





DLFEH Wall Mount Filter located on top providing easy access  • Auto-Swing for vertical up down • User-Friendly Remote Controller design  • Follow Me Mode • Timer On/Off • 46° Freeze Protection • Turbo Mode • Sleep Mode  •Aluminum Golden Hydrophilic pre-coated fins  •(2yr Warranty)

Click For Cut Sheets: DLFEHBH09XAK | DLFEHAH12XAK




DLFSH Wall Mount • Modes: Cool, Heat, Dry, Fan, Auto • Turbo Mode • Four fan speeds • Sleep Mode • ECO Mode • Up-Down Louver control (fixed or swing) • Follow Me (senses temperature at handheld remote) • Heating Setback (46° F Heating Mode) • Quiet indoor operation • Aluminum Golden Hydrophilic pre-coated fins •(5yr Warranty)

(DLFSH)B: SPECIFICATIONS
(DLFSH)C: SPECIFICATIONS



DLFPH Wall Mount • Modes: Cool, Heat, Dry, Fan, Auto • Turbo Mode • Fully Modulating fan speeds • Sleep Mode • Up-Down / Right-Left Louver control (fixed or swing) • Relative Humidity SensorIntelligent Eye • ECO Mode • Carbon Filter • Follow Me (senses temperature at handheld remote) • Heating Setback (46° F Heating Mode) •Double the Coils • Aluminum Golden Hydrophilic pre-coated fins • (5yr Warranty)

SPECIFICATIONS (CLICK)

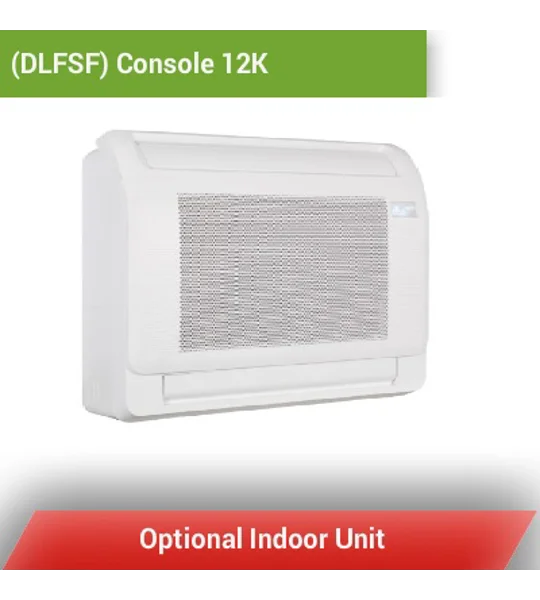

Floor Console: Mini Floor Consoles are most popular in colder climates as, during winter seasons, dual air discharge locations provide heated air at ground level, which naturally rises to fill the room. They are also a great option for attics, which often do not have the wall or ceiling space for other indoor types. Mini Floor Consoles are available in 12K Btu/h only. (5yr Warranty)

SPECIFICATIONS (CLICK)

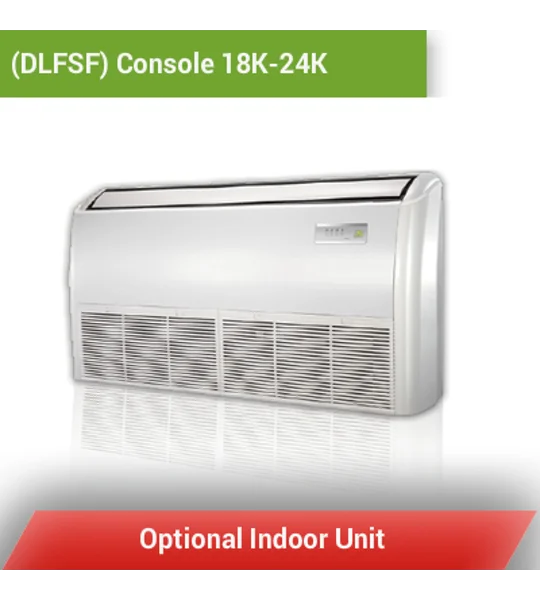

Floor or Ceiling Mount (Universal) : Universal Floor/Ceiling units offer flexibility in regard to location, as they can be installed horizontally on a ceiling or vertically on a wall. These units can be conveniently controlled by remote control, optional wall thermostat, or optional Wifi app. Universal Floor/Ceiling units are available in 18K and 24K models. (5yr Warranty)

SPECIFICATIONS (CLICK)

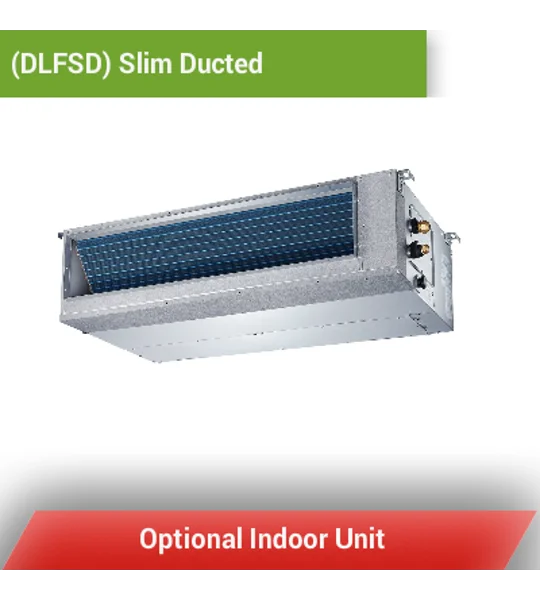

Slim Ducted (Hidden/Concealed): Slim Ducts provide an inconspicuous solution, hidden in attics and ceiling crawl spaces, without the energy loss associated with central ducted systems. Slim Ducts offer flexibility of installation as the ducts can be directed into separate areas which are collectively controlled by one wall thermostat. For example, one slim duct can be directed to cool and heat hallways, closets, laundry rooms, and bathrooms of a home while the bedrooms themselves are controlled independently. Slim Ducts are available in 9K, 12K, 18K and 24K Btu/h models. Condensate pump built in. (5yr Warranty)

SPECIFICATIONS (CLICK)

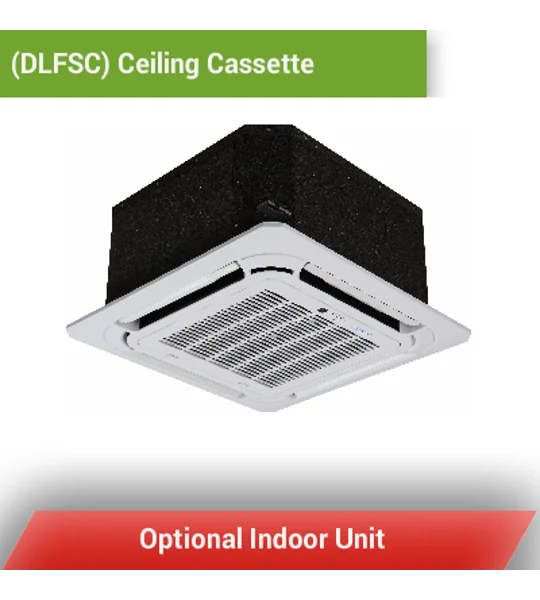

Ceiling Cassette: Ceiling Cassettes offer a convenient solution for offices and businesses, as they can easily fit into a standard ceiling grid (9-18k=22.5x22.5/24K+=33.07x33.07), but they can be used for almost any application, as long as enough space exists above the ceiling itself. Ceiling Cassettes provide omni-directional air flow and user-friendly Remote Control operation along with a built in condensate pump. (5yr Warranty)

SPECIFICATIONS (CLICK)

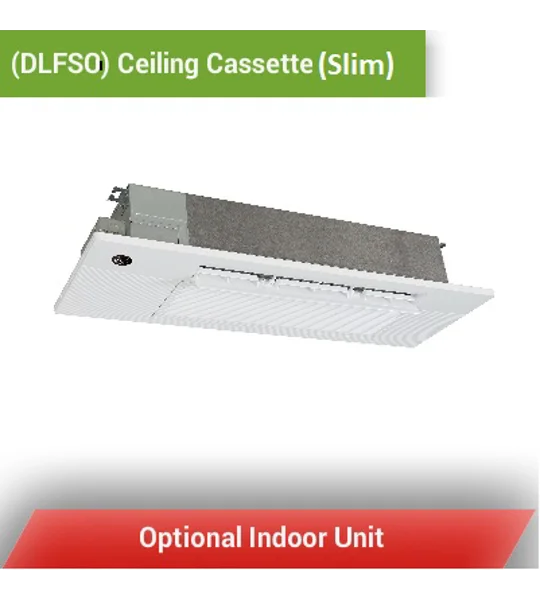

Slim Ceiling Cassette: The new one way air flow slim cassettes offer the same convenient solution as the regular cassette, only slimmer allowing installation between 16" joists. • Designed to be mounted between 16" joists • Dual Capacitity capability • Modes: Cool, Heat, Dry, Fan, Auto • Turbo Mode • Four fan speeds • Sleep Mode • ECO Mode • Quiet indoor operation • Aluminum Golden Hydrophilic pre-coated fins • user-friendly Remote Control operation along with a built in condensate pump. (5yr Warranty)

(Click) DLFSOAH09XAK | DLFSOAH18XAK


DLFSA Central AHU: INTELLIGENT AIR FLOW: Allows the technician to automatically and accurately calculate the required static pressure. ANTI-COLD AIR FUNCTION: Fan doesn’t blow until the coil is warm, so cold air is not pushed into the room upon startup. FAST COOL/HEAT FUNCTION: When set temperature is more than 10 degrees difference from room temperature, the unit will run at 100% capacity to reach it faster. ALUMINUM COIL: Fewer corrosion points than copper coils. AUXILIARY HEATER: Can be purchased separately as a back up heat option for indoor units. Available in 5kW, 10kW, 15kW, and 20 kW models. AUTO RESTART FUNCTION: Auto restart in the event of a power outage. REFRIGERANT LEAK DETECT: Protects the compressor from damage by high temperature due to refrigerantleak, by alerting user with error code “EC”. WIRED Thermostat Compatible: Compatible with most 3rd Party 24V thermostats. TRUE MULTI POSITION AIR HANDLER: Horizontal, vertical, or downward installation. (5yr warranty)

(DLFSA)A Data (CLICK)(DLFSA)B Data (CLICK) (DLFSA)B Brochure

**IMPORTANT: Up to 2 AHUs can be used for the following combinations only: 18+18, 18+24, 18+30, 18+36, 24+24, 24+30, 24+36. In the case that 2 CENTRAL AHU units are selected, no other units may be connected to the outdoor unit, regardless of remaining ports or capacity availability

 See Related Items Below For More Accessories ⇓


  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -22° F, making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • Available in 208/230V
  • Built-in basepan & crankcase heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation
  • Aluminum Golden Hydrophilic pre-coated fins
  • Cooling operating range
    • -22~122
  • Heating operating range
    • -22° ~ 75° F







Specification
Title Midea 4-Zone Custom Mini Split H-Heat Pump (-22Β°F) E-Star: 22.4 SEER2/12 EER/9.5 HSPF (R410a)
Brand Carrier Midea North America
Category Quad. | 4 Zone | Select Four Heads
SKU A6: 4 Zone (CMNA)
Condition new
UPC 813084025698
MPN DLCMHBH30DAK
