Midea 3-Zone Slim Cassette Mini Split H-Heat Pump (-22Β°F) E-Star: 22.4 SEER2/12 EER/9.5 HSPF (R410a)

Free Shipping
In Stock DLCMHBH30DAK/3xDLFSOAH09XAK

Midea Multi Zone Split Heat Pump is your go-to solution for year-round comfort! With an impressive 21 SEER2 efficiency, this system is designed to keep you cozy even in extreme temperatures as low as -22 F. The package includes a Hyper Multi Zone Outdoor Unit and wall-mounted indoor units, each equipped with remotes for easy control. Say goodbye to bulky ductwork with the Midea 3 zone ductless system, which allows you to customize your comfort in different rooms. The Midea 3 zone split system not only cools but also heats, making it perfect for any season. Plus, with features like built-in basepan heaters, gold-coated coils, and refrigerant leak detection,

Your price

Buy more, pay less

from each
1 × =
Description

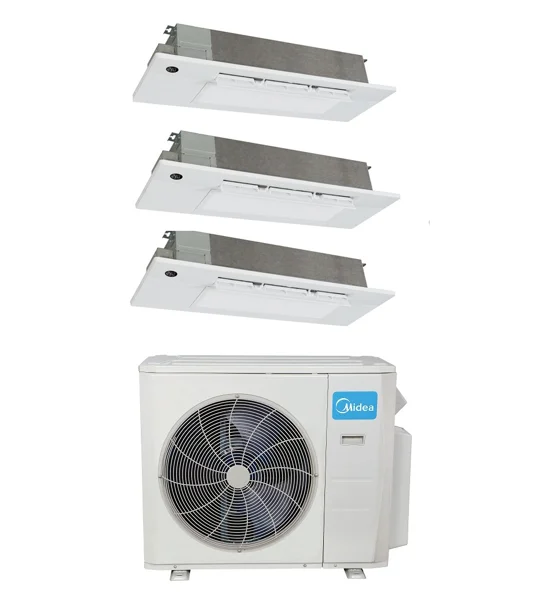

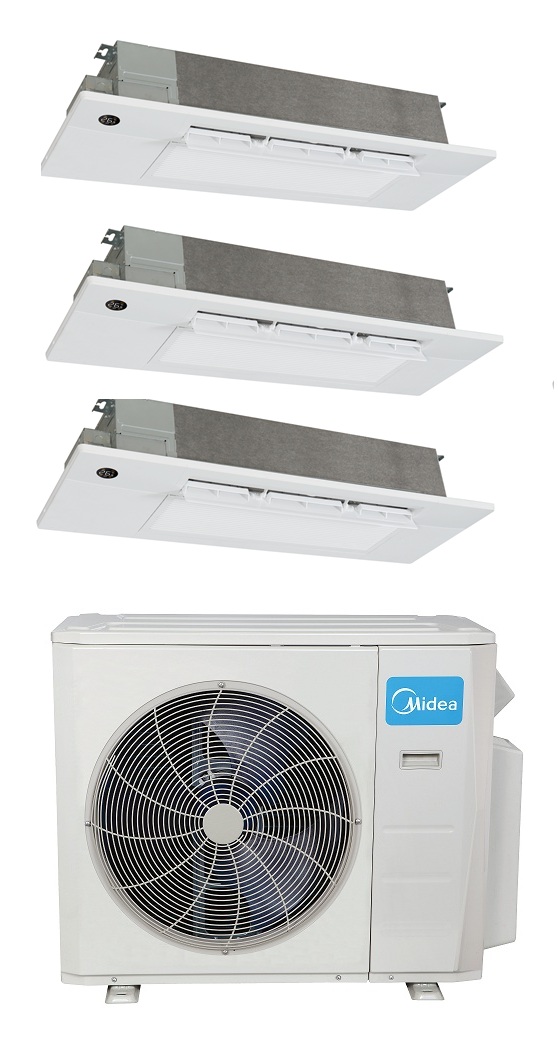

Midea 3-Zone Slim Cassette Hyper Heat Multi-Zone Heat Pump
Midea
Midea 3-Zone Slim Cassette Hyper Heat Multi-Zone Heat Pump — 22.4 SEER2
3 Zones 22.4 SEER2 12 EER 9.5 HSPF -22°F Min Heating R410A Refrigerant

Midea 3-Zone Slim Cassette Hyper Heat Multi-Zone Heat Pump

22.4 SEER2 R410A -22°F Heating WiFi Included Gold Coated Coils ENERGY STAR

Midea Multi Zone systems, with inverter technology, are some of today's most advanced ductless split heat pumps. Up to 5 indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required. All indoor units can be individually controlled and do not need to be installed at the same time. This 3-zone slim cassette package ships with three 1-way slim cassette indoor units already selected and matched to a 30K outdoor unit.

With Midea heat pump technology, the included Hyper Heat series offers dependable cooling as well as the capability to heat in ambient temperatures as low as -22°F, making it an excellent, energy-efficient solution for colder climates. The outdoor unit features a built-in basepan heater, Gold Coated Coils, refrigerant leak detection, and auto restart. The 22.4 SEER2 / 12 EER / 9.5 HSPF figures shown reflect this specific configuration.

βœ… This Midea 3-Zone Package Includes
  • (1) DLCMHBH30DAK 30K Hyper Heat Outdoor Unit (-22°F)
  • (3) DLFSOAH09XAK 1-Way Slim Cassette Indoor Units — with remotes

Efficiency & Performance

22.4
SEER2
12
EER
9.5
HSPF
-22°F
Min Heat Temp
R410A
Refrigerant
3
Zones
Technical Specifications
System Type 3-Zone Multi-Zone Heat Pump
Outdoor Model DLCMHBH30DAK (30K)
Indoor Models (3) DLFSOAH09XAK (1-Way Slim Cassette)
Refrigerant R410A
SEER2 Rating 22.4
EER Rating 12
HSPF Rating 9.5
Min Heating Temperature -22°F
Voltage 208/230V / 60Hz / 1Ph
Outdoor Features Built-in basepan and crankcase heater, gold-coated aluminum fins, refrigerant leak detection, auto-restart
Indoor Features Fits between 16" joists, built-in condensate pump, Turbo Mode, Four fan speeds, Sleep Mode, ECO Mode, Aluminum Golden Hydrophilic pre-coated fins
Warranty 7yr Compressor / 5yr Parts (Registration Required)

Slim Cassette Design

Fits between standard 16" joists for installation in spaces where a traditional cassette won't fit.

Hyper Heat -22°F

Up to 69% of rated capacity down to -22°F, making this a primary heat source and eliminating the need for backup heat in most climates.

Built-In Condensate Pump

The slim cassette includes a factory-installed condensate pump, eliminating the need for a separate external pump.

Gold Coated Coils

Gold coating on the outdoor condenser resists salt air, rain, and other corrosive elements to extend coil life.

High-Frequency Inverter

Brings the compressor to maximum speed within 6 seconds on startup for faster response when you turn the system on.

Stepless Frequency Adjustment

Precise inverter control maintains a stable room temperature while reducing sound level and saving energy.

Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Trust Badges

βœ… Factory Warranty Coverage

7
Year Compressor
5
Year Parts

*Warranty registration REQUIRED — Register Your System

Frequently Asked Questions

Will my warranty be valid if I don't use a licensed installer?

No. This is a traditional line-set system — brazing, evacuation, and charging the refrigerant circuit must be performed by an EPA 608-certified technician. The manufacturer's warranty also depends on professional installation and online registration. Our team can answer sizing and line-set questions before you order — just call or email.

How cold can this system heat, and does output drop below that?

The system operates down to -22°F outdoor ambient, delivering up to 69% of rated capacity. As with any air-source heat pump, heating capacity tapers as outdoor temperature falls; a Manual J load calculation is the right way to confirm the system meets your home's heat load at your local design temperature. Our team can help with sizing before you order.

Does the slim cassette include a condensate pump?

Yes. Midea slim ceiling cassettes include a factory-installed built-in condensate pump, so you don't need to purchase or wire a separate external pump.

Specification
Title Midea 3-Zone Slim Cassette Mini Split H-Heat Pump (-22Β°F) E-Star: 22.4 SEER2/12 EER/9.5 HSPF (R410a)
Brand Carrier Midea North America
Category Triple | 3 Zone | Select Three Heads
SKU DLCMHBH30DAK/3xDLFSOAH09XAK
Condition new
UPC 893088008101
MPN DLCMRAH18BAK
Reviews 1
5.0 1 review

I swapped out wall-units for these Midea slim cassettes, and I’ll never go back.

Guy Kight · July 2026

If you want zoned climate control but hate the look of mini-splits, this is the cheat code.

Customer Reviews

5.0 / 5 · 1 reviews
I swapped out wall-units for these Midea slim cassettes, and I’ll never go back.

If you want zoned climate control but hate the look of mini-splits, this is the cheat code.

Guy Kight · 2026-07-11
