Midea 4-Zone Slim Cassette Mini Split H-Heat Pump (-22Β°F) E-Star: 22.4 SEER2/12 EER/9.5 HSPF (R410a)

Free Shipping
In Stock 4x DLFSOAH09XAK

Midea Multi Zone Mini Split with Heat Pump is your go-to solution for year-round comfort! With an impressive 21 SEER2 efficiency, this system is designed to keep you cozy even in extreme temperatures as low as -22 F. The package includes a Hyper Multi Zone Outdoor Unit and wall-mounted indoor units, each equipped with remotes for easy control. Say goodbye to bulky ductwork with the Midea 34 zone ductless system, which allows you to customize your comfort in different rooms. The Midea 4 zone split system not only cools but also heats, making it perfect for any season. Plus, with features like built-in basepan heaters, gold-coated coils, and refrigerant leak detection,

Your price

Buy more, pay less

from each
1 × =
Description

Midea 4-Zone Slim Cassette Hyper Heat Multi-Zone Heat Pump
Midea
Midea 4-Zone Slim Cassette Hyper Heat Multi-Zone Heat Pump — 22.4 SEER2
4 Zones 22.4 SEER2 12 EER 9.5 HSPF -22°F Min Heating R410A Refrigerant

Midea 4-Zone Slim Cassette Hyper Heat Multi-Zone Heat Pump

R410A -22°F Heating WiFi Included Gold Coated Coils ENERGY STAR

Midea Multi Zone systems, with inverter technology, are some of today's most advanced ductless split heat pumps. Up to 5 indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required. All indoor units can be individually controlled and do not need to be installed at the same time. This 4-zone slim cassette package ships with four 9K slim ceiling cassette indoor units already selected and matched to a 30K Hyper Heat outdoor unit.

The slim cassette design mounts between standard 16-inch joists and can be installed on either a ceiling or a floor — ideal for spaces without wall or ceiling depth for a full cassette. With Midea Hyper Heat technology, the system provides dependable cooling and heating down to -22°F ambient, making it a viable primary heat source for colder climates. The outdoor unit features a built-in basepan and crankcase heater, Gold Coated Coils, refrigerant leak detection, and auto restart. The 22.4 SEER2 / 12 EER / 9.5 HSPF figures shown are for this fixed configuration.

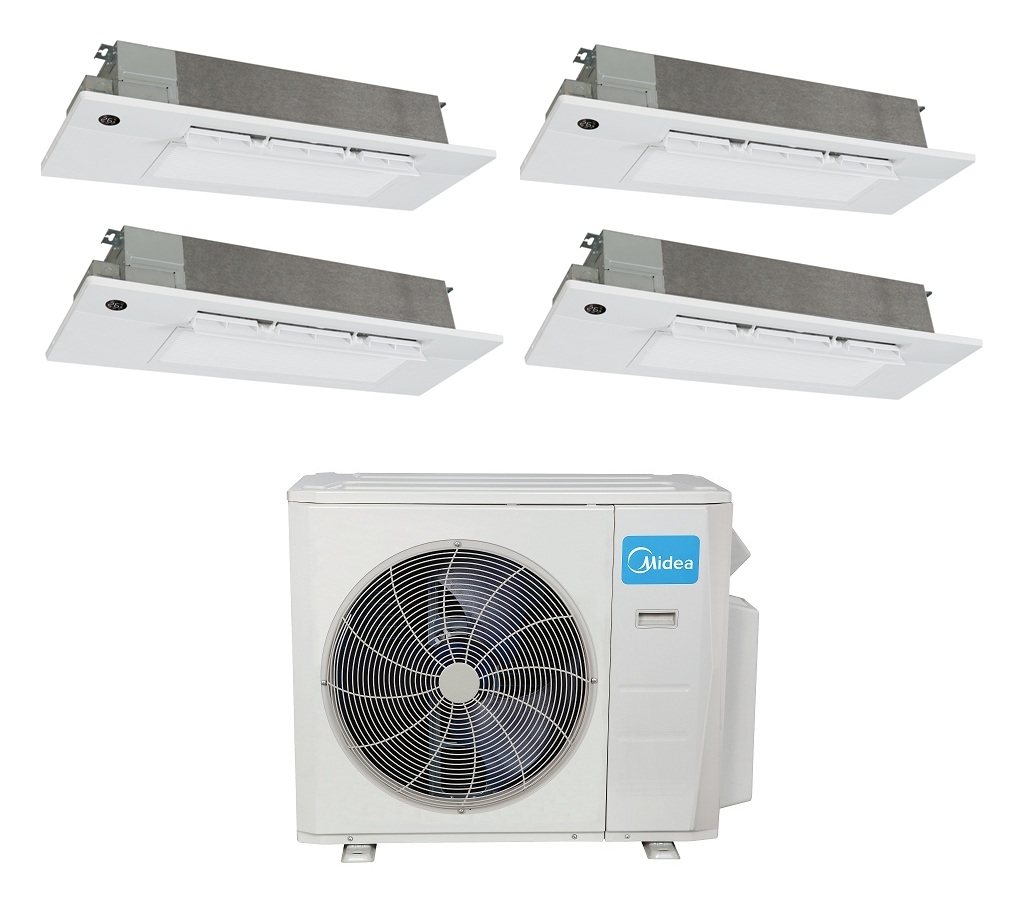

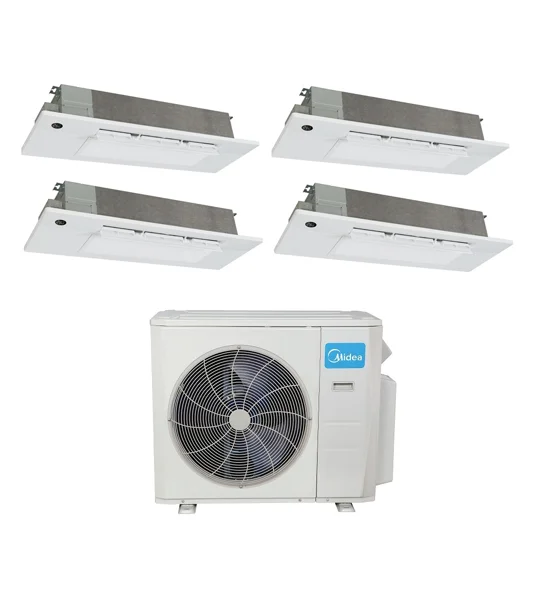

βœ… This Midea 4-Zone Package Includes
  • (1) DLCMHBH30DAK 30K Hyper Heat Outdoor Unit (-22°F)
  • (4) DLFSOAH09XAK 9K Slim Ceiling Cassette Indoor Units — with remotes and built-in condensate pumps

Efficiency & Performance

22.4
SEER2
12
EER
9.5
HSPF
-22°F
Min Heat Temp
R410A
Refrigerant
4
Zones
Technical Specifications
System Type 4-Zone Multi-Zone Heat Pump
Outdoor Model DLCMHBH30DAK (30K)
Indoor Models (4) DLFSOAH09XAK (9K Slim Ceiling Cassette)
Refrigerant R410A
SEER2 Rating 22.4
EER Rating 12
HSPF Rating 9.5
Min Heating Temperature -22°F
Cooling Operating Range -22°F to 122°F
Heating Operating Range -22°F to 75°F
Voltage 208/230V / 60Hz / 1Ph
Outdoor Features Built-in basepan and crankcase heater, gold-coated aluminum fins, refrigerant leak detection, auto-restart, condenser high-temperature protection
Indoor Features 16" joist spacing, dual capacity, built-in condensate pump, remote control operation
Warranty 7yr Compressor / 5yr Parts (Registration Required)

Slim Cassette Design

Fits between standard 16-inch joists, so the unit installs in tighter ceiling or floor cavities than a full-size cassette.

Hyper Heat -22°F

Up to 69% of rated capacity down to -22°F, making this a primary heat source and eliminating the need for backup heat in most climates.

Built-In Condensate Pump

Factory-installed pump simplifies drainage and removes the need for a separate external lift pump.

Gold Coated Coils

Gold coating on the outdoor condenser resists salt air, rain, and other corrosive elements to extend coil life.

High-Frequency Inverter

Brings the compressor to maximum speed within 6 seconds on startup for faster response when you turn the system on.

Refrigerant Leak Detection

The outdoor unit monitors the refrigerant circuit for leaks, protecting the compressor from damage.

Stepless Frequency Adjustment

Precise inverter control maintains a stable room temperature while reducing sound level and saving energy.

Dual Capacity Capability

The slim cassette can operate at two capacity levels, giving the system flexibility to match load without cycling hard.

Why Buy From Mini Split Warehouse

Free Nationwide Shipping

No weight limits. No dimensional charges. Free freight delivery on every order.

Factory Warranty Included

Every unit ships with the full manufacturer warranty — no third-party coverage needed.

Lowest Prices Online

We cut out the middleman. Compare us against any competitor — we back our pricing.

20+ Brands Side By Side

Shop Pioneer, Daikin, Midea, MRCOOL, Cooper & Hunter, and more in one place.

Real Technical Support

Call or email our team. We answer specs, sizing, and installation questions — not scripts.

3% Cash Back Offer

Pay by check or bank transfer and get 3% back — one of the easiest savings available.

Trust Badges

βœ… Factory Warranty Coverage

7
Year Compressor
5
Year Parts

*Warranty registration REQUIRED — Register Your System

Frequently Asked Questions

Will my warranty be valid if I don't use a licensed installer?

No. This is a traditional line-set system — brazing, evacuation, and charging the refrigerant circuit must be performed by an EPA 608-certified technician. The manufacturer's warranty also depends on professional installation and online registration. Our team can answer sizing and line-set questions before you order — just call or email.

Does this package include line sets?

No line sets are included in this listing. Verify the required line-set sizes and lengths against the outdoor and indoor cut sheets before ordering, and confirm whether your installer will supply them. Our team can help you match lengths and sizes if you're unsure.

How cold can this system heat, and does output drop below that?

The system operates down to -22°F outdoor ambient, delivering up to 69% of rated capacity. As with any air-source heat pump, heating capacity tapers as outdoor temperature falls; a Manual J load calculation is the right way to confirm the system meets your home's heat load at your local design temperature. Our team can help with sizing before you order.

Where are slim ceiling cassette indoor units typically installed?

Slim cassettes are designed to mount between standard 16-inch joists, either on a ceiling or on a floor. They're a good fit for rooms where a full-size cassette won't clear the ceiling cavity and where there isn't wall space for a traditional wall mount. Each unit has a built-in condensate pump to simplify drainage.
