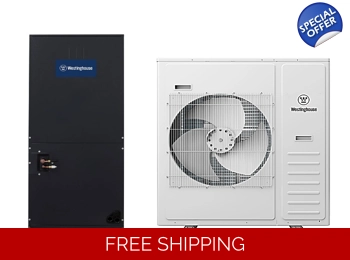

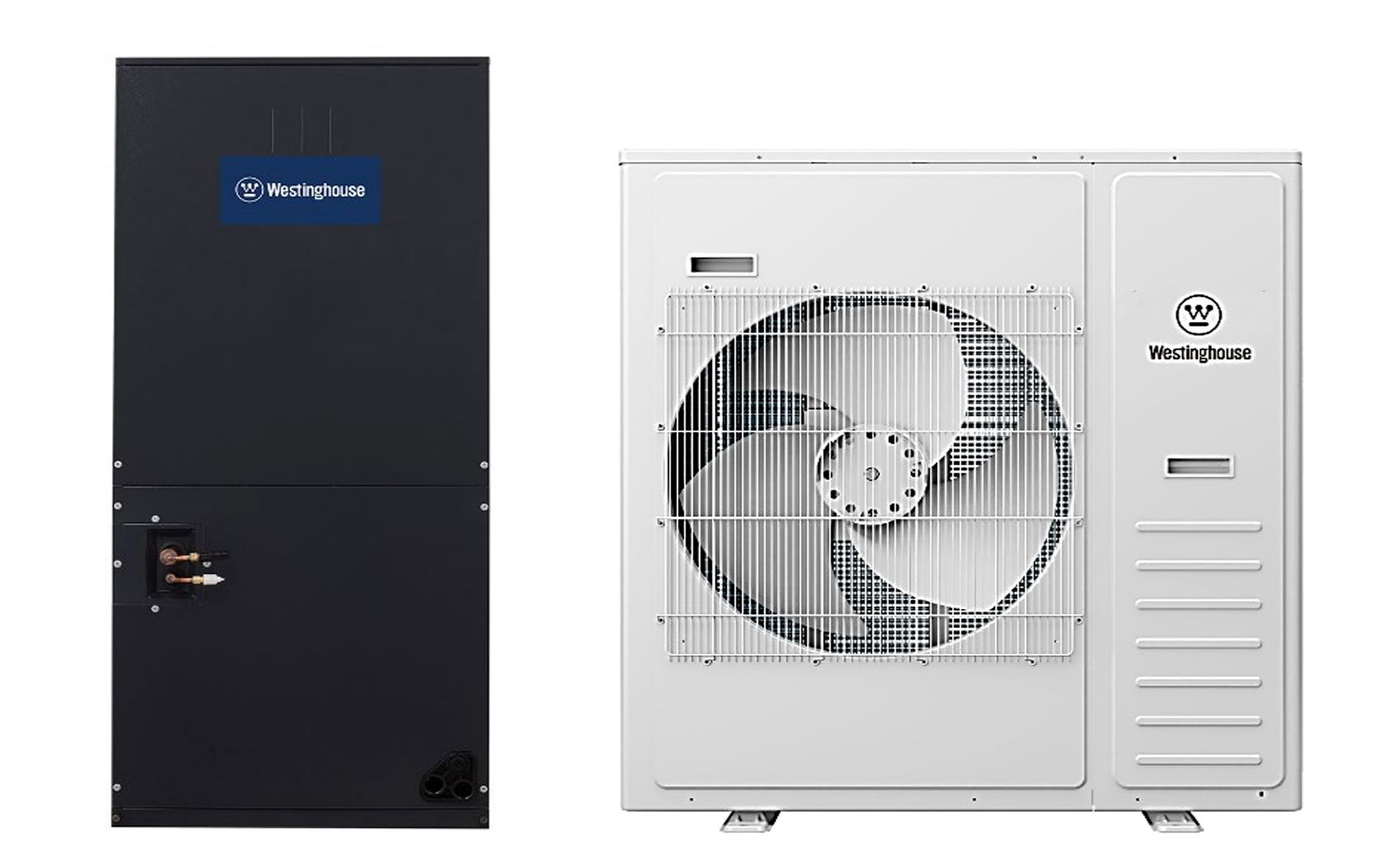

Westinghouse 36K-Btu 18 SEER2 Central Mini Split Heat Pump (-13°F), 9.55 EER/9 HSPF (R410a)

Product Code: A4: WHM36DMA21S/WHM36SZA21S
Rating: Be the first to write a review
Brand: Westinghouse
Product Condition: New
Units in Stock: 10

*Westinghouse Central AHU Hyper Heat Pump AC System

Included in Package:
*(1) One Indoor Air Handler

*(1) One Hyper Heat Pump Outdoor Unit (-13F/5F)

(24v Thermostat NOT included)






AHRI

Cut Sheet

*Factory Warranty:


*Registration Required

*WARRANTY CARD
*REGISTER ONLINE!


⇓ See Related Items Below For More Accessories ⇓



INDOOR KEY FEATURES

  • Installation Flexibility
    A built-in secondary drain allows the unit to be mounted vertically (up flow) or horizontally (left or right), enabling multi-position installation. All three sizes are capable of operating as traditional central ducted systems when paired with a compatible single zone outdoor unit. Tech support states that this can be adjusted to downlow with a field modification.
  • Efficient Comfort
    As an alternate to gas furnaces, reduce the use of fossil fuels and experience cleaner energy and efficiency levels that meet many local and federal requirements.
  • CONTROLS: Factory installed interface for third-party 24v thermostat compatibility* (*Wired thermostat not included)
  • Copper connections require brazing.
  • INDOOR UNIT REQUIRES DEDICATED SEPARATE POWER SOURCE *(NOT Powered from outdoor unit like other models/brands)
  • Transmitting cable and thermostat signal cable to be field supplied.

    FEATURES
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Multi Poise Installation (Up Flow, Horizontal Right, Horizontal Left) Tech support states that this can be adjusted to downlow with a field modification.
  • Less than 2% air leakage
  • Quiet indoor operation: 56dB
  • Anti-corrosive fin coating
  • Extreme heating operation in as low as -13° F
  • Built-in third-party thermostat compatibility (Single Stage)



OUTDOOR KEY FEATURES

  • Extra Low Temperature Heating
    For when its cold outside, the heat output for this system is up to 69% of rated capacity down to -13° F , making this a primary heat source and eliminating the need for a backup heat source.
  • Stepless Frequency Adjustment
    Precise control of the system maintains stable and constant room temperature while reducing sound level and saving energy.


FEATURES

  • Built-in basepan heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 56 dB(A)
  • Aluminum Hydrophilic pre-coated fins
  • Max Piping length 246'
  • Cooling operating range
    • 5° ~ 122° F
  • Heating operating range
    • -13° ~ 86° F





Bulk Buying Options
  • 2 up to 4 - $2,599.99 ex. tax - per item
  • 5 up to 10 - $2,549.99 ex. tax - per item

$2,899.99
$2,699.99 inc. tax

$2,699.99 ex. tax
