Cooper & Hunter X-TREME PEAQ series has become a Distributor Exclusive series of systems. C&H is not allowing these models to be shown online, requiring customers to buy only from master distributors by special request.
For more info these models email us at: PEAQ@minisplitwarehouse.com
See Other X-TREME series models here: CLICK
These models are specifically designed to replace gas furnaces in your home or office. These models are Energy Star, with R454B Freon, True Multi-Position / Multi-Voltage Air Handler with WIFI and Thermostat, + Hyper Heat to -22°F (100% Output at 0°F)
 |
|
 |
| CH-PQ18-230VO/CH-PQ18AHU |
CH-PQ24-230VO/CH-PQ24AHU |
CH-PQ33-230VO/CH-PQ33AHU |
| 18000 Btu / 1.5 Ton |
24000 Btu / 2 Ton |
30000 Btu / 2.5 Ton |
| 19 SEER2/12.5 EER/10.1 HSPF |
18.6 SEER2/12 EER/10 HSPF |
17.2 SEER2/12 EER/10.8 HSPF |
| Cut Sheet |
Cut Sheet |
Cut Sheet |
| AHRI |
AHRI |
AHRI |
|
 |
 |
| CH-PQ36-230VO/ CH-PQ36AHU |
CH-PQ48-230VO/ CH-PQ48AHU |
CH-PQ55-230VO/ CH-PQ55AHU |
| 36000 Btu / 3 Ton |
48000 Btu / 4 Ton |
55000 Btu / 5 Ton |
| 17.7 SEER2/12 EER2/10 HSPF2 |
17.5 SEER2/12 EER/9.5 HSPF |
17.5 SEER2/12 EER/9.5 HSPF |
| Cut Sheet |
Cut Sheet |
Cut Sheet |
| AHRI |
AHRI |
AHRI |
|
The New C&H PEAQ Mini Split Hyper Heat Pump System. Cooper & Hunter introduces the most recent revolutionary solution to upgrade your home climate control experience utilizing the new R454B refrigerant.
- Compare to Midea EVOX G3 at 100% output at 0°F.
- C&H PEAQ Mini Split Systems are single-zone, high-performance heat pump designed specifically to replace your gas furnace.
- Offering new DC Inverter technology,
- True Multi-Position: left flow, up flow, down flow, and right flow installation,
- Multi-Voltage Capability Indoor Air Handler (115V & 208-230V)
- High Performance HYPER heating to -22°F, with 100% capacity at 0°F.
- PEAQ unit ensures exceptional SEER2 energy efficiency.
- For added comfort, an auxiliary heater can be purchased separately, available in 5kW, 10kW, 15kW, and 20kW models.
- Built-in Smart Kit with Downloadable C&H App, included Remote Control and Wall Thermostat.
|
∼7yr Compressor∼ 5yr Parts Warranty∼
|
Outdoor Unit SPECIAL FEATURES Include:
- NEW INVERTER TECHNOLOGY: NEW Inverter Algorithm can analyze more factors, including temperature difference and the tendency of temperature difference changes, with a more frequent temperature detection to guarantee a more accurate and smooth control of the compressor output.
- EXTRAORDINARY COLD CLIMATE HEATING PERFORMANCE: True high performance hyper units provide 100% heating output at 0°F.
- GOLD FIN: Gold coating in the condenser withstands salty air, rain and other corrosive elements, preventing bacteria growth.
- DRAIN PAN HEATER: Factory installed drain pan heater in outdoor unit prevents ice accumulation, improving heat transfer efficiency.
- ULTRA EFFICIENT DISCHARGE FAN: The horizontal fan and vertical heat exchanger guarantee more uniform and efficient heat exchanging velocity across the entire heat exchanger surface, preventing frost on the compressor’s coils.
- DELAY FUSE: A detachable delay fuse added to the system protects the wire set from outdoor to indoor, preventing overcurrent
|

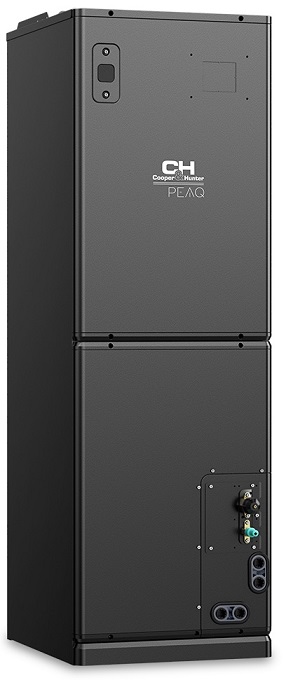

Air Handler SPECIAL FEATURES Include:
- ADAPTIVE MULTI-VOLTAGE - 115V & 208-230V: All in one 115/208-230V Automatically identifying the required voltage without the need for manual conversion, eliminating the hassle of rewiring.
- M-COIL: 2% Airflow difference between evaporators less than 0.02 in. W.C. pressure
drop.
- TU1 COPPER TUBES: Oxygen-free copper with higher purity copper content of over 99.97%, providing excellent electrical and thermal conductivity and superior corrosion and cold resistance.
- SYMMETRIC FAN BLOWER DESIGN: Optimized structure brings even airflow and higher efficiency heat exchange.
- SLIMMER INDOOR UNITS: The same width as most gas furnaces 14.5”-21.5” making the PEAQ unit an ideal replacement for your gas furnace.
- AUXILIARY HEATER: Purchased separately as a backup heat option for indoor units, available in 5kW, 10kW, 15kW, and 20kW models.
- REFRIGERANT LEAK SENSORS: Protects the compressor from damage due to refrigerant leaks by alerting user with error code “EC”.
- WIRED THERMOSTAT CONTROLLER INCLUDED: Also compatible with most third party 24V wired thermostats.
- SMART KIT BUILT-IN: C&H’s Smart Kit enables control from anywhere with C&H Remote app using any IOS or Android smart device.
- TRUE MULTI-POSITION AIR HANDLER: Unit can be installed in Horizontal or Vertical, upward or downward positions for optimal space usage
|
