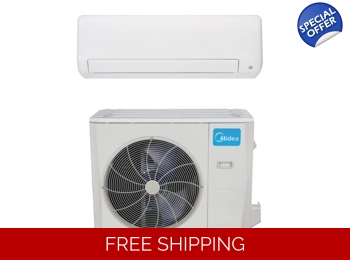

Midea 36000 Btu 18 SEER Hyper-Heat Mini Split Ductless Air Conditioner
Product Code: DLCSRBH36AAK/DLFSHBH36XAK
Brand: Carrier Midea North America
Product Condition: New
Midea Mini Split Hyper Heat Pump AC
⇓ See Related Items Below For More Accessories ⇓
| *This Midea Mini Split Package Includes: *(1) Wall Mount Indoor Unit : (DLFSH) with remote *(1) HYPER -22F Outdoor Unit: (DLCSR)  DLFSH Features Include: STANDARD FEATURES: • Modes: Cool, Heat, Dry, Fan, Auto • Turbo Mode • Four fan speeds • Sleep Mode • ECO Mode • Up-Down Louver control (fixed or swing) • Follow Me (senses temperature at handheld remote) • Heating Setback (46° F Heating Mode) • Quiet indoor operation • Aluminum Golden Hydrophilic pre-coated fins  Cut Sheet/Specification DLCSR Features Include: ˜Heats & Cools (-22F/-22F)˜ STANDARD FEATURES: • Variable Speed (Inverter) • Factory installed Base Pan Heater • Factory installed Crankcase Heater • Low Voltage Controls • Auto-Restart function • Condenser High Temp Protection • Modes: Cool, Heat, Dry, Fan, Auto • Quiet operation • Anti-corrosive fin coating • Refrigerant leak detection |
(1) Factory Warranty Register Online: CLICK HERE (*Terms apply) |
⇓ See Related Items Below For More Accessories ⇓
OUTDOOR KEY FEATURES
- Available in 208/230V
- Variable Speed (Inveter)
- Built-in basepan heater & crankcase heater
- Low Voltage Controls
- Auto-restart function
- Condenser high-temperature protection
- Refrigerant leakage detection
- Quiet outdoor operation, as low as 61.5 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
- MAX Piping length 213'
- Cooling operating range
- -22~130 (-30~55)
- Heating operating range
- -22~86 (-30~30)
- -22~86 (-30~30)
Compatible With:
- DLFSH(A/B) High Wall
| DLCLR Outdoor Unit | ||
| Heat Pump | ||
| Size | 36 | |
| Outdoor Model | DLCSRBH36AAK | |
| Electrical | ||
| Voltage-Phase-Cycle | V-Ph-Hz | 208/230-1-60 |
| Power Supply | Indoor unit powered from outdoor unit | |
| MCA | A | 28 |
| MOCP - Fuse Rating | A. | 35 |
| Operating Range | ||
| Cooling Outdoor DB Min - Max | ° F (° C) | -22~130 (-30~55) |
| Heating Outdoor DB Min - Max | ° F (° C) | -22~86 (-30~30) |
| Piping | ||
| Total Piping Length | ft (m) | 213 (65) |
| Lift (OD below ID) | ft (m) | 98 (30) |
| Pipe Connection Size - Liquid | in (mm) | 3/8 (9.52) |
| Pipe Connection Size - Suction | in (mm) | 5/8 (16) |
| Refrigerant | ||
| Type | R410A | |
| Charge | lbs (kg) | 7.5 (3.4) |
| Outdoor | ||
| Unit Width | in (mm) | 37.24 (946) |
| Unit Height | in (mm) | 31.89 (810) |
| Unit Depth | in (mm) | 16.14 (410) |
| Net Weight | lbs (kg) | 150.13 (68.1) |
| Airflow | CFM | 2,235 |
| Sound Pressure | dB(A) | 61.5 |
| DLFSHBH36XAK |  | |
| ENERGY STAR® | NO | |
| Cooling System Tons | 3 | |
| Cooling Rated Capacity | Btu/h | 36,000 |
| Cooling Cap. Range Min - Max | Btu/h | 8300~37500 |
| SEER | 18 | |
| EER | 9.5 | |
| Heating Rated Capacity (47° F) | Btu/h | 36,000 |
| Heating Rated Capacity (17° F) | Btu/h | 20,000 |
| Heating Maximum Capacity (17° F) | Btu/h | 26,800 |
| Heating Maximum Capacity (5° F) | Btu/h | 20,000 |
| Heating Cap. Range Min - Max | Btu/h | 10,900~37,000 |
| HSPF | 12 | |
| COP (47° F) | W/W | 2.78 |
| COP (17° F) | W/W | 2.30 |
| COP (5° F) | W/W | 1.76 |
INDOOR FEATURES
- Available in 208/230V
- Up to 18 SEER, 9.5 EER and 12 HSPF when paired with the DLCSRB outdoor unit
- Modes: Cool, Heat, Dry, Fan, Auto
- Turbo Mode
- Four fan speeds
- Sleep Mode
- ECO Mode
- Up-down louver control (fixed or swing)
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation
- Aluminum Golden Hydrophilic pre-coated fins
Compatible With:
- DLCSR(A/B) Outdoor Unit Single Zone
Color: White
| DLFSHB High Wall | ||
| Heat Pump | ||
| System | ||
| Size | 36 | |
| Indoor Model | DLFSHBH36XAK | |
| Electrical | ||
| Voltage-Phase-Cycle | V-PhHz | 208/230-1-60 |
| Power Supply | Indoor unit powered from outdoor unit | |
| MCA | 0.625 | |
| Operating Range | ||
| Cooling Indoor DB Min - Max | ° F (° C) | 62~90 (17~32) |
| Heating Indoor DB Min - Max | ° F (° C) | 32~86 (0~30) |
| Piping | ||
| Pipe Connection Size - Liquid | in (mm) | 3/8 (9.52) |
| Pipe Connection Size - Suction | in (mm) | 5/8 (16) |
| Indoor | ||
| Unit Width | in (mm) | 49.57 (1259) |
| Unit Height | in (mm) | 14.25 (362) |
| Unit Depth | in (mm) | 11.14 (283) |
| Net Weight | lbs (kg) | 42.77 (19.4) |
| Number of Fan Speeds | 3 | |
| Airflow (lowest to highest) | CFM | 330/447/753/795 |
| Sound Pressure (lowest to highest) | dB(A) | 41.3/46.1/53.7 |
| Air Throw Data | ft (m) | 38.1 (11.6) |
| Moisture Removal | Pint/h (L/h) | 10.625 (5.03) |
| Field Drain Pipe Size O.D. | in (mm) | 0.625 (16) |
