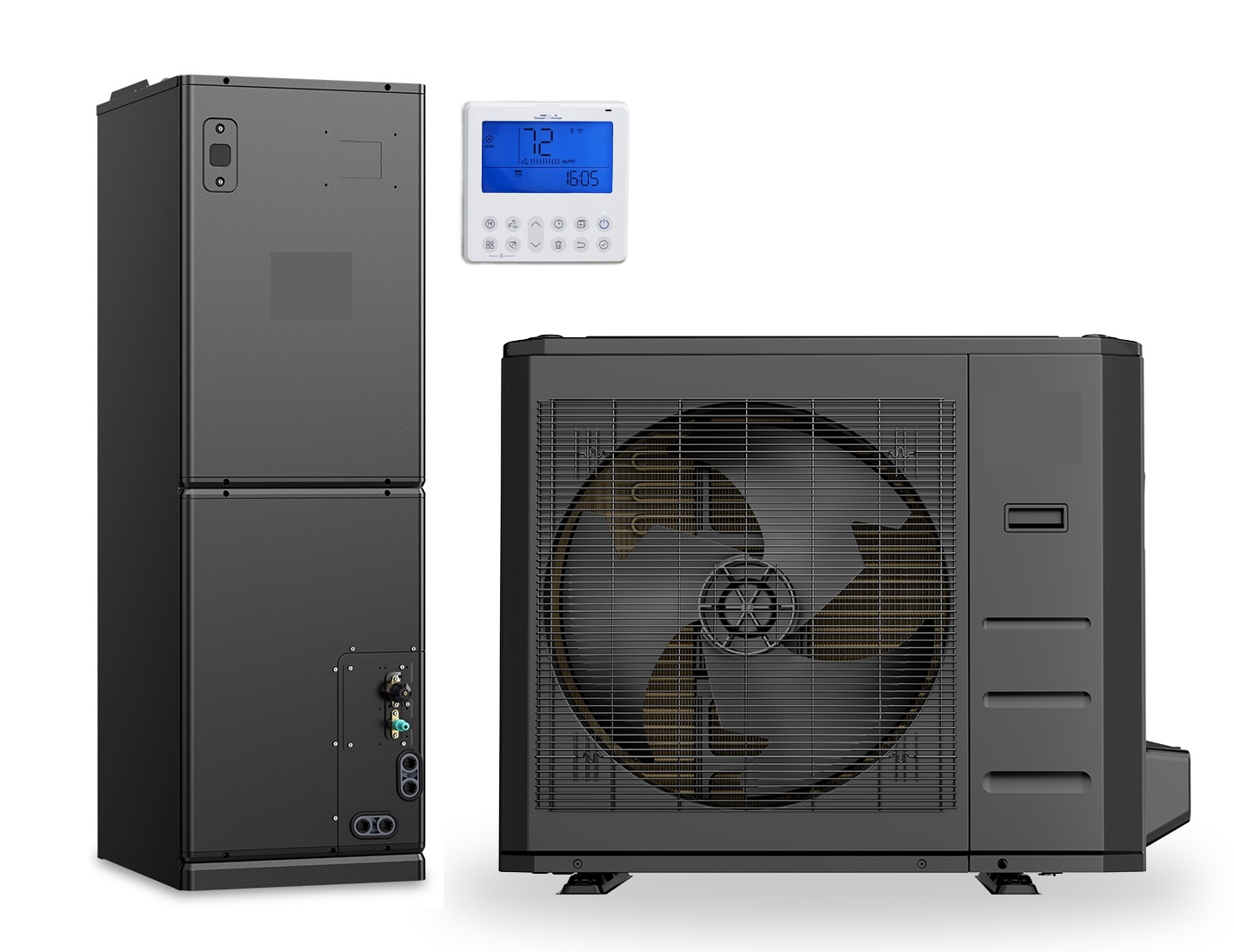

C&H 33000-BTU 17.2 SEER2 Central-AHU X-TREME H-Heat Pump (-22°F) E-Star: 12 EER/10.8 HSPF (R454B)

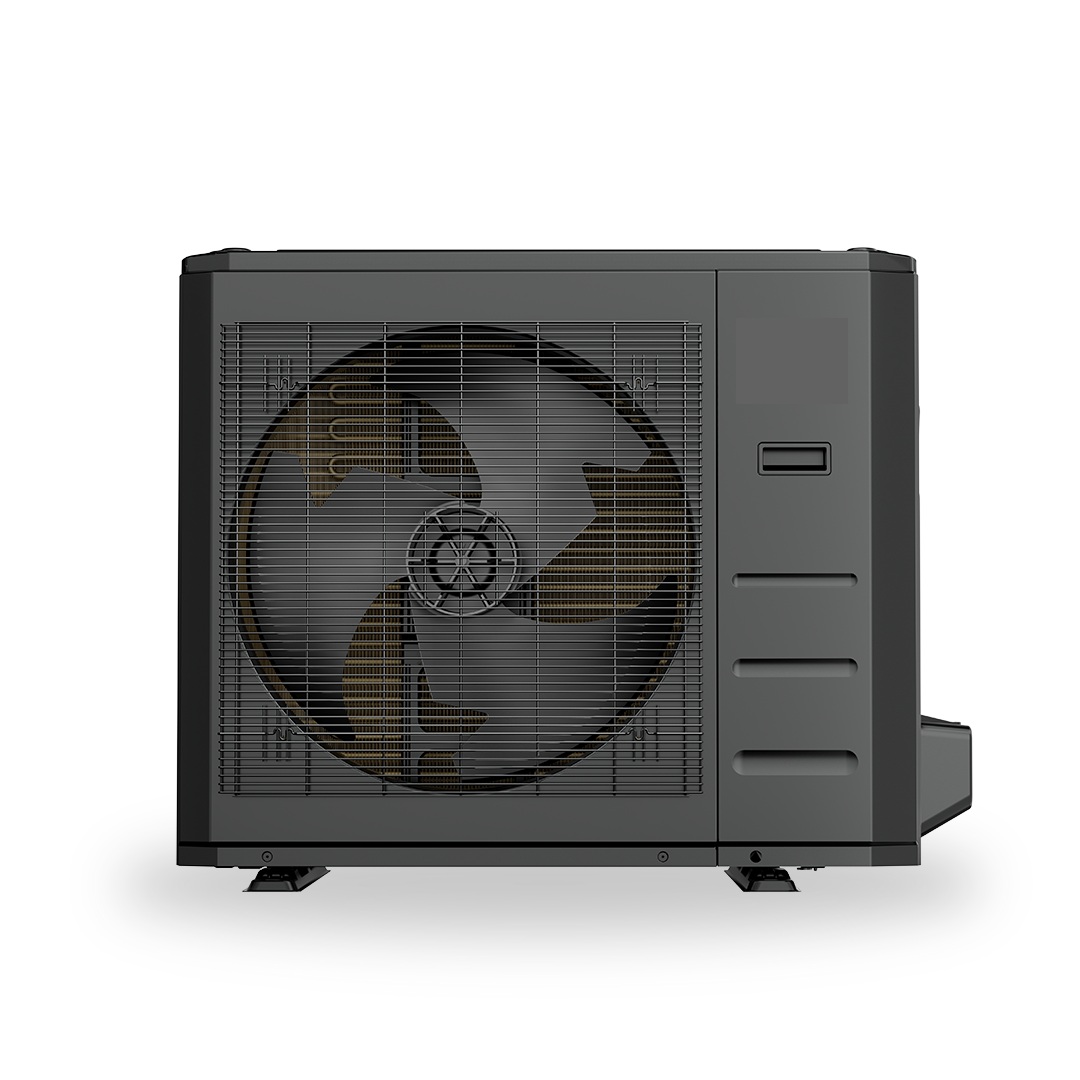

(1) Single Zone Hyper Heat Outdoor Unit with R454B Freon

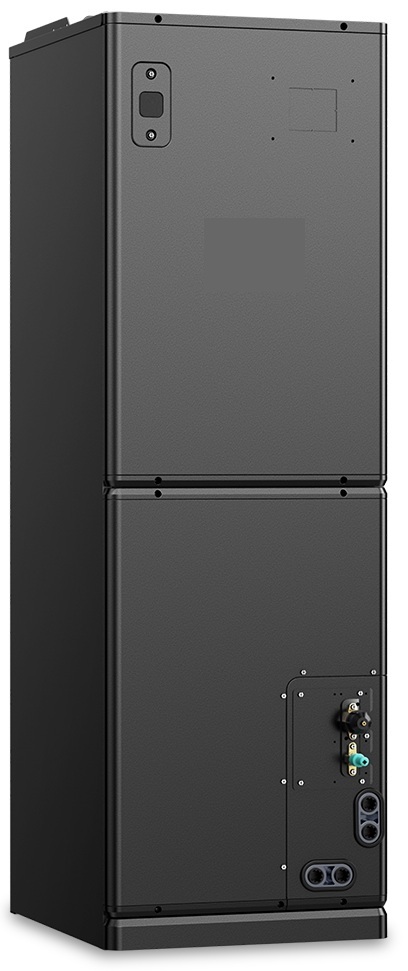

(1)  Central Air Handler (w/Remote, Thermostat with Wifi)

∼Heats & Cools∼

(-22°F/-22°F)

The New 33K Btu Mini Split Hyper Heat Pump System is the most recent revolutionary solution to elevate your home climate control experience utilizing the new R454B refrigerant.

• Compare to Midea EVOX G3 at 100% output at 0°F.
• Mini Split Systems are single-zone, high-performance heat pump designed specifically to replace your gas furnace.
• Offering new DC Inverter technology,
• True Multi-Position: left flow, up flow, down flow, and right flow installation,
• Multi-Voltage Capability Indoor Air Handler (115V & 208-230V)
• High Performance HYPER heating to -22°F, with 100% capacity at 0°F.
• SEER2 rating of 17.2, the unit ensures exceptional energy efficiency.
• For added comfort, an auxiliary heater can be purchased separately, available in 5kW, 10kW, 15kW, and 20kW models.
• Built-in Smart Kit with Downloadable App, included Remote Control and Wall Thermostat.

• NEW INVERTER TECHNOLOGY: NEW Inverter Algorithm can analyze more factors, including temperature difference and the tendency of temperature difference changes, with a more frequent temperature detection to guarantee a more accurate and smooth control of the compressor output.
• EXTRAORDINARY COLD CLIMATE HEATING PERFORMANCE: True high performance hyper units provide 100% heating output at 0°F.
•  GOLD FIN: Gold coating in the condenser withstands salty air, rain and other corrosive elements, preventing bacteria growth.
•  DRAIN PAN HEATER: Factory installed drain pan heater in outdoor unit prevents ice accumulation, improving heat transfer efficiency.
• ULTRA EFFICIENT DISCHARGE FAN: The horizontal fan and vertical heat exchanger guarantee more uniform and efficient heat exchanging velocity across the entire heat exchanger surface, preventing frost on the compressor’s coils.
•  DELAY FUSE:  A detachable delay fuse added to  the system protects the wire set from outdoor to indoor, preventing overcurrent

• ADAPTIVE MULTI-VOLTAGE - 115V & 208-230V: All in one 115/208-230V Automatically identifying the  required voltage without the need for manual conversion, eliminating the hassle of rewiring.
•  M-COIL: 2% Airflow difference between evaporators less than 0.02 in. W.C. pressure
  drop.
• TU1 COPPER TUBES: Oxygen-free copper with higher purity copper content of over 99.97%, providing excellent electrical and thermal conductivity and superior corrosion and cold resistance.
• SYMMETRIC FAN BLOWER DESIGN: Optimized structure brings even airflow and higher efficiency heat exchange.
• SLIMMER INDOOR UNITS: The same width as most gas furnaces 14.5”-21.5” making the PEAQ unit an ideal replacement for your gas furnace.
• AUXILIARY HEATER: Purchased separately as a backup heat option for indoor units, available in 5kW, 10kW, 15kW, and 20kW models.
• REFRIGERANT LEAK SENSORS: Protects the compressor from damage due to refrigerant leaks by alerting user with error code “EC”.
•  WIRED THERMOSTAT CONTROLLER INCLUDED: Also compatible with most third party 24V wired thermostats.
• SMART KIT BUILT-IN: C&H’s Smart Kit enables control from anywhere with C&H Remote app using any IOS or Android smart device.
• TRUE MULTI-POSITION AIR HANDLER: Unit can be installed in Horizontal or Vertical, upward or downward positions for optimal space usage
