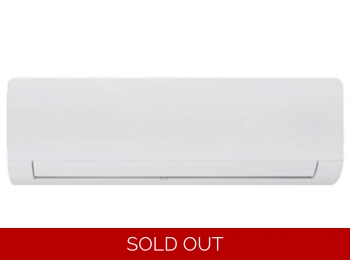

12000 btu DLFEH High Wall Mini Split Indoor Unit
Product Code: DLFEHAH12XAK
Brand: Carrier Midea North America
Product Condition: New
KEY FEATURES
- Improved Serviceability
Full access to the terminal connections and fan after lifting the front cover of the High Wall for easy installation and service. - Convenient Filter removal
The filter is located on the inlet, allowing the direct removal from the top of the unit without opening the panel.
FEATURES
- Available in 208/230V
- Up to 17.6 SEER and up to 10.6 HSPF when paired with DLCER outdoor unit
- Modes: Cool, Heat, Dry, Fan, Auto
- Turbo Mode
- Up-down louver control (fixed or swing)
- Remove filter from the top
- Improved serviceability
- Four fan speeds
- Sleep Mode
- Follow me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 29dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
Compatible With:
- DLCER Outdoor Unit Single Zone
- DLCMRA Outdoor Unit Multi-Zone
Color: White
| DLFEH High Wall | ||
| Heat Pump | ||
| System | ||
| Size | 12 | |
| Indoor Model | DLFEHAH12XAK | |
| Electrical | ||
| Voltage-Phase-Cycle | V-PhHz | 208/230-1-60 |
| Power Supply | Indoor unit powered from outdoor unit | |
| MCA | 0.25 | |
| Operating Range | ||
| Cooling Indoor DB Min - Max | ° F (° C) | 62~90 (17~32) |
| Heating Indoor DB Min - Max | ° F (° C) | 32~86 (0~30) |
| Piping | ||
| Pipe Connection Size - Liquid | in (mm) | 1/4 (6.35) |
| Pipe Connection Size - Suction | in (mm) | 1/2 (12.7) |
| Indoor | ||
| Unit Width | in (mm) | 32.00 (813) |
| Unit Height | in (mm) | 11.81 (300) |
| Unit Depth | in (mm) | 7.75 (197) |
| Net Weight | lbs (kg) | 22.49 (10.2) |
| Number of Fan Speeds | 4 | |
| Airflow (lowest to highest) | CFM | 212/282/324/353 |
| Sound Pressure (lowest to highest) | dB(A) | 34/39/41/43 |
| Air Throw Data | ft (m) | 22.6 (6.9) |
| Moisture Removal | Pint/h (L/h) | 3.38 (1.6) |
| Field Drain Pipe Size O.D. | in (mm) | 0.625 (16) |
