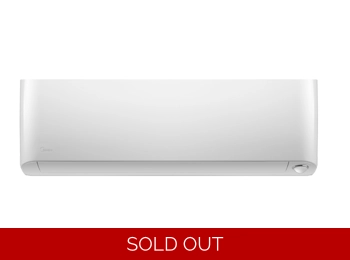

12000 btu DLFPH High Wall Indoor Unit
Product Code: DLFPHAH12XAK
Brand: Carrier Midea North America
Product Condition: New
KEY FEATURES
- Relative Humidity Sensor
Increasing comfort by setting the desired relative humidity in 5% increments in a range of 35%~85%. - Occupancy Sensor
Detects activity in the room and adjusts the horizontal angle of airflow to blow away from people or follow people.
FEATURES
- Available in 208/230V
- Relative Humidity Sensor
- Occupancy Sensor
- Modes: Cool, Heat, Dry, Fan, Auto
- Turbo Mode
- Fully modulating fan speeds
- Sleep Mode
- ECO Mode
- Up-down / right-left louver control (fixed or swing)
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 29 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
- Up to 40.0 SEER and 14.5 HSPF when paired with DLCPR outdoor unit
Compatible With:
- DLCPR Outdoor Unit Single Zone
- DLCMRA Outdoor Unit Multi-Zone
Color: White
| DLFPH High Wall | ||
| Heat Pump | ||
| System | ||
| Size | 12 | |
| Indoor Model | DLFPHAH12XAK | |
| Electrical | ||
| Voltage-Phase-Cycle | V-PhHz | 208/230-1-60 |
| Power Supply | Indoor unit powered from outdoor unit | |
| MCA | 0.3 | |
| Operating Range | ||
| Cooling Indoor DB Min - Max | ° F (° C) | 62~90 (17~32) |
| Heating Indoor DB Min - Max | ° F (° C) | 32~86 (0~30) |
| Piping | ||
| Pipe Connection Size - Liquid | in (mm) | 1/4 (6.35) |
| Pipe Connection Size - Suction | in (mm) | 1/2 (12.7) |
| Indoor | ||
| Unit Width | in (mm) | 35.2 (895) |
| Unit Height | in (mm) | 11.7 (298) |
| Unit Depth | in (mm) | 9.8 (248) |
| Net Weight | lbs (kg) | 37.48 (17) |
| Number of Fan Speeds | 4 | |
| Airflow (lowest to highest) | CFM | 168/252/306/357 |
| Sound Pressure (lowest to highest) | dB(A) | 29/35.5/41.5/46.8 |
| Air Throw Data | ft (m) | 22.97 (7) |
| Moisture Removal | Pint/h (L/h) | 2.53 (1.2) |
| Field Drain Pipe Size O.D. | in (mm) | 1 (25.4) |
