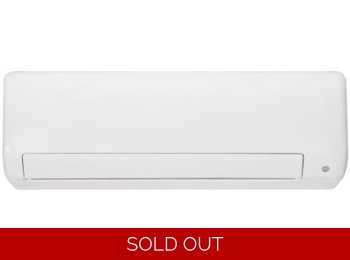

18000 btu DLFSH High Wall Mini Split Indoor Unit
Product Code: DLFSHBH18XAK
Brand: Carrier Midea North America
Product Condition: New
FEATURES
- Available in 208/230V
- Up to 21.5 SEER, 13 EER and 11.0 HSPF when paired with the DLCSRB outdoor unit
- Modes: Cool, Heat, Dry, Fan, Auto
- Turbo Mode
- Four fan speeds
- Sleep Mode
- Relative Humidity Sensor
- Intellegent Eye (Occupancy Sensor)
- ECO Mode
- Up-down louver control (fixed or swing)
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation
- Aluminum Golden Hydrophilic pre-coated fins
Compatible With:
- DLCSR(A/B) Outdoor Unit Single Zone
- DLCMRA Outdoor Unit Multi-Zone
Color: White
| DLFSHB High Wall | ||
| Heat Pump | ||
| System | ||
| Size | 18 | |
| Indoor Model | DLFSHBH18XAK | |
| Electrical | ||
| Voltage-Phase-Cycle | V-PhHz | 208/230-1-60 |
| Power Supply | Indoor unit powered from outdoor unit | |
| MCA | 0.5 | |
| Operating Range | ||
| Cooling Indoor DB Min - Max | ° F (° C) | 62~90 (17~32) |
| Heating Indoor DB Min - Max | ° F (° C) | 32~86 (0~30) |
| Piping | ||
| Pipe Connection Size - Liquid | in (mm) | 1/4 (6.35) |
| Pipe Connection Size - Suction | in (mm) | 1/2 (12.7) |
| Indoor | ||
| Unit Width | in (mm) | 42.60 |
| Unit Height | in (mm) | 13.27 |
| Unit Depth | in (mm) | 9.21 |
| Net Weight | lbs (kg) | 29.54 |
| Number of Fan Speeds | 3 | |
| Airflow (lowest to highest) | CFM | 382/458/531/761 |
| Sound Pressure (lowest to highest) | dB(A) | 37.9/40.9/46.3 |
| Air Throw Data | ft (m) | 31.8 (9.7) |
| Moisture Removal | Pint/h (L/h) | 3.625 (1.72) |
| Field Drain Pipe Size O.D. | in (mm) | 0.625 (16) |
