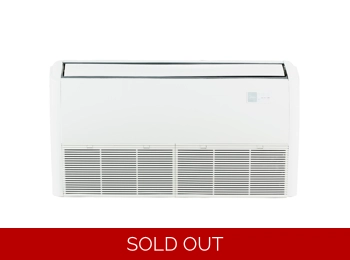

18000 btu DLFSF Floor Ceiling Mount Indoor Unit
Product Code: DLFSFAH18XAK
Rating: Be the first to write a review
Brand: Carrier Midea North America
Product Condition: New
Units in Stock: 0
(Notify me when product is back in stock)
KEY FEATURES
- 2-Way Optional Air Outlet
For up and down air-outlet or up air-outlet. Only on size 12. - Outside Air Intake
Outside air can be brought into the room through the connection available on the indoor unit which helps meet the ventilation requirement. Only on sizes 18-24.
FEATURES
- Available in 208/230V
- Up to 22.5 SEER and 12.0 HSPF when paired with DLCSR outdoor unit
- Modes: Cool, Heat, Dry, Fan, Auto
- Auto-restart function
- Size 12 capable of being mounted on floor only
- Sizes 18-24 capable of being mounted on floor or ceiling
- Louver control (fixed or swing)
- Three fan speeds
- Air discharge from top and bottom (size 12 only)
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 34 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
Compatible With:
- DLCSR Outdoor Unit Single Zone
- DLCMRA Outdoor Unit Multi-Zone
Color: White
| DLFSF Console | ||
| Heat Pump | ||
| System | ||
| Size | 18 | |
| Indoor Model | DLFSFAH18XAK | |
| Electrical | ||
| Voltage-Phase-Cycle | V-PhHz | 208/230-1-60 |
| Power Supply | Indoor unit powered from outdoor unit | |
| MCA | 1.0 | |
| Operating Range | ||
| Cooling Indoor DB Min - Max | ° F (° C) | 62~90 (17~32) |
| Heating Indoor DB Min - Max | ° F (° C) | 32~86 (0~30) |
| Piping | ||
| Pipe Connection Size - Liquid | in (mm) | 1/4 (6.35) |
| Pipe Connection Size - Suction | in (mm) | 1/2 (12.7) |
| Indoor | ||
| Unit Width | in (mm) | 42.05 (1068) |
| Unit Height | in (mm) | 26.57 (675) |
| Unit Depth | in (mm) | 9.25 (235) |
| Net Weight | lbs (kg) | 55.12 (25) |
| Number of Fan Speeds | 3 | |
| Airflow (lowest to highest) | CFM | 420/485/550 |
| Sound Pressure (lowest to highest) | dB(A) | 39/44/47 |
| Air Throw Data | ft (m) | 26 (8) |
| Field Drain Pipe Size O.D. | in (mm) | 1 (25.4) |
Customer Reviews
(write review)There are 3 set fan speed
"Which makes it even quieter and keeps it from blowing on me as much while I'm in room." Vanessa Muñoz - Tuesday, February 2, 2021
