Midea 60K-Btu 17 SEER2 Ducted Mini Split H-Heat Pump (-22°F) 10.3 EER/8.4 HSPF (R410a)

Midea 60K-Btu 17 SEER2 Ducted Mini Split H-Heat Pump (-22°F) 10.3 EER/8.4 HSPF (R410a)

Product Code: DLCLRCH58AAK/DLFLDAH58XAK/15500303002664

Rating: Be the first to write a review

Brand: Carrier Midea North America

Product Condition: New

Units in Stock: 0

(Notify me when product is back in stock)

Midea 5 Ton Mini Split Slim Ducted HYPER Heat Pump AC

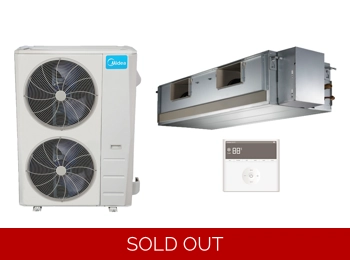

Included In This 5 Ton Mini Split Package:

*(1) Light Commercial Indoor Unit with Wired Thermostat
*(1) Light Commercial HYPER Heat Outdoor Unit

(1) Factory Warranty

Register Online: CLICK HERE
(*Terms apply)

Features 5 Ton Outdoor:
• Variable Speed (Inverter) Compressor • Basepan Heater factory installed • Quiet operation • Aluminum Hydrophilic pre-coated fins • Piping length 213 ft. (65 m) • Cooling operating range -22° ~ 122° F • Heating operating range -22°~86°F

OUTDOOR KEY FEATURES

Longer Piping Lengths
Piping flexibility up to a total piping length of 213 ft. (65 m.)
Low Ambient Cooling to -22F
With built-in Low Ambient Kit or special designed PCB, outdoor fan speeds can be changed automatically based on the temperature. The unit can run cooling operation even in low ambient temperatures.

Slim Ducts provide an inconspicuous solution, hidden in attics and ceiling crawl spaces, without the energy loss associated with central ducted systems. Slim Ducts offer flexibility of installation as the ducts can be directed into separate areas which are collectively controlled by one wall thermostat. For example, one slim duct can be directed to cool and heat hallways, closets, laundry rooms, and bathrooms of a home while the bedrooms themselves are controlled independently.

FEATURES 5 Ton Indoor:
• Modes: Cool, Heat, Dry, Fan, Auto • Horizontal Installation • Rear Return • Outside Air Intake • Built-in condensate Lift pump • Follow Me (senses temperature at handheld remote) • Heating Setback (46° F Heating Mode) • Quiet indoor operation • Aluminum Golden Hydrophilic pre-coated fins

INDOOR KEY FEATURES

Horizontal Installation ONLY
Designed without the secondary drain pan which allow 36-48K units to be mounted vertically for either a floor or ceiling-concealed installation.
Built-In Codensate Lift Pump
Supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.

**Condensate Pump Included**

Brochure

*Click Model Below For Cut Sheet/Specs

DLCLRCH58AAK

Please see the drop down boxes above to add copper lines & wires.
Requires 2 Sets of wires, 1-(set) for Power Indoor to Outdoor & 1-(set 16AWG) For Signal
(Copper Line & Wire option above includes power wire, you will still need the 16AWG signal wire)

⇓ See Related Items Below For More Accessories ⇓
